Jeep Grand Cherokee WK. Manual - part 368





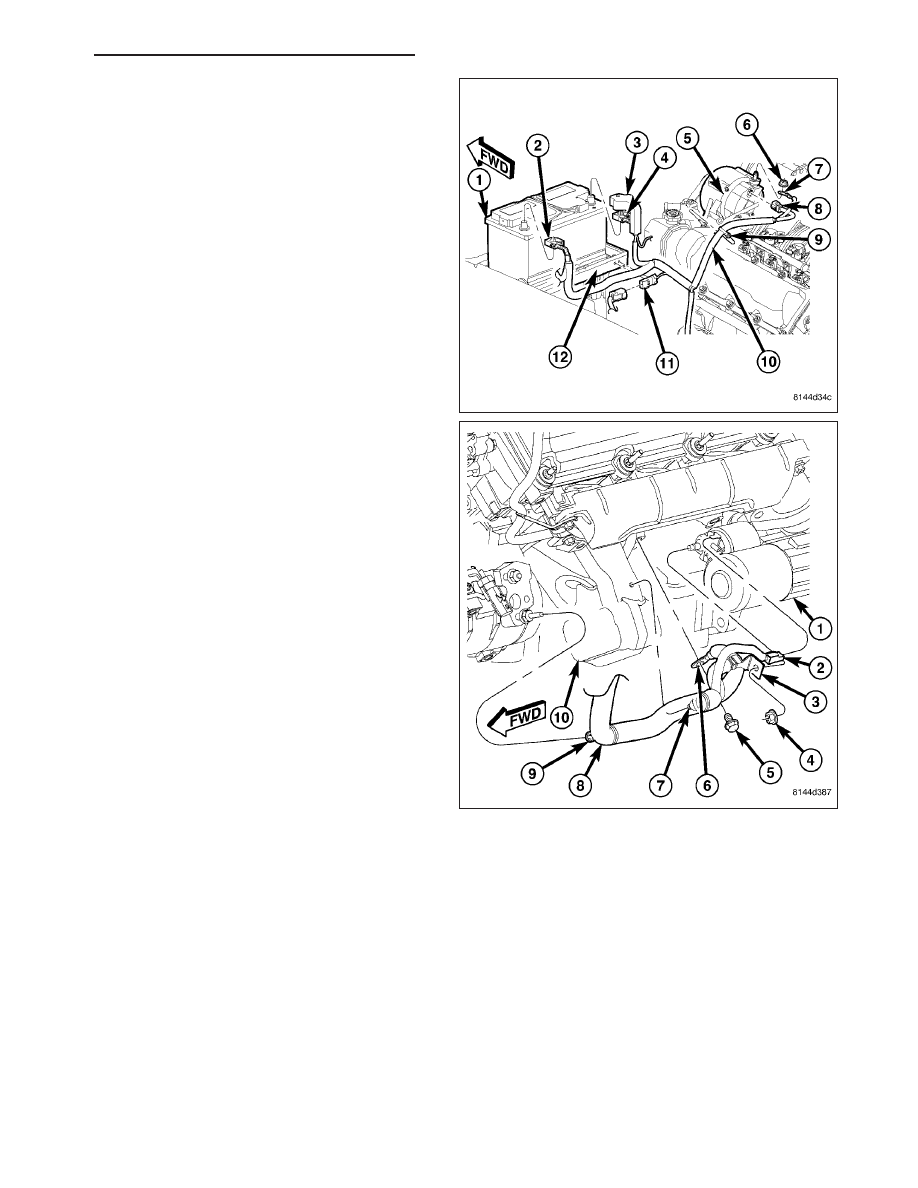

16. On 5.7L engines remove the nut (5) that secures

the generator output cable eyelet terminal (4) to
the generator output terminal stud.

17. Remove the generator output cable eyelet termi-

nal from the generator output terminal stud.

18. Disconnect the battery wire harness connector (6)

from the generator field terminal connector recep-
tacle on the back of the generator (3).

19. Remove the battery wire harness retaining clips

(2) from the valve cover studs.

20. Raise the vehicle on a hoist, (Refer to LUBRICA-

TION & MAINTENANCE/LIFT POINTS - STAN-
DARD PROCEDURE).

21. Remove the bolt (5) that secures the battery neg-

ative cable ground eyelet terminal (6) to the
engine block (10).

22. Remove the nut (4) that secures the battery pos-

itive cable eyelet terminal (3) to the B(+) terminal
stud on the starter solenoid.

23. Remove the battery positive cable eyelet terminal

from the B(+) terminal stud on the starter sole-
noid.

24. Disconnect the battery wire harness connector (2)

from the connector receptacle on the starter sole-
noid.

25. Remove the battery wire harness retaining clips

(7) & (9) from the engine.

26. Remove the battery wire harness from the engine

compartment.

INSTALLATION

NOTE: Both the battery negative cable and the battery positive cable are serviced in the battery wire har-
ness. If either battery cable is damaged or inoperative, the battery wire harness assembly must be replaced.

8F - 24

BATTERY SYSTEM - SERVICE INFORMATION

WK

1. Clean and inspect the battery cable terminal

clamps and the battery terminal posts, (Refer to 8 -
ELECTRICAL/BATTERY SYSTEM - CLEANING).

2. Position the battery wire harness assembly (10)

into the vehicle.

3. Raise the vehicle on a hoist, (Refer to LUBRICA-

TION & MAINTENANCE/LIFT POINTS - STAN-
DARD PROCEDURE).

4. Install the battery wire harness retaining clips (7) &

(9) to the engine.

5. Reconnect the battery wire harness connector (2)

to the connector receptacle on the starter solenoid.

6. Install the battery positive cable eyelet terminal (3)

onto the B(+) terminal stud on the starter solenoid.

7. Install and tighten the nut (4) that secures the bat-

tery positive cable eyelet terminal (3) to the B(+)
terminal stud on the starter solenoid. Tighten the
nut to 10.75 N·m (95 in. lbs.).

8. Install and tighten the bolt (5) that secures the bat-

tery negative cable ground eyelet terminal (6) to
the engine block (10). Tighten the bot to 10.75 N·m
(95 in. lbs.).

9. Lower the vehicle.

WK

BATTERY SYSTEM - SERVICE INFORMATION

8F - 25

10. Install the battery wire harness retaining clips (2)

to the valve cover studs.

11. On 5.7L engines, reconnect the battery wire har-

ness connector (6) to the generator field terminal
connector receptacle on the back of the generator.

12. Install the generator output cable eyelet terminal

(4) onto the generator output terminal stud.

13. Install and tighten the nut (5) that secures the

generator output cable eyelet terminal (4) to the
generator output terminal stud. Tighten the nut to
14 N·m (125 in. lbs.).

14. On 3.7L and 4.7L engines, reconnect the battery

wire harness connector (8) to the generator field
terminal connector receptacle on the back of the
generator.

15. Install the generator output cable eyelet terminal

(7) onto the generator output terminal stud.

16. Install and tighten the nut (6) that secures the

generator output cable eyelet terminal (7) to the
generator output terminal stud. Tighten the nut to
14 N·m (125 in. lbs.).

17. Install the battery wire harness retaining clip (9)

onto the valve cover stud.

18. Install the battery wire harness three pin connec-

tor (11) onto the battery tray (12).

19. Connect the battery wire harness three pin con-

nector (11).

8F - 26

BATTERY SYSTEM - SERVICE INFORMATION

WK

20. Install both battery positive cable eyelet terminals

onto the B(+) terminal studs in the Power Distri-
bution Center (PDC) and Integrated Power Mod-
ule (IPM).

21. Install and tighten the nuts that secure the battery

positive cable eyelet terminals onto the B(+) ter-
minal studs in the PDC and IPM. Tighten the nut
to 11.5 N·m (105 in. lbs.).

22. Close and latch the covers on the PDC (1) and

IPM (2).

23. Install and tighten the screw (1) that secures the

battery negative cable eyelet terminal (2) to the
inner fender (3). Tighten the screw to 28.2 N·m
(250 in. lbs.).

WK

BATTERY SYSTEM - SERVICE INFORMATION

8F - 27
