Jeep Grand Cherokee WK. Manual - part 1757





SPECIFICATIONS

A/C SYSTEM

Item

Description

Notes

A/C Compressor

Denso 10S17

ND-8 PAG oil

Freeze–up Control

Evaporator Temperature Sensor

HVAC housing mounted

Low psi Control

A/C Pressure Transducer

Discharge line mounted - opens
below 110 kPa (16 psi), closes
above 220 kPa (32 psi)

High psi Control

A/C Pressure Transducer

Discharge line mounted - opens
above 3219 kPa (476 psi), closed
below 2937 kPa (426 psi)

Refrigerant Charge Capacity

Refer to the A/C Underhood
Specification Label located in the
engine compartment

R-134a refrigerant

A/C Clutch Coil Draw

3.3 amps

@ 12V ± 0.5V @ 21° C (70° F)

A/C Clutch Coil Resistance

3.6 ± 0.2 ohms

When measured across coil lead
connector

A/C Clutch Air Gap

0.35 - 0.60 mm (0.014 - 0.024 in.)

24 - 376

HVAC - SERVICE INFORMATION

WK

SPECIAL TOOLS

HEATING-A/C SYSTEM

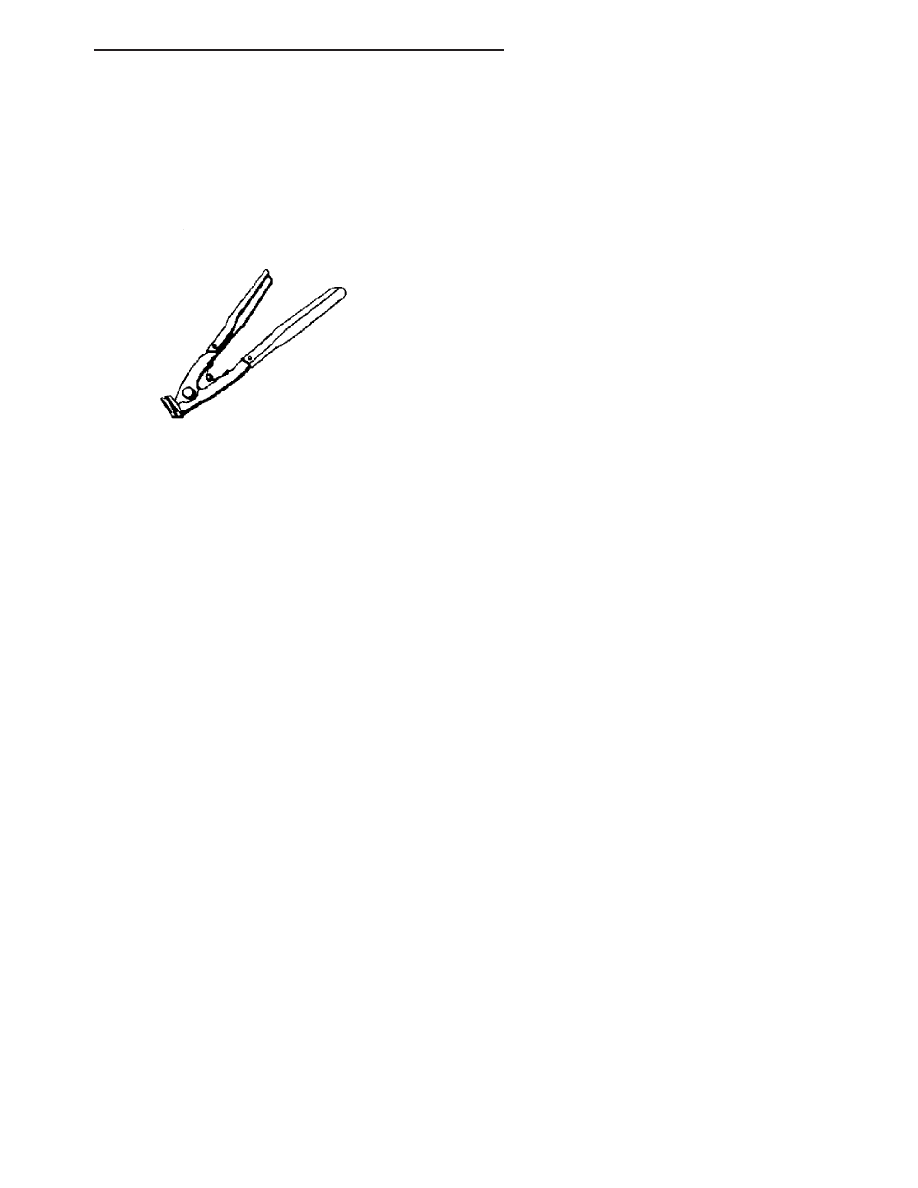

Snap Ring Pliers C-4574 are required to service the
A/C clutch and field coil.

WK

HVAC - SERVICE INFORMATION

24 - 377

CONTROLS

TABLE OF CONTENTS

page

page

ACTUATOR-BLEND DOOR

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 379

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 379

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 379

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 380

ACTUATOR-MODE DOOR

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 383

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 383

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 383

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 385

ACTUATOR-RECIRCULATION DOOR

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 387

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 387

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 387

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 388

CLUTCH-A/C COMPRESSOR

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 389

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 389

DIAGNOSIS AND TESTING

A/C COMPRESSOR CLUTCH COIL

. . . . . . . 390

STANDARD PROCEDURE

A/C CLUTCH PLATE INSPECTION

. . . . . . . . 391

A/C CLUTCH BREAK-IN

. . . . . . . . . . . . . . . . 391

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 391

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 394

CONTROL-A/C-HEATER

DESCRIPTION

MANUAL SINGLE ZONE

. . . . . . . . . . . . . . . 396

AUTOMATIC DUAL ZONE

. . . . . . . . . . . . . . 397

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 398

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 398

MODULE-POWER-BLOWER MOTOR

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 399

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 399

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 399

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 400

RELAY-A/C CLUTCH

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 401

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 401

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 402

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 402

RELAY-BLOWER MOTOR

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 403

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 403

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 404

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 404

RESISTOR-BLOWER MOTOR

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 405

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 405

DIAGNOSIS AND TESTING

BLOWER MOTOR RESISTOR

. . . . . . . . . . . 405

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 406

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 407

SENSOR-AMBIENT AIR TEMPERATURE

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 407

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 407

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 408

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 408

SENSOR-EVAPORATOR TEMPERATURE

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 409

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 409

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 409

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 410

SENSOR-INFRARED

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 411

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 411

SENSOR-SUN

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 412

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 412

DIAGNOSIS AND TESTING

SUN SENSOR

. . . . . . . . . . . . . . . . . . . . . . . 412

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 413

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 414

TRANSDUCER-A/C PRESSURE

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 415

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 415

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 416

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 416

24 - 378

CONTROLS

WK

ACTUATOR-BLEND DOOR

DESCRIPTION

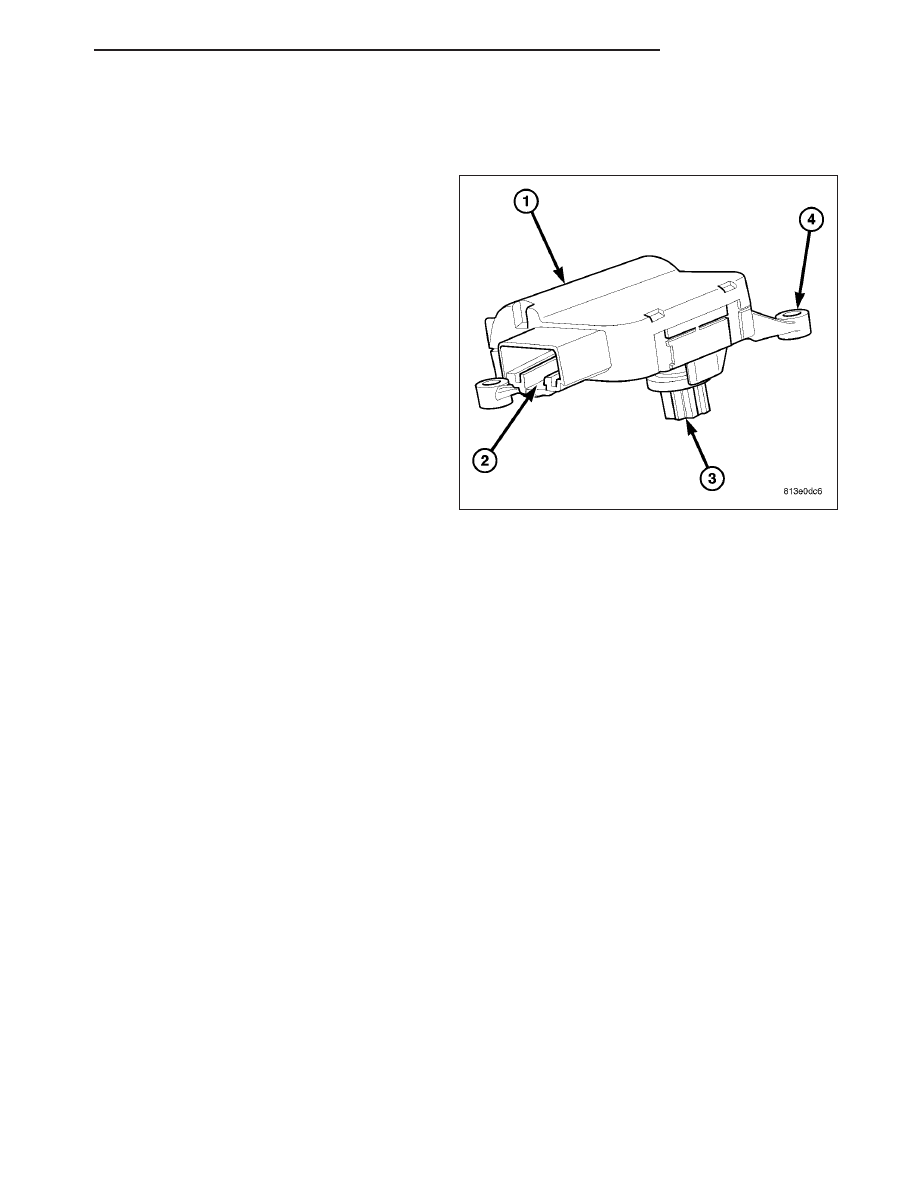

The blend door actuators (1) are reversible, 12 volt
direct current (DC), servo motors. Models equipped
with the MTC single zone heating-A/C system have a
single blend-air door, which is controlled by a single
blend door actuator. Models with the ATC dual zone
heating-A/C system have two blend-air doors, which
are controlled by two blend door actuators.

The blend door actuator for the single zone heating-
A/C system is located on the driver side end of the
HVAC air distribution housing, close to the dash panel.

For the dual zone heating-A/C system, the same
blend door actuator used for the single zone system
becomes the driver side blend door actuator, which is
mechanically connected to only the driver side blend-
air door. A second separate blend door actuator is
also located on the passenger side of the HVAC air
distribution housing which is mechanically connected
to only the passenger side blend-air door.

The blend door actuators are interchangeable with
each other, as well as with the actuators for the mode-air door and the recirculation-air door. Each actuator is con-
tained within an identical black molded plastic housing with an integral wire connector receptacle (2). Each actuator
also has an identical output shaft with splines (3) that connects it to its respective door linkage and three integral
mounting tabs (4) that allow the actuator to be secured to the HVAC housing. The blend door actuators do not
require mechanical indexing to the blend-air doors, as they are electronically calibrated by the A/C-heater control.

OPERATION

The blend door actuators are connected to the A/C-heater control through the vehicle electrical system by a dedi-
cated two-wire lead and connector of the HVAC wire harness. The blend door actuator(s) can move the blend-air
door(s) in two directions. When the A/C-heater control pulls the voltage on one side of the motor connection high
and the other connection low, the blend-air door will move in one direction. When the A/C-heater control reverses
the polarity of the voltage to the motor, the blend-air door moves in the opposite direction.

When the A/C-heater control makes the voltage to both connections high or both connections low, the blend-air
door(s) stops and will not move. The A/C-heater control uses a pulse-count positioning system to monitor the oper-
ation and relative position of the blend door actuators and the blend-air doors. The A/C-heater control learns the
blend-air doors stop positions during the calibration procedure and will store a diagnostic trouble code (DTC) for any
problems it detects in the blend door actuator circuits.

Refer to 24 - HEATING & AIR CONDITIONING - DIAGNOSIS AND TESTING - HEATING AND A/C SYSTEMS and
to 24 - HVAC Electrical Diagnostics for more information.

The blend door actuator(s) cannot be adjusted or repaired and, if faulty or damaged, they must be replaced.

REMOVAL

WARNING: On vehicles equipped with airbags, disable the airbag system before attempting any steering
wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the
negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before
performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to
take the proper precautions could result in accidental airbag deployment and possible personal injury or
death.

WK

CONTROLS

24 - 379
