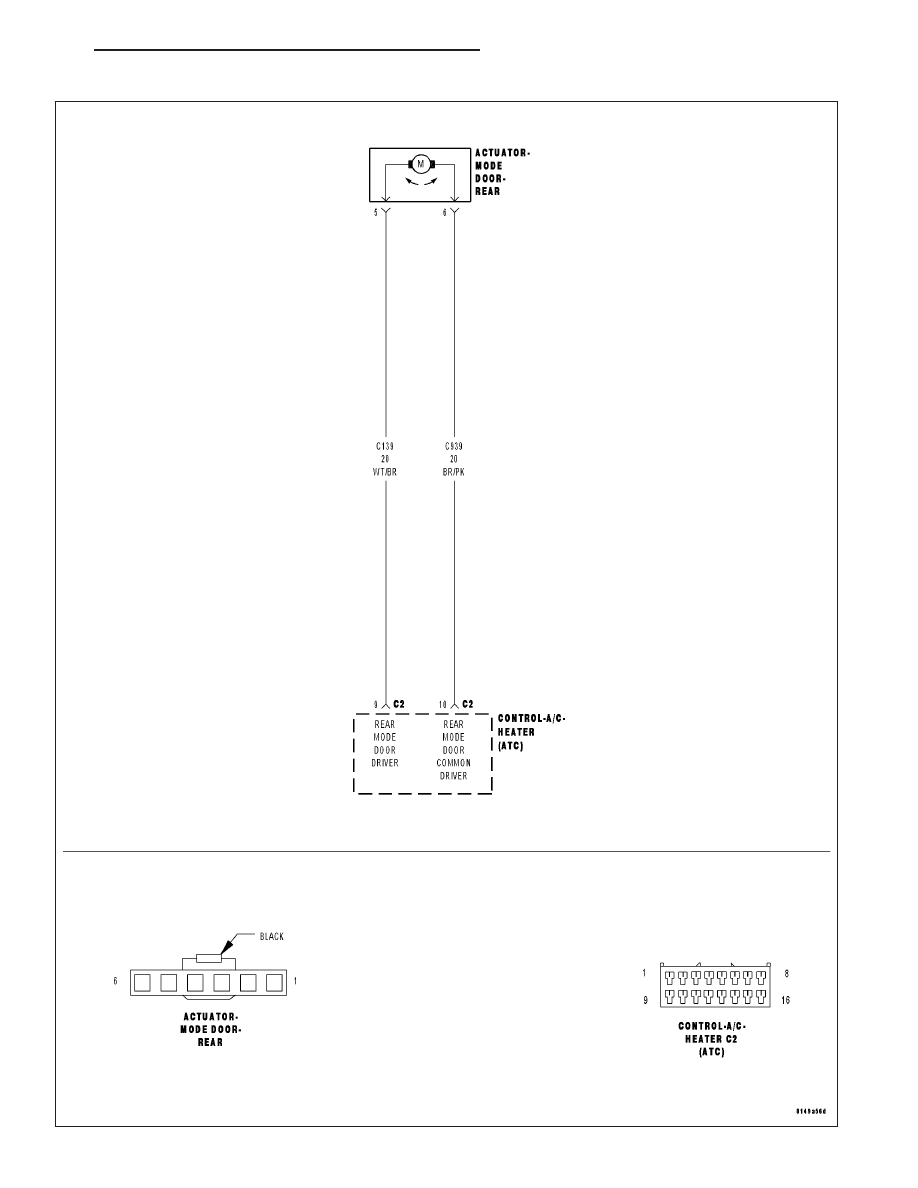

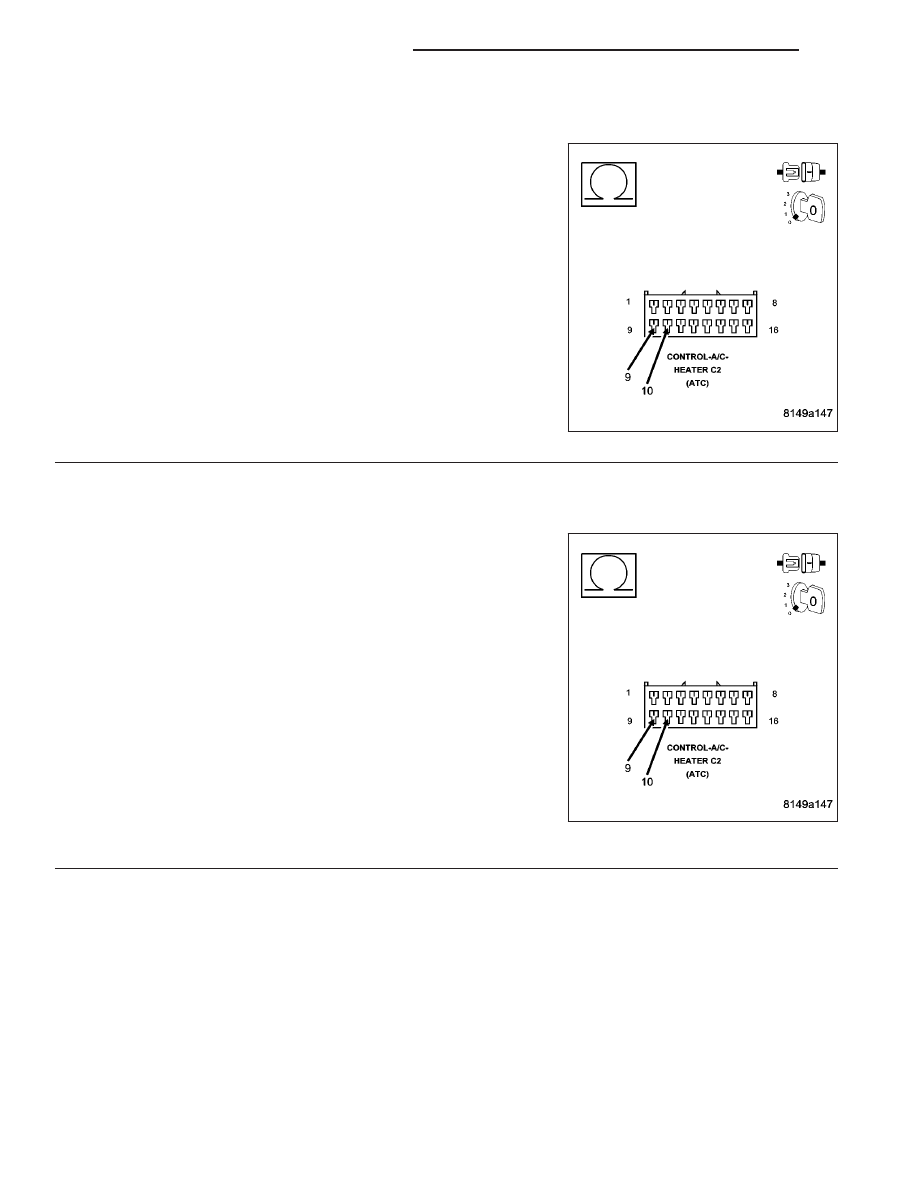

B109C–PANEL MODE DOOR 2 CONTROL CIRCUIT LOW (ATC) (CONTINUED) 2. CHECK THE REAR MODE DOOR ACTUATOR CIRCUIT RESISTANCE Measure the resistance between the (C139) Rear Mode Door Driver Is the resistance below 30.0 ohms? Yes >> Go To 3 No >> Go To 4 3. CHECK THE (C139) REAR MODE DOOR DRIVER CIRCUIT FOR A SHORT TO THE (C939) REAR MODE Disconnect the Rear Mode Door Actuator harness connector. Measure the resistance between the (C139) Rear Mode Door Driver Is the resistance below 10k ohms? Yes >> Repair the (C139) Rear Mode Door Driver circuit for a short to the (C939) Rear Mode Door Common Driver cir- Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 No >> Replace the Rear Mode Door Actuator in accordance with the Service Information. Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 24 - 268 HVAC - ELECTRICAL DIAGNOSTICS WK |
