Jeep Grand Cherokee WK. Manual - part 1714





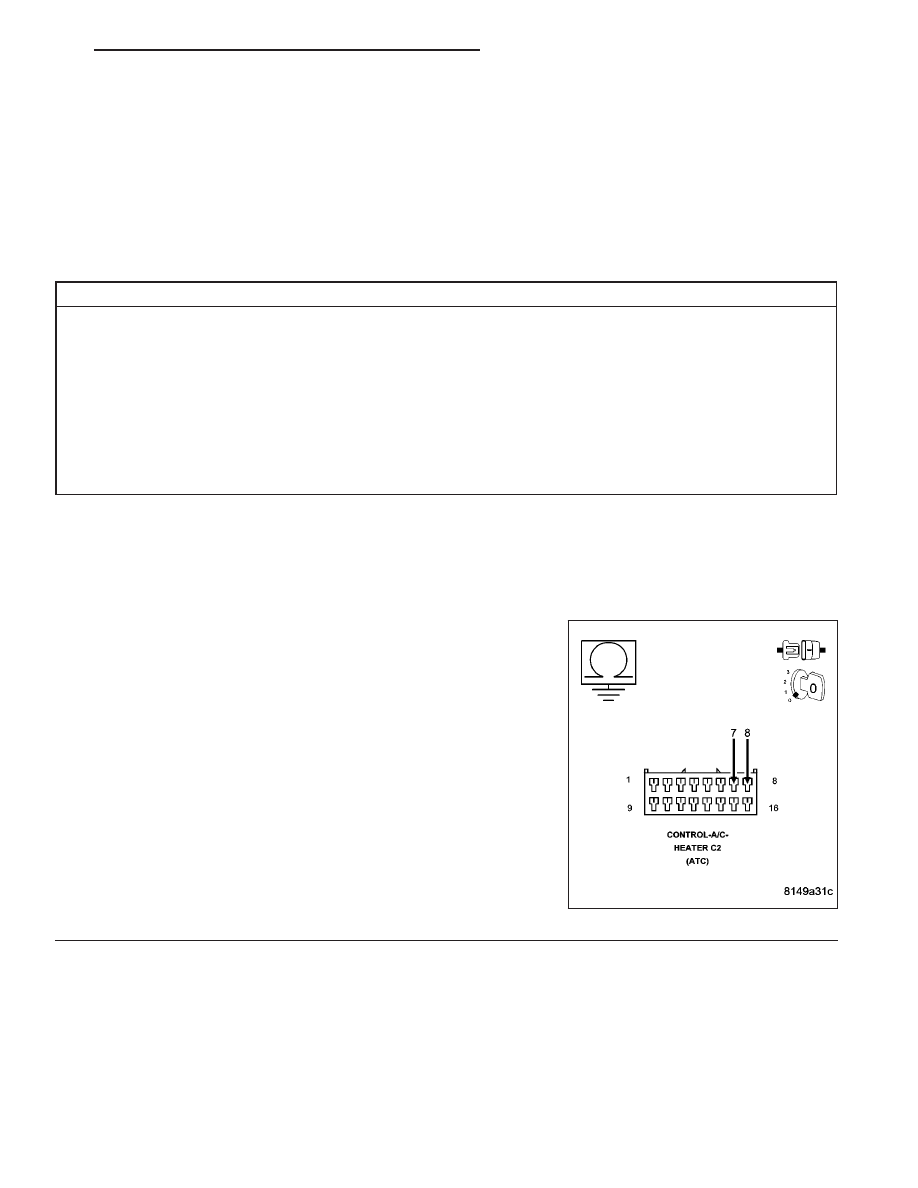

B10AA–RIGHT BLEND DOOR CONTROL CIRCUIT LOW (ATC)

24 - 204

HVAC - ELECTRICAL DIAGNOSTICS

WK

B10AA–RIGHT BLEND DOOR CONTROL CIRCUIT LOW (ATC) (CONTINUED)

For the Automatic Temperature Control (ATC) circuit diagram (Refer to 24 - HEATING & AIR CONDITIONING -
SCHEMATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
When the Actuator DTC Detection Test is executed.

Set Condition:
If the (C61) Right Blend Door Driver circuit or the (C161) Right Blend Door Common Driver circuit is shorted
to ground.

Possible Causes

(C61) RIGHT BLEND DOOR DRIVER CIRCUIT SHORTED TO GROUND

(C161) RIGHT BLEND DOOR COMMON DRIVER CIRCUIT SHORTED TO GROUND

(C61) RIGHT BLEND DOOR DRIVER CIRCUIT SHORTED TO (C161) RIGHT BLEND DOOR COMMON DRIVER
CIRCUIT

(C61) RIGHT BLEND DOOR DRIVER CIRCUIT SHORTED TO OTHER DOOR DRIVER CIRCUIT(S)

(C161) RIGHT BLEND DOOR COMMON DRIVER CIRCUIT SHORTED TO OTHER DOOR DRIVER CIRCUIT(S)

RIGHT BLEND DOOR ACTUATOR

A/C HEATER CONTROL

Diagnostic Test

1.

CHECK THE (C61) RIGHT BLEND DOOR DRIVER CIRCUIT & THE (C161) RIGHT BLEND DOOR COMMON
DRIVER CIRCUIT FOR A SHORT TO GROUND

Turn the ignition off.

Disconnect the A/C Heater Control C2 harness connector.

Measure the resistance of the (C61) Right Blend Door Driver circuit
between ground and the A/C Heater Control C2 harness connector.

Measure the resistance of the (C161) Right Blend Door Common
Driver circuit between ground and the A/C Heater Control C2 harness
connector.

Is the resistance below 10k ohms on either circuit?

Yes

>> Repair the circuit(s) with a resistance below 10k ohms for

a short to ground.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Go To 2

WK

HVAC - ELECTRICAL DIAGNOSTICS

24 - 205

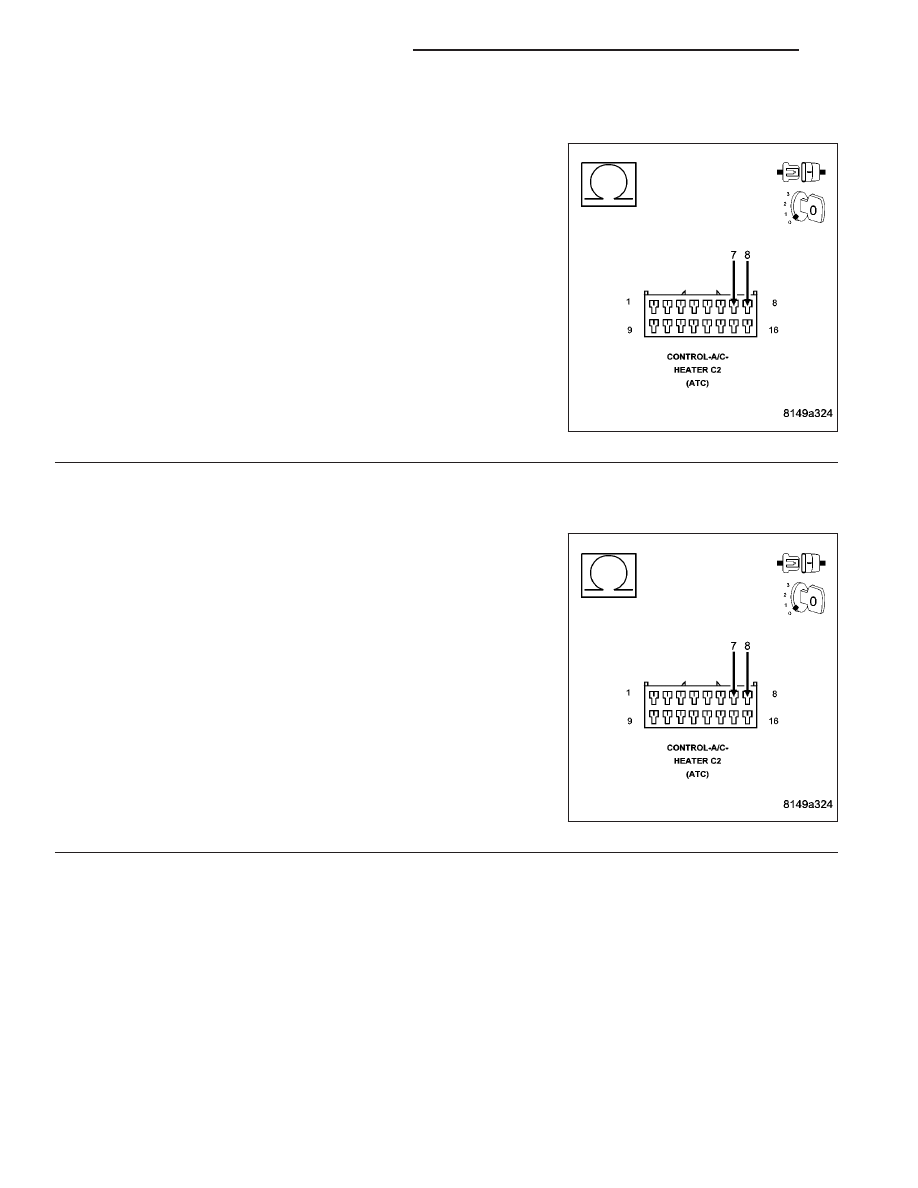

B10AA–RIGHT BLEND DOOR CONTROL CIRCUIT LOW (ATC) (CONTINUED)

2.

CHECK THE RIGHT BLEND DOOR ACTUATOR CIRCUIT RESISTANCE

Measure the resistance between the (C61) Right Blend Door Driver
circuit and the (C161) Right Blend Door Common Driver circuit in the
A/C Heater Control C2 harness connector.

Is the resistance below 30.0 ohms?

Yes

>> Go To 3

No

>> Go To 4

3.

CHECK THE (C61) RIGHT BLEND DOOR DRIVER CIRCUIT FOR A SHORT TO THE (C161) RIGHT BLEND
DOOR COMMON DRIVER CIRCUIT

Disconnect the Right Blend Door Actuator harness connector.

Measure the resistance between the (C61) Right Blend Door Driver
circuit and the (C161) Right Blend Door Common Driver circuit in the
A/C Heater Control C2 harness connector.

Is the resistance below 10k ohms?

Yes

>> Repair the (C61) Right Blend Door Driver circuit for a short

to the (C161) Right Blend Door Common Driver circuit.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Replace the Right Blend Door Actuator in accordance with

the Service Information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

24 - 206

HVAC - ELECTRICAL DIAGNOSTICS

WK

B10AA–RIGHT BLEND DOOR CONTROL CIRCUIT LOW (ATC) (CONTINUED)

4.

CHECK THE (C61) RIGHT BLEND DOOR DRIVER CIRCUIT FOR A SHORT TO OTHER DOOR DRIVER
CIRCUITS

Measure the resistance between the (C61) Right Blend Door Driver
circuit and the (C266) Front Mode Door Driver circuit, (C66) Front
Mode Door Common Driver circuit, (C268) Recirculation Door Driver
circuit, (C68) Recirculation Door Common Driver circuit, (C255) Left
Blend Door Driver circuit, (C55) Left Blend Door Common Driver cir-
cuit, (C139) Rear Mode Door Driver circuit, and the (C939) Rear Mode
Door Common Driver circuit in the A/C Heater Control C2 harness
connector.

Is the resistance below 10k ohms between the (C61) Right
Blend Door Driver circuit and any of the other door driver cir-
cuits?

Yes

>> Repair the circuit(s) with a resistance below 10k ohms for

a short to the (C61) Right Blend Door Driver circuit.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Go To 5

5.

CHECK THE (C161) RIGHT BLEND DOOR COMMON DRIVER CIRCUIT FOR A SHORT TO OTHER DOOR
DRIVER CIRCUITS

Measure the resistance between the (C161) Right Blend Door Com-
mon Driver circuit and the (C266) Front Mode Door Driver circuit,
(C66) Front Mode Door Common Driver circuit, (C268) Recirculation
Door Driver circuit, (C68) Recirculation Door Common Driver circuit,
(C255) Left Blend Door Driver circuit, (C55) Left Blend Door Common
Driver circuit, (C139) Rear Mode Door Driver circuit, and the (C939)
Rear Mode Door Common Driver circuit in the A/C Heater Control C2
harness connector.

Is the resistance below 10k ohms between the (C161) Right
Blend Door Common Driver circuit and any of the other door
driver circuits?

Yes

>> Repair the circuit(s) with a resistance below 10k ohms for

a short to the (C161) Right Blend Door Common Driver
circuit.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Go To 6

WK

HVAC - ELECTRICAL DIAGNOSTICS

24 - 207
