Jeep Grand Cherokee WK. Manual - part 1669





25–REAR MODE DOOR RANGE TOO LARGE (MTC) (CONTINUED)

Diagnostic Test

1.

VERIFY IF ANY ACTUATOR CIRCUIT TEST FAULTS OR OVERCURRENT FAULTS ARE PRESENT

Turn the ignition on.

Actuate the Clear DTC function by performing the following:

Turn the blower control on.

Press the A/C mode switch down, turn the blower control to off, wait 5 seconds and then release the A/C mode
switch.

When the A/C status indicator begins displaying DTCs, set the Mode switch to the floor position, simulta-
neously press the A/C mode switch and the EBL mode switch down for 5 seconds and then release the mode
switches. Stored DTCs will clear from memory in approximately two seconds.

Turn the ignition off, wait 10 seconds, and turn the ignition on.

Actuate the Actuator Circuit Test / Door Calibration Function by performing the following:

Turn the blower control off.

Press and hold the EBL mode switch down and then turn the blower control on. Continue to hold the EBL
mode switch down until the EBL status indicator begins flashing. Then, release the EBL mode switch. While
the test / function is running, the EBL status indicator will flash once per second. If the test / function passes,
the EBL status indicator will stop flashing. If the test / function fails, the A/C and EBL status indicators will flash
alternately. Allow the test / function to run to completion before proceeding.

Actuate the Display DTC function by performing the following:

Turn the blower control on.

Press the A/C mode switch down, turn the blower control to off, wait 5 seconds and then release the A/C mode
switch.

NOTE: The A/C status indicator displays active DTCs when the EBL status indictor is not illuminated and
stored DTCs when the EBL status indicator is illuminated.
Read DTCs from the A/C status indictor.

Does the A/C status indicator display any of the following DTCs: 41, 42, 43, 44, 61, 62, 63, 64, 65, 66, 67,
68, 69, 71, or 72?

Yes

>> As present, diagnose and repair the faults in the following order: DTC 72 first, then DTC 62, then DTC

61, then DTCs 64, 66, 68, or 71, then DTCs 63, 65, 67, or 69, and finally DTCs 41, 42, 43, or 44. Refer
to the Table Of Contents in this section for a complete list of HVAC related symptoms.

No

>> Go To 2

2.

CHECK FOR A BROKEN REAR MODE DOOR ACTUATOR

Turn the ignition off.

Remove the Rear Mode Door Actuator from the A/C Heater Housing Assembly.

By hand, attempt to rotate the actuator in both directions.

Does the actuator turn in either direction?

Yes

>> Replace the Rear Mode Door Actuator in accordance with the Service Information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE).

No

>> Go To 3

24 - 24

HVAC - ELECTRICAL DIAGNOSTICS

WK

25–REAR MODE DOOR RANGE TOO LARGE (MTC) (CONTINUED)

3.

CHECK THE REAR MODE DOOR & A/C HEATER HOUSING FOR WARPED, WORN, & DAMAGED
COMPONENTS

Inspect for excessively worn door linkage and for a damaged or broken A/C Heater Housing Assembly. Inspect for
a warped or broken door, and missing door seals. Rotate the door from stop to stop. The door should rotate approx-
imately 155 degrees.

Are there any physical or mechanical problems with the door or housing?

Yes

>> Repair as necessary in accordance with the Service Information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE).

No

>> Replace the Rear Mode Door Actuator in accordance with the Service Information. Then, Go To 4.

4.

VERIFY THAT THE FAULT IS STILL PRESENT

Turn the ignition on.

Actuate the Clear DTC function by performing the following:

Turn the blower control on.

Press the A/C mode switch down, turn the blower control to off, wait 5 seconds and then release the A/C mode
switch.

When the A/C status indicator begins displaying DTCs, set the Mode switch to the floor position, simulta-
neously press the A/C mode switch and the EBL mode switch down for 5 seconds and then release the mode
switches. Stored DTCs will clear from memory in approximately two seconds.

Turn the ignition off, wait 10 seconds, and turn the ignition on.

Actuate the Actuator Circuit Test / Door Calibration Function by performing the following:

Turn the blower control off.

Press and hold the EBL mode switch down and then turn the blower control on. Continue to hold the EBL
mode switch down until the EBL status indicator begins flashing. Then, release the EBL mode switch. While
the test / function is running, the EBL status indicator will flash once per second. If the test / function passes,
the EBL status indicator will stop flashing. If the test / function fails, the A/C and EBL status indicators will flash
alternately. Allow the test / function to run to completion before proceeding.

Actuate the Display DTC function by performing the following:

Turn the blower control on.

Press the A/C mode switch down, turn the blower control to off, wait 5 seconds and then release the A/C mode
switch.

NOTE: The A/C status indicator displays active DTCs when the EBL status indictor is not illuminated and
stored DTCs when the EBL status indicator is illuminated.
Read DTCs from the A/C status indictor.

Does the A/C status indicator display DTC 25?

Yes

>> Replace the A/C Heater Control in accordance with the Service Information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE).

No

>> Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL

MODULES - STANDARD PROCEDURE).

WK

HVAC - ELECTRICAL DIAGNOSTICS

24 - 25

31–EVAPORATOR SENSOR OPEN (MTC)

24 - 26

HVAC - ELECTRICAL DIAGNOSTICS

WK

31–EVAPORATOR SENSOR OPEN (MTC) (CONTINUED)

For the Manual Temperature Control (MTC) circuit diagram (Refer to 24 - HEATING & AIR CONDITIONING - SCHE-
MATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
If the Evaporator Temperature Sensor input is out of range toward the high voltage threshold.

Possible Causes

(C21) EVAPORATOR TEMPERATURE SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE

(C21) EVAPORATOR TEMPERATURE SENSOR SIGNAL CIRCUIT OPEN

(C121) SENSOR GROUND CIRCUIT OPEN

EVAPORATOR TEMPERATURE SENSOR

A/C HEATER CONTROL

NOTE: This DTC must be active for the results of this test to be valid. Do not perform this test if this DTC
is stored. Refer to HVAC System Test (MTC) for stored DTC test procedures.

Diagnostic Test

1.

CHECK (C21) EVAPORATOR TEMPERATURE SENSOR SIGNAL CIRCUIT FOR A SHORT TO VOLTAGE

Turn the ignition off.

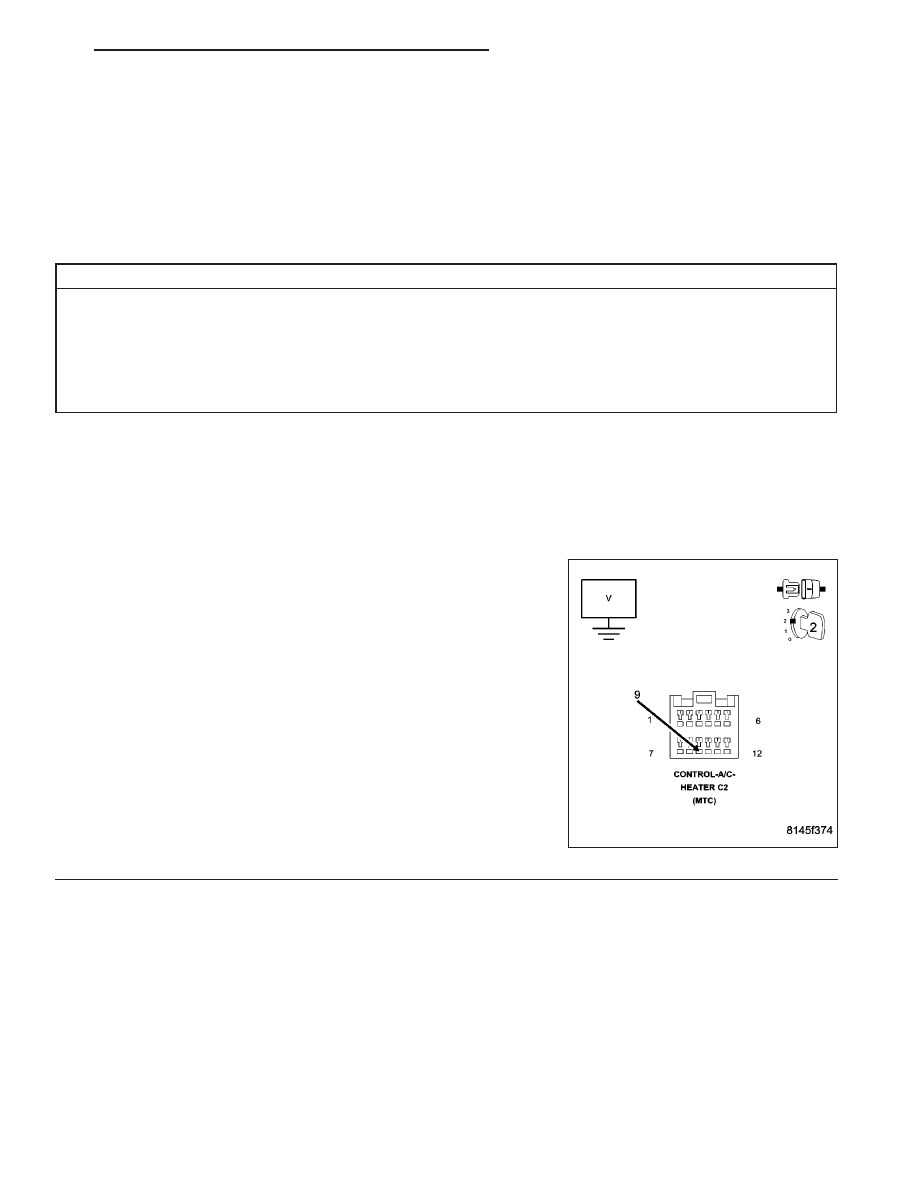

Disconnect the A/C Heater Control C2 harness connector.

Turn the ignition on.

Measure the voltage of the (C21) Evaporator Temperature Sensor Sig-
nal circuit.

Is the voltage above 0.2 volts?

Yes

>> Repair the (C21) Evaporator Temperature Sensor Signal

circuit for a short to voltage.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Go To 2

WK

HVAC - ELECTRICAL DIAGNOSTICS

24 - 27
