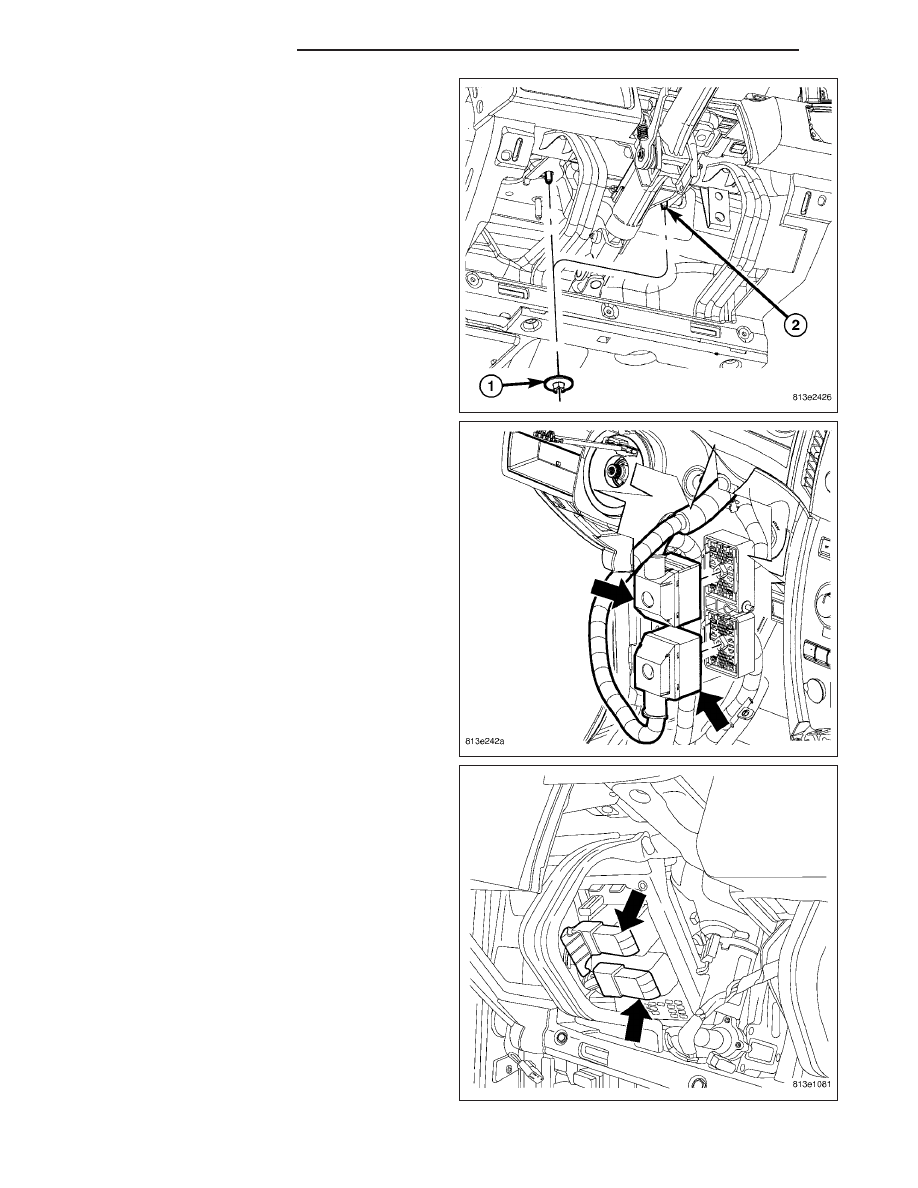

21. Install the two nuts (1) on the studs (2) above the

column tighten the nuts to 12 N·m (105 in. lbs.).

22. Connect the two left bulk connectors.

23. Connect the two fuse block connectors.

23 - 98

INSTRUMENT PANEL

WK

24. Connect the white connector to adjustable brake

pedal.

25. Install the grounds within the steering column

opening and install the bolts.

26. Install the left cowl trim panel (1) and install the

nut (2).

WK

INSTRUMENT PANEL

23 - 99

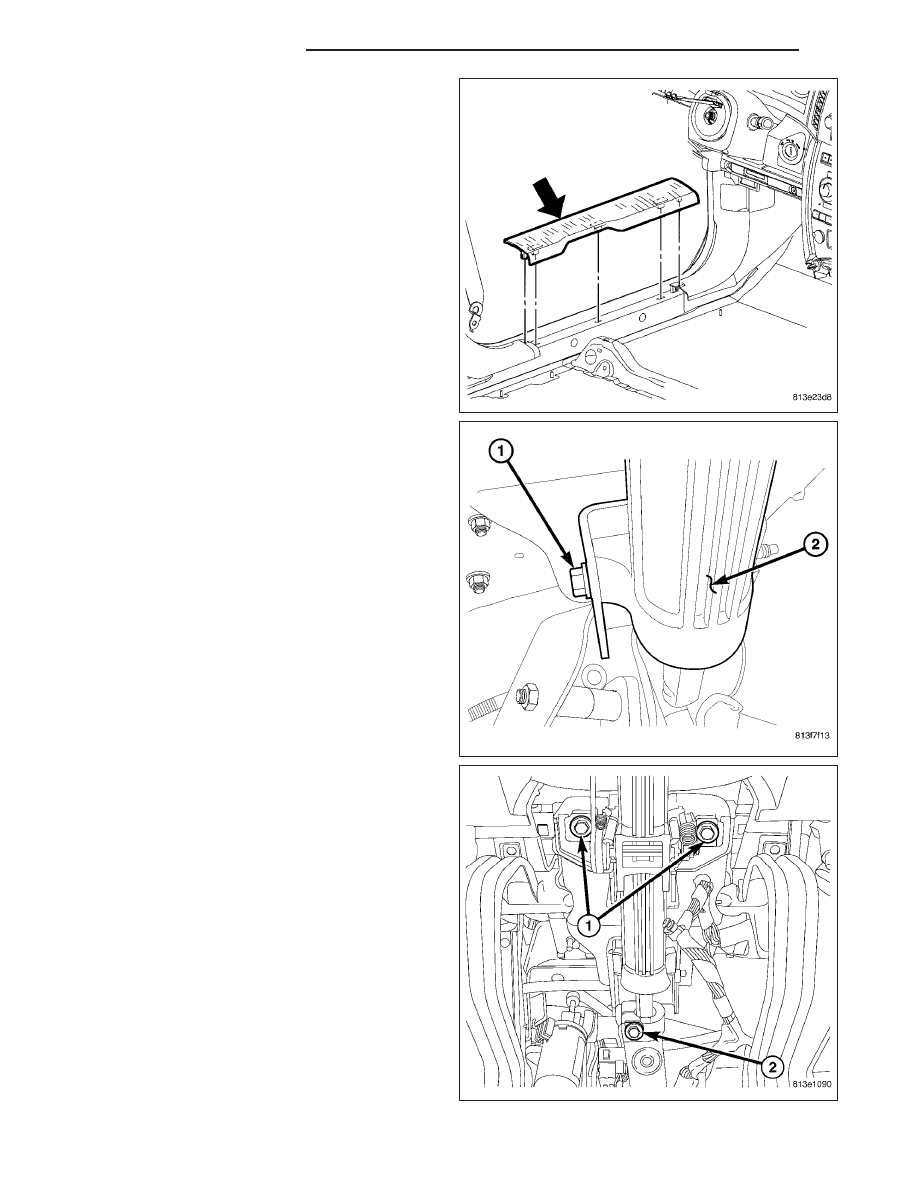

27. Install the left door sill.

28. Install the column cross bolt (1) and tighten to 12

N·m (105 in. lbs.).

29. Position the steering column shaft into the slip

joint.

30. Lift the column into position and install the bolts

(1).

31. Tighten the bolts to 12 N·m (105 in. lbs.).

32. Slide the coupler onto the column shaft and install

new coupler bolt (2). Tighten the coupler bolt to
49 N·m (36 ft. lbs.).

23 - 100

INSTRUMENT PANEL

WK

33. Connect the shifter cable and electrical connec-

tors to the ignition.

34. Install the ignition cylinder (1) and install the

screws (2).

35. Position the ignition bezel and seat fully.

36. Connect the electrical connector (3) for the multi-

function switch (2).

37. Install the upper shroud (1) on the column.

38. Install the lower shroud (2) to the column.

39. Snap the two halves back into place.

40. Install the three mounting bolts to secure the

shroud in place.

WK

INSTRUMENT PANEL

23 - 101
