WATERSHIELD

REMOVAL

1. Remove the trim panel from the inside of the front

door (Refer to 23 - BODY/DOOR - FRONT/TRIM
PANEL - REMOVAL).

2. Remove the speaker from the inside of the front

door (Refer to 8 - ELECTRICAL/AUDIO/SPEAKER
- REMOVAL).

CAUTION: Do not allow the watershield adhesive
to become contaminated with dirt or other foreign
substances. If the watershield becomes contami-
nated or damaged, replace it.

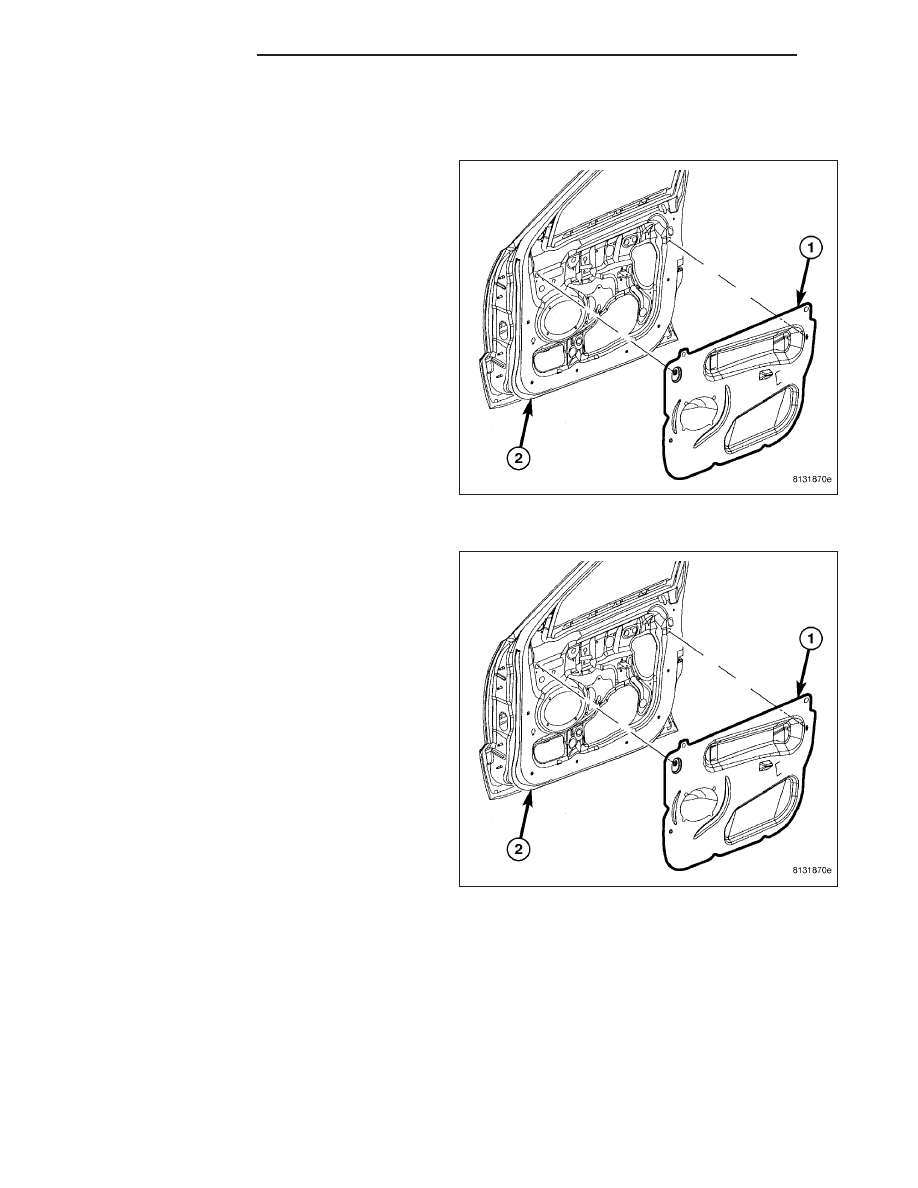

3. Carefully remove the watershield (1) from around

the perimeter of the door (2).

4. Separate the watershield from the interior handle

actuator rod and the door wire harness and remove
the watershield.

INSTALLATION

CAUTION: Do not allow the watershield or adhe-
sive to become contaminated with dirt or other
foreign substances. If the watershield becomes
contaminated or damaged, replace it.

NOTE: Be sure that the watershield is fully sealed
around the perimeter of the door.

1. Position the interior handle actuator rod and the

wire harness through the holes in the watershield
(1) and install the watershield to the door (2).

2. Install the speaker onto the inside of the front door

(Refer to 8 - ELECTRICAL/AUDIO/SPEAKER -
INSTALLATION)

3. Install the trim panel onto the inside of the front

door (Refer to 23 - BODY/DOOR - FRONT/TRIM
PANEL - INSTALLATION).

23 - 34

DOOR - FRONT

WK

DOORS - REAR

TABLE OF CONTENTS

page

page

CHANNEL-GLASS

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 36

DOOR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 37

ADJUSTMENTS

ADJUSTMENT

. . . . . . . . . . . . . . . . . . . . . . . . 37

GLASS

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 41

HANDLE-EXTERIOR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 43

HINGE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 45

LATCH

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 47

ADJUSTMENTS

ADJUSTMENT

. . . . . . . . . . . . . . . . . . . . . . . . 48

PANEL-TRIM

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 49

REGULATOR-WINDOW

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 50

STRIKER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 51

ADJUSTMENTS

ADJUSTMENT

. . . . . . . . . . . . . . . . . . . . . . . . 52

WATERSHIELD

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 53

CHANNEL-GLASS

REMOVAL

1. Remove the rear door glass (Refer to 23 - BODY/

DOORS - REAR/DOOR GLASS - REMOVAL).

2. Remove the weatherstrip from the rear glass run

channel (2).

3. Loosen the bolt (3) that secures the top of the rear

glass run channel to the keyed hole on the inside
door panel.

4. Remove the bolt (4) that secures the bottom of the

run channel to the inside door panel.

5. Lift the rear glass run channel upward within the

door far enough to disengage the bolt that secures
the top of the run channel to the keyed hole on the
inside door panel.

6. Remove the rear glass run channel from the door.

WK

DOORS - REAR

23 - 35

INSTALLATION

1. Position the rear glass run channel (1) onto the

rear door.

2. Engage the bolt (3) into the keyed hole on the

inside door panel.

3. Install the bolt (2) that secures the bottom of the

rear glass run channel to the inside door panel.
Tighten the bolt to 10 N·m (89 in. lbs.).

4. Tighten the bolt that secures the top of the rear

glass run channel to the inside door panel to 10
N·m (89 in. lbs.).

5. Install the weatherstrip onto the rear glass run

channel.

6. Install the rear door glass (Refer to 23 - BODY/

DOORS - REAR/DOOR GLASS - INSTALLATION).

DOOR

REMOVAL

1. Disconnect and isolate the negative battery cable.

2. Disconnect the rear door wire harness connector

from the body wire harness.

3. Using a grease pencil or equivalent, mark the loca-

tion of the rear door hinges (2 and 3) on the B-pil-
lar.

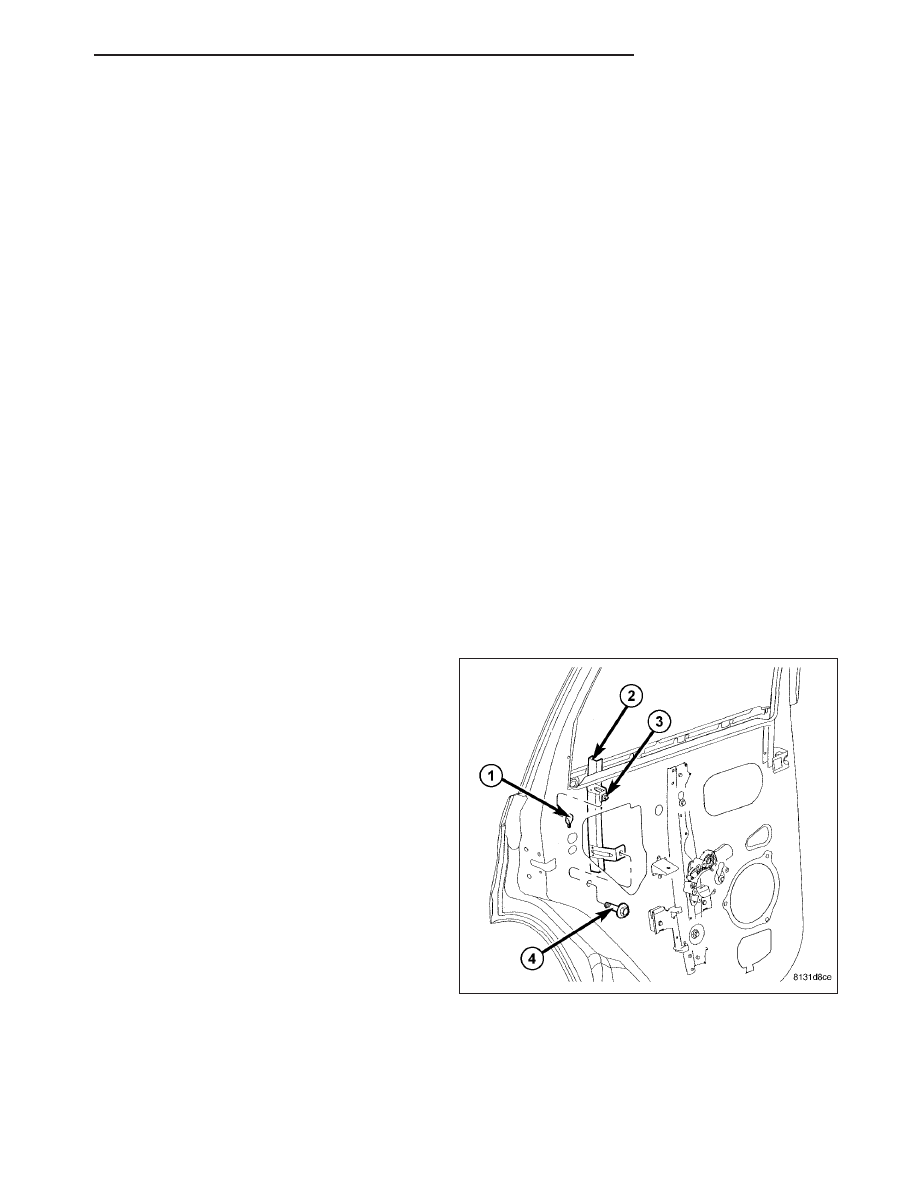

4. Support the rear door with a suitable lifting device

and remove the four bolts (1 and 4) that secure the
rear door hinges to the B-pillar.

5. Carefully remove the door from the body.

6. If required, remove the rear door hinges from the

door (Refer to 23 - BODY/DOORS - REAR/HINGE
- REMOVAL).

23 - 36

DOORS - REAR

WK

INSTALLATION

1. If removed, install the rear door hinges (2 and 3)

onto the door (Refer to 23 - BODY/DOORS -
REAR/HINGE - INSTALLATION).

2. Carefully position the rear door to the body and

support the door with a suitable lifting device.

3. Loosely install the four bolts (1 and 4) that secure

the rear door hinges to the B-pillar.

4. Align the rear door to the body using the reference

marks made during the removal procedure and
tighten the bolts to 28 N·m (21 ft. lbs.).

5. Connect the rear door wire harness to the body

wire harness.

6. Reconnect the negative battery cable.

7. If necessary, adjust the rear door (Refer to 23 -

BODY/DOORS - REAR/DOOR - ADJUSTMENTS).

ADJUSTMENTS

ADJUSTMENT

NOTE: Door adjustment measurements should be taken from stationary or welded body panels like the roof,
rocker or quarter panels.

During adjustment procedures, it is recommended that all the hinge fasteners be loosened except for the
upper most fasteners. Adjustments can be made using the upper bolts to hold the door with final torque
of the fasteners occurring after correct door positioning is achieved.

A suitable body sealant should be used when removing or moving the hinges.

FORE/AFT

NOTE: Fore/aft (lateral) door adjustment is done
by loosening the hinge to the body fasteners one
hinge at a time and moving the door to the correct
position.

1. Support the rear door with a suitable lifting device.

2. Loosen the four bolts (1 and 4) that secure the rear

door hinges (2 and 3) to the B-pillar.

3. Adjust the rear door to the correct position (Refer

to 23 - BODY/BODY STRUCTURE/GAP AND
FLUSH - SPECIFICATIONS).

4. Tighten the upper bolt of the upper hinge to the

B-pillar to 28 N·m (21 ft. lbs.).

5. Tighten the upper bolt of the lower hinge to 28 N·m

(21 ft. lbs.).

6. Tighten the remaining hinge bolts to 28 N·m (21 ft.

lbs.).

WK

DOORS - REAR

23 - 37
