46. Remove the input gear and low range planetary

assembly (1) from the front housing.

47. Remove the snap-ring (2) holding the input gear

(1) into the low range planetary (3).

48. Remove the input gear (1) and lock plate (2) from

the low range planetary (3) and remove the lock
plate.

21 - 1034

TRANSFER CASE - NV245 - SERVICE INFORMATION

WK

49. Remove the top thrust washer (no tabs) (2) from

the input gear (1).

50. Remove the bottom thrust washer (3 tabs) (1)

from the low range planetary (2).

ASSEMBLY

1. Remove the input shaft bearing (1) from the front

case (2) with suitable snap-ring pliers.

2. Transfer the retaining ring to the new bearing if

necessary and install the bearing into the front
case.

WK

TRANSFER CASE - NV245 - SERVICE INFORMATION

21 - 1035

3. Remove the front output shaft bearing retaining

ring from inside the front case half.

4. Using Installer 6436 and Handle C-4171, remove

front output shaft bearing.

5. Start front output shaft bearing in case. Then seat

bearing with Handle C-4171 (3) and Installer
C-4210 (2).

6. Install front output shaft bearing retaining ring.

7. Remove the rear output shaft bearing retaining ring

from inside the rear housing.

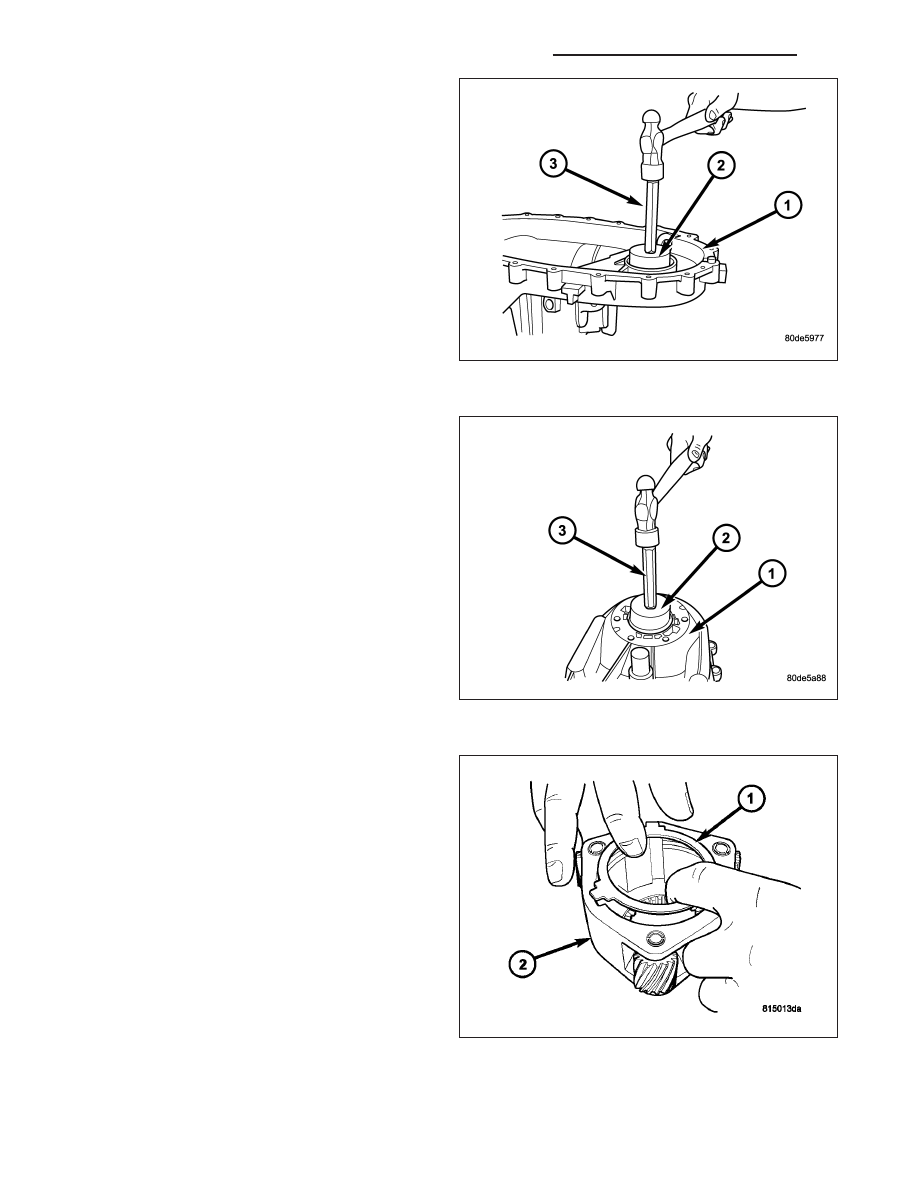

8. Remove the rear output shaft bearing from the rear

case using Installer 5066 (2) and Handle C-4171
(3).

9. Install the rear output shaft bearing into the rear

case using Remover/Installer 8281 (2) and Handle
C-4171 (3).

10. Install the rear output shaft bearing retaining ring

into the rear housing, from inside the rear
housing.

11. Install the bottom thrust washer (3 tabs) (1) into

the low range planetary (2).

21 - 1036

TRANSFER CASE - NV245 - SERVICE INFORMATION

WK

12. Install the top thrust washer (no tabs) (2) onto the

input gear (1).

13. Install the input gear (1) and lock plate (2) into the

low range planetary (3) and install the lock plate.

14. Install the snap-ring (2) to hold the input gear (1)

into the low range planetary (3).

WK

TRANSFER CASE - NV245 - SERVICE INFORMATION

21 - 1037
