C230B- NEUTRAL INDICATOR CONTROL CIRCUIT HIGH

21 - 982

TRANSFER CASE - ELECTRICAL DIAGNOSTICS

WK

C230B- NEUTRAL INDICATOR CONTROL CIRCUIT HIGH (CONTINUED)

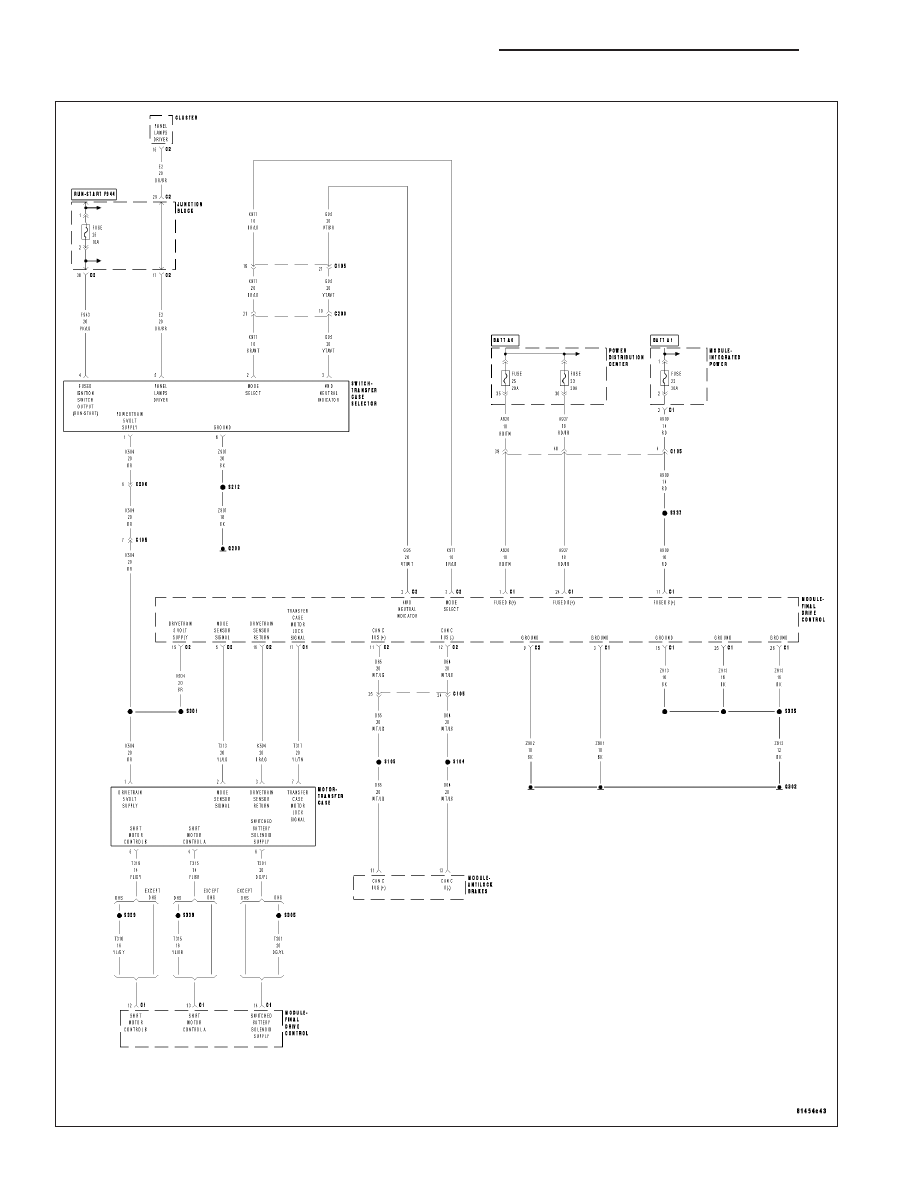

For a complete wiring diagram Refer to Section 8W

When Monitored:
With the ignition on and no system undervoltage or overvoltage condition present.

Set Condition:
The Final Drive Control Module detects high voltage on the Neutral Indicator Control Circuit when output is on.

Possible Causes

INTERMITTENT NEUTRAL INDICATOR CONTROL CIRCUIT HIGH

(G95) 4WD NEUTRAL INDICATOR CIRCUIT OPEN

(G95) 4WD NEUTRAL INDICATOR CIRCUIT SHORTED TO VOLTAGE

TRANSFER CASE SELECTOR SWIITCH

FINAL DRIVE CONTROL MODULE

Diagnostic Test

1.

NEUTRAL INDICATOR CONTROL CIRCUIT DTC IS ACTIVE

Ignition on.

With the scan tool, select View DTCs.

Is the status Active for this DTC?

Yes

>> Go to 2

No

>> Go to 7

2.

(G95) 4WD NEUTRAL INDICATOR CIRCUIT VOLTAGE

Turn the ignition off.

Disconnect the Final Drive Control Module C2 harness connector.

Turn the ignition on.

Measure the voltage of the (G95) 4WD Neutral Indicator circuit.

Is there any voltage present?

Yes

>> Go to 3

No

>> Go to 4

WK

TRANSFER CASE - ELECTRICAL DIAGNOSTICS

21 - 983

C230B- NEUTRAL INDICATOR CONTROL CIRCUIT HIGH (CONTINUED)

3.

(G95) 4WD NEUTRAL INDICATOR CIRCUIT SHORT TO VOLTAGE

Turn the ignition off.

Disconnect the Transfer Case Selector Switch harness connector.

Turn the ignition on.

Measure the voltage of the (G95) 4WD Neutral Indicator circuit.

Is there any voltage present?

Yes

>> Repair the (G95) 4WD Neutral Indicator circuit for a short

to voltage.

Perform the TRANSFER CASE VERIFICATION TEST-
VER 1.

No

>> Go to 5

4.

(G95) 4WD NEUTRAL INDICATOR CIRCUIT OPEN

Turn the ignition off.

Disconnect the Transfer Case Selector Switch connector.

Measure the resistance of the (G95) 4WD Neutral Indicator Control cir-
cuit.

Is the resistance above 5.0 ohms?

Yes

>> Repair the open (G95) 4WD Neutral Indicator circuit.

Perform the TRANSFER CASE VERIFICATION TEST-
VER 1.

No

>> Go to 6

21 - 984

TRANSFER CASE - ELECTRICAL DIAGNOSTICS

WK

C230B- NEUTRAL INDICATOR CONTROL CIRCUIT HIGH (CONTINUED)

5.

TRANSFER CASE SELECTOR SWITCH

View repair.

Repair

Replace the Transfer Case Selector Switch in accordance with the Service information.

Perform the TRANSFER CASE VERIFICATION TEST-VER 1.

6.

FINAL DRIVE CONTROL MODULE

View repair.

Repair

Replace the Final Drive Control Module in accordance with the Service information.

Perform the TRANSFER CASE VERIFICATION TEST-VER 1.

7.

INTERMITTENT WIRING AND CONNECTORS

The conditions necessary to set this DTC are not present at this time.

Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.

While monitoring the scan tool data relative to this circuit, wiggle test the wiring and connectors.

Look for the data to change or for the DTC to reset during the wiggle test.

Were any problems found?

Yes

>> Repair as necessary.

Perform the TRANSFER CASE VERIFICATION TEST-VER 1.

No

>> Test complete.
