Jeep Grand Cherokee WK. Manual - part 1524





C1404-TRANSFER CASE RANGE POSITION SENSOR CIRCUIT LOW (CONTINUED)

For a complete wiring diagram Refer to Section 8W

When Monitored:
With the ignition on and no system undervoltage or overvoltage or supply voltage low conditions present.

Set Condition:
Sensor input voltage is below a specified value for a calibrated amount of time.

Possible Causes

INTERMITTENT TRANSFER CASE RANGE POSITION SENSOR CIRCUIT LOW

(K504) DRIVETRAIN 5 VOLT SUPPLY CIRCUIT OPEN

(K504) DRIVETRAIN 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND

(T313) MODE SENSOR SIGNAL CIRCUIT SHORTED TO GROUND

TRANSFER CASE MOTOR

TRANSFER CASE CONTROL MODULE

Diagnostic Test

1.

T-CASE POSITION SENSOR VOLTAGE BELOW 0.4 VOLTS

Ignition on, engine not running.

With the scan tool under Data Display, read the T-Case Position Sensor voltage.

Is the voltage below 0.4 volts?

Yes

>> Go to 2

No

>> Go to 8

2.

(K504) DRIVETRAIN 5 VOLT SUPPLY CIRCUIT VOLTAGE

Turn the ignition off.

Disconnect the Transfer Case Motor harness connector.

Turn the ignition on.

Measure the voltage of the (K504) Drivetrain 5 Volt Supply circuit.

Is the voltage below 0.2 volts?

Yes

>> Go to 3

No

>> Go to 5

21 - 906

TRANSFER CASE - ELECTRICAL DIAGNOSTICS

WK

C1404-TRANSFER CASE RANGE POSITION SENSOR CIRCUIT LOW (CONTINUED)

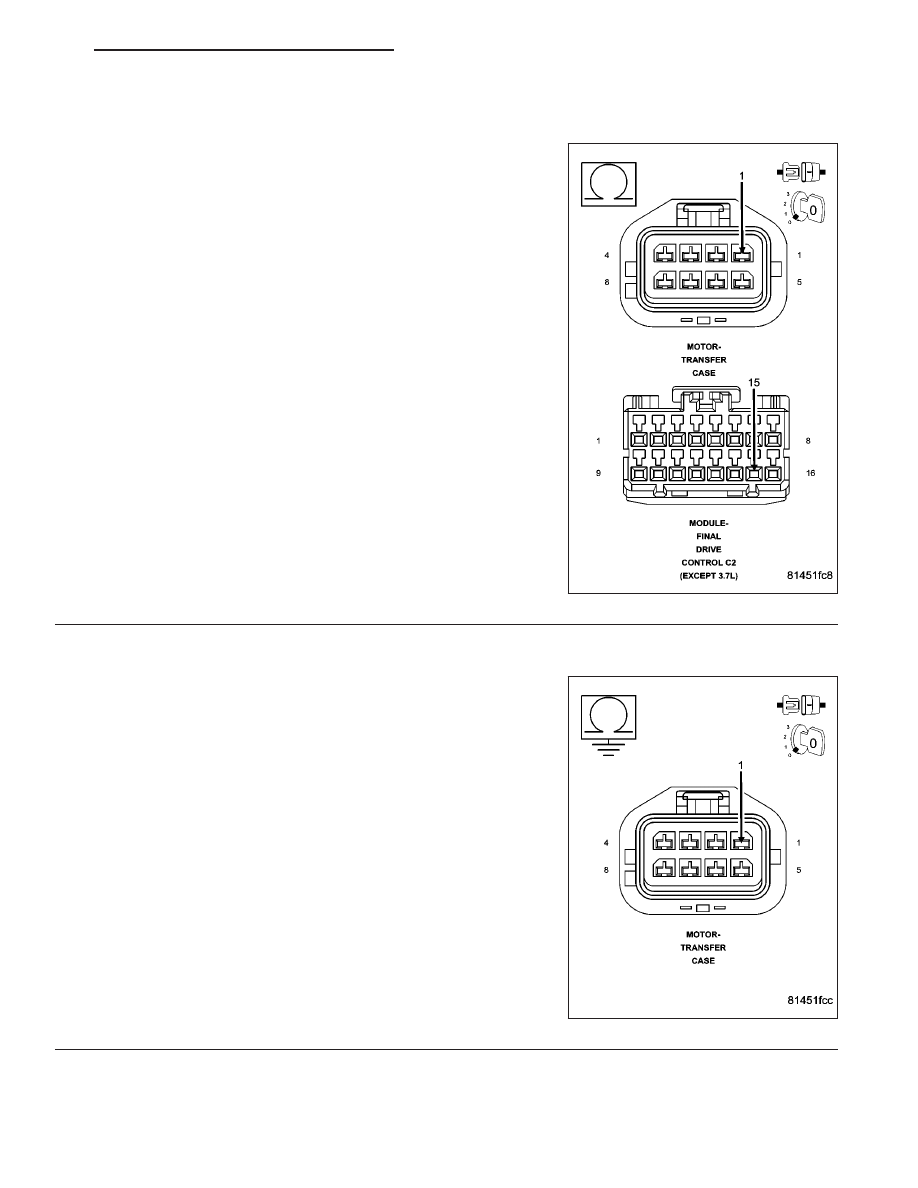

3.

(K504) DRIVETRAIN 5 VOLT SUPPLY CIRCUIT OPEN

Turn the ignition off.

Disconnect the Final Drive Control Module C2 harness connector.

Measure the resistance of the (K504) Drivetrain 5 Volt Supply circuit.

Is the resistance above 5.0 ohms?

Yes

>> Repair the (K504) Drivetrain 5 Volt Supply circuit for an

open.

Perform the TRANSFER CASE VERIFICATION TEST-
VER 1.

No

>> Go to 4

4.

(K504) DRIVETRAIN 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND

Measure the resistance between ground and the (K504) Drivetrain 5
Volt Supply circuit.

Is the resistance below 5.0 ohms?

Yes

>> Repair the (K504) Drivetrain 5 Volt Supply circuit for a

short to ground.

Perform the TRANSFER CASE VERIFICATION TEST-
VER 1.

No

>> Go to 7

WK

TRANSFER CASE - ELECTRICAL DIAGNOSTICS

21 - 907

C1404-TRANSFER CASE RANGE POSITION SENSOR CIRCUIT LOW (CONTINUED)

5.

TRANSFER CASE MOTOR

With the scan tool under Data Display, read the T-Case Position Sensor voltage.

Is the voltage above 4.5 volts?

Yes

>> Replace the Transfer Case Motor.

Perform the TRANSFER CASE VERIFICATION TEST-VER 1.

No

>> Go to 6

6.

(T313) MODE SENSOR SIGNAL CIRCUIT SHORTED TO GROUND

Measure the resistance between ground and the (T313) Mode Sensor
Signal circuit.

Is the resistance below 5.0 ohms?

Yes

>> Repair the (T313) Mode Sensor Signal circuit for a short to

ground.

Perform the TRANSFER CASE VERIFICATION TEST-
VER 1.

No

>> Go to 7

7.

FINAL DRIVE CONTROL MODULE

View repair.

Repair

Replace the Final Drive Control Module in accordance with the Service Information.

Perform the TRANSFER CASE VERIFICATION TEST-VER 1.

8.

INTERMITTENT WIRING AND CONNECTORS

The conditions necessary to set this DTC are not present at this time.

Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.

While monitoring the scan tool data relative to this circuit, wiggle test the wiring and connectors.

Look for the data to change or for the DTC to reset during the wiggle test.

Were any problems found?

Yes

>> Repair as necessary.

Perform the TRANSFER CASE VERIFICATION TEST-VER 1.

No

>> Test complete.

21 - 908

TRANSFER CASE - ELECTRICAL DIAGNOSTICS

WK

C1405-TRANSFER CASE RANGE POSITION SENSOR CIRCUIT HIGH

WK

TRANSFER CASE - ELECTRICAL DIAGNOSTICS

21 - 909
