Jeep Grand Cherokee WK. Manual - part 1511





CABLE-PARK LOCK

REMOVAL

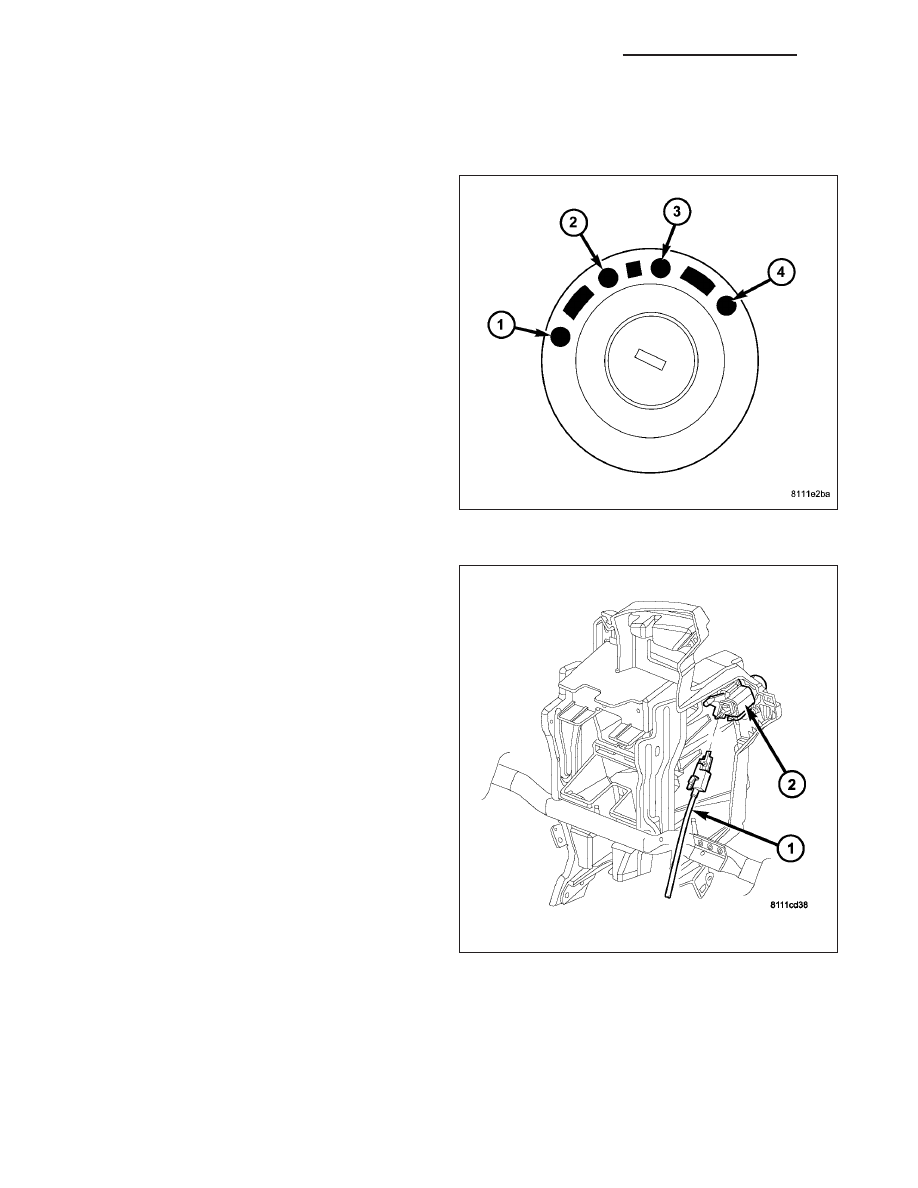

1. Place ignition key in the ACC (2) position.

2. Remove the lower instrument panel trim as neces-

sary to access the park lock cable.

3. Disconnect park lock cable (4) from ignition cylin-

der (3).

21 - 854

AUTOMATIC TRANSMISSION - NAG1 - SERVICE INFORMATION

WK

4. Remove the floor console as necessary for access

to the park lock cable. (Refer to 23 - BODY/INTE-
RIOR/FLOOR CONSOLE - REMOVAL)

5. If necessary, remove the bolts holding the shield,

covering the gearshift and park lock cables, to the
shifter assembly and remove the shield.

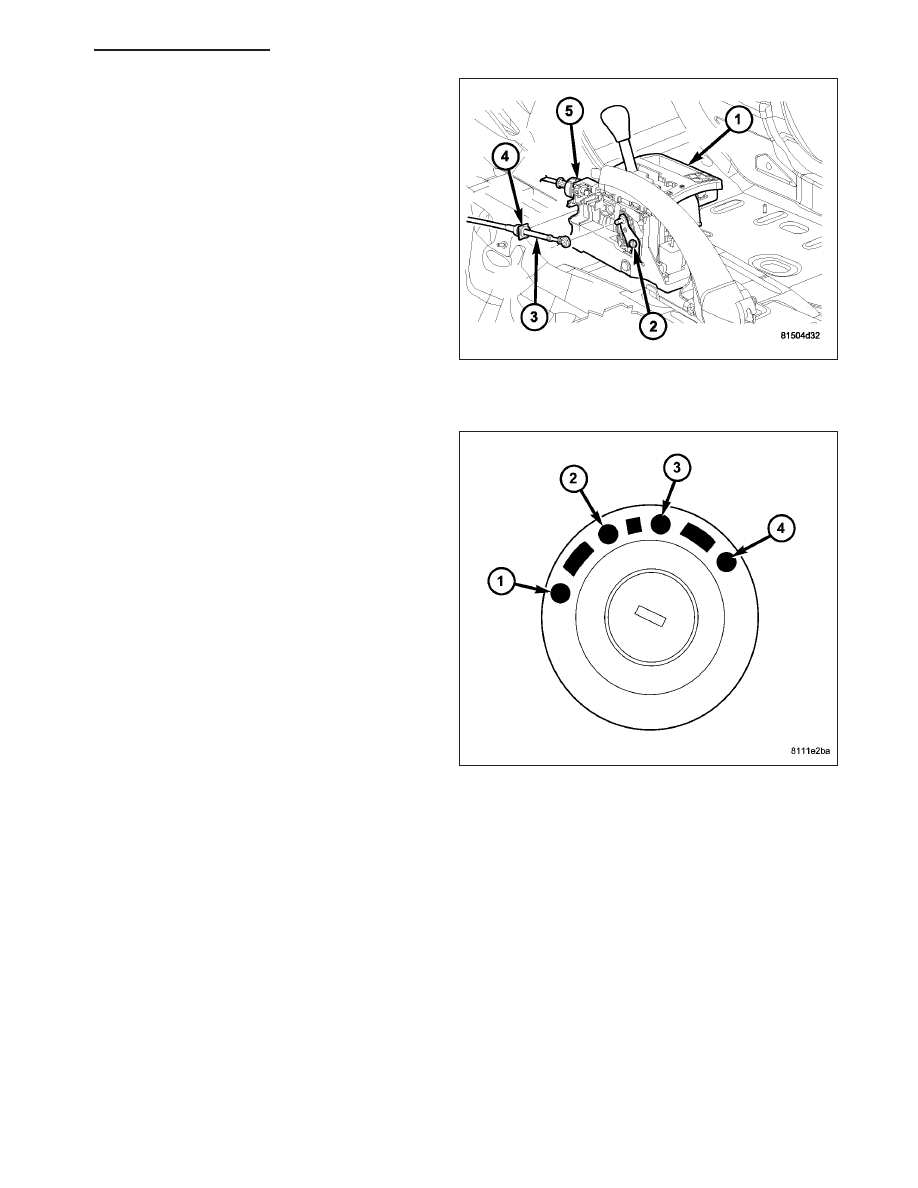

6. Disconnect the park lock cable (5) from the shift

mechanism. Release retention tab using suitable
screwdriver.

INSTALLATION

1. Verify that ignition key is in ACC (2) position.

WK

AUTOMATIC TRANSMISSION - NAG1 - SERVICE INFORMATION

21 - 855

2. Install the park lock cable (4) to the ignition cylinder

(3). Secure the cable to instrument panel at
retainer.

3. Install any instrument panel trim that was removed

to access the park lock cable.

4. Route park lock cable towards shift mechanism.

5. Connect the park lock cable (5) core to shift mech-

anism cam, and then secure cable housing to shift
mechanism.

6. Adjust the park lock cable. (Refer to 21 - TRANSMISSION/AUTOMATIC TRANSMISSION/SHIFT INTERLOCK

MECHANISM - ADJUSTMENTS)

7. If necessary, install the shield, covering the gearshift and park lock cables, to the shifter assembly and install the

bolts to hold the shield to the shifter assembly.

8. Install the floor console assembly. (Refer to 23 - BODY/INTERIOR/FLOOR CONSOLE - INSTALLATION)

21 - 856

AUTOMATIC TRANSMISSION - NAG1 - SERVICE INFORMATION

WK

GEARTRAIN-PLANETARY

DESCRIPTION

Three planetary gear sets are used to produce the dif-
ferent gear ratios. These are located in the mechanical
part of the transmission as the front, middle and rear
planetary gear sets.

OPERATION

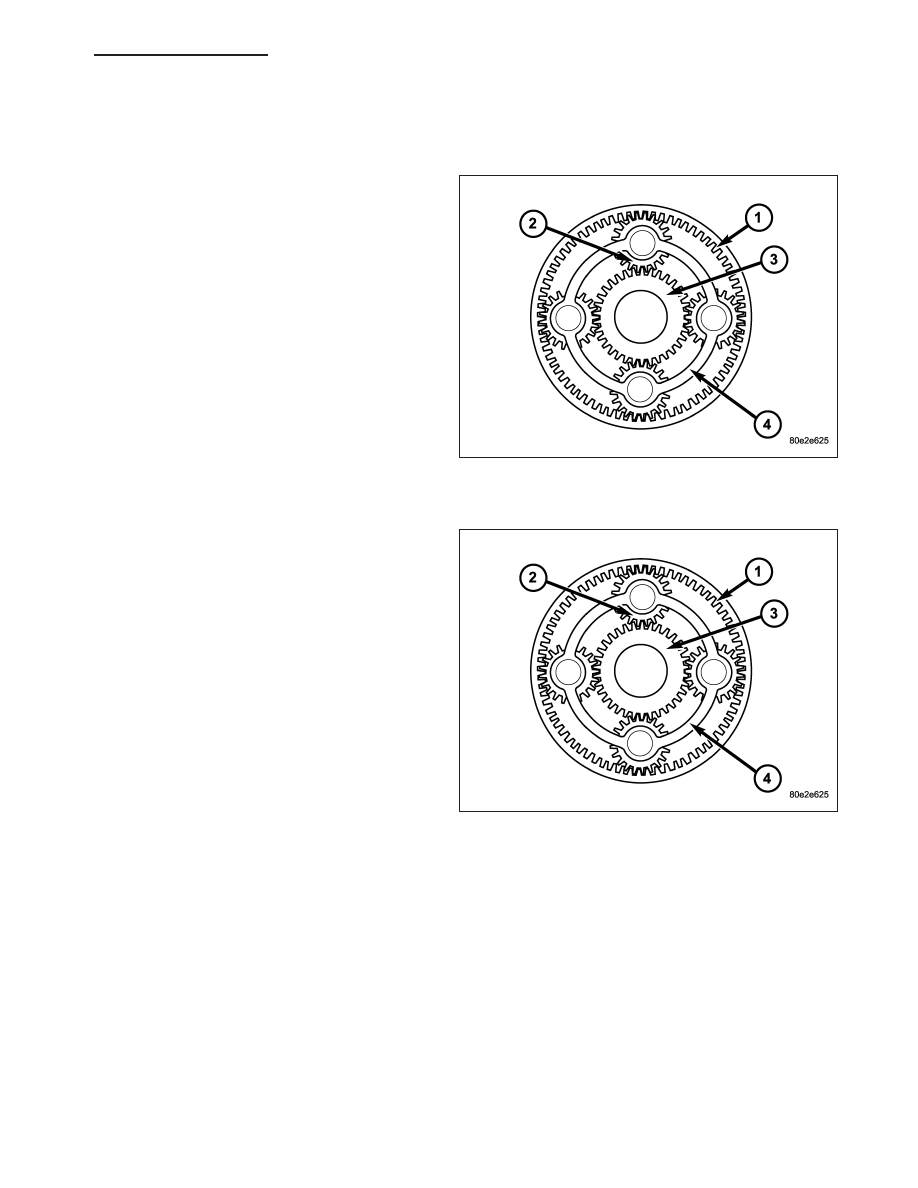

The annulus gear (1) and sun gear (3) elements of a
planetary gear system are alternately driven and
braked by the actuating elements of the multi-plate
clutch and multiple-disc brake. The planetary pinion
gears (2) can turn on the internal gearing of the annu-
lus gear (1) and on the external gearing of the sun
gear (3). This allows for a variety of gear ratios and
the reversal of the rotation direction without the need
for moving gear wheels or shift collars. When two
components of the planetary gear set are locked
together, the planetary gear set is locked and turns as
a closed unit.

The torque and engine speed are converted according
to the lever ratios and the ratio of the number of teeth
on the driven gears to that on the drive gears, and is
referred to as the gear ratio. The overall ratio of a
number of planetary gear sets connected in series is
obtained by multiplying the partial ratios.

WK

AUTOMATIC TRANSMISSION - NAG1 - SERVICE INFORMATION

21 - 857
