9. Remove the output shaft bearing (3).

CAUTION: Verify that the geartrain end-play shim
has remained on the output shaft and against the
park gear. The shim may be adhered to the bear-
ing inner race. Retrieve the shim from the bearing
and install over the output shaft and against the
park gear.

INSTALLATION

CAUTION: Verify that the geartrain end-play shim
is properly installed over the output shaft and
against the park gear.

NOTE: The closed side of the bearing must be
installed toward the parking lock gear. If the bear-
ing is installed in the other direction, the transmis-
sion gearcase will need to be removed in order to
remove the bearing.

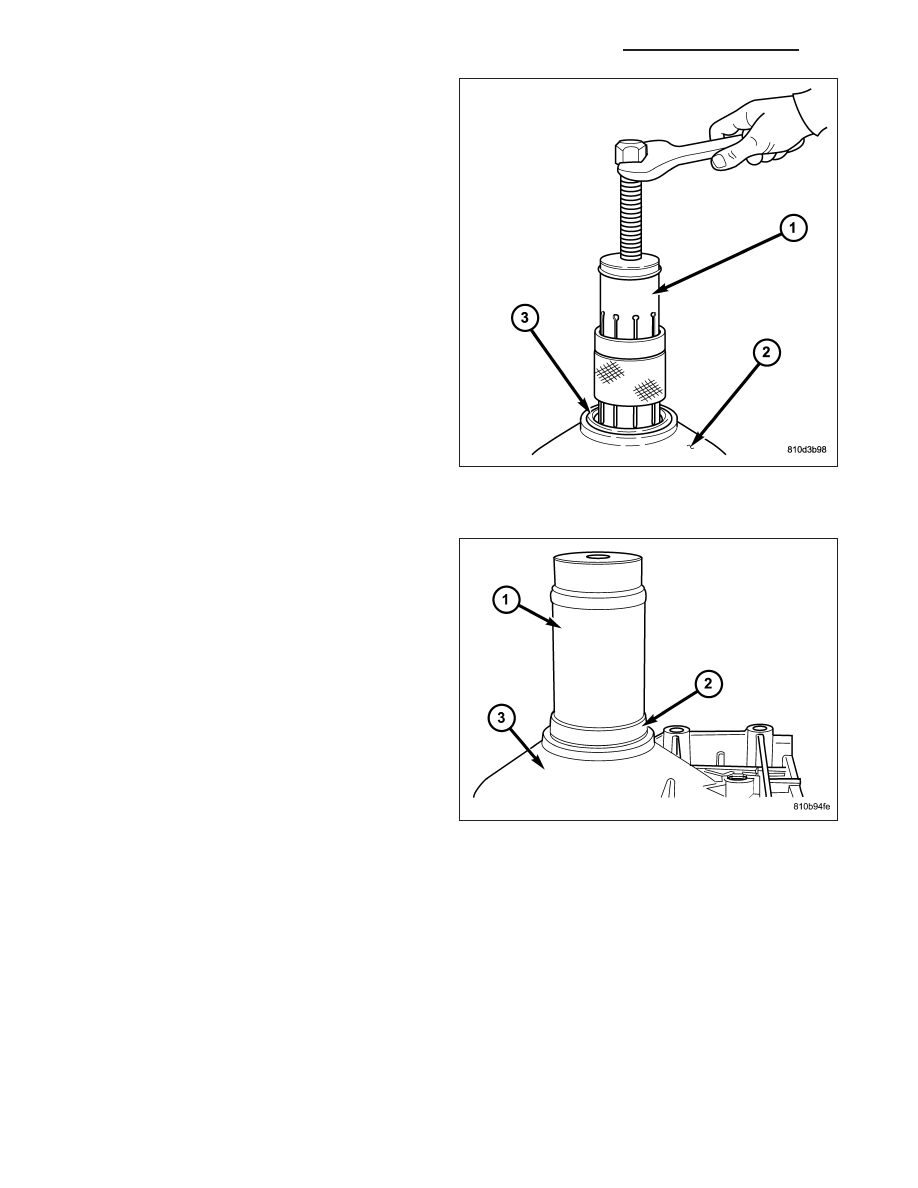

1. Using Bearing Installer 9287 (1), install the output

shaft bearing (2) into the transmission housing (3).
The closed side of the plastic cage must point
towards the parking lock gear.

21 - 850

AUTOMATIC TRANSMISSION - NAG1 - SERVICE INFORMATION

WK

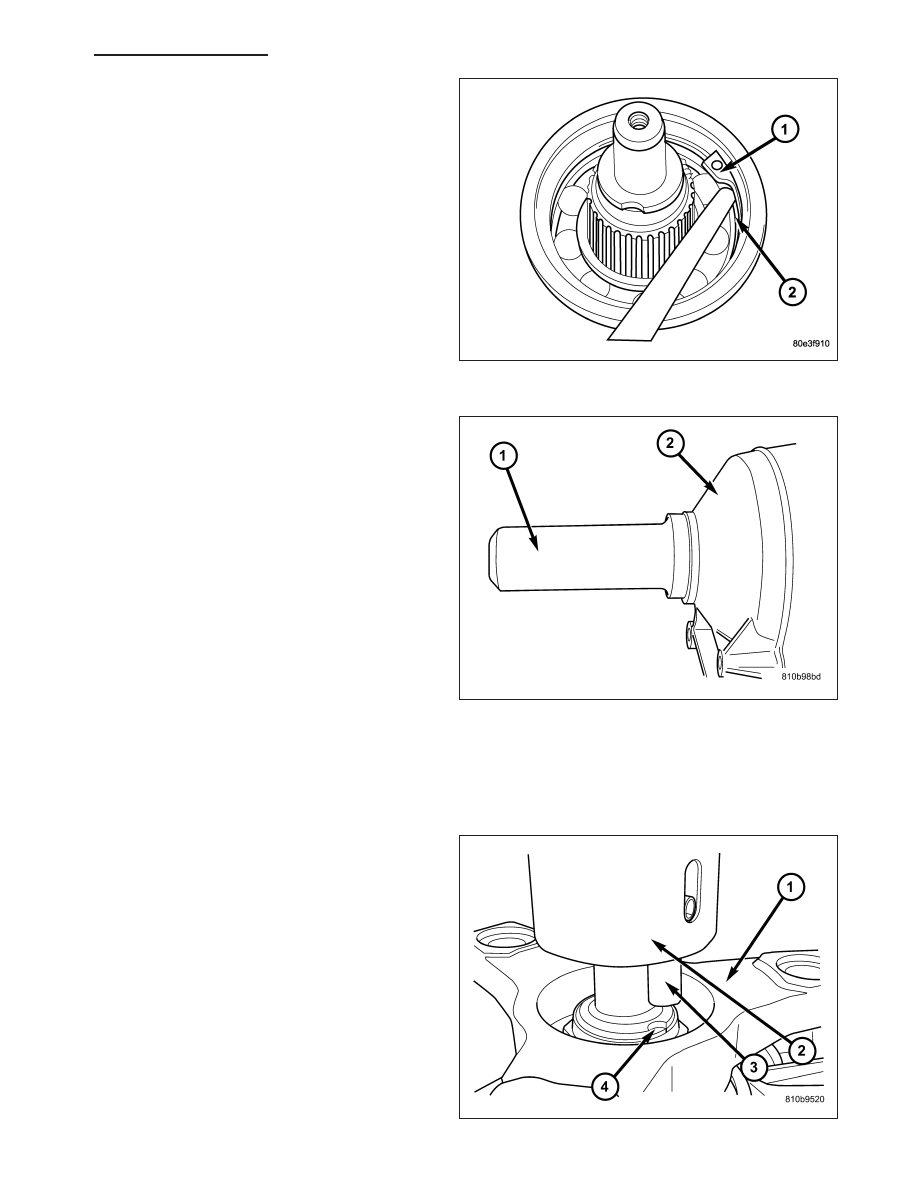

2. Install the retaining ring (1). Ensure that the retain-

ing ring is seated correctly in the groove.

3. Check that there is no play between the bearing

and the retaining ring using feeler gauge.

4. There must be no play between the retaining ring

and the bearing. If the ring cannot be installed, a
thinner ring must be used. If there is play between
the ring and the bearing, a thicker ring must be
installed. Retaining rings are available in thick-
nesses of 2.0 mm (0.079 in.), 2.1 mm (0.083 in.),
and 2.2 mm (0.087 in.).

5. Install the output shaft washer onto the output

shaft.

6. Install a new transmission rear seal into the trans-

mission case with Seal Installer 8902A (1).

7. For 4WD transmissions:

a. Install the output shaft extension onto the out-

put shaft.

b. Install the nut to hold the output shaft exten-

sion to the output shaft. Torque the bolt to 200
N·m (147.5 ft.lbs.).

c. Install the transfer case adapter housing onto

the transmission case.

d. Install the bolts to hold the transfer case

adapter housing onto the transmission case.
Torque the bolt to 20 N·m (177 in.lbs.).

e. Install the transfer case (Refer to 21 - TRANSMISSION/TRANSFER CASE - INSTALLATION).

8. For 2WD transmissions, install the propeller shaft flange onto the output shaft and install an new flange nut.

Tighten the flange nut to 200 N·m (147.5 ft.lbs.).

NOTE: The Staking Tool - 9078 has two possible
locations for the beveled staking pin. The pin must
be installed in the hole labeled “Transmission” for
this operation. This hole is located directly across
from the spring loaded alignment pin.

9. Place the Staking Tool 9078 and Driver Handle

C-4171 onto the output shaft.

WK

AUTOMATIC TRANSMISSION - NAG1 - SERVICE INFORMATION

21 - 851

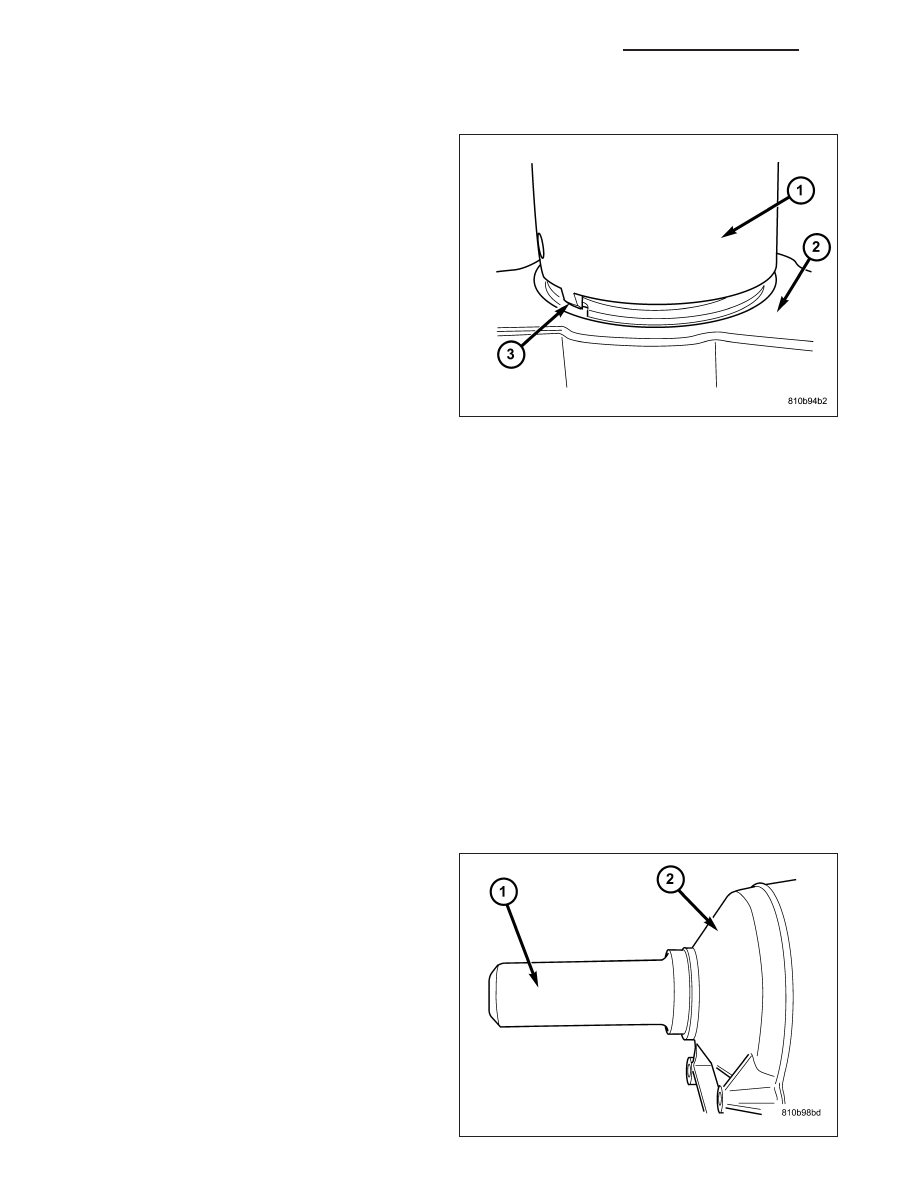

10. Rotate the Staking Tool 9078 (2) until the alignment pin (3) engages the output shaft notch (4).

11. Press downward on the staking tool until the stak-

ing pin contacts the output shaft nut flange.

12. Strike the Driver handle C-4171 with a suitable

hammer until the output shaft nut is securely
staked to the output shaft.

13. For 2WD transmissions, install the propeller shaft

(Refer to 3 - DIFFERENTIAL & DRIVELINE/PRO-
PELLER

SHAFT/PROPELLER

SHAFT

-

INSTALLATION).

SEAL-OUTPUT SHAFT

REMOVAL

1. For 2WD transmissions;

a. Remove the propeller shaft (Refer to 3 - DIFFERENTIAL & DRIVELINE/PROPELLER SHAFT/PROPELLER

SHAFT - REMOVAL). Move propeller shaft to the right and tie up.

b. Remove the nut holding the propeller shaft flange to the output shaft and remove the flange.

2. For 4WD transmissions:

a. Remove the transfer case (Refer to 21 - TRANSMISSION/TRANSFER CASE - REMOVAL).

b. Remove the bolts holding the transfer case adapter housing onto the transmission case.

c. Remove the transfer case adapter housing from the transmission case.

d. Remove the bolt holding the output shaft extension to the output shaft.

e. Remove the output shaft extension from the output shaft.

3. Remove the output shaft seal with suitable screw and slide hammer.

INSTALLATION

1. Position the new output shaft seal over the output

shaft and against the transmission case.

2. Use Seal Installer 8902A (1) to install the seal.

3. For 4WD transmissions:

a. Install the output shaft extension onto the out-

put shaft.

b. Install the bolt to hold the output shaft exten-

sion to the output shaft. Torque the bolt to 200
N·m (147.5 ft.lbs.).

c. Install the transfer case adapter housing onto

the transmission case.

d. Install the bolts to hold the transfer case

adapter housing onto the transmission case.
Torque the bolt to 20 N·m (177 in.lbs.).

21 - 852

AUTOMATIC TRANSMISSION - NAG1 - SERVICE INFORMATION

WK

e. Install the transfer case (Refer to 21 - TRANSMISSION/TRANSFER CASE - INSTALLATION).

4. For 2WD transmissions, install the propeller shaft flange onto the output shaft and install an new flange nut.

Tighten the flange nut to 200 N·m (147.5 ft.lbs.).

5. Place the Staking Tool 9078 and Driver Handle

C-4171 onto the output shaft.

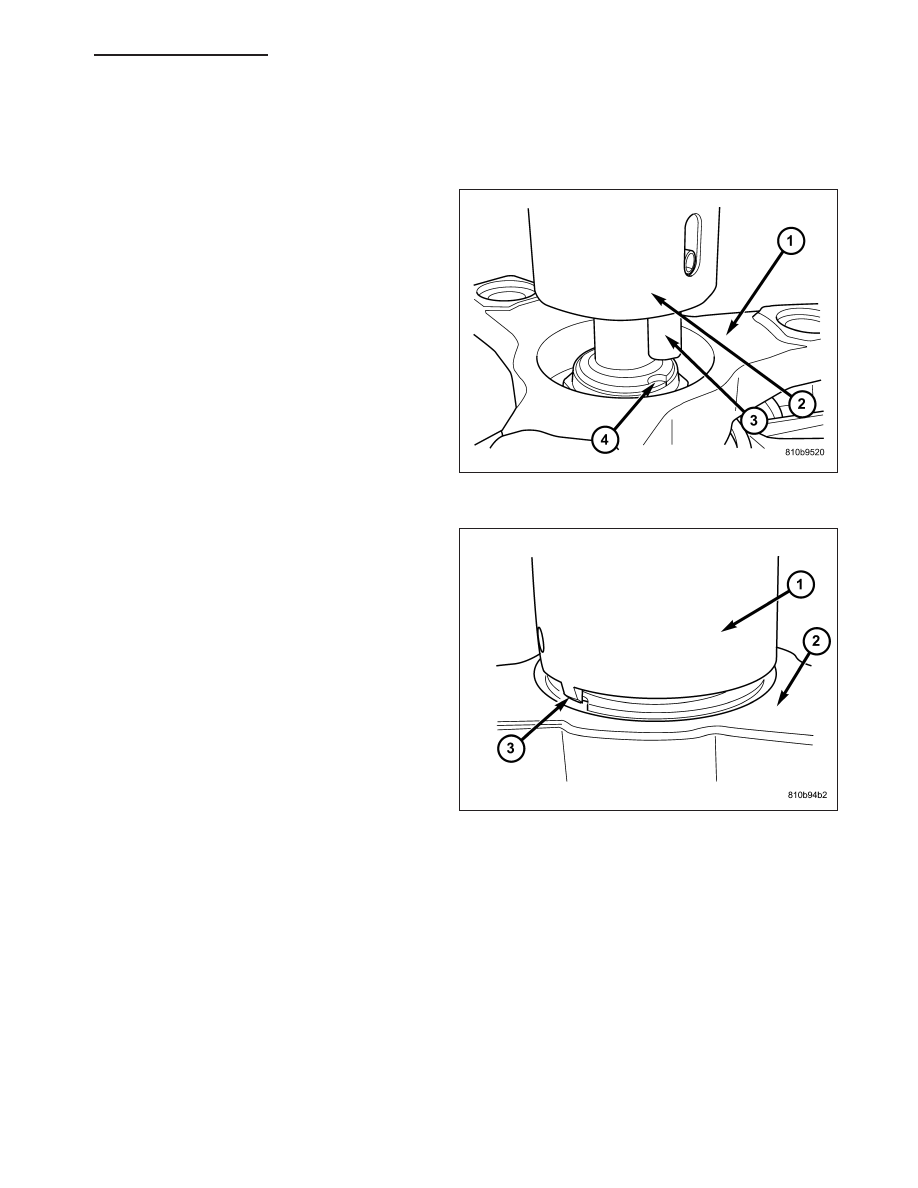

6. Rotate the Staking Tool 9078 (2) until the alignment

pin (3) engages the output shaft notch (4).

7. Press downward on the staking tool until the stak-

ing pin contacts the output shaft nut flange.

8. Strike the Driver handle C-4171 with a suitable

hammer until the output shaft nut is securely
staked to the output shaft.

9. For 2WD transmissions, install the propeller shaft

(Refer to 3 - DIFFERENTIAL & DRIVELINE/PRO-
PELLER

SHAFT/PROPELLER

SHAFT

-

INSTALLATION).

WK

AUTOMATIC TRANSMISSION - NAG1 - SERVICE INFORMATION

21 - 853
