3. Place Multi-use Spring Compressor 8900 (2) on the

spring plate and compress the spring until the
snap-ring (1) is exposed.

4. Remove snap-ring (1).

5. Take out disc spring (7) and remove piston (6) by

carefully blowing compressed air into the drilled oil
feed passage.

6. Remove snap-ring (3) and take out front freewheel-

ing clutch F1 (2). Take care when removing the F1
clutch to prevent the clutch sprags from falling out.
If this occurs, the clutch must be replaced.

21 - 782

AUTOMATIC TRANSMISSION - NAG1 - SERVICE INFORMATION

WK

ASSEMBLY

1. Install piston (6) in the outer multiple-disc carrier (1). Check sealing rings (4 and 5), replace if necessary. The

rounded off edges of the sealing rings must point outwards.

2. Insert disc spring (7). Insert disc spring with the curvature towards the piston.

3. Insert spring plate (8). Insert spring plate with the curvature towards the sun gear. Check sealing ring (9), replace

if necessary.

Input Clutch K1 Components

1 - K1 OUTER DISC CARRIER

7 - DISC SPRING

2 - FREEWHEELING CLUTCH F1

8 - SPRING PLATE

3 - SNAP-RING

9 - SPRING PLATE SEALING RING

4 - OUTER DISC CARRIER SEALING RING

10 - SNAP-RING

5 - PISTON SEALING RING

11 - SNAP-RING

6 - PISTON

12 - MULTIPLE DISC PACK - REFER TO TEXT FOR CORRECT
ASSEMBLY ORDER

WK

AUTOMATIC TRANSMISSION - NAG1 - SERVICE INFORMATION

21 - 783

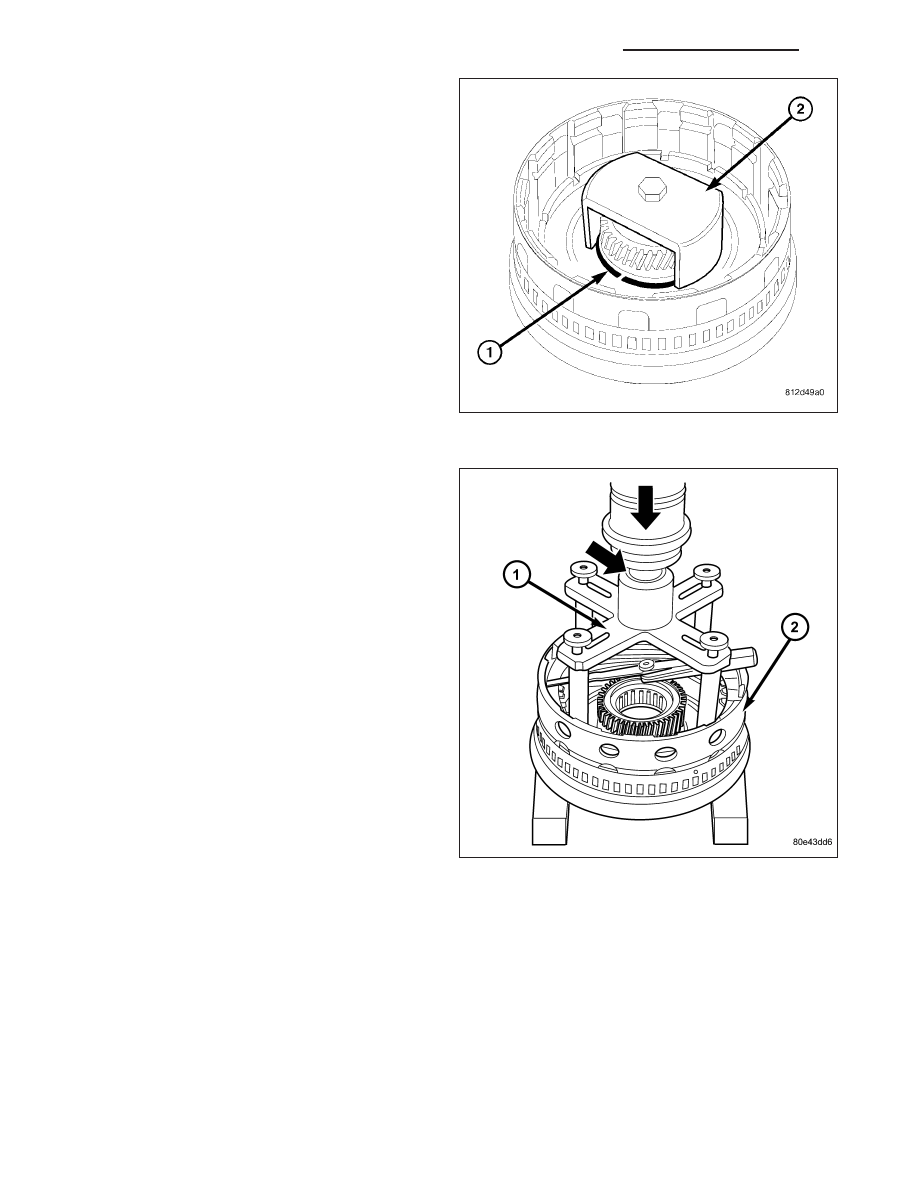

4. Place Multi-use Spring Compressor 8900 (2) on

spring plate and compress the spring until the
groove of the snap-ring (1) is exposed.

5. Insert snap-ring (1). After installing, check snap-ring

for correct seat.

CAUTION: When working with double sided fric-
tion discs, an externally lugged steel plate is
installed first, followed by a friction disc, and con-
tinuing on until all the required discs are installed.
When working with single sided friction discs, an
externally lugged disc is installed first, followed by
an internally lugged disc, and continuing on until
all the required discs are installed. All single sided
discs are installed with the friction side up.

NOTE: Pay attention to the sequence of discs. If
the original clutch discs are reused, be sure to
return the disc identified on disassembly as
belonging on top of the spring plate (8) to its orig-
inal location.

NOTE: Place new friction multiple-discs in ATF
fluid for one hour before installing.

6. Insert multiple-disc pack (12) in the outer multiple-

disc carrier.

7. Insert snap-ring (11).

8. Measure the K1 clutch pack clearance by mounting Pressing Tool 8901 (1) on outer multiple disc.

9. Using a lever press, compress pressing tool as far as the stop (then the marking ring is still visible, see small

arrow).

21 - 784

AUTOMATIC TRANSMISSION - NAG1 - SERVICE INFORMATION

WK

10. For transmissions using double sided friction

discs, use a feeler gauge to determine the play

9

L

9

at three points between the snap-ring (5) and

outer multiple-disc (3).

11. During the measurement the snap-ring (5) must

contact the upper bearing surface of the groove in
the outer multiple-disc carrier (4).

12. The correct clutch clearance for transmissions

with double sided friction discs is 2.7-3.1 mm
(0.106-0.122 in.) for three friction disc versions,
3.0-3.4 mm (0.118-0.134 in.) for four disc ver-
sions, 3.3-3.7 mm (0.130-0.146 in.) for five disc
versions, and 3.6-4.0 mm (0.142-0.158 in.) for six
disc versions.

13. Adjust with snap-ring (5), if necessary. Snap-rings

are available in thicknesses of 2.6 mm (0.102 in.),
2.9 mm (0.114 in.), 3.2 mm (0.126 in.), 3.5 mm
(0.138 in.), 3.8 mm (0.150 in.), and 4.1 mm (0.162
in.).

14. Insert front freewheeling clutch F1 (2) and fit

snap-ring (3). The freewheeling clutch F1 (2) must
be installed in the direction of the arrow.

15. For transmissions using single sided friction discs,

use a feeler gauge to determine the play

9

L

9

at

three points between the snap-ring (4) and outer
multiple-disc (2).

16. During the measurement the snap-ring (4) must

contact the upper bearing surface of the groove in
the outer multiple-disc carrier (3).

17. The correct clutch clearance for transmissions

with single sided friction discs is 2.4-2.8 mm
(0.095-0.110 in.) for six friction disc versions, 2.6-
3.0 mm (0.102-0.118 in.) for eight disc versions,
2.8-3.2 mm (0.110-0.126 in.) for ten disc versions,
and 2.9-3.3 mm (0.114-0.130 in.) for twelve disc
versions.

18. Adjust with snap-ring (4), if necessary. Snap-rings

are available in thicknesses of 2.6 mm (0.102 in.),
2.9 mm (0.114 in.), 3.2 mm (0.126 in.), 3.5 mm
(0.138 in.), 3.8 mm (0.150 in.), and 4.1 mm (0.162
in.).

19. Insert front freewheeling clutch F1 (2) and fit

snap-ring (3). The freewheeling clutch F1 (2) must
be installed in the direction of the arrow.

1 - OUTER MULTIPLE DISC - 1.8MM (0.071 IN.)
2 - OUTER MULTIPLE DISC - 2.8MM (0.110 IN.)
3 - OUTER MULTIPLE DISC - 4.0MM (0.158 IN.)
4 - K1 OUTER DISC CARRIER
5 - SNAP-RING
6 - FRICTION DISCS
7 - DISC SPRING
8 - PISTON

1 - OUTER MULTIPLE DISCS
2 - OUTER MULTIPLE DISC - 4.0MM (0.158 IN.)
3 - K1 OUTER DISC CARRIER
4 - SNAP-RING
5 - INNER MULTIPLE DISCS
6 - DISC SPRING
7 - PISTON

WK
