P0563-BATTERY VOLTAGE HIGH

21 - 466

AUTOMATIC TRANSMISSION NAG1 - ELECTRICAL DIAGNOSTICS

WK

P0563-BATTERY VOLTAGE HIGH (CONTINUED)

For the Transmission circuit diagram (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - NAG1 - SCHE-
MATICS AND DIAGRAMS)

For a complete wiring diagram Refer to Section 8W

Theory of Operation

The Transmission Control Module (TCM) monitors ignition voltage. The DTC will set and temporary limp-in will be
activated, if the monitored battery voltage rises above 16.9 volts. If the voltage drops below 16.4 volts, normal oper-
ations is resumed and the TCM will record the DTC as a one trip fault. The DTC will only mature to a full DTC if the
voltage rises above 16.9 volts with a engine speed greater than 2000 RPM for a least 60 seconds.

When Monitored:
Continuously with the ignition on.

Set Condition:
When the monitored battery voltage rises above 16.9 volts.

Possible Causes

CHARGING SYSTEM OVERCHARGE CONDITION

JUMP START OFF A 24 VOLT SYSTEM

TRANSMISSION CONTROL MODULE

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 21 - TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - NAG1 - STANDARD PROCEDURE)

Diagnostic Test

1.

CHECK FOR CHARGING SYSTEM DTCS

With the scan tool, read Engine DTCs.

NOTE: This includes any one trip faults.

Are there any Engine Charging System DTCs present?

Yes

>> Refer to the 9 - ENGINE ELECTRICAL DIAGNOSTICS and perform the appropriate symptom.

No

>> Go To 2

2.

CHECK IF VOLTAGE IS GREATER THAN 16.9 VOLTS

Start the engine and raise the engine speed to 2000 RPM.

With the scan tool, monitor the Transmission system voltage for at least 60 seconds.

Does the Transmission system voltage read above 16.9 volts for any period of time?

Yes

>> Go To 4

No

>> Go To 2

3.

VERIFY IF VEHICLE WAS JUMP STARTED WITH 24-VOLT SYSTEM

Verify if the vehicle was jump started by another vehicle using a 24-volt charging system.

Was the vehicle jump started by another vehicle using a 24-volt charging system?

Yes

>> This is the cause of the DTC. Erase the DTC and return the vehicle to the customer.

Perform NAG1 TRANSMISSION VERIFICATION TEST - VER 1.

No

>> Go To 5

WK

AUTOMATIC TRANSMISSION NAG1 - ELECTRICAL DIAGNOSTICS

21 - 467

P0563-BATTERY VOLTAGE HIGH (CONTINUED)

4.

CHECK BATTERY VOLTAGE

Start the engine and raise the engine speed to 2000 RPM.

With the scan tool, read the Transmission system voltage.

With a voltmeter, measure the battery voltage at the battery.

Compare the readings.

Does the voltage readings match between the Transmission
scan tool reading and the battery voltmeter reading?

Yes

>> Repair the charging system for an over charging condition.

Refer to the 9 - ENGINE ELECTRICAL DIAGNOSTICS
and diagnose the appropriate symptom as if the DTC is
current.

No

>> Using the schematics as a guide, check the Transmission

Control Module (TCM) terminals for corrosion, damage, or
terminal push out. Pay particular attention to all power and
ground circuits. If no problems are found, replace the TCM
per the Service Information. Refer to 8 - ELECTRICAL/
ELECTRONIC

CONTROL

MODULES/TRANSMISSION

CONTROL MODULE for the appropriate service proce-
dures.

Perform NAG1 TRANSMISSION VERIFICATION TEST -
VER 1.

5.

INTERMITTENT WIRING AND CONNECTORS

The conditions necessary to set this DTC are not present at this time.

Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.

Wiggle the wires while checking for shorted and open circuits.

Were there any problems found?

Yes

>> Repair as necessary.

Perform NAG1 TRANSMISSION VERIFICATION TEST - VER 1.

No

>> Test Complete.

21 - 468

AUTOMATIC TRANSMISSION NAG1 - ELECTRICAL DIAGNOSTICS

WK

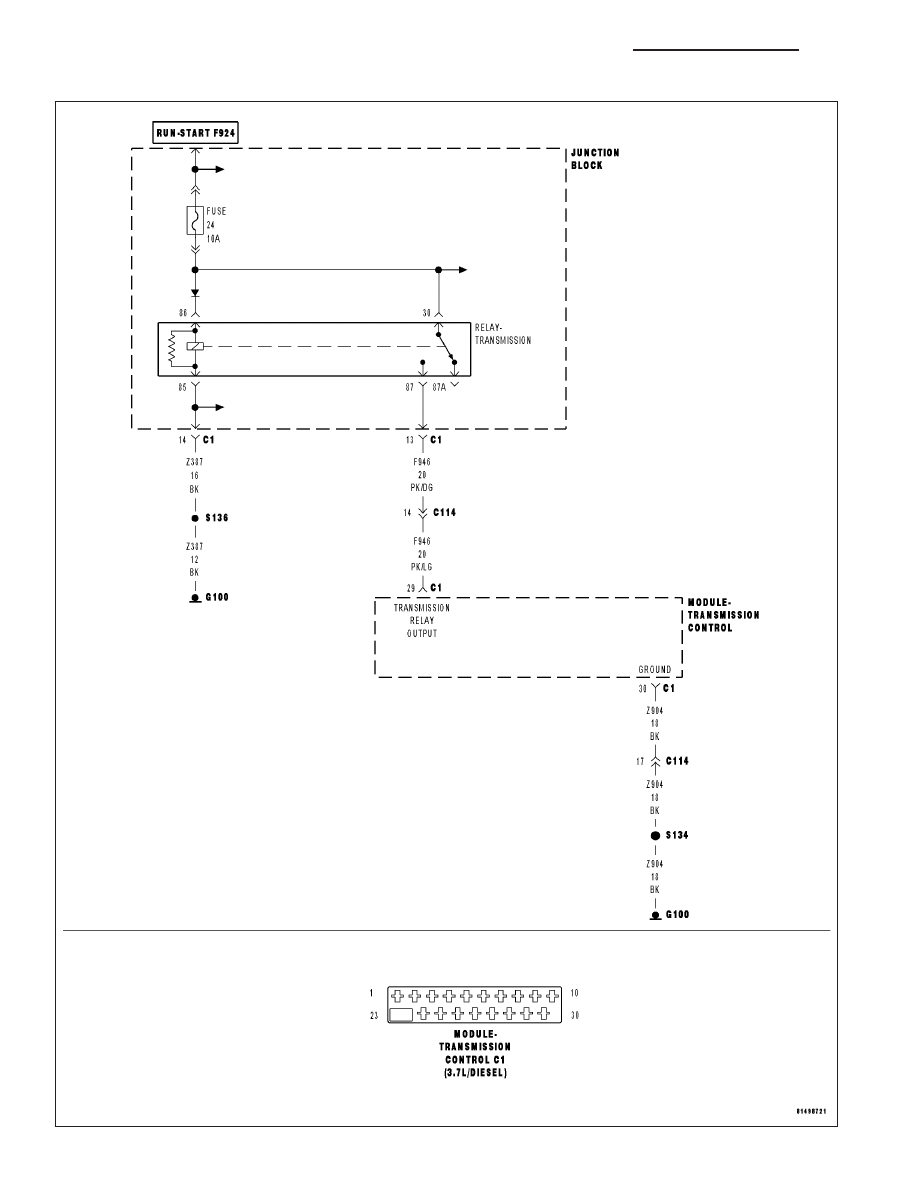

P0602-CONTROL MODULE PROGRAMMING ERROR/NOT PROGRAMMED

WK

AUTOMATIC TRANSMISSION NAG1 - ELECTRICAL DIAGNOSTICS

21 - 469
