C102A-LEFT REAR WHEEL SPEED COMPARATIVE PERFORMANCE

5 - 186

BRAKES - BRAKE CONTROLLER ELECTRICAL DIAGNOSTICS

WK

C102A-LEFT REAR WHEEL SPEED COMPARATIVE PERFORMANCE (CONTINUED)

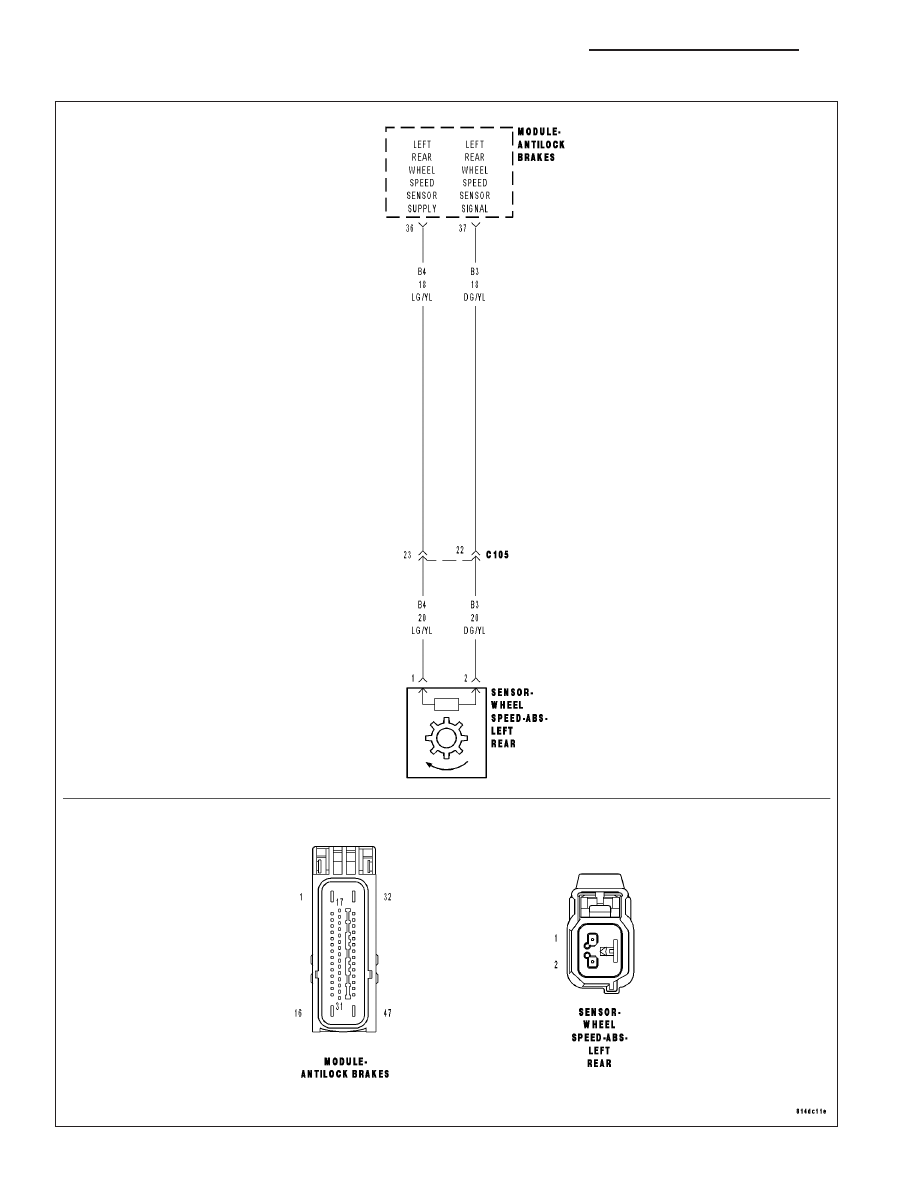

For the Anti-Lock Brake System circuit diagram. (Refer to 5 - BRAKES - SCHEMATICS AND DIAGRAMS)

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
When the Left Rear Wheel Speed Sensor circuit fails the diagnostic test.

Possible Causes

TERMINAL/CONNECTOR/WIRING HARNESS/TONE WHEEL DAMAGE

(B3) LEFT REAR WSS SIGNAL CIRCUIT OPEN

LEFT REAR WHEEL SPEED SENSOR

ANTI-LOCK BRAKE MODULE

Diagnostic Test

1.

CHECK FOR A DTC C102A-LEFT REAR WHEEL SPEED COMPARATIVE PERFORMANCE

NOTE: This DTC must be active for the results of this test to be valid.
Turn the ignition on.

With the scan tool, read DTCs.

Record DTC and Freeze Frame information.

With the scan tool, erase DTCs.

Cycle the ignition switch off then on.

CAUTION: Ensure brake capability is available before road testing.
Have an assistant test drive the vehicle in a straight line to 40 Km/h (25 mph) while monitoring all the WSS speeds
with the scan tool.

Did the LR WSS speed differ by 8 Km/h (5 mph) or show NO speed?

Yes

>> Go To 2

No

>> Refer to the INTERMITTENT CONDITION diagnostic procedure.

Perform ABS VERIFICATION TEST - VER 1.

2.

CHECK THE TERMINALS/CONNECTORS/WIRING HARNESS/TONE WHEEL FOR DAMAGE

NOTE: Check all related wiring for bruised, chafed, pierced, or partially broken wires.

NOTE: Check all related connectors for broken, bent, pushed out, or corroded terminals.

NOTE: Check the tone wheel teeth for missing teeth, cracks, or looseness. Teeth should be perfectly
square, not bent, or nicked.
Turn the ignition off.

Inspect the Anti-Lock Brake Module harness connector, Left Rear WSS, Left Rear WSS harness connector, and Left
Rear WSS tone wheel (if applicable).

Were any problems found?

Yes

>> Repair as necessary.

Perform ABS VERIFICATION TEST - VER 1.

No

>> Go To 3

WK

BRAKES - BRAKE CONTROLLER ELECTRICAL DIAGNOSTICS

5 - 187

C102A-LEFT REAR WHEEL SPEED COMPARATIVE PERFORMANCE (CONTINUED)

3.

CHECK THE VOLTAGE BETWEEN (B4) LEFT REAR WSS SUPPLY CIRCUIT AND THE (B3) LEFT REAR
WSS SIGNAL CIRCUIT

Turn the ignition off.

Disconnect the Left Rear WSS harness connector.

Turn the ignition on.

Measure the voltage between the (B4) Left Rear WSS Supply and
(B3) Left Rear WSS Signal circuits at the Left Rear WSS harness con-
nector.

Is the voltage above 10 volts?

Yes

>> Go To 4

No

>> Refer to DTC-C1020 LEFT REAR WHEEL SPEED SEN-

SOR CIRCUIT for the diagnostic repair procedure.

Perform ABS VERIFICATION TEST - VER 1.

4.

CHECK THE (B3) LEFT REAR WSS SIGNAL VOLTAGE AT THE LEFT REAR WSS HARNESS
CONNECTOR

Turn the ignition off.

Reconnect all connectors.

Turn the ignition on.

While back probing, measure the voltage between the (B3) Left Rear
WSS Signal circuit at the Left Rear WSS harness connector and chas-
sis ground.

Slowly rotate the wheel by hand.

Did the (B3) Left Rear WSS Signal circuit voltage toggle
between approximately 1.6 to .8 volts?

Yes

>> Go To 5

No

>> Replace the Left Rear WSS in accordance with the Ser-

vice Information.

Perform ABS VERIFICATION TEST - VER 1.

5 - 188

BRAKES - BRAKE CONTROLLER ELECTRICAL DIAGNOSTICS

WK

C102A-LEFT REAR WHEEL SPEED COMPARATIVE PERFORMANCE (CONTINUED)

5.

CHECK THE (B3) LEFT REAR WSS SIGNAL VOLTAGE AT THE ANTI-LOCK BRAKE MODULE HARNESS
CONNECTOR

Turn the ignition off.

Turn the ignition on.

While back probing, measure the voltage between the (B3) Left Rear
WSS Signal circuit at the Anti-Lock Brake Module harness connector
and chassis ground.

Slowly rotate the wheel by hand.

Did the (B3) Left Rear WSS Signal circuit voltage toggle
between approximately 1.6 to .8 volts?

Yes

>> Replace the Anti-Lock Brake Module in accordance with

the Service Information.

Perform ABS VERIFICATION TEST - VER 1.

No

>> Repair the (B3) Left Rear WSS Signal circuit for an open.

Perform ABS VERIFICATION TEST - VER 1.

WK

BRAKES - BRAKE CONTROLLER ELECTRICAL DIAGNOSTICS

5 - 189
