Jeep Grand Cherokee WK. Manual - part 114





CLEANING - REAR DRUM IN HAT BRAKE

Clean the individual brake components, including the support plate exterior, with a water dampened cloth or with
brake cleaner. Do not use any other cleaning agents. Remove light rust and scale from the brake shoe contact pads
on the support plate with fine sandpaper.

INSPECTION - REAR DRUM IN HAT BRAKE

As a general rule, riveted brake shoes should be replaced when worn to within 0.78 mm (1/32 in.) of the rivet
heads. Bonded lining should be replaced when worn to a thickness of 1.6 mm (1/16 in.).

Examine the lining contact pattern to determine if the shoes are bent or the drum is tapered. The lining should
exhibit contact across its entire width. Shoes exhibiting contact only on one side should be replaced and the drum
checked for runout or taper.

Inspect the adjuster screw assembly. Replace the assembly if the star wheel or threads are damaged, or the com-
ponents are severely rusted or corroded.

Discard the brake springs and retainer components if worn, distorted or collapsed. Also replace the springs if a
brake drag condition had occurred. Overheating will distort and weaken the springs.

Inspect the brake shoe contact pads on the support plate, replace the support plate if any of the pads are worn or
rusted through. Also replace the plate if it is bent or distorted.

5 - 82

BRAKES - BASE - SERVICE INFORMATION

WK

INSTALLATION

1. Install the park brake shoes (1) onto the actuator

lever (2).

2. Install shoes on support plate with hold down clips

and pins (4). Be sure shoes are properly engaged
in the park brake actuator lever (2).

3. Install thr return spring (3).

4. Lubricate and install adjuster screw assembly (5).

Be sure notched ends of screw assembly are prop-
erly seated on shoes and that star wheel is aligned
with access hole in the support plate.

5. Install shoe to shoe adjuster spring (6). Needle

nose pliers can be used to connect spring to each
shoe.

6. Install the axle shaft (1) to the rear differential

(Refer to 3 - DIFFERENTIAL & DRIVELINE/REAR
AXLE - C213R/AXLE SHAFTS - INSTALLATION).

7. Install and tighten the axle flange nuts (1).

WK

BRAKES - BASE - SERVICE INFORMATION

5 - 83

8. Install rotor to the axle hub.

9. Install the caliper and the 2 mounting bolts (4) to

90-115 N·m (66-85 ft. lbs.).

10. Adjust the parking brake shoes.

11. Install wheel and tire assembly.

12. Lower vehicle and verify correct parking brake

operation.

5 - 84

BRAKES - BASE - SERVICE INFORMATION

WK

ADJUSTMENTS

ADJUSTMENT - REAR DRUM IN HAT PARK BRAKE (ROTOR REMOVED)

Under normal circumstances, the only time adjustment is required is when the shoes are replaced, removed for
access to other parts, or when one or both rotors are replaced.

Adjustment can be made with a standard brake gauge or with adjusting tool. Adjustment is performed with the com-
plete brake assembly installed on the backing plate.

CAUTION: Before adjusting the park brake shoes be sure that the park brake pedal is in the fully released
position. If park brake pedal is not in the fully released position, the park brake shoes can not be accurately
adjusted.

1. Raise vehicle.

2. Remove tire and wheel.

3. Remove disc brake caliper from caliper adapter (Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/DISC BRAKE

CALIPERS - REMOVAL).

4. Remove rotor from the axleshaft (Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/ROTORS - REMOVAL).

NOTE: When measuring the brake drum diameter,
the diameter should be measured in the center of
the area in which the park brake shoes contact the
surface of the brake drum.

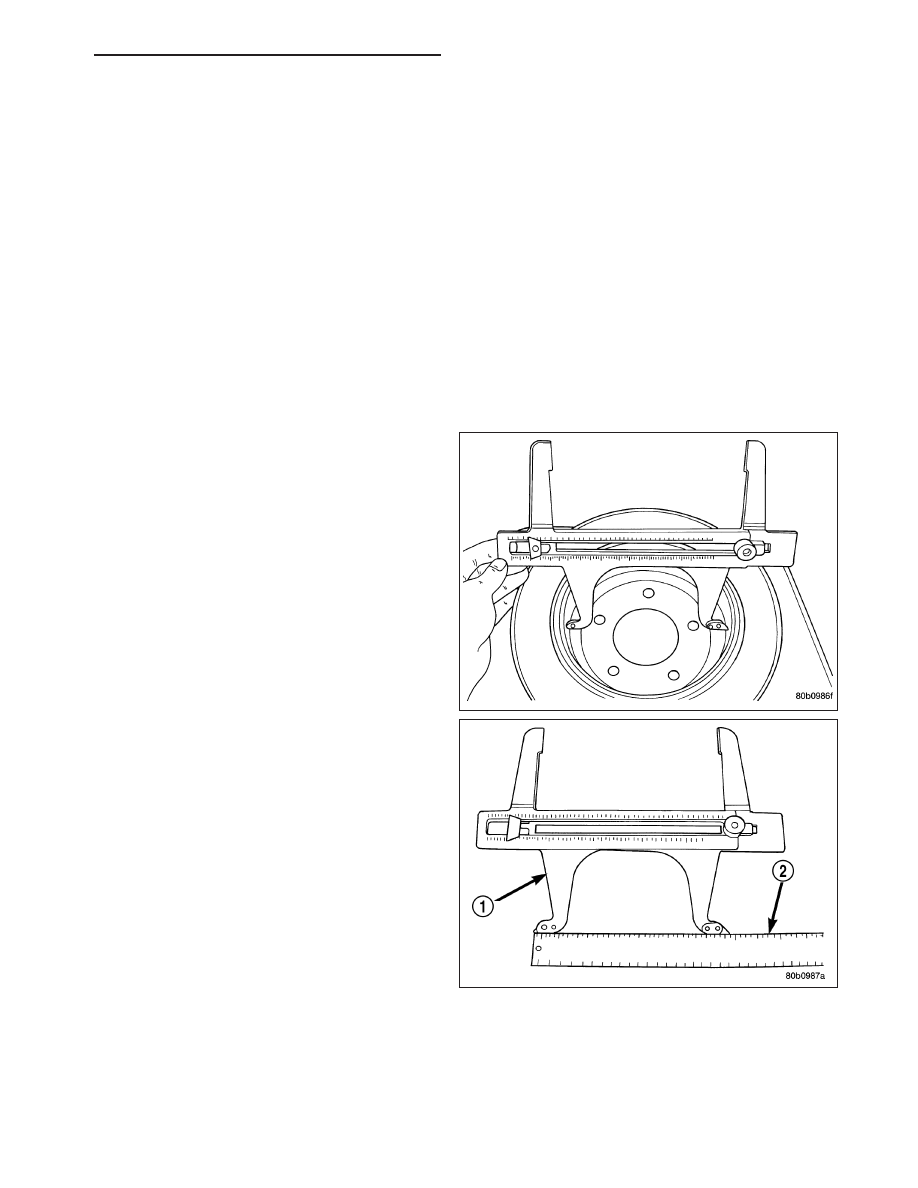

5. Using Brake Shoe Gauge, Special Tool C-3919 (1),

or equivalent, accurately measure the inside diam-
eter of the park brake drum portion of the rotor.

6. Using a ruler (2) that reads in 64th of an inch,

accurately read the measurement of the inside
diameter of the park brake drum from the special
tool.

WK

BRAKES - BASE - SERVICE INFORMATION

5 - 85
