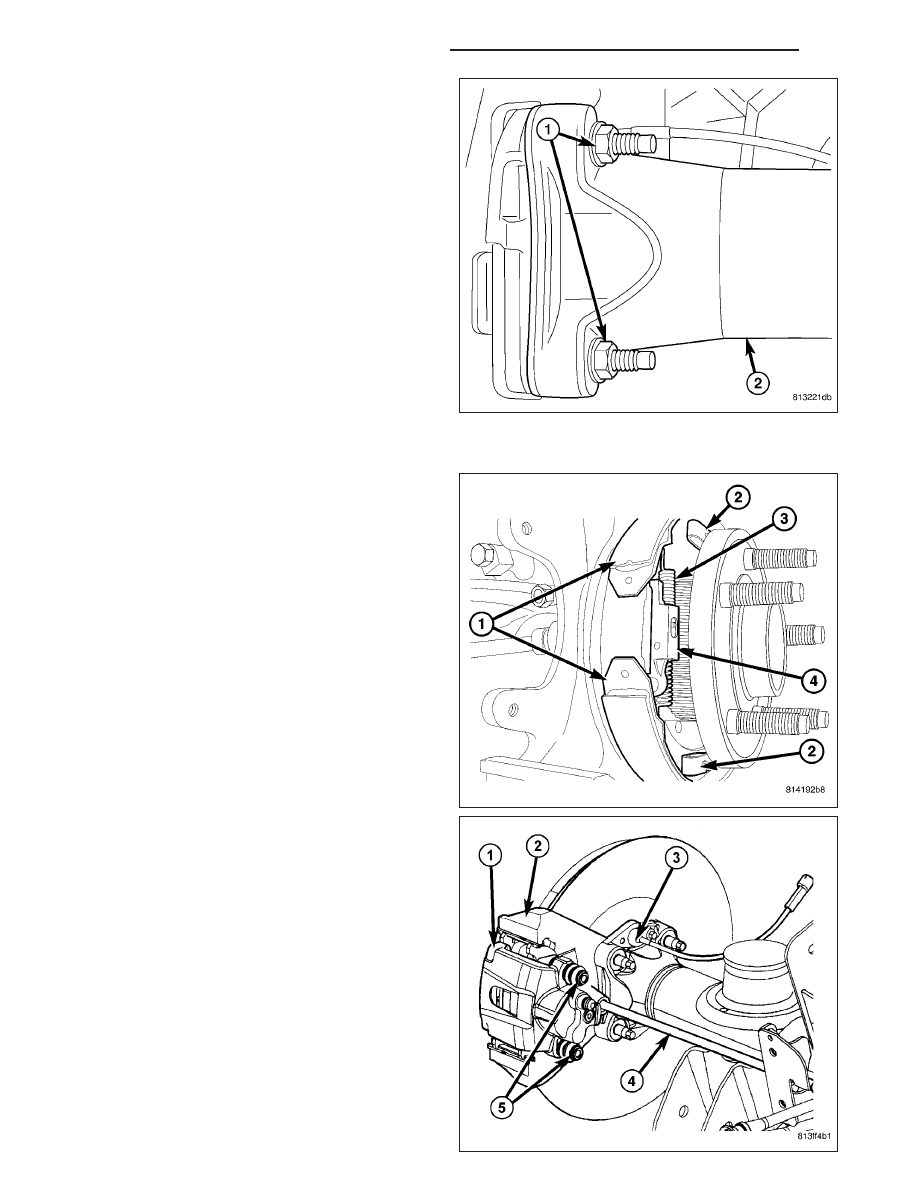

8. Install the axle flange nuts (1). (Refer to 3 - DIF-

FERENTIAL & DRIVELINE/REAR AXLE - C213R/
AXLE SHAFTS - INSTALLATION).

9. Adjust rear park brake shoes (Refer to 5 - BRAKES/PARKING BRAKE/SHOES - ADJUSTMENTS).

10. Install the disc brake rotor.

11. Install the rear caliper (1) (Refer to 5 - BRAKES/

HYDRAULIC/MECHANICAL/DISC BRAKE CALI-
PERS - INSTALLATION).

5 - 74

BRAKES - BASE - SERVICE INFORMATION

WK

12. Install the park brake cables (2) thru the floor (1).

13. Install the tire and wheel assembly.

14. Lower the vehicle.

15. Reconnect the brake cables to the equalizer (1).

WK

BRAKES - BASE - SERVICE INFORMATION

5 - 75

16. Unlock the park brake cable (1).

17. Fold down the rear carpet.

18. Install the rear sill plates.

19. Install the (FDCM) module bracket (2) mounting

nuts.

20. Reconnect the (FDCM) module electrical connec-

tors (1).

21. Install the rear seat bottom (Refer to 23 - BODY/

SEATS/SEAT CUSHION - INSTALLATION).

22. Verify parking brake operation.

5 - 76

BRAKES - BASE - SERVICE INFORMATION

WK

LEVER

REMOVAL

1. Remove the console rear cover (2) or DVD player

(if equipped).

2. Remove the center console (1), (Refer to 23 -

BODY/INTERIOR/FLOOR

CONSOLE

-

REMOVAL).

3. Disconnect the park brake switch wire connector.

4. Lock out the park brake hand lever.

WK

BRAKES - BASE - SERVICE INFORMATION

5 - 77
