Jeep Grand Cherokee WK. Manual - part 110





6. Lock-out the park brake cable (1).

7. Disconnect the brake cables from the equalizer (1).

8. Remove the park brake cables (2) thru the floor

(1).

5 - 66

BRAKES - BASE - SERVICE INFORMATION

WK

9. Raise and support the vehicle.

10. Remove the tire and wheel assembly.

11. Remove the rear caliper (1) (Refer to 5 -

BRAKES/HYDRAULIC/MECHANICAL/DISC
BRAKE CALIPERS - REMOVAL).

12. Remove the disc brake rotor.

13. Remove the axle flange bolts (1).

WK

BRAKES - BASE - SERVICE INFORMATION

5 - 67

14. Remove the axle (1).

15. Disconnect the park brake cable at the brake

actuator lever (2).

16. Disconnect the rear park brake shoes (1) (Refer

to

5

-

BRAKES/PARKING

BRAKE/SHOES

-

REMOVAL).

17. Remove the park brake cable (2) thru the support

plate.

18. Remove the stabilizer bar bushing clamp bolts.

19. Remove the 2 push pins for the park brake cable

to the axle.

20. Remove the cable (2) from the vehicle.

5 - 68

BRAKES - BASE - SERVICE INFORMATION

WK

INSTALLATION

FRONT PARKING BRAKE CABLE

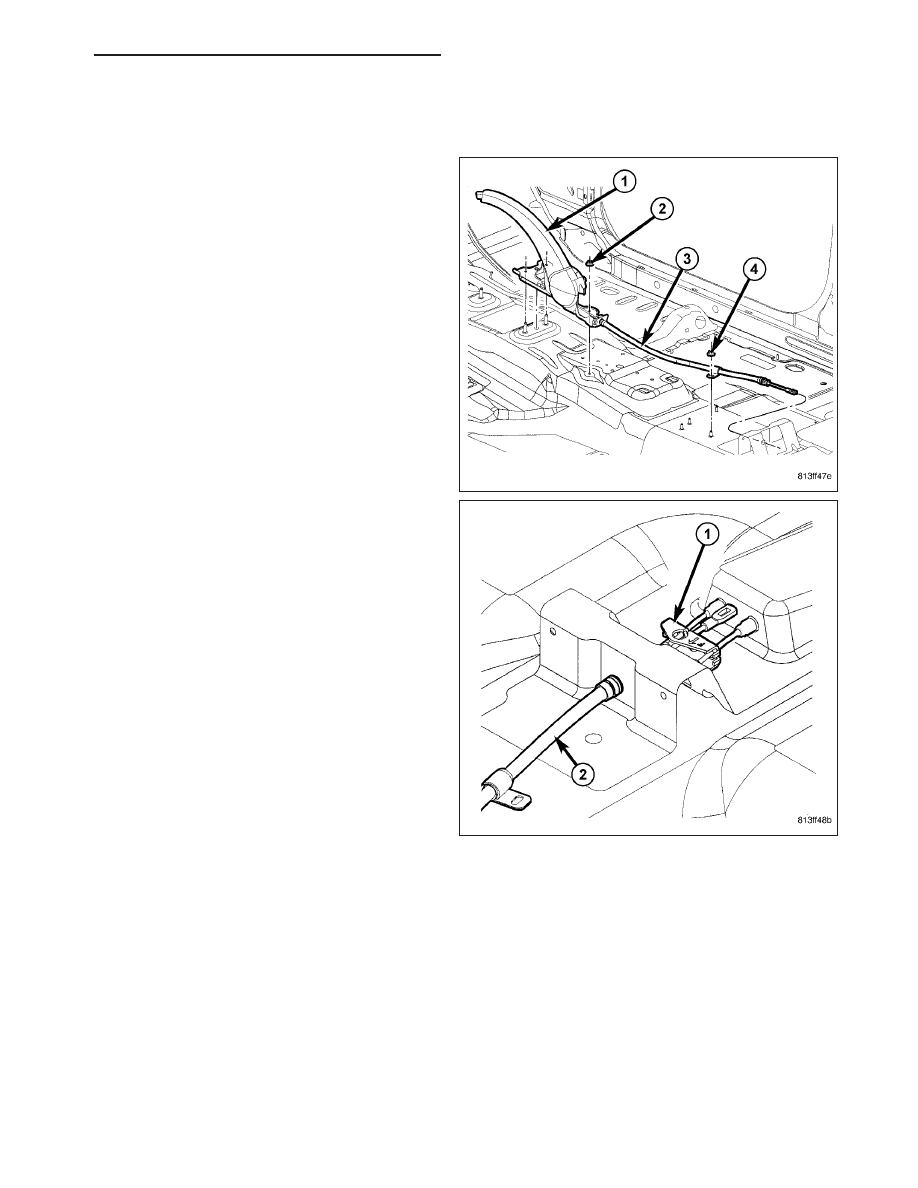

1. Install the front cable (3) at the hand lever mount-

ing bracket (1).

2. Install the front cable (3) at the hand lever (1).

3. Install the front cable at the rear floor bracket.

4. Install the 2 front cable routing clamps and the 3

nuts (2&4).

5. Install the front cable (2) at the equalizer (1).

WK

BRAKES - BASE - SERVICE INFORMATION

5 - 69
