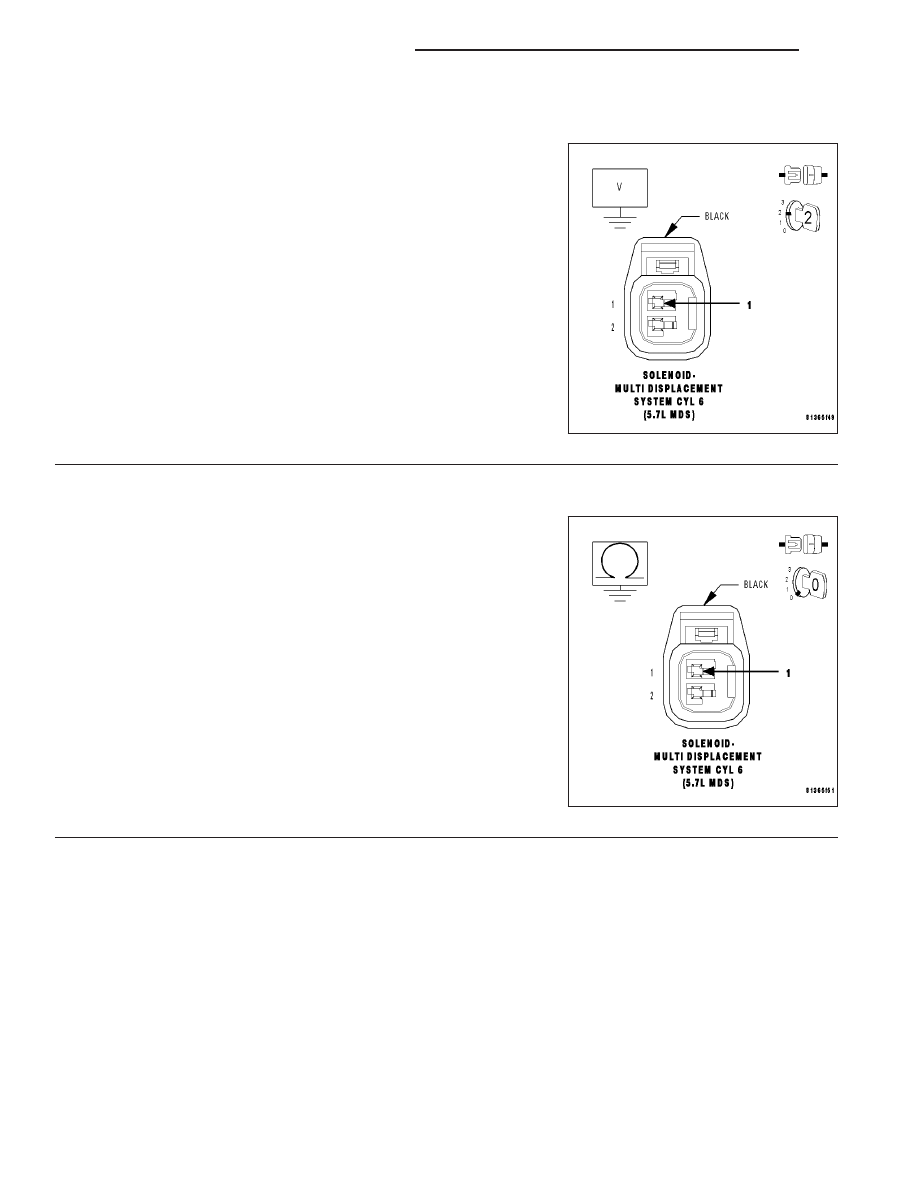

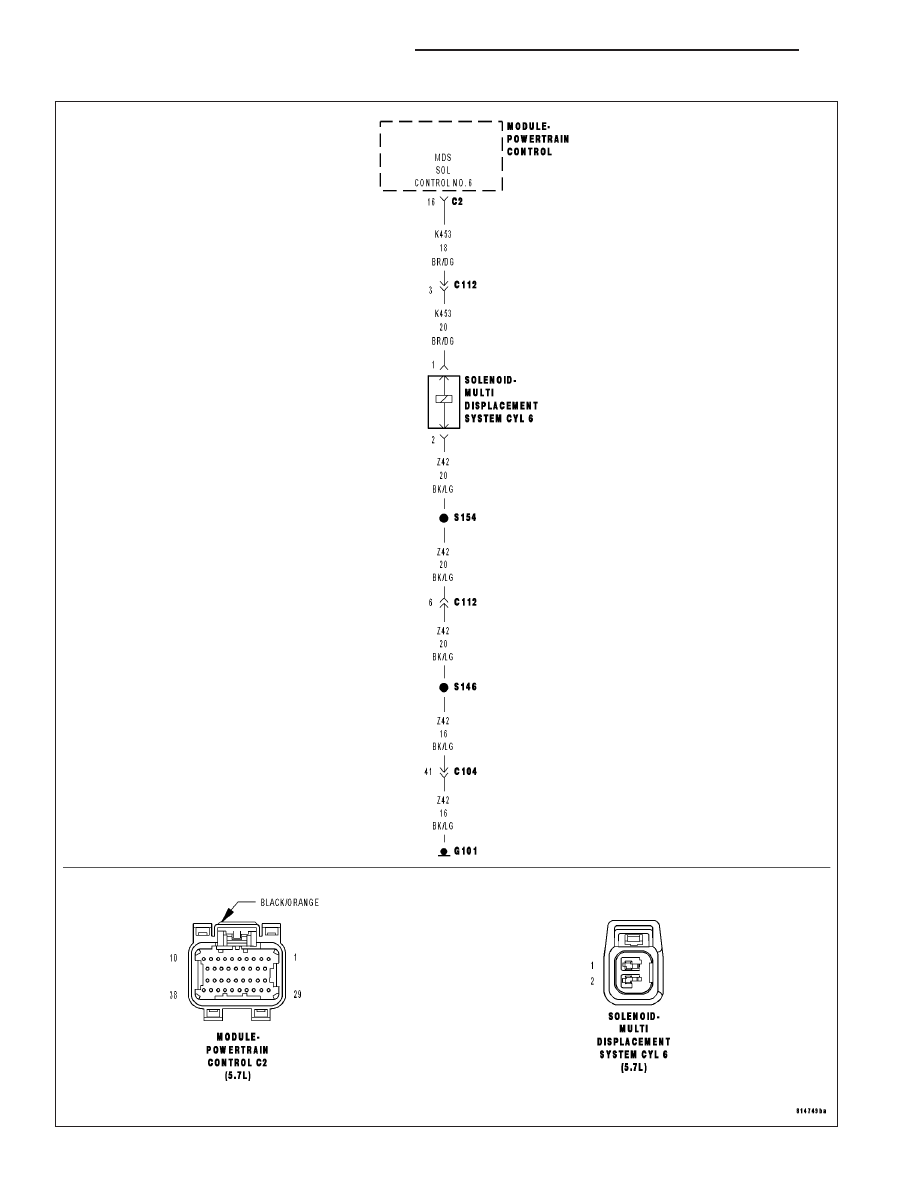

P3441-MDS SOLENOID 6 CIRCUIT (CONTINUED) 4. (K453) MDS SOLENOID CONTROL NO.6 CIRCUIT SHORTED TO BATTERY VOLTAGE Disconnect the C2 PCM harness connector. Ignition on, engine not running. Measure the voltage on the (K453) MDS Solenoid No.6 Control circuit Is the voltage above 1.0 volt? Yes >> Repair the short to battery voltage in the (K453) MDS Solenoid No.6 Control circuit. Perform the POWERTRAIN VERIFICATION TEST. (Refer No >> Go To 5 5. (K453) MDS SOLENOID NO.6 CONTROL CIRCUIT SHORTED TO GROUND Turn the ignition off. Measure the resistance between ground and the (K453) MDS Sole- Is the resistance below 100 ohms? Yes >> Repair the short to ground in the (K453) MDS Solenoid No.6 Control circuit. Perform the POWERTRAIN VERIFICATION TEST. (Refer No >> Go To 6 9 - 1076 ENGINE ELECTRICAL DIAGNOSTICS WK |
