P0591-SPEED CONTROL SWITCH 2 PERFORMANCE (CONTINUED)

4.

(V72) S/C SWITCH NO.2 SIGNAL CIRCUIT SHORTED TO BATTERY VOLTAGE

Disconnect the C1 Steering Column Control Module harness connec-
tor per Service Information.

Ignition on, engine not running.

Measure the voltage on the (V72) S/C Switch No.2 Signal circuit in the
C1 SCCM harness connector.

Is the voltage above 0 volts?

Yes

>> Repair the short to battery voltage in the (V72) S/C Switch

No.2 Signal circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 5

5.

STEERING COLUMN CONTROL MODULE

Turn the ignition off.

Measure the resistance of the (V372) S/C Switch No.2 Signal circuit between the C1 and C3 SCCM connections.

Measure the resistance of the (V397) Switch Return circuit between the C1 and C3 SCCM connections.

Is the resistance above 5.0 ohms?

Yes

>> Replace the Steering Column Control Module per Service Information.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 6

9 - 672

ENGINE ELECTRICAL DIAGNOSTICS

WK

P0591-SPEED CONTROL SWITCH 2 PERFORMANCE (CONTINUED)

6.

(V372) S/C SWITCH NO.2 SIGNAL CIRCUIT OPEN

NOTE: The measurement must be taken from both Speed Control
Switch harness connectors.
Measure the resistance of the (V372) S/C Switch No.2 Signal circuit
from both Speed Control harness connectors to the C3 SCCM harness
connector.

Is the resistance below 5.0 ohms for both measurements?

Yes

>> Go To 7

No

>> Repair the open in the (V372) S/C Switch No.2 Signal cir-

cuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

7.

(V72) S/C SWITCH NO.2 SIGNAL CIRCUIT OPEN

CAUTION: Do not probe the PCM harness connectors. Probing
the PCM harness connectors will damage the PCM terminals
resulting in poor terminal to pin connection. Install Miller Special
Tool #8815 to perform diagnosis.

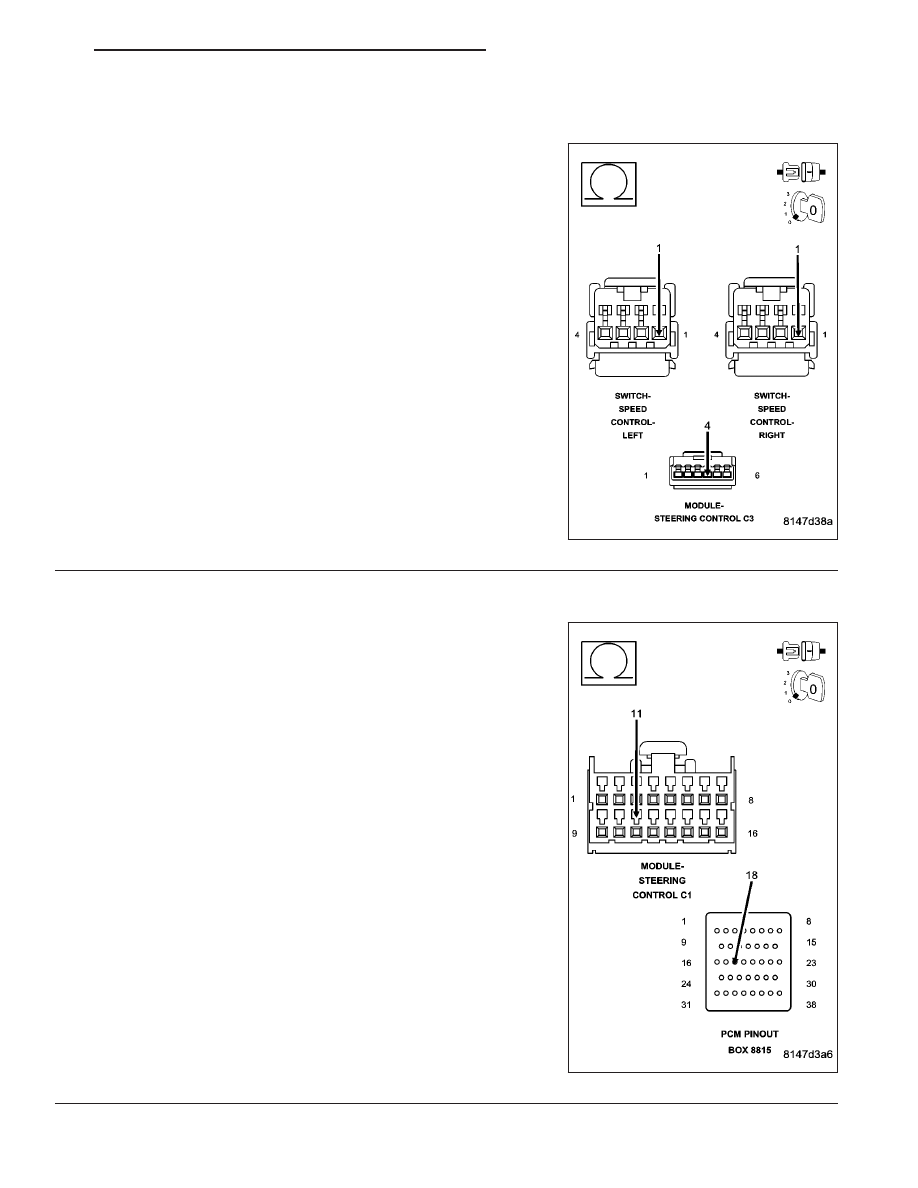

Measure the resistance of the (V72) S/C Switch No.2 Signal circuit
from the C1 SCCM harness connector to the appropriate terminal of
special tool #8815.

Is the resistance below 5.0 ohms for both measurements?

Yes

>> Go To 8

No

>> Repair the open in the (V72) S/C Switch No.2 Signal cir-

cuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

WK

ENGINE ELECTRICAL DIAGNOSTICS

9 - 673

P0591-SPEED CONTROL SWITCH 2 PERFORMANCE (CONTINUED)

8.

(V397) SWITCH RETURN CIRCUIT OPEN

Measure the resistance of the (V397) Switch Return circuit from the
S/C Switch harness connectors to the C3 SCCM harness connector.

Is the resistance below 5.0 ohms for both measurements?

Yes

>> Go To 9

No

>> Repair the open in the (V397) Switch Return circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

9.

(V937) SWITCH RETURN OPEN

Measure the resistance of the (V397) Switch Return circuit from the
C1 SCCMl harness connector to the appropriate terminal of special
tool #8815.

Is the resistance below 5.0 ohms for both measurement?

Yes

>> Go To 10

No

>> Repair the open in the (V937) Switch Return circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

9 - 674

ENGINE ELECTRICAL DIAGNOSTICS

WK

P0591-SPEED CONTROL SWITCH 2 PERFORMANCE (CONTINUED)

10.

(V372) S/C SWITCH NO.2 SIGNAL CIRCUIT SHORTED TO GROUND

Measure the resistance between ground and the (V372) S/C Switch
No.2 Signal circuit in the Speed Control harness connectors.

Is the resistance below 100 ohms?

Yes

>> Repair the short to ground in the (V372) S/C Switch No.2

Signal circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 11

11.

(V72) S/C NO.2 SWITCH SIGNAL CIRCUIT SHORTED TO GROUND

Measure the resistance between ground and the (V72) S/C Switch
No.2 Signal circuit in the C1 SCCM harness connector.

Is the resistance below 100 ohms?

Yes

>> Repair the short to ground in the (V72) S/C Switch No.2

Signal circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 12
