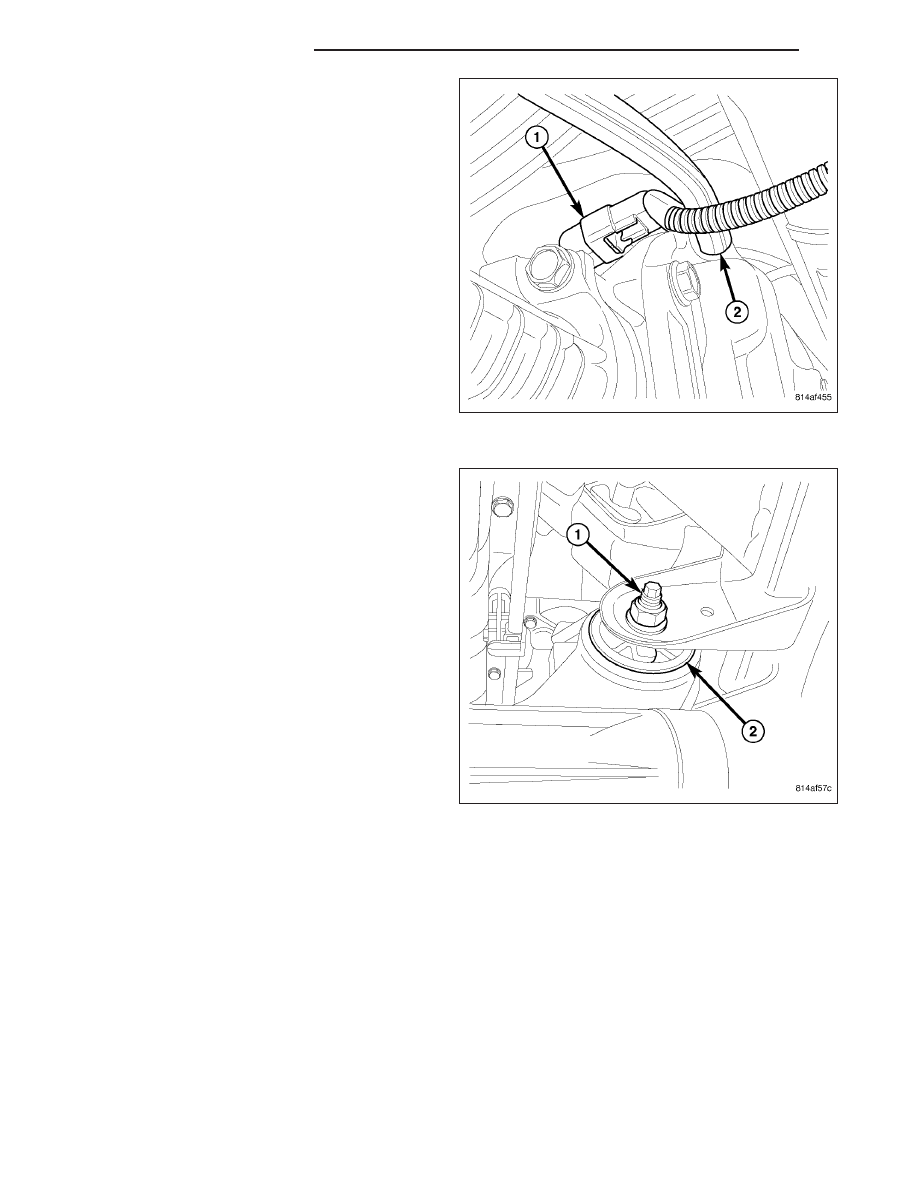

14. Remove ELSD connector (1) from axle.

15. Remove differential vent hose (2).

16. Remove bolt (1) from axle tube bushing (2).

3 - 118

FRONT AXLE - C200FE

WK

17. Remove bolt (1) from pinion nose bushing (2).

18. Support axle with a lift/jack.

19. Remove bolts (1) from differential cover bracket

bushing (2).

20. Lower axle from vehicle.

WK

FRONT AXLE - C200FE

3 - 119

INSTALLATION

1. Raise axle to vehicle.

2. Install differential cover bracket bushing (2) bolts

(1) and tighten bolts to 47 N·m (35 ft. lbs.)

3. Install axle tube bushing (2) bolt (1) and nut.

Tighten nut to 95 N·m (70 ft. lbs.)

3 - 120

FRONT AXLE - C200FE

WK

4. Install differential bushing (2) bolt (1) and nut.

Tighten nut to 95 N·m (70 ft. lbs.)

5. Install ELSD connector (1) and differential vent

hose (2).

WK

FRONT AXLE - C200FE

3 - 121
