Jeep Grand Cherokee WK. Manual - part 47





INSTALLATION

1. Install axle tube bushing with Press C-4212F (1),

Installer 9511 (2) and Receiver 9536-2 (3).

2. Install pinion nose bushing with Press C-4212F (1),

Installer 9536-2 (2) and Receiver 9511(3).

3. Install new pinion seal, pinion flange and new pin-

ion nut.

3 - 86

FRONT AXLE - C200F

WK

DIFFERENTIAL

REMOVAL

1. Remove half shafts and axle shaft.

2. Remove differential cover.

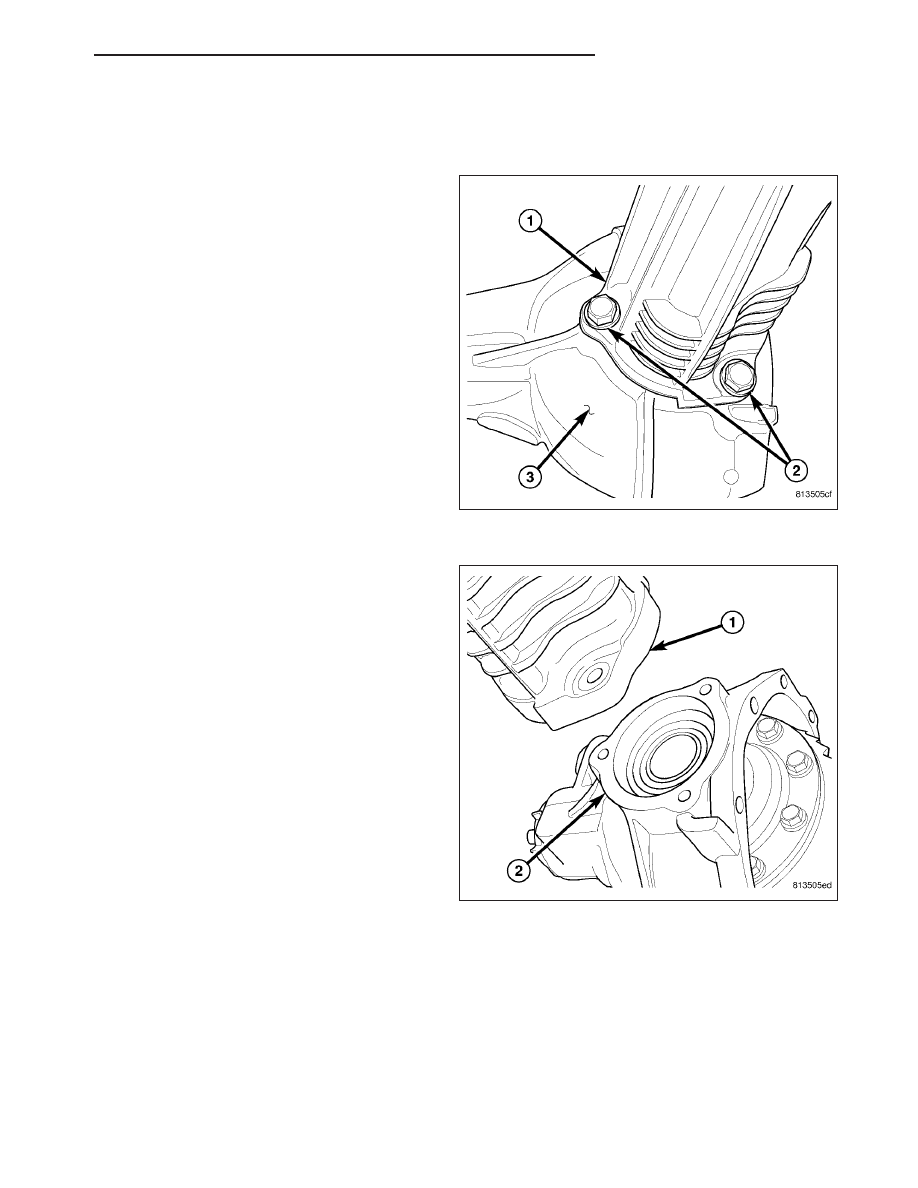

3. Remove three axle tube (1) mounting bolts (2) from

differential housing (3).

4. Tap axle tube (1) and pull tube off differential hous-

ing flange (2).

5. Remove half shaft differential housing seal with

seal pick.

WK

FRONT AXLE - C200F

3 - 87

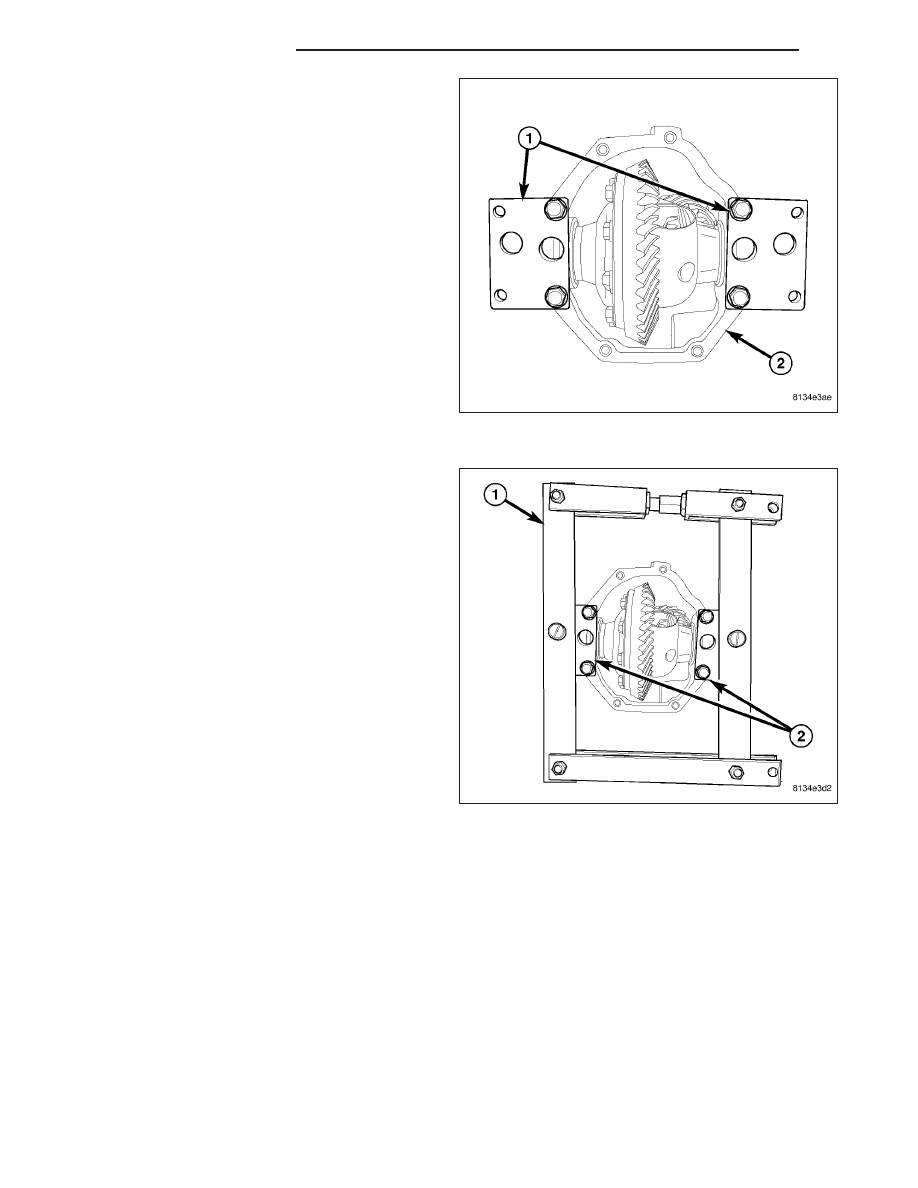

6. Bolt spreader Adapters 9669 (1) to differential

housing (2).

7. Install Spreader W-129-B (1) on adapters (2).

8. Spread case .3mm (0.011 in.).

3 - 88

FRONT AXLE - C200F

WK

9. Remove select snap-rings (1) from differential

housing bearing bores (2).

10. Measure select snap-rings (2) and mark the size

and location of the snap-rings.

WK

FRONT AXLE - C200F

3 - 89
