3. Install the four upper shock nuts (2), Tighten to 95

N·m ( 70 ft. lbs.).

4. Install the 3 PDC (1) bracket nuts.

5. Raise the vehicle up.

6. Install the lower stabilizer bolt (2) at the lower con-

trol arm and tighten to 115 N·m (85 ft. lbs.).

7. Install the lower clevis bolt (3) at the lower control

arm and tighten to 169 N·m (125 ft. lbs.).

8. Install the upper ball joint into the knuckle (1) and

tighten the nut to 75 N·m (55 ft. lbs.).

9. Install the disc brake rotor.

10. Install the caliper adaptor mounting bolts to 176 N·m (130 ft. lbs.).

2 - 32

FRONT

WK

11. Install the tire and wheel assembly.

12. Lower the vehicle.

SPRING

REMOVAL

1. Remove the shock (Refer to 2 - SUSPENSION/

FRONT/SHOCK - REMOVAL).

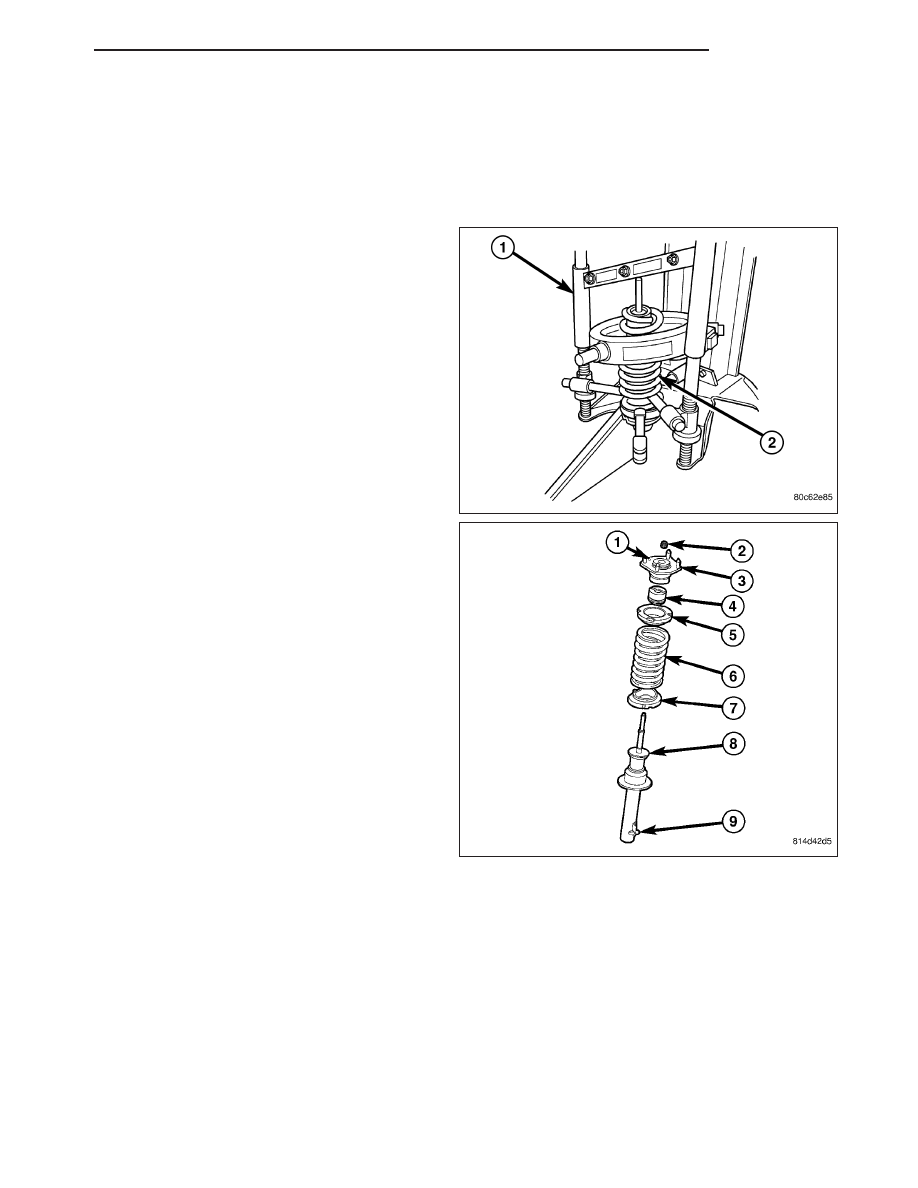

2. Install the shock assembly in the Branick 7200

T

spring removal/installation tool or equivalent (1).

3. Compress the spring (2).

4. Remove the upper shock nut (2).

NOTE: The nub (1) in the upper shock mount (3)
must be 180° from the centerline of the lower
bracket (9) on the shock (8) for proper installation.

5. Remove the shock (8).

6. Remove the shock upper mounting plate (3).

7. Remove and inspect the upper (5) and lower (7)

spring isolators.

WK

FRONT

2 - 33

INSTALLATION

1. Compress the spring (2).

2. Install the lower isolator (7).

3. Position the shock (8) into the coil spring (6) make

sure the jounce bumper (4) is on the shock rod.

4. Install the upper isolator (5).

NOTE: For proper orientation the nub hole (1) in
the upper shock plate (3) must be 180° in a cen-
terline from the bracket (9) at the bottom of the
shock (8).

5. Install the upper shock mounting plate (3).

6. Install the shock upper mounting nut (2) Tighten to

39 N·m ( 25 ft. lbs.).

7. Decompress the spring.

8. Remove the shock assembly from the spring com-

pressor tool (1).

9. Install the shock assembly (Refer to 2 - SUSPEN-

SION/FRONT/SHOCK - INSTALLATION).

STABILIZER BAR

DESCRIPTION

The bar extends across the front underside of the chassis and is mounted to the cradle. Links are connected from
the bar to the lower control arms. The stabilizer bar and links are isolated by rubber bushings.

OPERATION

The stabilizer bar is used to control vehicle body sway during turns. The spring steel bar helps to control the vehicle
body in relationship to the suspension.

2 - 34

FRONT

WK

REMOVAL

1. Raise and support the vehicle.

2. Remove the front splash shield.

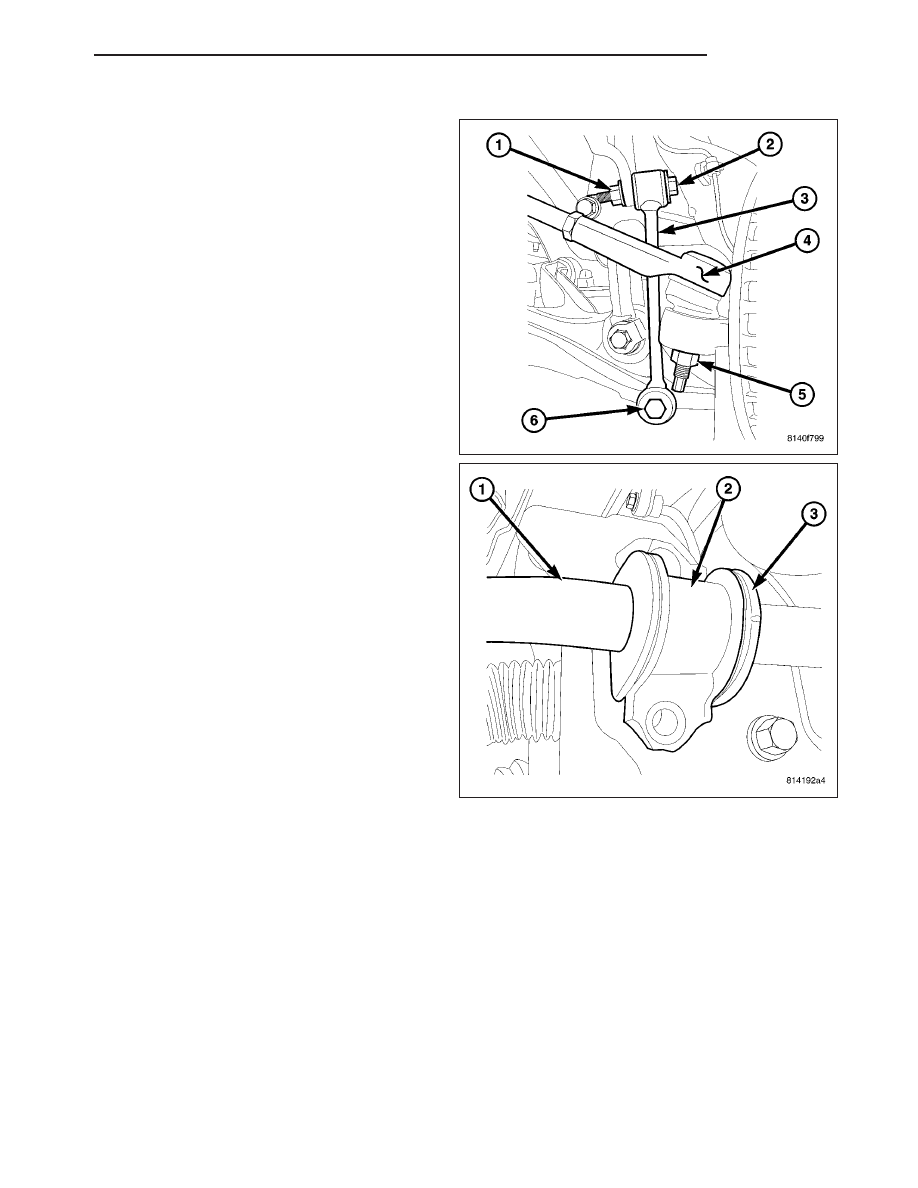

3. Remove the stabilizer bar link upper nut (1) & bolt

(2).

4. Remove the two stabilizer bushing clamp bolts (2).

5. Remove the stabilizer bar (1).

WK

FRONT

2 - 35
