CLUTCH AND BAND APPLICATION CHART

SHIFT

LEVER

POSITION

TRANSMISSION CLUTCHES AND BANDS

OVERDRIVE CLUTCHES

FRONT

CLUTCH

FRONT

BAND

REAR

CLUTCH

REAR

BAND

OVER-

RUNNING

CLUTCH

OVER-

DRIVE

CLUTCH

DIRECT

CLUTCH

OVER-

RUNNING

CLUTCH

Reverse

X

X

X

Drive -

First

X

X

X

X

Drive -

Second

X

X

X

X

Drive -

Third

X

X

X

X

Drive -

Fourth

X

X

X

Manual

Second

X

X

X

X

X

Manual

First

X

X

X

X

X

Note that the rear clutch is applied in all forward

ranges (D, 2, 1). The transmission overrunning clutch
is applied in first gear (D, 2 and 1 ranges) only. The
rear band is applied in 1 and R range only.

Note that the overdrive clutch is applied only in

fourth gear and the overdrive direct clutch and over-
running clutch are applied in all ranges except fourth
gear.

For example: If slippage occurs in first gear in D

and 2 range but not in 1 range, the transmission
overrunning clutch is faulty. Similarly, if slippage
occurs in any two forward gears, the rear clutch is
slipping.

Applying the same method of analysis, note that

the front and rear clutches are applied simulta-
neously only in D range third and fourth gear. If the
transmission slips in third gear, either the front
clutch or the rear clutch is slipping.

If the transmission slips in fourth gear but not in

third gear, the overdrive clutch is slipping. By select-
ing another gear which does not use these clutches,
the slipping unit can be determined. For example, if
the transmission also slips in Reverse, the front
clutch is slipping. If the transmission does not slip in
Reverse, the rear clutch is slipping.

If slippage occurs during the 3-4 shift or only in

fourth gear, the overdrive clutch is slipping. Simi-
larly, if the direct clutch were to fail, the transmis-
sion would lose both reverse gear and overrun
braking in 2 position (manual second gear).

If the transmission will not shift to fourth gear, the

control switch, overdrive solenoid or related wiring
may also be the problem cause.

This process of elimination can be used to identify

a slipping unit and check operation. Proper use of
the Clutch and Band Application Chart is the key.

Although road test analysis will help determine the

slipping unit, the actual cause of a malfunction usu-
ally cannot be determined until hydraulic and air
pressure tests are performed. Practically any condi-
tion can be caused by leaking hydraulic circuits or
sticking valves.

Unless a malfunction is obvious, such as no drive

in D range first gear, do not disassemble the trans-
mission. Perform the hydraulic and air pressure tests
to help determine the probable cause.

DIAGNOSIS AND TESTING - HYDRAULIC
PRESSURE TEST

Hydraulic test pressures range from a low of one

psi (6.895 kPa) governor pressure, to 300 psi (2068
kPa) at the rear servo pressure port in reverse.

An accurate tachometer and pressure test gauges

are required. Test Gauge C-3292 has a 100 psi range
and is used at the accumulator, governor, and front
servo ports. Test Gauge C-3293-SP has a 300 psi
range and is used at the rear servo and overdrive
ports where pressures exceed 100 psi.

WG

AUTOMATIC - 44RE

21s - 47

AUTOMATIC - 44RE (Continued)

2001 JEEP GRAND CHEROKEE

Pressure Test Port Locations

Test ports are located at both sides of the transmis-

sion case (Fig. 9).

Line pressure is checked at the accumulator port

on the right side of the case. The front servo pressure
port is at the right side of the case just behind the
filler tube opening.

The rear servo and governor pressure ports are at

the right rear of the transmission case. The overdrive
clutch pressure port is at the left rear of the case.

Test One - Transmission In Manual Low

NOTE: This test checks pump output, pressure reg-
ulation, and condition of the rear clutch and servo
circuit. Both test gauges are required for this test.

(1) Connect tachometer to engine. Position tachom-

eter so it can be observed from driver seat if helper
will be operating engine. Raise vehicle on hoist that
will allow rear wheels to rotate freely.

(2) Connect 100 psi Gauge C-3292 to accumulator

port. Then connect 300 psi Gauge C-3293-SP to rear
servo port.

(3) Disconnect throttle and gearshift cables from

levers on transmission valve body manual shaft.

(4) Have helper start and run engine at 1000 rpm.
(5) Move transmission shift lever fully forward

into 1 range.

(6) Gradually move transmission throttle lever

from full forward to full rearward position and note
pressures on both gauges:

• Line pressure at accumulator port should be

54-60 psi (372-414 kPa) with throttle lever forward
and gradually increase to 90-96 psi (621-662 kPa) as
throttle lever is moved rearward.

• Rear servo pressure should be same as line pres-

sure within 3 psi (20.68 kPa).

Test Two - Transmission In 2 Range

NOTE: This test checks pump output, line pressure
and pressure regulation. Use 100 psi Test Gauge
C-3292 for this test.

(1) Leave vehicle in place on hoist and leave Test

Gauge C-3292 connected to accumulator port.

(2) Have helper start and run engine at 1000 rpm.
(3) Move transmission shift lever one detent rear-

ward from full forward position. This is 2 range.

(4) Move transmission throttle lever from full for-

ward to full rearward position and read pressure on
gauge.

(5) Line pressure should be 54-60 psi (372-414

kPa) with throttle lever forward and gradually
increase to 90-96 psi (621-662 kPa) as lever is moved
rearward.

Test Three - Transmission In D Range Third Gear

NOTE: This test checks pressure regulation and
condition of the clutch circuits. Both test gauges
are required for this test.

(1) Turn OD switch off.
(2) Leave vehicle on hoist and leave Gauge C-3292

in place at accumulator port.

(3) Move Gauge C-3293-SP over to front servo port

for this test.

(4) Have helper start and run engine at 1600 rpm

for this test.

(5) Move transmission shift lever two detents rear-

ward from full forward position. This is D range.

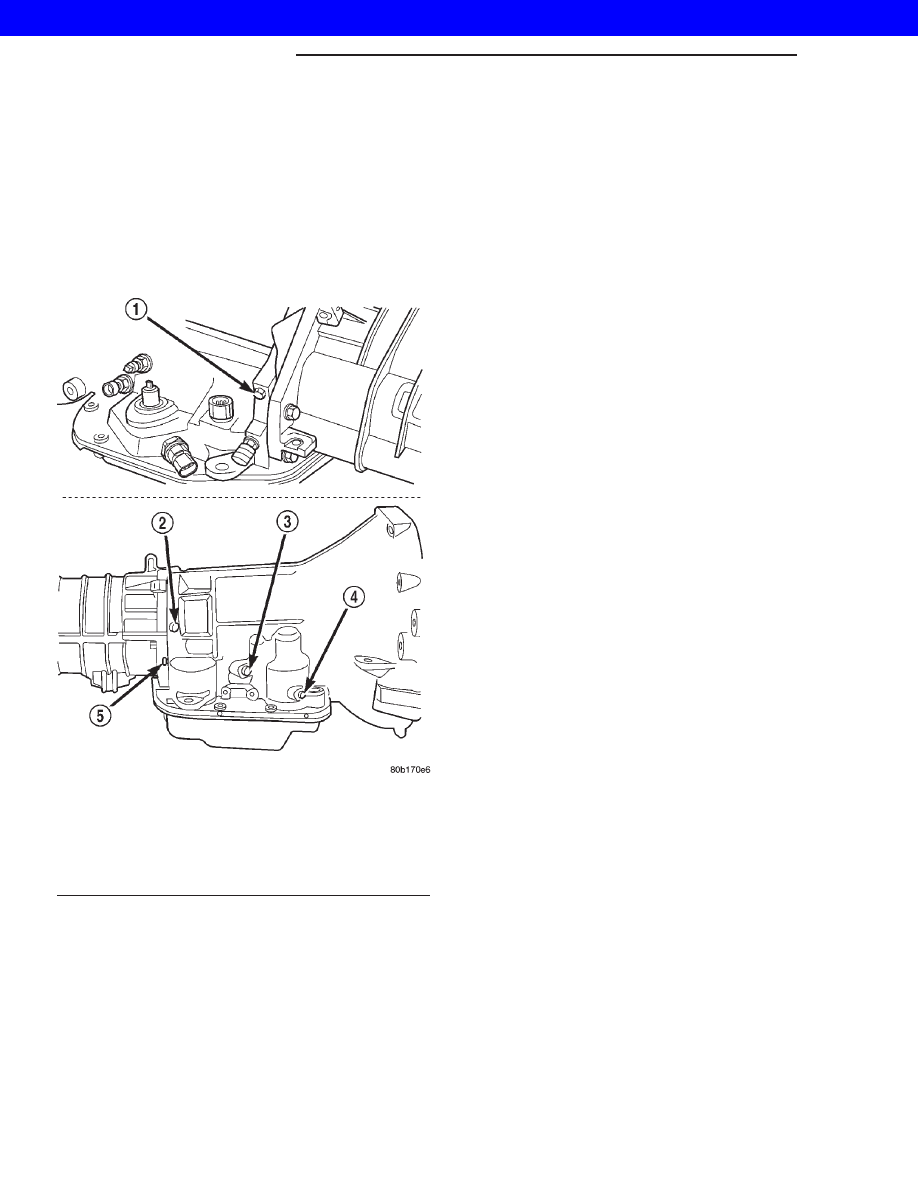

Fig. 9 Pressure Test Port Locations

1 - OVERDRIVE CLUTCH TEST PORT
2 - GOVERNOR TEST PORT
3 - ACCUMULATOR TEST PORT
4 - FRONT SERVO TEST PORT
5 - REAR SERVO TEST PORT

21s - 48

AUTOMATIC - 44RE

WG

AUTOMATIC - 44RE (Continued)

2001 JEEP GRAND CHEROKEE

(6) Read pressures on both gauges as transmission

throttle lever is gradually moved from full forward to
full rearward position:

• Line pressure at accumulator in D range third

gear, should be 54-60 psi (372-414 kPa) with throttle
lever forward and increase as lever is moved rear-
ward.

• Front servo pressure in D range third gear,

should be within 3 psi (21 kPa) of line pressure up to
kickdown point.

Test Four - Transmission In Reverse

NOTE: This test checks pump output, pressure reg-
ulation and the front clutch and rear servo circuits.
Use 300 psi Test Gauge C-3293-SP for this test.

(1) Leave vehicle on hoist and leave gauge C-3292

in place at accumulator port.

(2) Move 300 psi Gauge C-3293-SP back to rear

servo port.

(3) Have helper start and run engine at 1600 rpm

for test.

(4) Move transmission shift lever four detents

rearward from full forward position. This is Reverse
range.

(5) Move transmission throttle lever fully forward

then fully rearward and note reading at Gauge
C-3293-SP.

(6) Pressure should be 145 - 175 psi (1000-1207

kPa) with throttle lever forward and increase to 230 -
280 psi (1586-1931 kPa) as lever is gradually moved
rearward.

Test Five - Governor Pressure

NOTE: This test checks governor operation by mea-
suring governor pressure response to changes in
vehicle speed. It is usually not necessary to check
governor operation unless shift speeds are incor-
rect or if the transmission will not downshift. The
test should be performed on the road or on a hoist
that will allow the rear wheels to rotate freely.

(1) Move 100 psi Test Gauge C-3292 to governor

pressure port.

(2) Move transmission shift lever two detents rear-

ward from full forward position. This is D range.

(3) Have helper start and run engine at curb idle

speed. Then firmly apply service brakes so wheels
will not rotate.

(4) Note governor pressure:
• Governor pressure should be no more than 20.6

kPa (3 psi) at curb idle speed and wheels not rotat-
ing.

• If pressure exceeds 20.6 kPa (3 psi), a fault

exists in governor pressure control system.

(5) Release brakes, slowly increase engine speed,

and observe speedometer and pressure test gauge (do
not exceed 30 mph on speedometer). Governor pres-
sure should increase in proportion to vehicle speed.
Or approximately 6.89 kPa (1 psi) for every 1 mph.

(6) Governor pressure rise should be smooth and

drop back to no more than 20.6 kPa (3 psi), after
engine returns to curb idle and brakes are applied to
prevent wheels from rotating.

(7) Compare results of pressure test with analysis

chart.

Test Six - Transmission In Overdrive Fourth Gear

NOTE: This test checks line pressure at the over-
drive clutch in fourth gear range. Use 300 psi Test
Gauge C-3293-SP for this test. The test should be
performed on the road or on a chassis dyno.

(1) Remove tachometer; it is not needed for this

test.

(2) Move 300 psi Gauge to overdrive clutch pres-

sure test port. Then remove other gauge and reinstall
test port plug.

(3) Lower vehicle.
(4) Turn OD switch on.
(5) Secure test gauge so it can be viewed from

drivers seat.

(6) Start engine and shift into D range.
(7) Increase vehicle speed gradually until 3-4 shift

occurs and note gauge pressure.

(8) Pressure should be 469-496 kPa (68-72 psi)

with closed throttle and increase to 620-827 kPa (90-
120 psi) at 1/2 to 3/4 throttle. Note that pressure can
increase to around 896 kPa (130 psi) at full throttle.

(9) Return to shop or move vehicle off chassis

dyno.

WG

AUTOMATIC - 44RE

21s - 49

AUTOMATIC - 44RE (Continued)

2001 JEEP GRAND CHEROKEE

PRESSURE TEST ANALYSIS CHART

TEST CONDITION

INDICATION

Line pressure OK during
any one test

Pump and regulator
valve OK

Line pressure OK in R
but low in D, 2, 1

Leakage in rear clutch
area (seal rings, clutch
seals)

Pressure low in D Fourth
Gear Range

Overdrive clutch piston
seal, or check ball
problem

Pressure OK in 1, 2 but
low in D3 and R

Leakage in front clutch
area

Pressure OK in 2 but low
in R and 1

Leakage in rear servo

Front servo pressure in 2

Leakage in servo; broken
servo ring or cracked
servo piston

Pressure low in all
positions

Clogged filter, stuck
regulator valve, worn or
faulty pump, low oil level

Governor pressure too
high at idle speed

Governor pressure
solenoid valve system
fault. Refer to diagnostic
book.

Governor pressure low at
all mph figures

Faulty governor pressure
solenoid, transmission
control module, or
governor pressure
sensor

Lubrication pressure low
at all throttle positions

Clogged fluid cooler or
lines, seal rings leaking,
worn pump bushings,
pump, clutch retainer, or
clogged filter.

Line pressure high

Output shaft plugged,
sticky regulator valve

Line pressure low

Sticky regulator valve,
clogged filter, worn pump

DIAGNOSIS AND TESTING - AIR CHECKING
TRANSMISSION CLUTCH AND BAND
OPERATION

Air-pressure testing can be used to check transmis-

sion front/rear clutch and band operation. The test
can be conducted with the transmission either in the
vehicle or on the work bench, as a final check, after
overhaul.

Air-pressure testing requires that the oil pan and

valve body be removed from the transmission. The
servo and clutch apply passages are shown (Fig. 10).

Front Clutch Air Test

Place one or two fingers on the clutch housing and

apply air pressure through front clutch apply pas-
sage. Piston movement can be felt and a soft thump
heard as the clutch applies.

Rear Clutch Air Test

Place one or two fingers on the clutch housing and

apply air pressure through rear clutch apply passage.
Piston movement can be felt and a soft thump heard
as the clutch applies.

Front Servo Apply Air Test

Apply air pressure to the front servo apply pas-

sage. The servo rod should extend and cause the
band to tighten around the drum. Spring pressure
should release the servo when air pressure is
removed.

Fig. 10 Air Pressure Test Passages

1 - REAR SERVO APPLY
2 - FRONT SERVO APPLY
3 - PUMP SUCTION
4 - FRONT CLUTCH APPLY
5 - FRONT SERVO RELEASE
6 - LINE PRESSURE TO ACCUMULATOR
7 - PUMP PRESSURE
8 - TO CONVERTER
9 - REAR CLUTCH APPLY
10 - FROM CONVERTER
11 - TO COOLER

21s - 50

AUTOMATIC - 44RE

WG

AUTOMATIC - 44RE (Continued)

2001 JEEP GRAND CHEROKEE















Content   ..  883  884  885  886   ..
