Jeep Grand Cherokee WJ. Manual - part 881





SPECIFICATIONS

TRANSMISSION

GENERAL

Component

Metric

Inch

Planetary end play

0.127-1.22

mm

0.005-0.048

in.

Input shaft end play

0.56-2.31

mm

0.022-0.091

in.

Clutch pack clearance/

Front.

1.70-

3.40mm

0.067-0.134

in.

Clutch pack clearance/

Rear.

0.559-0.914

mm

0.022-0.036

in.

Front clutch

4 discs

Rear clutch

4 discs

Overdrive clutch

3 discs

Component

Metric

Inch

Direct clutch

6 discs

42RE Band adjustment

from 72 in. lbs.

Front band

Back off 3 turns

Rear band

Back off 4 turns

Recommended fluid

Mopar

T

ATF +4, type 9602

GEAR RATIOS

1ST GEAR

2.74:1

2ND GEAR

1.54:1

3RD GEAR

1.0:1

4TH GEAR

0.69:1

REVERSE

2.21:1

THRUST WASHER/SPACER/SNAP-RING DIMENSIONS

Component

Metric

Inch

Front clutch thrust washer (reaction shaft

support hub)

1.55 mm

0.061 in.

Rear clutch thrust washer (clutch retainer)

1.55 mm

0.061 in.

Intermediate shaft thrust plate (shaft hub pilot)

Select fit to set end play

Output shaft thrust washer (rear clutch hub)

1.5-1.6 mm

0.060-0.063 in.

Rear clutch pack snap-ring

1.5 mm

0.060 in.

1.95 mm

0.076 in.

2.45 mm

0.098 in.

Planetary geartrain snap-ring (at front of output shaft)

Select fit (three thicknesses avalible)

Overdrive piston thrust plate

Thrust plate and

spacer are select fit.

Refer to size charts

and selection

procedures in

Overdrive Unit D&A

procedures

Intermiediate shaft spacer

WG

AUTOMATIC - 42RE

21s - 31

AUTOMATIC - 42RE (Continued)

2001 JEEP GRAND CHEROKEE

PRESSURE TEST

Overdrive clutch

Fourth gear only

Pressure should be 469-496 kPa (68-72 psi) with

closed throttle and increase to 620-896 kPa (90-130

psi) at 1/2 to 3/4 throttle.

Line pressure (at

accumulator)

Closed throttle

372-414 kPa (54-60 psi).

Front servo

Third or Fourth gear only

No more than 21 kPa (3 psi) lower than line pressure.

Rear servo

1 range

No more than 21 kPa (3 psi) lower than line pressure.

R range

1103 kPa (160 psi) at idle, builds to 1862 kPa (270 psi)

at 1600 rpm.

Governor

D range closed throttle

Pressure should respond smoothly to changes in mph

and return to 0-7 kPa (0-1.5 psi) when stopped with

transmission in D, 1, 2. Pressure above 7 kPa (1.5 psi)

at stand still will prevent transmission from

downshifting.

TORQUE SPECIFICATIONS

DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

Fitting, cooler line at trans

18

13

-

Bolt, torque convertor

31

-

270

Bolt, clevis bracket to crossmember

47

35

-

Bolt, clevis bracket to rear support

68

50

-

Bolt, driveplate to crankshaft

75

55

-

Plug, front band reaction

17

13

-

Locknut, front band adj.

34

25

-

Switch, park/neutral

34

25

-

Bolt, fluid pan

17

13

-

Screws, fluid filter

4

-

35

Bolt, oil pump

20

15

-

Bolt, overrunning clutch cam

17

13

-

Bolt, O/D to trans.

34

25

-

Bolt, O/D piston retainer

17

13

-

Plug, pressure test port

14

10

-

Bolt, reaction shaft support

20

15

-

Locknut, rear band

41

30

-

Bolt, speedometer adapter

11

-

100

Screw, vehicle speed sensor

2.5

-

21

Bolt, valve body to case

12

-

100

Sensor, trans speed

27

20

-

Screw, solenoid wiring connector

4

-

35

Screw, solenoid to transfer plate

4

-

35

21s - 32

AUTOMATIC - 42RE

WG

AUTOMATIC - 42RE (Continued)

2001 JEEP GRAND CHEROKEE

FRONT SERVO

DESCRIPTION

The kickdown servo (Fig. 21) consists of a two-land

piston with an inner piston, a piston rod and guide,
and a return spring. The dual-land piston uses seal
rings on its outer diameters and an O-ring for the
inner piston.

OPERATION

The application of the piston is accomplished by

applying pressure between the two lands of the pis-
ton. The pressure acts against the larger lower land
to push the piston downward, allowing the piston rod
to extend though its guide against the apply lever.
Release of the servo at the 2-3 upshift is accom-
plished by a combination of spring and line pressure,
acting on the bottom of the larger land of the piston.
The small piston is used to cushion the application of
the band by bleeding oil through a small orifice in
the larger piston. The release timing of the kickdown
servo is very important to obtain a smooth but firm
shift. The release has to be very quick, just as the
front clutch application is taking place. Otherwise,
engine runaway or a shift hesitation will occur. To
accomplish this, the band retains its holding capacity
until the front clutch is applied, giving a small
amount of overlap between them.

DISASSEMBLY

(1) Remove seal ring from rod guide (Fig. 22).
(2) Remove small snap-ring from servo piston rod.

Then remove piston rod, spring and washer from pis-
ton.

(3) Remove and discard servo component o-ring

and seal rings.

Fig. 21 Front Servo

1 - VENT
2 -PISTON ROD
3 - PISTON
4 - SPRING
5 - RELEASE PRESSURE
6 - APPLY PRESSURE

Fig. 22 Front Servo

1 - PISTON RINGS
2 - O-RING
3 - SNAP-RING
4 - SEAL RING
5 - PISTON ROD GUIDE
6 - SNAP-RING
7 - SERVO SPRING
8 - PISTON ROD
9 - SERVO PISTON

WG

AUTOMATIC - 42RE

21s - 33

2001 JEEP GRAND CHEROKEE

CLEANING

Clean the servo piston components (Fig. 23) with

solvent and dry them with compressed air.

INSPECTION

Inspect the servo components (Fig. 24). Replace the

springs if collapsed, distorted or broken. Replace the
guide, rod and piston if cracked, bent, or worn. Dis-
card the servo snap-ring if distorted or warped.

Check the servo piston bore for wear. If the bore is

severely scored, or damaged, it will be necessary to
replace the case.

Replace any servo component if doubt exists about

condition. Do not reuse suspect parts.

ASSEMBLY

Clean and inspect front servo components.
(1) Lubricate new o-ring and seal rings with petro-

leum jelly and install them on piston, guide and rod.

(2) Install rod in piston. Install spring and washer

on rod. Compress spring and install snap-ring (Fig.
25).

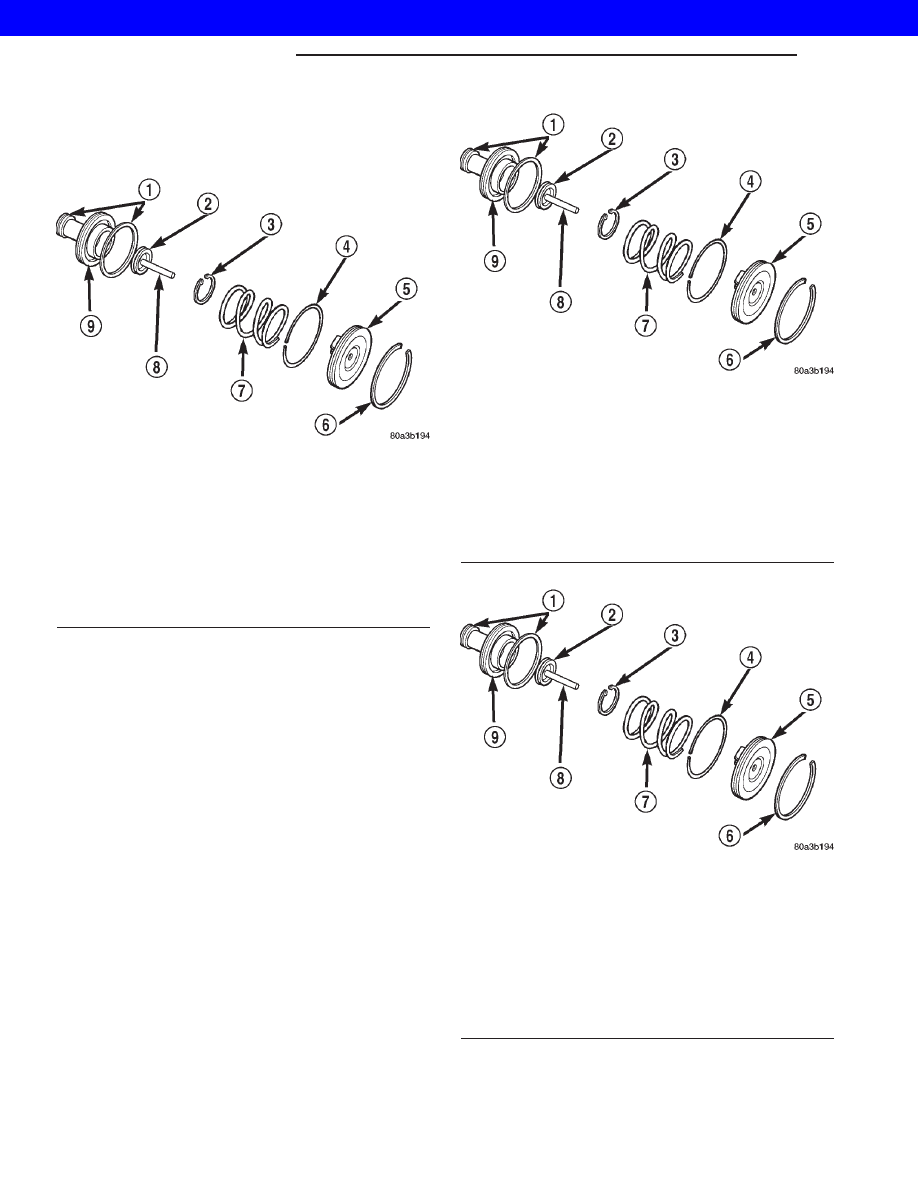

Fig. 23 Front Servo Piston

1 - PISTON RINGS
2 - O-RING
3 - SNAP-RING
4 - SEAL RING
5 - PISTON ROD GUIDE
6 - SNAP-RING
7 - SERVO SPRING
8 - PISTON ROD
9 - SERVO PISTON

Fig. 24 Front Servo Piston

1 - PISTON RINGS
2 - O-RING
3 - SNAP-RING
4 - SEAL RING
5 - PISTON ROD GUIDE
6 - SNAP-RING
7 - SERVO SPRING
8 - PISTON ROD
9 - SERVO PISTON

Fig. 25 Front Servo

1 - PISTON RINGS
2 - O-RING
3 - SNAP-RING
4 - SEAL RING
5 - PISTON ROD GUIDE
6 - SNAP-RING
7 - SERVO SPRING
8 - PISTON ROD
9 - SERVO PISTON

21s - 34

AUTOMATIC - 42RE

WG

FRONT SERVO (Continued)

2001 JEEP GRAND CHEROKEE
