SPECIFICATIONS

TORQUE

DESCRIPTION

N·m

Ft.

In.

Lbs.

Lbs.

Catalytic Converter-to-
Exhaust Pipe—Nuts

28

250

Exhaust Pipe-to-Manifold—
Nuts

31

23

Heat Shield Retaining—
Nuts

2.0

20

Muffler-to-Catalytic
Converter

U-bolt clamp

47

35

Rear Tailpipe Hanger—
Bolts

22

192

CATALYTIC CONVERTER 4.0L

REMOVAL

WARNING: IF TORCHES ARE USED WHEN WORK-
ING ON THE EXHAUST SYSTEM, DO NOT ALLOW
THE FLAME NEAR THE FUEL LINES.

(1) Raise and support the vehicle.
(2) Saturate the bolts and nuts with heat valve

lubricant. Allow 5 minutes for penetration.

(3) Remove nuts from the catalytic converter and

exhaust pipe flange connection (Fig. 3).

(4) Loosen exhaust clamp from the catalytic con-

verter and muffler connection (Fig. 3).

(5) Disconnect oxygen sensor wiring (Fig. 3).
(6) Heat the catalytic converter to muffler connec-

tion with a torch until the metal becomes cherry red.

(7) While the metal is still cherry red, twist the

catalytic converter back and forth to separate it from
the exhaust pipe and the muffler (Fig. 4).

INSTALLATION

(1) Position

the

catalytic

converter

onto

the

exhaust pipe flange connection (Fig. 3). Tighten the
nuts to 28 N·m (250 in. lbs.) torque.

(2) Install the muffler onto the catalytic converter

until the alignment tab is inserted into the align-
ment slot.

(3) Install the exhaust clamp at the muffler and

catalytic converter connection (Fig. 3). Tighten the
clamp nuts to 47 N·m (35 ft. lbs.) torque.

(4) Connect oxygen sensor wiring (Fig. 3).
(5) Lower the vehicle.

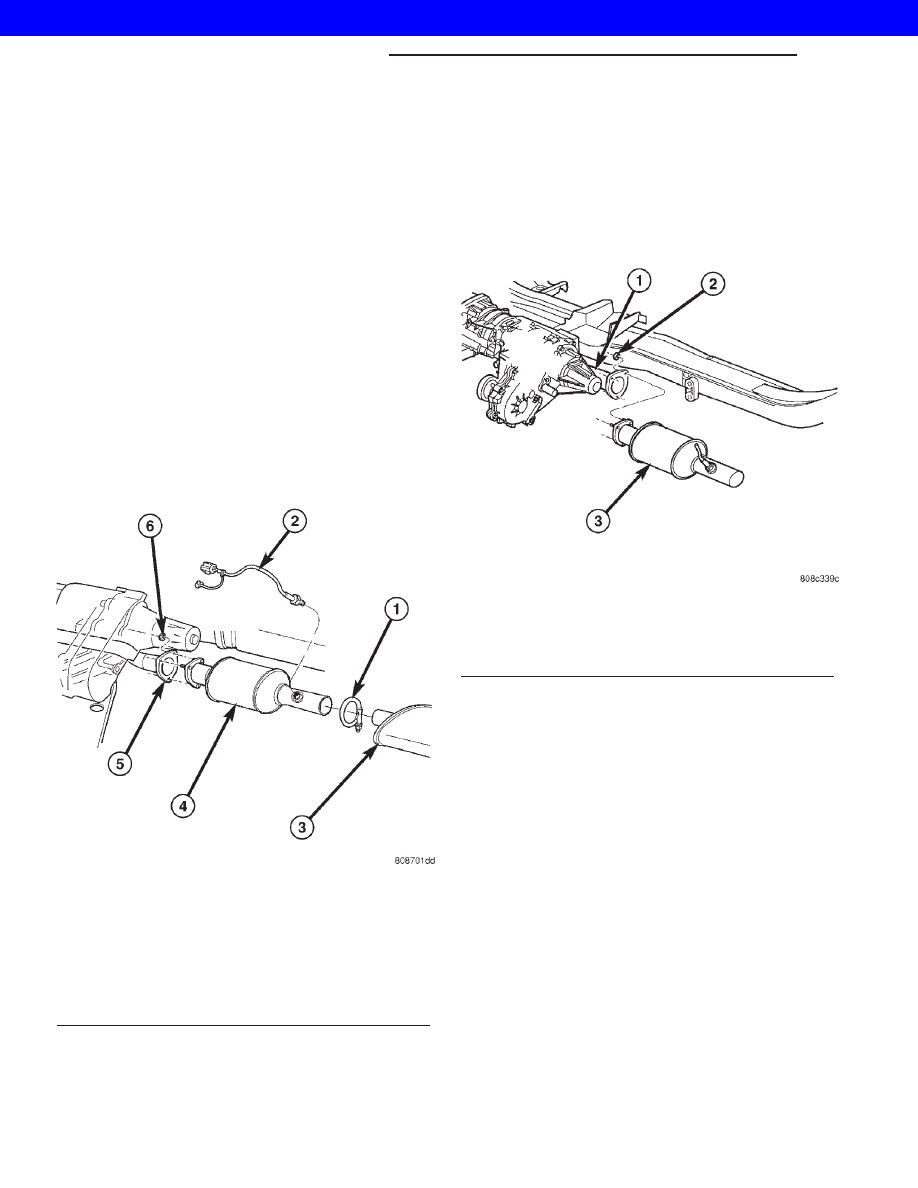

Fig. 3 Exhaust Pipe-to-Catalytic Converter-to-Muffler

Connection

1 - EXHAUST CLAMP ASSEMBLY
2 - OXYGEN SENSOR
3 - MUFFLER
4 - CATALYTIC CONVERTER
5 - EXHAUST PIPE WITH FLANGE JOINT
6 - NUTS (3)

Fig. 4 Catalytic Converter—Removal

1 - EXHAUST PIPE WITH FLANGE
2 - NUTS (3)
3 - CATALYTIC CONVERTER

WG

EXHAUST SYSTEM SUPPLEMENT

11s - 3

EXHAUST SYSTEM SUPPLEMENT (Continued)

2001 JEEP GRAND CHEROKEE

(6) Start the engine and inspect for exhaust leaks

and exhaust system contact with the body panels.
Adjust the alignment, if needed.

CATALYTIC CONVERTER 4.7L

REMOVAL

WARNING: IF TORCHES ARE USED WHEN WORK-
ING ON THE EXHAUST SYSTEM, DO NOT ALLOW
THE FLAME NEAR THE FUEL LINES.

(1) Raise and support the vehicle.
(2) Saturate the bolts and nuts with heat valve

lubricant. Allow 5 minutes for penetration.

(3) Remove nuts from the catalytic converter and

exhaust pipe flange connection (Fig. 5).

(4) Loosen exhaust clamp from the catalytic con-

verter and muffler connection (Fig. 5).

(5) Disconnect oxygen sensor wiring (Fig. 5).

(6) Heat the catalytic converter to muffler connec-

tion with a torch until the metal becomes cherry red.

(7) While the metal is still cherry red, twist the

catalytic converter back and forth to separate it from
the muffler (Fig. 6).

INSTALLATION

(1) Position

the

catalytic

converter

onto

the

exhaust pipe flange connection (Fig. 3). Tighten the
nuts to 28 N·m (250 in. lbs.) torque.

(2) Install the muffler onto the catalytic converter

until the alignment tab is inserted into the align-
ment slot.

(3) Install the exhaust clamp at the muffler and

catalytic converter connection (Fig. 3). Tighten the
clamp nuts to 47 N·m (35 ft. lbs.) torque.

(4) Connect oxygen sensor wiring (Fig. 3).
(5) Lower the vehicle.
(6) Start the engine and inspect for exhaust leaks

and exhaust system contact with the body panels.
Adjust the alignment, if needed.

Fig. 5 Exhaust Pipe-to-Catalytic Converter-to-Muffler

Connection

1 - EXHAUST CLAMP ASSEMBLY
2 - OXYGEN SENSOR
3 - MUFFLER
4 - CATALYTIC CONVERTER
5 - EXHAUST PIPE WITH FLANGE JOINT
6 - NUTS (3)

Fig. 6 Catalytic Converter—Removal

1 - EXHAUST PIPE WITH FLANGE
2 - NUTS (3)
3 - CATALYTIC CONVERTER

11s - 4

EXHAUST SYSTEM SUPPLEMENT

WG

CATALYTIC CONVERTER 4.0L (Continued)

2001 JEEP GRAND CHEROKEE

EXHAUST PIPE 4.0L

REMOVAL

WARNING: IF TORCHES ARE USED WHEN WORK-
ING ON THE EXHAUST SYSTEM, DO NOT ALLOW
THE FLAME NEAR THE FUEL LINES.

WARNING: THE NORMAL OPERATING TEMPERA-
TURE OF THE EXHAUST SYSTEM IS VERY HIGH.
THEREFORE, NEVER WORK AROUND OR ATTEMPT
TO SERVICE ANY PART OF THE EXHAUST SYSTEM
UNTIL IT IS COOLED. SPECIAL CARE SHOULD BE
TAKEN WHEN WORKING NEAR THE CATALYTIC
CONVERTER. THE TEMPERATURE OF THE CON-
VERTER RISES TO A HIGH LEVEL AFTER A SHORT
PERIOD OF ENGINE OPERATION TIME.

(1) Raise and support the vehicle.
(2) Saturate the bolts and nuts with heat valve

lubricant. Allow 5 minutes for penetration.

(3) Remove the oxygen sensor from the exhaust

pipe (Fig. 7).

(4) Remove the nuts from the exhaust pipe to cat-

alytic converter flange connection (Fig. 8).

(5) Disconnect the exhaust pipe from the exhaust

manifold (Fig. 9).

INSTALLATION

(1) Connect the exhaust pipe to the engine exhaust

manifold. Tighten the nuts to 31 N·m (23 ft. lbs.)
(Fig. 9).

NOTE: When servicing the exhaust system, replace
the factory installed uni-clamp with standard u-bolt
clamps.

(2) Position

the

catalytic

converter

onto

the

exhaust pipe flange connection. Tighten retaining
nuts to 28 N·m (250 in. lbs.) (Fig. 10).

(3) Coat the oxygen sensor with anti-seize com-

pound. Install the sensor and tighten the nut to 48
N·m (35 ft. lbs.) torque (Fig. 7).

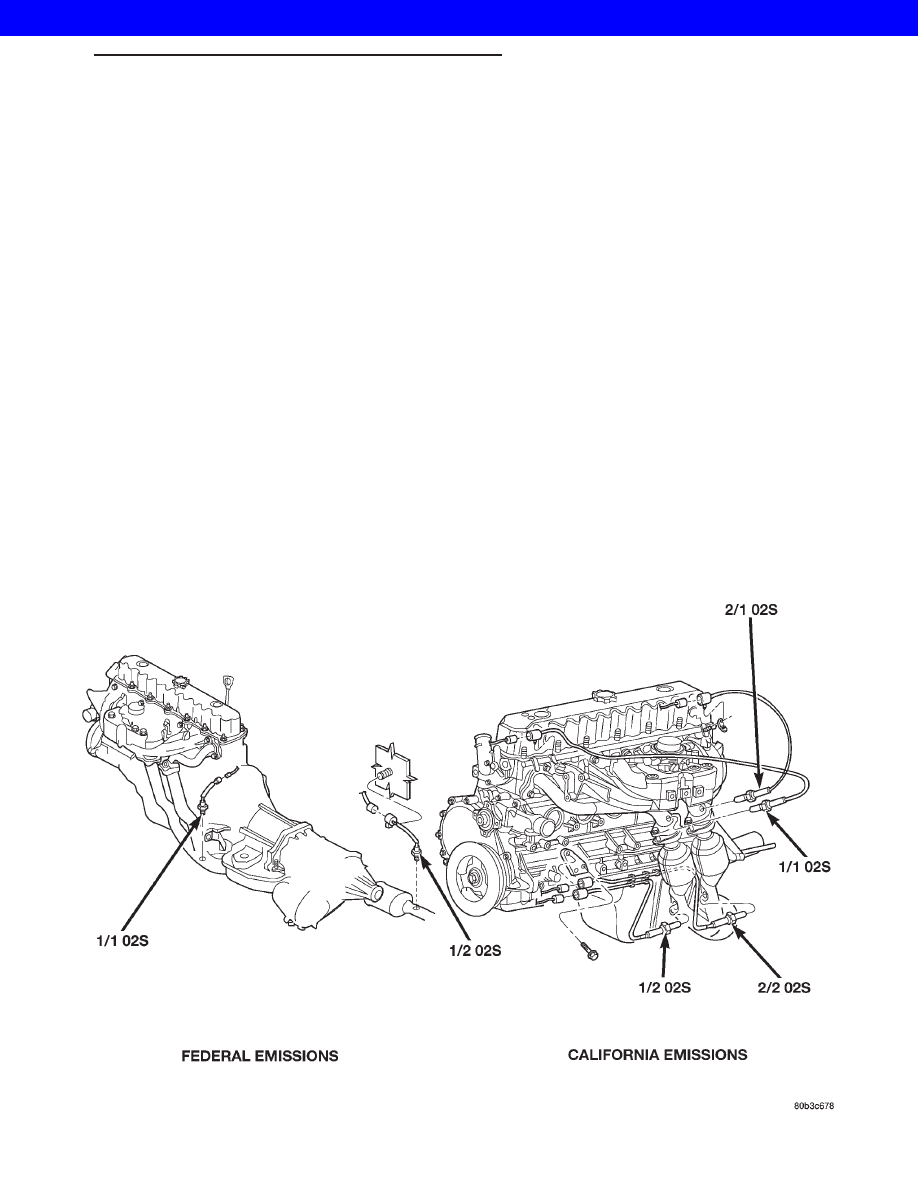

Fig. 7 O2 Sensor Location 4.0L

WG

EXHAUST SYSTEM SUPPLEMENT

11s - 5

2001 JEEP GRAND CHEROKEE

(4) Lower the vehicle.
(5) Start the engine and inspect for exhaust leaks

and exhaust system contact with the body panels.
Adjust the alignment, if needed.

(6) After initial start-up, check the engine exhaust

manifold to exhaust pipe nuts for proper torque.

Fig. 8 Catalytic Converter—Removal

1 - EXHAUST PIPE WITH FLANGE
2 - NUTS (3)
3 - CATALYTIC CONVERTER

Fig. 9 Exhaust Pipe 4.0L

1 - NUT
2 - EXHAUST MANIFOLD
3 - TRANSMISSION SUPPORT
4 - EXHAUST PIPE
5 - MINI CATALYTIC CONVERTER
6 - BOLT

Fig. 10 Installing Exhaust Clamps

1 - CATALYTIC CONVERTER
2 - MUFFLER

11s - 6

EXHAUST SYSTEM SUPPLEMENT

WG

EXHAUST PIPE 4.0L (Continued)

2001 JEEP GRAND CHEROKEE
