INSTALLATION

(1) Install the accumulator through the band of

the support bracket. Be certain that the index tab on
the side of the accumulator is aligned with the notch
in the support bracket band.

(2) Tighten the clamp screw in the support bracket

band to 12 N·m (105 in. lbs.).

(3) Remove the tape or plugs from the suction line

block fitting and the manifold on the compressor.
Install the suction line block fitting to the manifold
on the compressor. Tighten the mounting screw to 28
N·m (250 in. lbs.).

(4) Remove the tape or plugs from the refrigerant

line fittings on the suction line and the evaporator
outlet tube.

(5) Install the low pressure cycling clutch switch

onto the accumulator fitting. See Low Pressure
Cycling Clutch Switch in this group for the proce-
dures.

(6) Connect the battery negative cable.
(7) Evacuate the refrigerant system. See Refriger-

ant System Evacuate in this group for the proce-
dures.

(8) Charge the refrigerant system. See Refrigerant

System Charge in this group for the procedures.

NOTE: If the accumulator is replaced, add 120 milli-
liters (4 fluid ounces) of refrigerant oil to the refrig-
erant system. Use only refrigerant oil of the type
recommended for the compressor in the vehicle.

BLEND-AIR DOOR(S)

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS, REFER TO GROUP 8M - PASSIVE RESTRAINT
SYSTEMS BEFORE ATTEMPTING ANY STEERING
WHEEL,

STEERING

COLUMN,

OR

INSTRUMENT

PANEL COMPONENT DIAGNOSIS OR SERVICE. FAIL-
URE TO TAKE THE PROPER PRECAUTIONS COULD
RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT
AND POSSIBLE PERSONAL INJURY.

REMOVAL

(1) Remove the heater-A/C housing from the vehi-

cle. See Heater-A/C Housing in this group for the
procedures.

(2) Place the heater-A/C housing with the tubing

side down on a work bench, making allowance for
leakage of fluids.

(3) Using a sharp knife, split the foam seal sur-

rounding the panel outlet opening, at the dividing
line of the upper and lower cases (Fig. 16).

(4) Place the heater-A/C housing in the upright

position on the work bench.

(5) Remove the mode door actuator on the left side

of the housing, controlling the mode door in the top
of the case (Fig. 17) (Fig. 18).

Fig. 16 Split Foam Seal at Panel Outlet

1 – ONE PIECE FOAM SEAL
2 – FLOOR DUCT
3 – TO REAR PASSENGER FLOOR AIR DUCT

Fig. 17 Mode Door Actuators-Manual System

1 – VACUUM LINES
2 – ACTUATING LEVERS
3 – LINKAGE
4 – VACUUM ACTUATORS
5 – ACTUATING LEVER

24 - 34

HEATING AND AIR CONDITIONING

WJ

REMOVAL AND INSTALLATION (Continued)

(6) Remove the screw with plastic washer holding

the lever assembly to the upper case section, and
move aside (Fig. 19).

(7) Remove the 5 clips that secure the two housing

halves to each other. There are 2 on either side at
the center, and 1 located at the forward end of the
mode door side of the case (Fig. 20).

(8) Release the wire harness electrical connector(s)

from the mounts on the lower case at the blower
motor end of the unit (Fig. 21).

(9) Remove the 10 screws that secure the two

housing halves to each other.

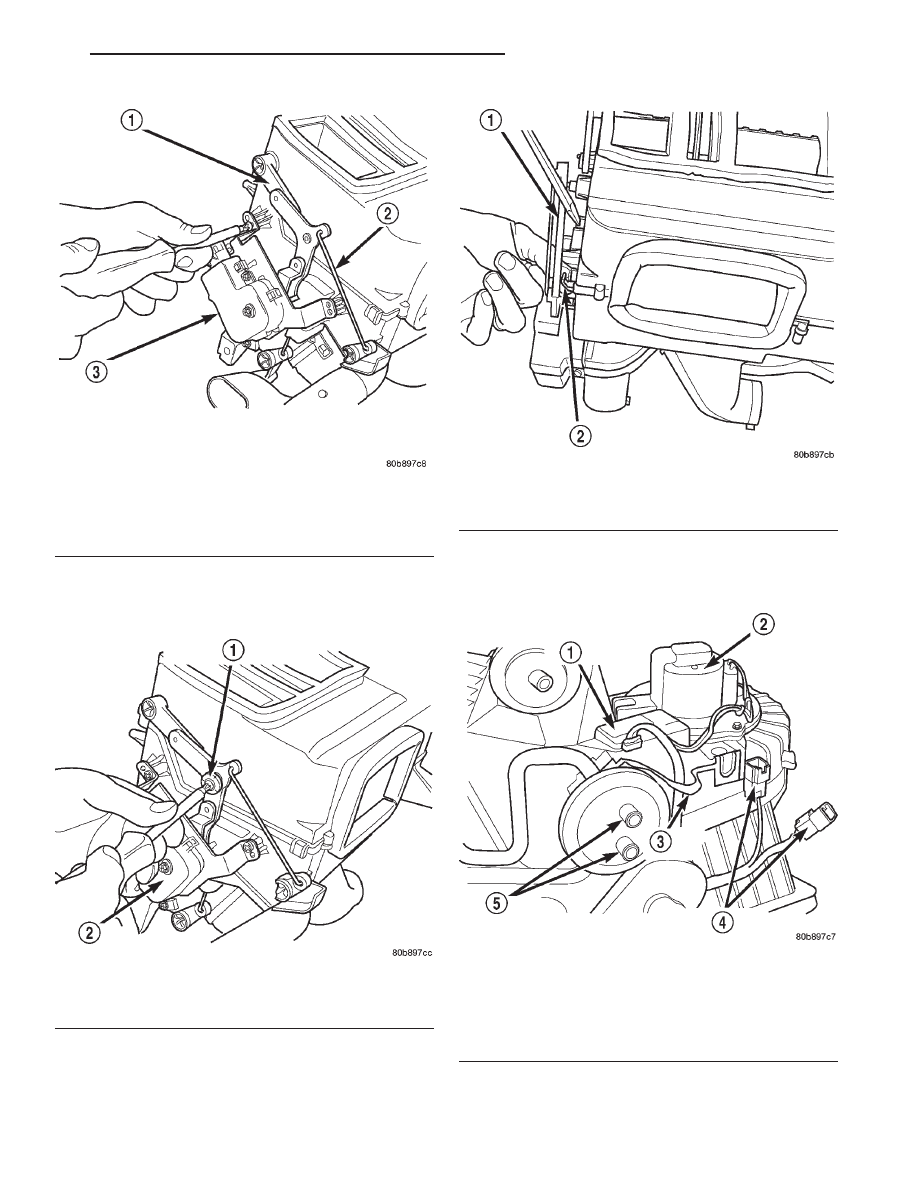

Fig. 18 Mode Door Actuator-AZC System

1 – LEVER ASSEMBLY
2 – LINKAGE
3 – ELECTRIC ACTUATOR

Fig. 19 Remove Screw with Plastic Washer

1 – SCREW WITH PLASTIC WASHER
2 – ELECTRIC ACTUATOR

Fig. 20 HVAC Housing Clips

1 – ACTUATING LEVERS AND LINKAGE
2 – HOUSING CLIP

Fig. 21 Wire Harness Electrical Connector(s)

1 – BLOWER MOTOR CONTROLLER/POWER MODULE
2 – BLOWER MOTOR
3 – GROUND STRAP
4 – ELECTRICAL CONNECTORS
5 – HEATER CORE TUBES

WJ

HEATING AND AIR CONDITIONING

24 - 35

REMOVAL AND INSTALLATION (Continued)

(10) Separate the top half of the heater-A/C hous-

ing from the bottom half (Fig. 22).

(11) Remove evaporator from lower case to ease

access to plastic door shaft bushing.

(12) Pinch the retention tabs holding the blend-air

door pivot shaft bushing to the case. The 3 plastic
tabs, located on the inside of the case, are part of the
shaft retainer.

(13) Remove door(s).

NOTE: The blend-air door sub-assembly is attached
to the housing with 2 screws, and may be removed
for service (Fig. 23).

INSTALLATION

Reverse the removal procedures to install.
• Be certain that each of the door pivot pins align

with the pivot holes in the heater-A/C housing.

• Tighten the heater-A/C housing screws to 2.2

N·m (20 in. lbs.).

• Check doors for binding after replacement, and

after assembly of housing.

BLOWER MOTOR

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS,

REFER

TO

GROUP

8M

-

PASSIVE

RESTRAINT SYSTEMS BEFORE ATTEMPTING ANY
STEERING

WHEEL,

STEERING

COLUMN,

OR

INSTRUMENT PANEL COMPONENT DIAGNOSIS OR
SERVICE. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT AND POSSIBLE PERSONAL
INJURY.

Fig. 22 Upper and Lower HVAC Housing-Separated

1 – ELECTRICAL CONNECTORS
2 – VACUUM ACTUATOR
3 – RECIRCULATION AIR DOOR
4 – BLOWER MOTOR RESISTOR
5 – BLOWER WHEEL
6 – EVAPORATOR AND TUBES
7 – BLEND-AIR DOOR

8 – PIVOT SHAFT (MOTOR REMOVED)
9 – PANEL/OUTLET DOOR
10 – LOWER HOUSING
11 – VACUUM ACTUATORS
12 – UPPER HOUSING
13 – VACUUM HARNESS
14 – HEATER CORE AND TUBES

24 - 36

HEATING AND AIR CONDITIONING

WJ

REMOVAL AND INSTALLATION (Continued)

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Pinch the connector retainer and unplug the

blower motor wire harness from the heater-A/C
blower motor (Fig. 24).

(3) Remove the three screws that secure the

blower motor and blower wheel assembly to the heat-
er-A/C housing, using either a T-25 Torx

t head or

flat-bladed screwdriver.

(4) Lower the blower motor and wheel from the

heater-A/C housing.

(5) Remove the blower wheel retainer clip (Fig.

25).

(6) Remove the wheel from the blower motor shaft.

INSTALLATION

(1) Press the blower wheel hub onto the blower

motor shaft. Be sure the flat on the blower motor
shaft is indexed to the flat on the inside of the blower
wheel hub.

(2) Install the retainer clip over the blower wheel

hub.

(3) Install the blower motor in the heater-A/C

housing with three mounting screws. Tighten the
mounting screws to 2.2 N·m (20 in. lbs.).

(4) Plug the blower motor wire harness connector

into the blower motor socket.

(5) Connect the battery negative cable.

BLOWER MOTOR RESISTOR AND
CONTROLLER

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Depress locking tab and unplug the wire har-

ness connector from the blower motor resistor or con-
troller (power module).

Fig. 23 Blend-Air Doors Sub-Assembly (AZC)

1 – PASSENGER SIDE BLEND-AIR DOOR
2 – BLEND-AIR DOORS SUB-ASSEMBLY
3 – DOOR PIVOT SHAFT BUSHING
4 – DOOR SHAFT LEVER
5 – DRIVER SIDE BLEND-AIR DOOR

Fig. 24 Blower Motor (housing removed from

vehicle)

1 – BLOWER MOTOR CONTROLLER/POWER MODULE
2 – BLOWER MOTOR
3 – GROUND STRAP
4 – ELECTRICAL CONNECTORS
5 – HEATER CORE TUBES

Fig. 25 Blower Motor Wheel Remove/Install

1 – BLOWER MOTOR WHEEL
2 – RETAINER CLIP

WJ

HEATING AND AIR CONDITIONING

24 - 37

REMOVAL AND INSTALLATION (Continued)
