Jeep Grand Cherokee WJ. Manual - part 519

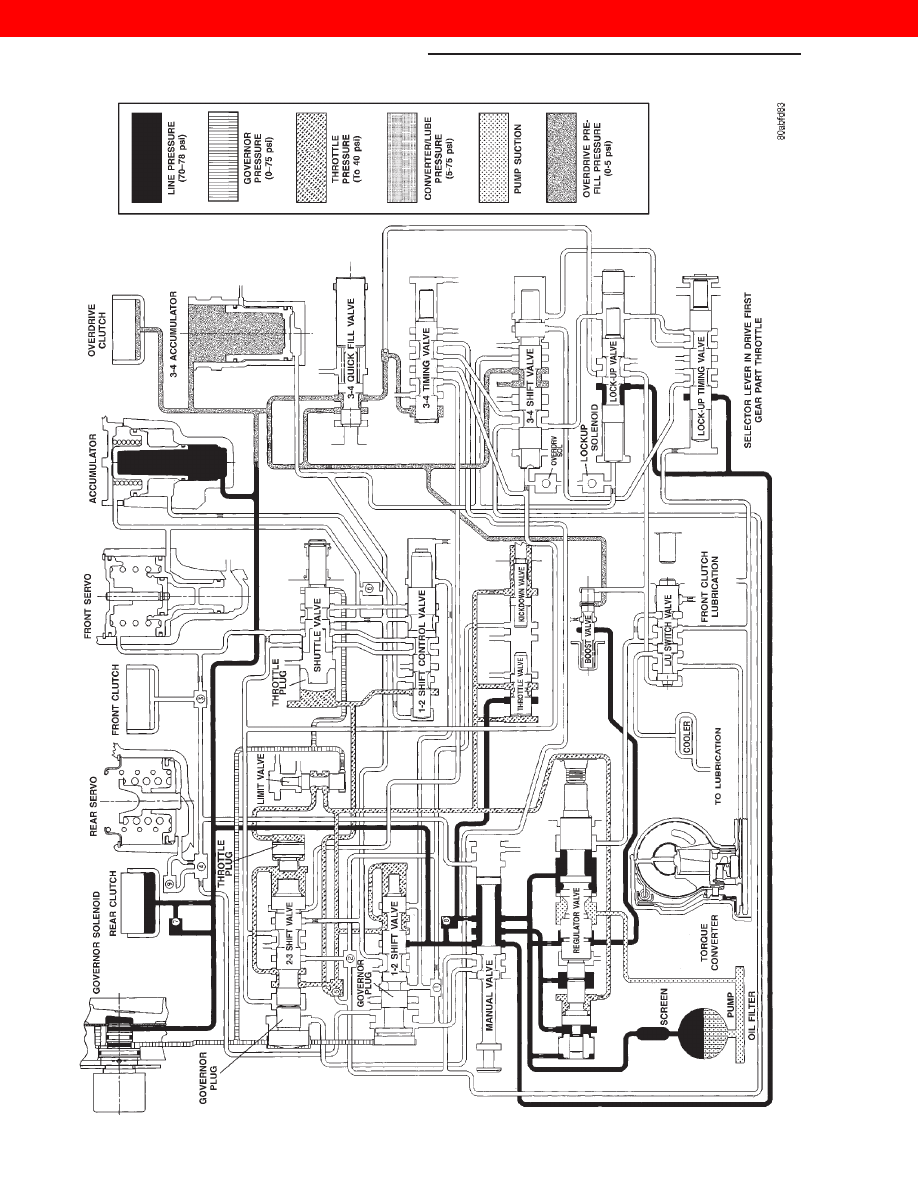

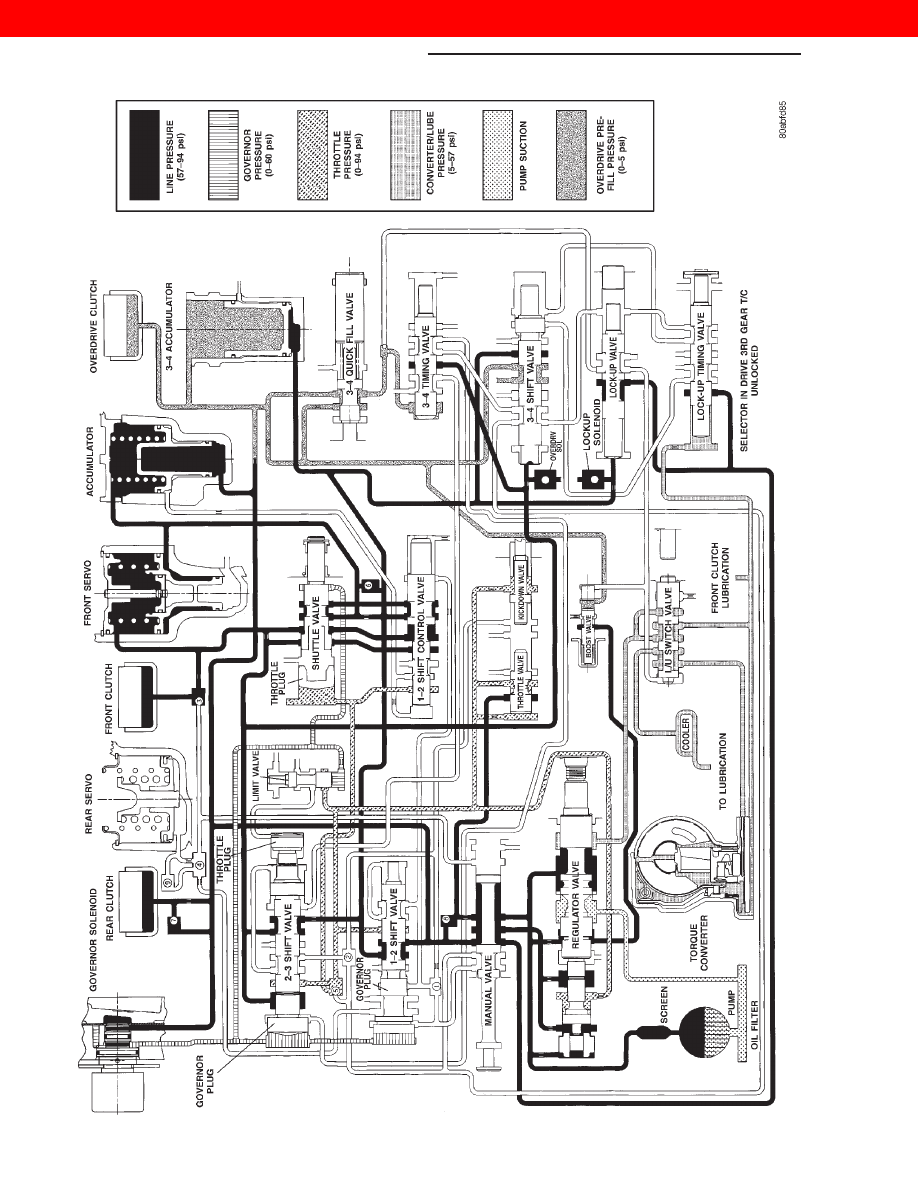

HYDRAULIC

FLOW

IN

DRIVE

FIRST

GEAR

21 - 126

TRANSMISSION AND TRANSFER CASE

WJ

SCHEMATICS AND DIAGRAMS (Continued)

2000 JEEP GRAND CHEROKEE

HYDRAULIC

FLOW

IN

DRIVE

SECOND

GEAR

WJ

TRANSMISSION AND TRANSFER CASE

21 - 127

SCHEMATICS AND DIAGRAMS (Continued)

2000 JEEP GRAND CHEROKEE

HYDRAULIC

FLOW

IN

DRIVE

THIRD

GEAR

(CONVER

TER

CLUTCH

NOT

APPLIED)

21 - 128

TRANSMISSION AND TRANSFER CASE

WJ

SCHEMATICS AND DIAGRAMS (Continued)

2000 JEEP GRAND CHEROKEE

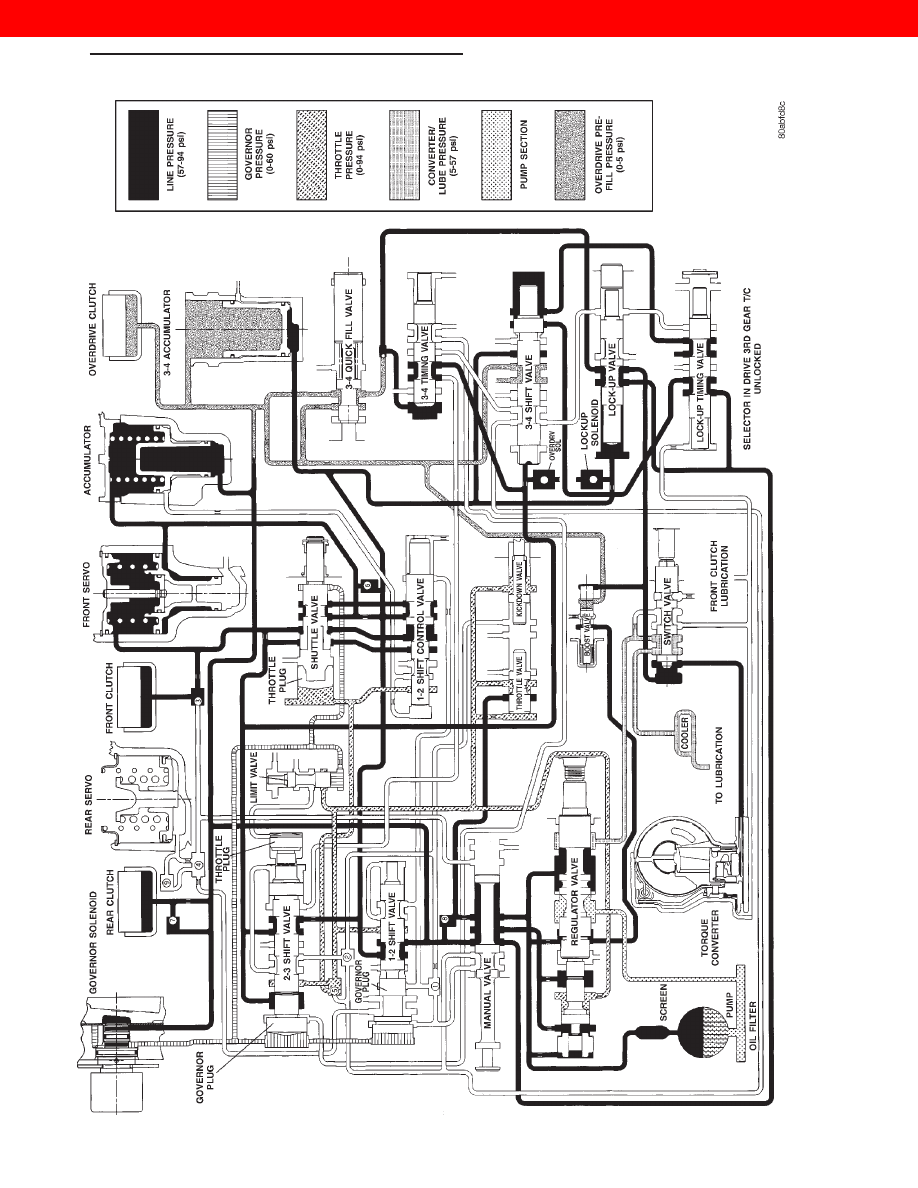

HYDRAULIC

FLOW

IN

DRIVE

THIRD

GEAR

(CONVER

TER

CLUTCH

APPLIED)

WJ

TRANSMISSION AND TRANSFER CASE

21 - 129

SCHEMATICS AND DIAGRAMS (Continued)

2000 JEEP GRAND CHEROKEE
