Jeep Grand Cherokee WJ. Manual - part 482





DIAGNOSIS AND TESTING

NV247 DIAGNOSIS

CONDITION

POSSIBLE CAUSE

CORRECTION

TRANSFER CASE DIFFICULT TO
SHIFT OR WILL NOT SHIFT INTO
DESIRED RANGE

1. Vehicle speed too great to permit
shifting

1. Reduce speed to 3-4 km/h (2-3
mph) before attempting to shift

2. Transfer case external shift cable
binding

2. Lubricate, repair or replace cable,
or thighten loose components as
necessary

3. Insufficient or incorrect lubricant

3. Drain and refill to edge of fill hole
with correct lubricant

4. Internal components binding,
worn, or damaged

4. Disassemble unit and replace
worn or damaged components as
necessary

TRANSFER CASE NOISY IN ALL
MODES

1. Insufficient or incorrect lubricant

1. Drain and refill to edge of fill hole
with correct lubricant. If unit is still
noisy after drain and refill,
disassembly and inspection may
be required to locate source of

noise

NOISY IN—OR JUMPS OUT OF
4WD LOW RANGE

1. Transfer case not completely
engaged in 4WD LOW (possibly
from shift to 4L while rolling)

1. Stop vehicle, shift transfer case
to neutral, then shift back to 4WD
LOW

2. Shift linkage loose, binding, or is
misadjusted

2. Tighten, lubricate, or repair
linkage as necessary. Adjust linkage
if necessary

3. Range fork cracked, inserts
worn, or fork is binding on shift rail

3. Disassemble unit and repair as
necessary

4. Annulus gear or lockplate worn
or damaged

4. Disassemble unit and repair as
necessary

LUBRICANT LEAKING FROM
OUTPUT SHAFT SEALS OR FROM
VENT

1. Transfer case over filled

1. Drain to correct level

2. Vent closed or restricted

2. Clear or replace vent if necessary

3. Output shaft seals damaged or
installed correctly

3. Replace seals. Be sure seal lip
faces interior of case when installed.
Also be sure yoke seal surfaces are
not scored or nicked. Remove
scores and nicks with fine
sandpaper or replace yoke(s) if
necessary.

21 - 310

NV247 TRANSFER CASE

WJ

REMOVAL AND INSTALLATION

TRANSFER CASE

REMOVAL

(1) Shift transfer case into Neutral.
(2) Raise vehicle.
(3) Remove transfer case drain plug and drain

transfer case lubricant.

(4) Mark front and rear propeller shaft yokes for

alignment reference.

(5) Support transmission with jack stand.
(6) Remove rear crossmember and skid plate, if

equipped (Fig. 4).

(7) Disconnect front propeller shaft from transfer

case at companion flange. Remove rear propeller
shaft from vehicle. Refer to Group 3, Differential and
Driveline for the correct procedures.

CAUTION: Do not allow propshafts to hang at
attached end. Damage to joint can result.

(8) Disconnect transfer case cable from range

lever.

(9) Disconnect transfer case vent hose (Fig. 5).
(10) Support transfer case with transmission jack.
(11) Secure transfer case to jack with chains.
(12) Remove nuts attaching transfer case to trans-

mission.

(13) Pull transfer case and jack rearward to disen-

gage transfer case (Fig. 5).

(14) Remove transfer case from under vehicle.

INSTALLATION

(1) Mount transfer case on a transmission jack.
(2) Secure transfer case to jack with chains.
(3) Position transfer case under vehicle.
(4) Align transfer case and transmission shafts

and install transfer case on transmission.

(5) Install and tighten transfer case attaching nuts

to 35 N·m (26 ft. lbs.) torque (Fig. 5).

(6) Connect front propeller shaft and install rear

propeller shaft. Refer to Group 3, Differential and
Driveline, for proper procedures and torque specifica-
tions.

(7) Fill transfer case with correct fluid. Check

transmission fluid level. Correct as necessary.

(8) Install rear crossmember (Fig. 4) and skid

plate, if equipped. Tighten crossmember bolts to 41
N·m (30 ft. lbs.) torque.

(9) Remove transmission jack and support stand.
(10) Verify transfer case is in Neutral. Connect

shift cable to transfer case range lever.

(11) Lower vehicle and verify transfer case shift

operation.

(12) Adjust the transfer case shift cable, if neces-

sary.

TRANSFER CASE SHIFT CABLE

REMOVAL

(1) Shift transfer case into neutral.
(2) Raise vehicle.
(3) Disconnect the shift cable eyelet from the

transfer case shift lever (Fig. 6).

(4) Remove shift cable from the cable support

bracket.

(5) Lower vehicle.
(6) Remove shift lever bezel and necessary console

parts for access to shift lever assembly and shift
cable.

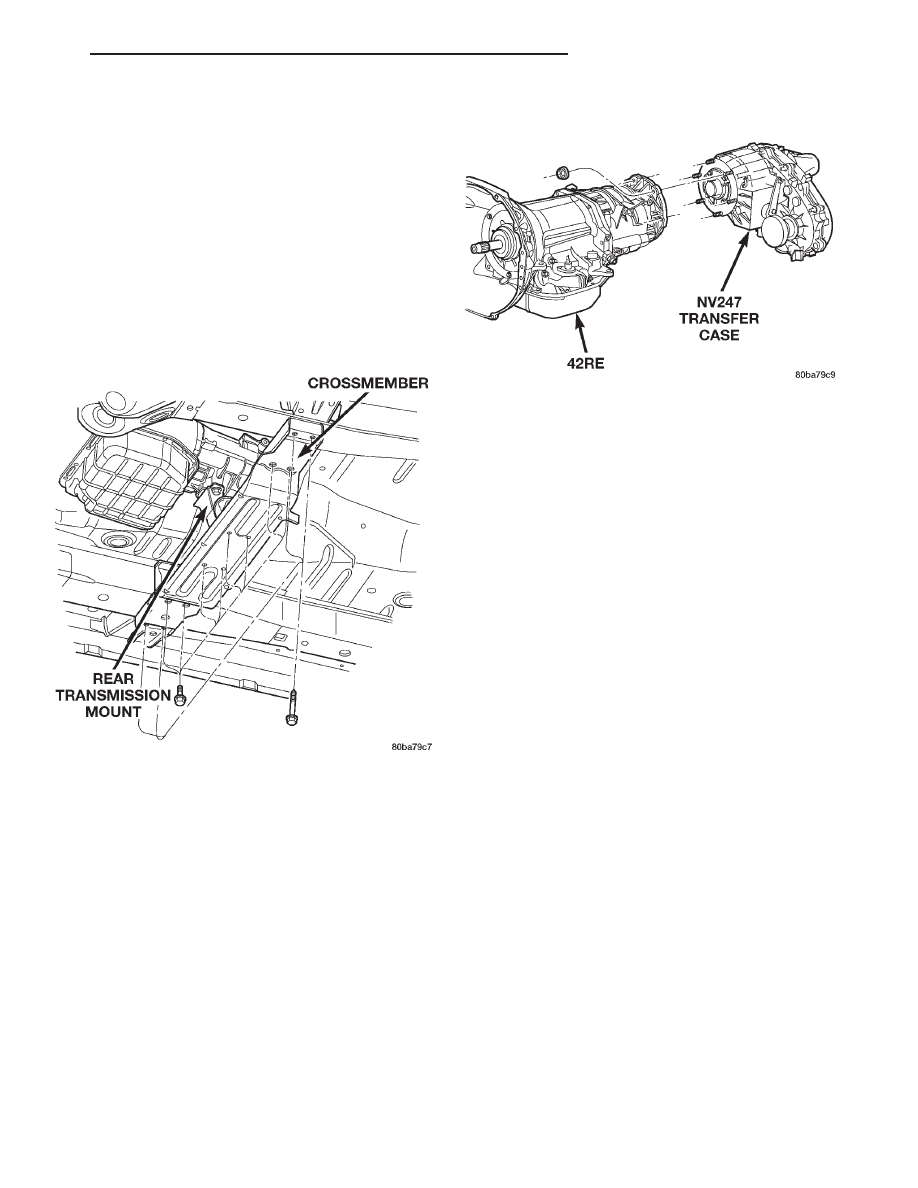

Fig. 4 Crossmember Removal/Installation

Fig. 5 Transfer Case Mounting

WJ

NV247 TRANSFER CASE

21 - 311

(7) Disconnect cable at shift lever and shifter

assembly bracket (Fig. 7).

(8) Remove the nuts holding the shift cable seal

plate to the floor pan (Fig. 8).

(9) Pull cable through floor panel opening.

(10) Remove transfer case shift cable from vehicle.

INSTALLATION

(1) Route cable through hole in floor pan.
(2) Install seal plate to studs in floor pan.
(3) Install nuts to hold seal plate to floor pan (Fig.

8). Tighten nuts to 7 N·m (65 in. lbs.).

(4) Install the transfer case shift cable to the

shifter assembly bracket. Seat cable in bracket and
install clip (Fig. 7).

(5) Verify the transfer case shift lever (at console)

is in the NEUTRAL position.

(6) Snap the cable onto the shift lever pin (Fig. 7).
(7) Raise the vehicle.
(8) Install the shift cable to the shift cable support

bracket and install clip (Fig. 6).

(9) Verify that the transfer case is still in the

NEUTRAL position.

(10) Snap the shift cable onto the transfer case

shift lever (Fig. 6).

(11) Lower vehicle.
(12) Verify correct transfer case operation in all

ranges.

(13) Install shift lever bezel and any console parts

removed for access to transfer case shift cable.

FRONT OUTPUT SHAFT SEAL

REMOVAL

(1) Raise vehicle on hoist.
(2) Remove front propeller shaft. Refer to Group 3,

Differential and Driveline, for proper procedure.

(3) Remove front output shaft companion shaft.
(4) Remove seal from front case with pry tool (Fig.

9).

INSTALLATION

(1) Install new front output seal in front case with

Installer Tool 6952-A as follows:

(a) Place new seal on tool. Garter spring on seal

goes toward interior of case.

(b) Start seal in bore with light taps from ham-

mer (Fig. 10). Once seal is started, continue tap-
ping seal into bore until installer tool seats against
case.

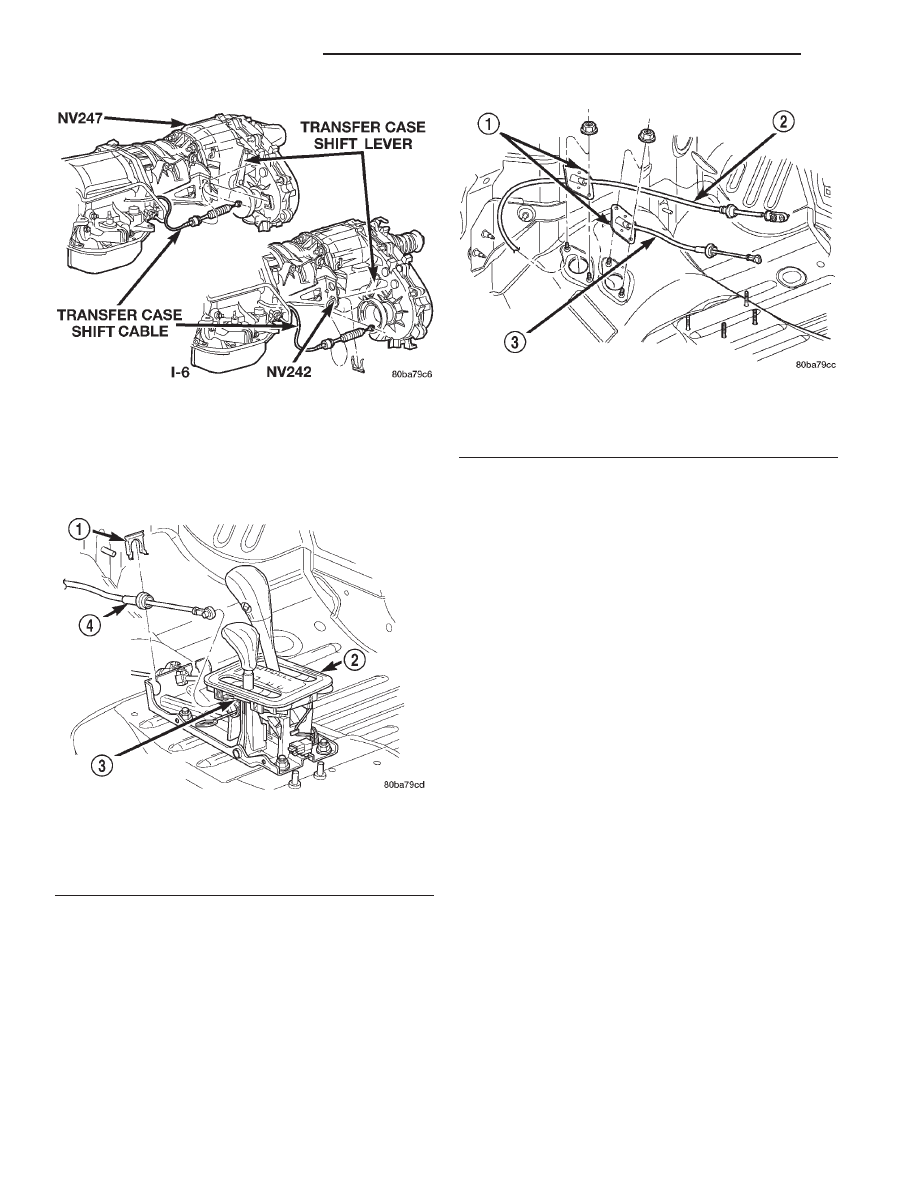

Fig. 6 Transfer Case Shift Cable at Transfer Case

Fig. 7 Transfer Case Shift Cable at Shifter

1 – CLIP
2 – SHIFTER
3 – TRANSFER CASE SHIFT LEVER PIN
4 – TRANSFER CASE SHIFT CABLE

Fig. 8 Shift Cables at Floor Pan

1 – SEAL PLATES
2 – TRANSMISSION SHIFT CABLE
3 – TRANSFER CASE SHIFT CABLE

21 - 312

NV247 TRANSFER CASE

WJ

REMOVAL AND INSTALLATION (Continued)

(2) Install companion flange and torque nut to

122–176 N·m (90–130 ft. lbs.).

(3) Install front propeller shaft. Refer to Group 3,

Differential and Driveline for proper procedures and
torque specifications.

REAR RETAINER BUSHING AND SEAL

REMOVAL

(1) Raise vehicle on hoist.
(2) Remove rear propeller shaft. Refer to Group 3,

Differential and Driveline, for proper procedure.

(3) Using a suitable pry tool or slide-hammer

mounted screw, remove the rear retainer seal.

(4) Using Remover 6957, remove bushing from

rear retainer (Fig. 11).

INSTALLATION

(1) Clean fluid residue from sealing surface and

inspect for defects.

(2) Position replacement bushing in rear retainer

with fluid port in bushing aligned with slot in
retainer.

(3) Using

Installer

8145,

drive

bushing

into

retainer until installer seats against case (Fig. 12).

(4) Using Installer C-3995-A, install seal in rear

retainer (Fig. 13).

(5) Install rear propeller shaft. Refer to Group 3,

Differential and Driveline for proper procedures and
specifications.

(6) Verify proper fluid level.
(7) Lower vehicle.

Fig. 9 Remove Front Output Shaft Seal

1 – OUTPUT SHAFT SEAL
2 – PRYBAR

Fig. 10 Front Output Seal Installation

1 – INSTALLER 6952–A
2 – TRANSFER CASE

Fig. 11 Rear Retainer Bushing Removal

1 – REMOVER 6957
2 – REAR RETAINER BUSHING

Fig. 12 Rear Retainer Bushing Install

WJ

NV247 TRANSFER CASE

21 - 313

REMOVAL AND INSTALLATION (Continued)
