(24) If hoses are to be removed at fuel tank end,

note

painted

alignment

(indexing)

markings

on

hoses, and molded indexing tangs on tank before
removal. Remove hoses.

(25) If necessary, remove 3 fuel filler tube assem-

bly mounting bolts (Fig. 44) and remove fuel filler
tube.

INSTALLATION

(1) If fuel pump module is being installed, refer to

Fuel Pump Module Removal/Installation.

(2) If necessary, position fuel filler tube assembly

to body. Install 3 bolts and tighten to 2 N·m (15 in.
lbs.) torque.

(3) Install fuel fill/vent hoses to tank fittings. To

prevent hoses from kinking, rotate each hose until
painted indexing mark on hose is aligned to molded
indexing tang on tank.

(4) Install hose clamps to hoses. Tighten clamp

screws to 3 N·m (25 in. lbs.) torque.

(5) Position fuel tank to hydraulic jack.
(6) Raise tank into position.
(7) Install fuel tank mounting bolts. Tighten bolts

to 81 N·m (60 ft. lbs.) torque.

(8) Install fuel fill and vent hoses to fuel fill tube

at body. Install clamps and tighten clamp screws to 3
N·m (25 in. lbs.) torque.

(9) Connect fuel pump module pigtail harness elec-

trical connector near front of tank.

Fig. 42 Fill and Vent Hoses

1 – CLAMP
2 – FILL HOSE
3 – REAR AXLE VENT HOSE
4 – TIE STRAP
5 – VENT HOSE
6 – CLAMP

Fig. 43 Fuel Tank Mounting

1 – TANK MOUNTING BOLTS
2 – STRAP NUTS
3 – FUEL TANK/SHIELD ASSEMBLY

Fig. 44 Fuel Filler Tube

1 – FUEL FILLER TUBE
2 – MOUNTING BOLTS (3)

14 - 24

FUEL SYSTEM

WJ

REMOVAL AND INSTALLATION (Continued)

(10) Connect both fuel lines to fuel filter/fuel pres-

sure regulator. Refer to Quick-Connect Fittings for
procedures.

(11) Connect EVAP hose near front of tank.
(12) Position rear axle vent hose and install new

tie strap.

(13) Install new clamp to rear axle vent hose.
(14) Install vent hose to fitting at rear axle and

tighten clamp.

(15) Install heat shield bolts.
(16) Install trailer hitch (if equipped).
(17) Install rear tow hooks (if equipped).
(18) Install fuel tank-to-rear bumper fascia clips.
(19) Lower vehicle and connect negative battery

cable to battery.

(20) Check for leaks.

FUEL TANK FILLER TUBE CAP

REMOVAL/INSTALLATION

If replacement of the 1/4 turn fuel tank filler tube

cap is necessary, it must be replaced with an identi-
cal cap to be sure of correct system operation.

CAUTION: Remove the fuel tank filler tube cap to
relieve

fuel

tank

pressure.

The

cap

must

be

removed prior to disconnecting any fuel system
component or before draining the fuel tank.

ACCELERATOR PEDAL

The accelerator pedal is connected to the throttle

body linkage by the throttle cable. The cable is pro-
tected by a plastic sheathing and is connected to the
throttle body linkage by a ball socket. It is connected
to the accelerator pedal arm by a plastic retainer
(clip) (Fig. 45). This retainer (clip) snaps into the top
of the accelerator pedal arm. A retainer clip (Fig. 45)
is also used to fasten cable to dash panel.

REMOVAL

CAUTION: Be careful not to damage or kink the
cable core wire (within the cable sheathing) while
servicing accelerator pedal or throttle cable.

(1) From inside vehicle, hold up accelerator pedal.

Remove plastic cable retainer (clip) and throttle cable
core wire from upper end of pedal arm. Plastic cable
retainer (clip) snaps into pedal arm.

(2) Remove accelerator pedal bracket nuts. Remove

accelerator pedal assembly.

INSTALLATION

(1) Place accelerator pedal assembly over studs

protruding from floor pan. Tighten mounting nuts to
12 N·m

6 2 N·m (105 in. lbs. 6 20 in. lbs.) torque.

(2) Slide throttle cable into opening in top of pedal

arm. Push plastic cable retainer (clip) into pedal arm
opening until it snaps into place.

(3) Before

starting

engine,

operate

accelerator

pedal to check for any binding.

THROTTLE CABLE—4.0L ENGINE

REMOVAL

CAUTION: Be careful not to damage or kink the
cable core wire (within the cable sheathing) while
servicing accelerator pedal or throttle cable.

(1) From inside vehicle, hold up accelerator pedal.

Remove plastic cable retainer (clip) and throttle cable
core wire from upper end of pedal arm (Fig. 45).
Plastic cable retainer (clip) snaps into pedal arm.

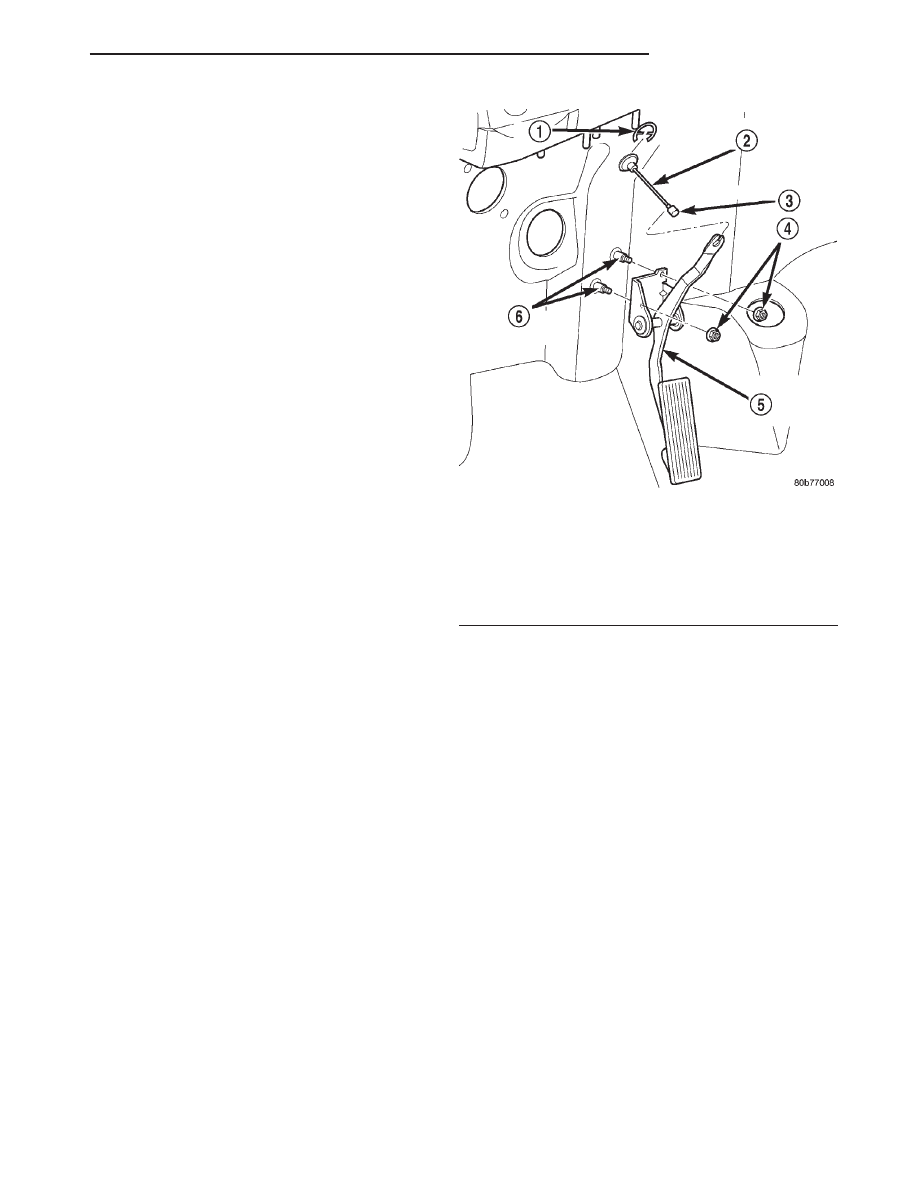

Fig. 45 Accelerator Pedal Mounting

1 – CLIP
2 – ACCELERATOR CABLE
3 – CABLE CONNECTOR
4 – MOUNTING NUTS (2)
5 – PEDAL/BRACKET ASSEMBLY
6 – MOUNTING STUDS (2)

WJ

FUEL SYSTEM

14 - 25

REMOVAL AND INSTALLATION (Continued)

(2) Remove cable core wire at pedal arm.
(3) From inside vehicle, remove clip holding cable

to dashpanel (Fig. 45).

(4) Remove cable housing from dash panel and

pull into engine compartment.

(5) Remove (unsnap) cable from routing clips on

engine valve cover.

(6) Remove

cable

connector

at

throttle

body

bellcrank ball by unsnapping rearward (Fig. 46).

(7) Remove throttle cable from bracket by com-

pressing release tabs (Fig. 46) and pushing cable
through hole in bracket.

(8) Remove throttle cable from vehicle.

INSTALLATION

(1) Slide throttle cable through hole in bracket

until release tabs lock into bracket.

(2) Connect

cable

ball

end

to

throttle

body

bellcrank ball (snaps on).

(3) Snap cable into routing clips on engine valve

cover.

(4) Slide rubber grommet away from plastic cable

housing.

(5) Install rubber grommet into dash panel until

seated.

(6) Push cable housing into rubber grommet and

through opening in dash panel.

(7) From inside vehicle, install clip holding cable

to dashpanel (Fig. 45).

(8) From inside vehicle, slide throttle cable core

wire into opening in top of pedal arm.

(9) Push cable retainer (clip) into pedal arm open-

ing until it snaps in place.

(10) Before starting engine, operate accelerator

pedal to check for any binding.

THROTTLE CABLE—4.7L V-8 ENGINE

REMOVAL

CAUTION: Be careful not to damage or kink the
cable core wire (within the cable sheathing) while
servicing accelerator pedal or throttle cable.

(1) From inside vehicle, hold up accelerator pedal.

Remove plastic cable retainer (clip) and throttle cable
core wire from upper end of pedal arm (Fig. 45).
Plastic cable retainer (clip) snaps into pedal arm.

(2) Remove cable core wire at pedal arm.
(3) From inside vehicle, remove clip holding cable

to dashpanel (Fig. 45).

(4) Remove air box at throttle body.
(5) Unsnap cable from plenum routing clip.
(6) Remove cable housing from dash panel and

pull into engine compartment.

(7) Using finger pressure only, disconnect accelera-

tor cable connector at throttle body bellcrank pin by
pushing connector off bellcrank pin towards front of
vehicle (Fig. 47). DO NOT try to pull connector
off perpendicular to the bellcrank pin. Connec-
tor will be broken.

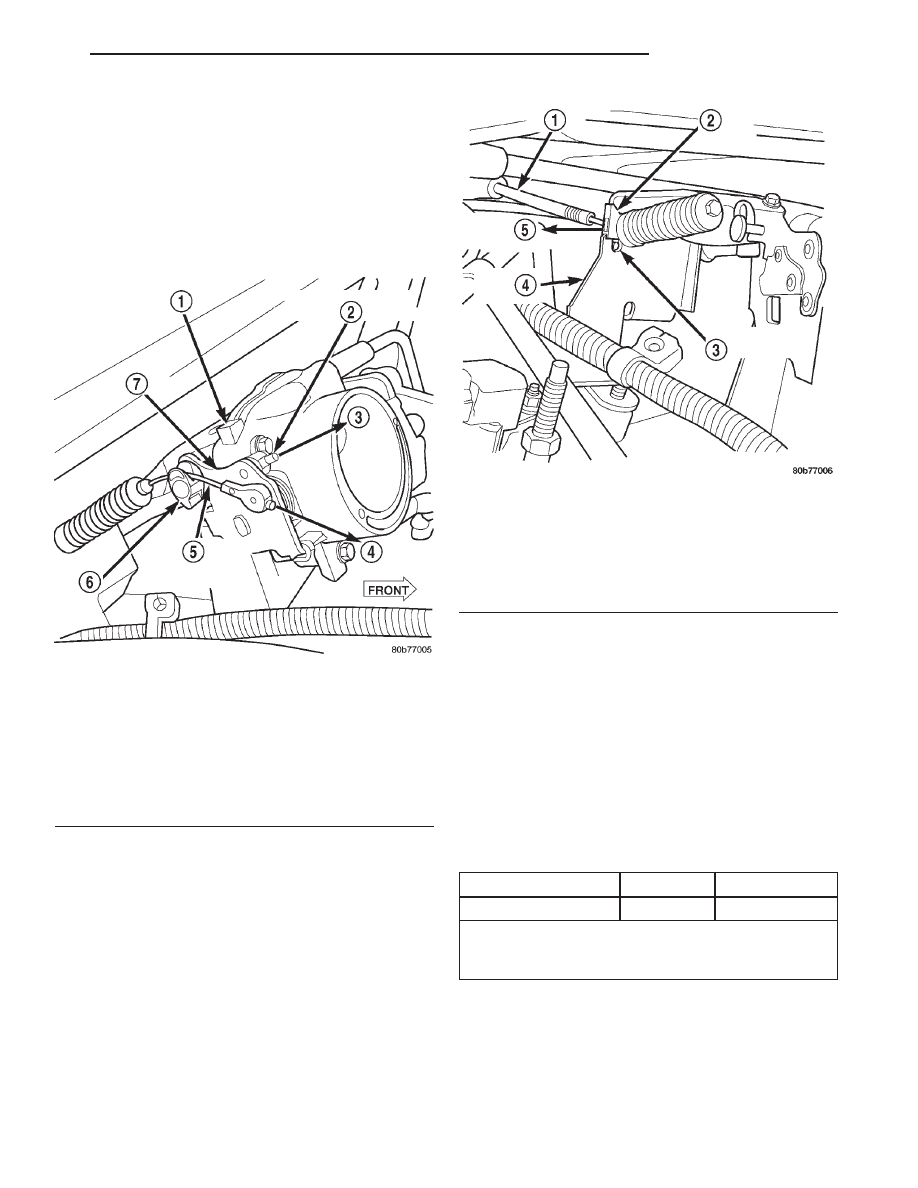

Fig. 46 Throttle (Accelerator) Cable at Throttle

Body—4.0L Engine

1 – ACCELERATOR CABLE
2 – OFF
3 – OFF
4 – THROTTLE BODY BELLCRANK
5 – SPEED CONTROL CABLE
6 – RELEASE TABS
7 – BRACKET

14 - 26

FUEL SYSTEM

WJ

REMOVAL AND INSTALLATION (Continued)

(8) Lift accelerator cable from top of cable cam

(Fig. 47).

(9) Press tab (Fig. 48) to release plastic cable

mount from bracket. Press on tab only enough to
release cable from bracket. If tab is pressed too
much, it will be broken.
Slide plastic mount (Fig.
48) towards passenger side of vehicle to remove cable
from bracket.

(10) Remove throttle cable from vehicle.

INSTALLATION

(1) Slide

accelerator

cable

plastic

mount

into

bracket. Continue sliding until tab (Fig. 48) is
aligned to hole in mounting bracket.

(2) Route accelerator cable over top of cable cam.
(3) Connect cable end to throttle body bellcrank

pin (snaps on rearward).

(4) Slide rubber grommet away from plastic cable

housing.

(5) Install rubber grommet into dash panel until

seated.

(6) Push cable housing into rubber grommet and

through opening in dash panel.

(7) From inside vehicle, install clip holding cable

to dashpanel (Fig. 45).

(8) From inside vehicle, slide throttle cable core

wire into opening in top of pedal arm.

(9) Push cable retainer (clip) into pedal arm open-

ing until it snaps in place.

(10) Snap cable into plenum routing clip.
(11) Install air box to throttle body.
(12) Before starting engine, operate accelerator

pedal to check for any binding.

SPECIFICATIONS

FUEL TANK CAPACITY

FUEL SYSTEM PRESSURE

339 kPa

6 34 kPa (49.2 psi 6 5 psi).

FUEL REQUIREMENTS

Your engine is designed to meet all emissions reg-

ulations and provide excellent fuel economy and per-

Fig. 47 Accelerator Cable at Bell Crank—4.7L V-8

Engine

1 – THROTTLE BODY
2 – SPEED CONTROL CABLE CONNECTOR
3 – OFF
4 – OFF
5 – ACCELERATOR CABLE CONNECTOR
6 – CABLE CAM
7 – BELLCRANK

Fig. 48 Accelerator Cable Release Tab—4.7L V-8

Engine

1 – ACCELERATOR CABLE
2 – PLASTIC CABLE MOUNT
3 – PRESS TAB FOR REMOVAL
4 – CABLE BRACKET
5 – SLIDE FOR REMOVAL

Models

Liters

U. S. Gallons

All

78

20.5

Nominal refill capacities are shown. A variation may
be observed from vehicle to vehicle due to
manufacturing tolerance and refill procedure.

WJ

FUEL SYSTEM

14 - 27

REMOVAL AND INSTALLATION (Continued)
