Jeep Grand Cherokee WJ. Manual - part 44





TRAC-LOK

DIFFERENTIAL

The Trac–Lok

y differential components are illus-

trated in (Fig. 62). Refer to this illustration during
repair service.

DISASSEMBLY

(1) Clamp Side Gear Holding Tool 6963–A in a

vise.

(2) Position the differential case on Side Gear

Holding Tool 6963-A (Fig. 63).

(3) Remove ring gear, if necessary. Ring gear

removal is necessary only if the ring gear is to be
replaced. The Trac-Lok

y differential can be serviced

with the ring gear installed.

(4) Remove the pinion gear mate shaft lock screw

(Fig. 64).

(5) Remove the pinion gear mate shaft. If neces-

sary, use a drift and hammer (Fig. 65).

(6) Install and lubricate Step Plate C–4487–1 (Fig.

66).

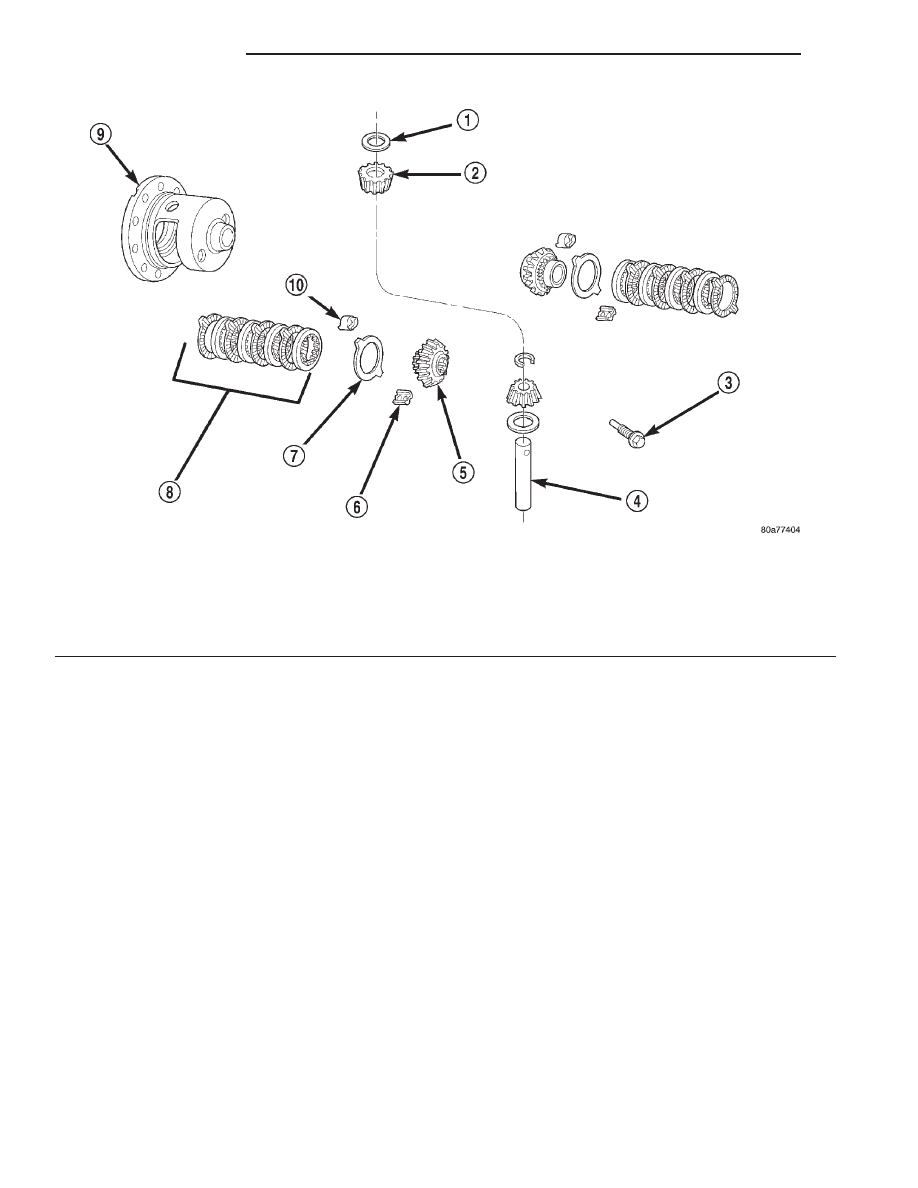

Fig. 62 Trac–Lok

Y

Differential Components

1 – THRUST WASHER
2 – PINION
3 – SHAFT LOCK SCREW
4 – PINION MATE SHAFT
5 – SIDE GEAR

6 – RETAINER
7 – DISC
8 – CLUTCH PACK
9 – DIFFERENTIAL CASE
10 – RETAINER

3 - 122

226 RBA AXLE

WJ

DISASSEMBLY AND ASSEMBLY (Continued)

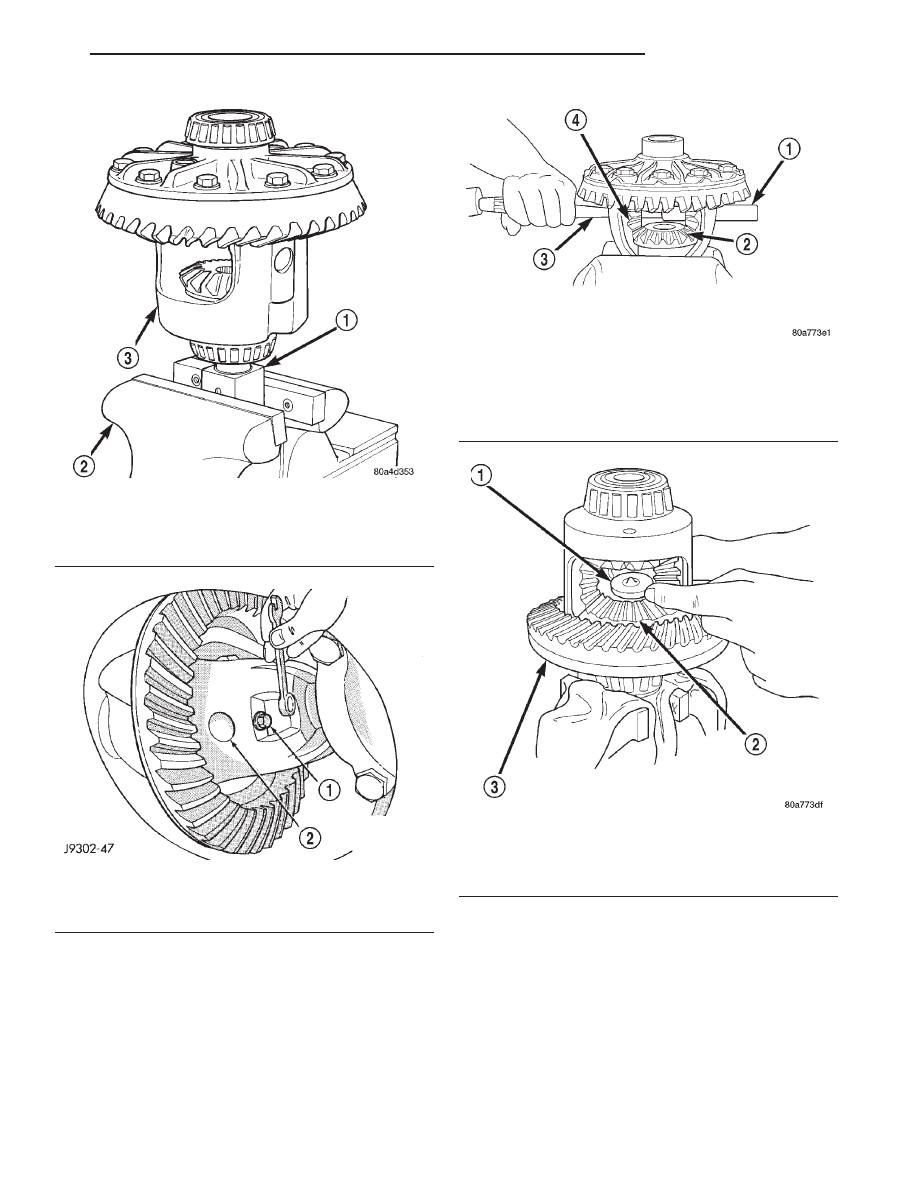

Fig. 63 Differential Case Holding Tool

1 – SPECIAL TOOL 6963–A
2 – VISE
3 – TRAC-LOK DIFFERENTIAL

Fig. 64 Mate Shaft Lock Screw

1 – LOCK SCREW
2 – PINION GEAR MATE SHAFT

Fig. 65 Mate Shaft Removal

1 – PINION MATE SHAFT
2 – SIDE GEAR
3 – DRIFT
4 – PINION MATE GEAR

Fig. 66 Step Plate Tool Installation

1 – SPECIAL TOOL C-4487–1
2 – LOWER SIDE GEAR
3 – DIFFERENTIAL CASE

WJ

226 RBA AXLE

3 - 123

DISASSEMBLY AND ASSEMBLY (Continued)

(7) Assemble Threaded Adapter C–4487–3 into top

side gear. Thread Forcing Screw C–4487–2 into
adapter until it becomes centered in adapter plate.

(8) Position

a

small

screw

driver

in

slot

of

Threaded Adapter C–4487–3 (Fig. 67) to prevent
adapter from turning.

(9) Tighten forcing screw tool 122 N·m (90 ft. lbs.)

(maximum) to compress Belleville springs in clutch
packs (Fig. 68).

(10) Using

an

appropriate

size

feeler

gauge,

remove thrust washers from behind the pinion gears
(Fig. 69).

(11) Insert Turning Bar C–4487–4 in case (Fig.

70).

(12) Loosen the Forcing Screw C-4487-2 in small

increments until the clutch pack tension is relieved
and the differential case can be turned using Turning
Bar C-4487-4.

(13) Rotate differential case until the pinion gears

can be removed.

(14) Remove pinion gears from differential case.
(15) Remove Forcing Screw C–4487-2, Step Plate

C-4487-1, and Threaded Adapter C-4487-3.

(16) Remove top side gear, clutch pack retainer,

and clutch pack. Keep plates in correct order during
removal (Fig. 71).

(17) Remove differential case from Side Gear Hold-

ing Tool 6963-A. Remove side gear, clutch pack
retainer, and clutch pack. Keep plates in correct
order during removal.

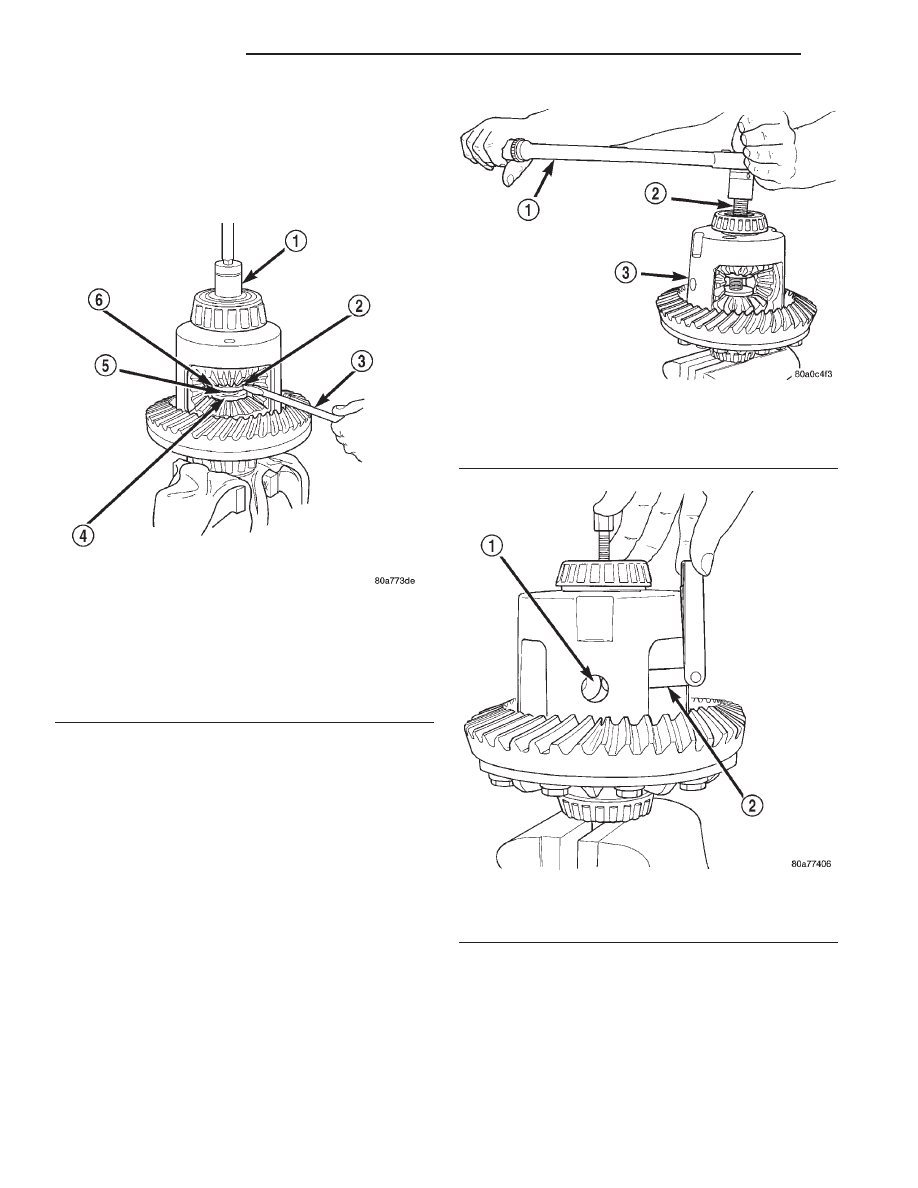

Fig. 67 Threaded Adapter Installation

1 – SOCKET
2 – SLOT IN ADAPTER
3 – SCREWDRIVER
4 – DISC C-4487–1
5 – THREADED ROD C-4487–2
6 – THREADED ADAPTER DISC C-4487–3

Fig. 68 Tighten Belleville Spring Compressor Tool

1 – TORQUE WRENCH
2 – TOOL ASSEMBLED
3 – DIFFERENTIAL CASE

Fig. 69 Remove Pinion Gear Thrust Washer

1 – THRUST WASHER
2 – FEELER GAUGE

3 - 124

226 RBA AXLE

WJ

DISASSEMBLY AND ASSEMBLY (Continued)

ASSEMBLY

NOTE: The clutch discs are replaceable as com-
plete sets only. If one clutch disc pack is damaged,
both packs must be replaced.

Lubricate each component with gear lubricant

before assembly.

(1) Assemble the clutch discs into packs and

secure disc packs with retaining clips (Fig. 72).

(2) Position assembled clutch disc packs on the

side gear hubs.

(3) Install clutch pack and side gear in the ring

gear side of the differential case (Fig. 73). Be sure
clutch pack retaining clips remain in position
and are seated in the case pockets.

(4) Position the differential case on Side Gear

Holding Tool 6963-A.

(5) Install lubricated Step Plate C–4487–1 on side

gear (Fig. 74).

(6) Install the upper side gear and clutch disc pack

(Fig. 74).

(7) Hold assembly in position. Insert Threaded

Adapter C–4487–3 into top side gear.

(8) Insert Forcing Screw C–4487–2.
(9) Tighten forcing screw tool to slightly compress

clutch discs.

(10) Place pinion gears in position in side gears

and verify that the pinion mate shaft hole is aligned.

(11) Rotate case with Turning Bar C–4487–4 until

the pinion mate shaft holes in pinion gears align
with holes in case. It may be necessary to slightly
tighten the forcing screw in order to install the pin-
ion gears.

(12) Tighten forcing screw to 122 N·m (90 ft. lbs.)

to compress the Belleville springs.

Fig. 70 Pinion Gear Removal

1 – PINION GEARS
2 – TOOL

Fig. 71 Side Gear & Clutch Disc Removal

1 – DIFFERENTIAL CASE
2 – SPECIAL TOOL C-4487–1
3 – RETAINER
4 – SIDE GEAR AND CLUTCH DISC PACK

Fig. 72 Clutch Disc Pack

1 – CLUTCH PACK
2 – RETAINER
3 – SIDE GEAR
4 – RETAINER

WJ

226 RBA AXLE

3 - 125

DISASSEMBLY AND ASSEMBLY (Continued)
