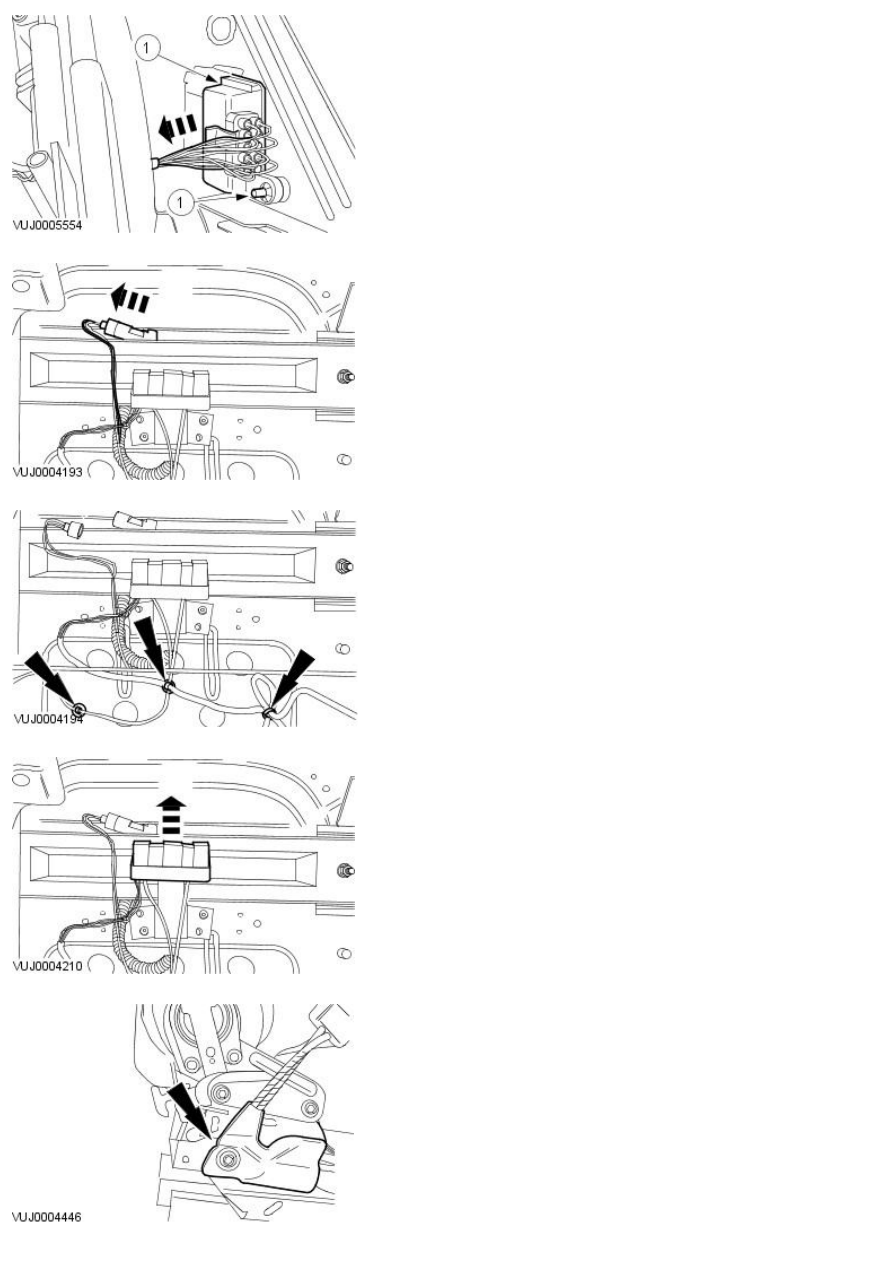

5. Remove the electronic control unit (ECU).

1. Remove the two clips.

1. Remove the ECU.

6. Disconnect the electrical connector from the sensor.

7. Detach the wiring harness from the seat base by cutting and removing

the cable ties. If a plastic harness connector plate is fitted to the seat,
detach the connectors to free the harness. The plastic carrier plate can
then be removed and discarded.

8. Detach the electrical connector from the electrical connector bracket.

9. Remove the seat buckle.

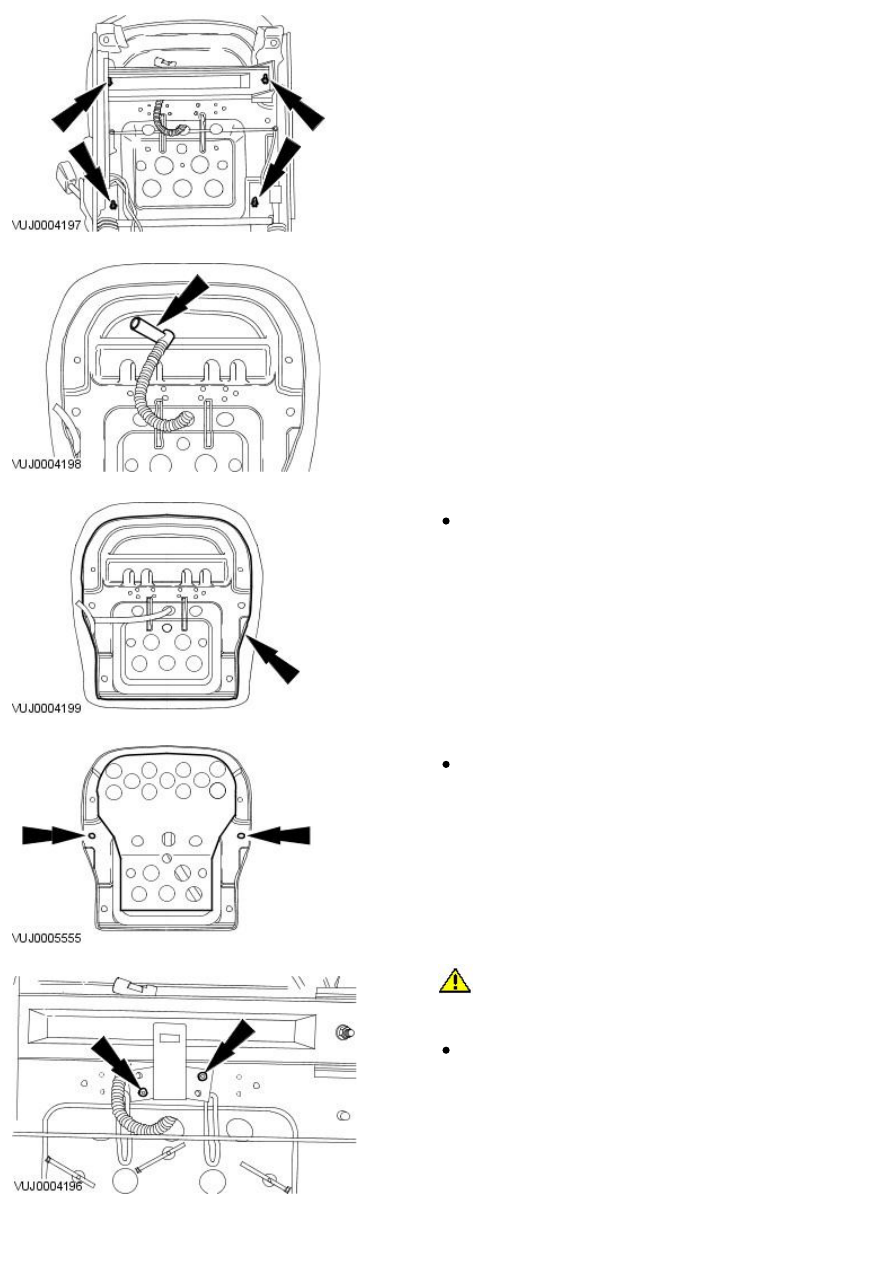

10. Remove the seat base retaining nuts.

11. Detach the passenger weight sensor electrical connector from the

retaining clip.

12. Remove the seat cover.

Unclip the seat cover from the seat base.

13. Remove the seat cushion bladder from the seat base.

Remove the two fir tree clips.

14.

CAUTION: Swarf may damage the bladder. Make sure the seat

and bladder are free from debris.

Remove the electrical connector bracket.

Remove and discard the rivets.

Installation

1. NOTE: Once the seat base is fully assembled, using the cable ties
supplied with the kit, fully secure the harness to the seat base.

To install, reverse the removal procedure.

Published: 11-May-2011

Supplemental Restraint System - Passenger Air Bag Deactivation (PAD) Indicator

Removal and Installation

Removal

1. WARNINGS:

To avoid accidental deployment and possible personal injury, the

backup power supply must be depleted before repairing or replacing any air
bag supplemental restraints system (SRS) components. To deplete the
backup power supply energy, disconnect the battery ground cable and wait
one minute. Failure to follow this instruction may result in personal injury.

Never probe the electrical connectors of air bag modules or any

other supplemental restraint system component. Failure to follow this
instruction may result in personal injury.

• NOTE: Repair is made by replacement only. If a part is replaced and the
new part does not correct the condition, install the original part and carry
out the diagnostic procedure again.

Lower and extend the steering column to its maximum rearward
position.

2. Disconnect the battery ground cable.

For additional information, refer to:

Battery Disconnect and Connect

(414-01 Battery, Mounting and Cables, General Procedures).

3. Remove the instrument cluster and vent finish panel.

4. Remove the passenger finish panel.

5. Detach the passenger air bag deactivation PAD indicator.

6. Remove the PAD indicator.

Disconnect the electrical connector.
