Jaguar X-Type Sedan and Estate (Wagon). Manual - part 684





Published: 11-May-2011

Supplemental Restraint System - Driver Lower Air Bag Module

Removal and Installation

Removal

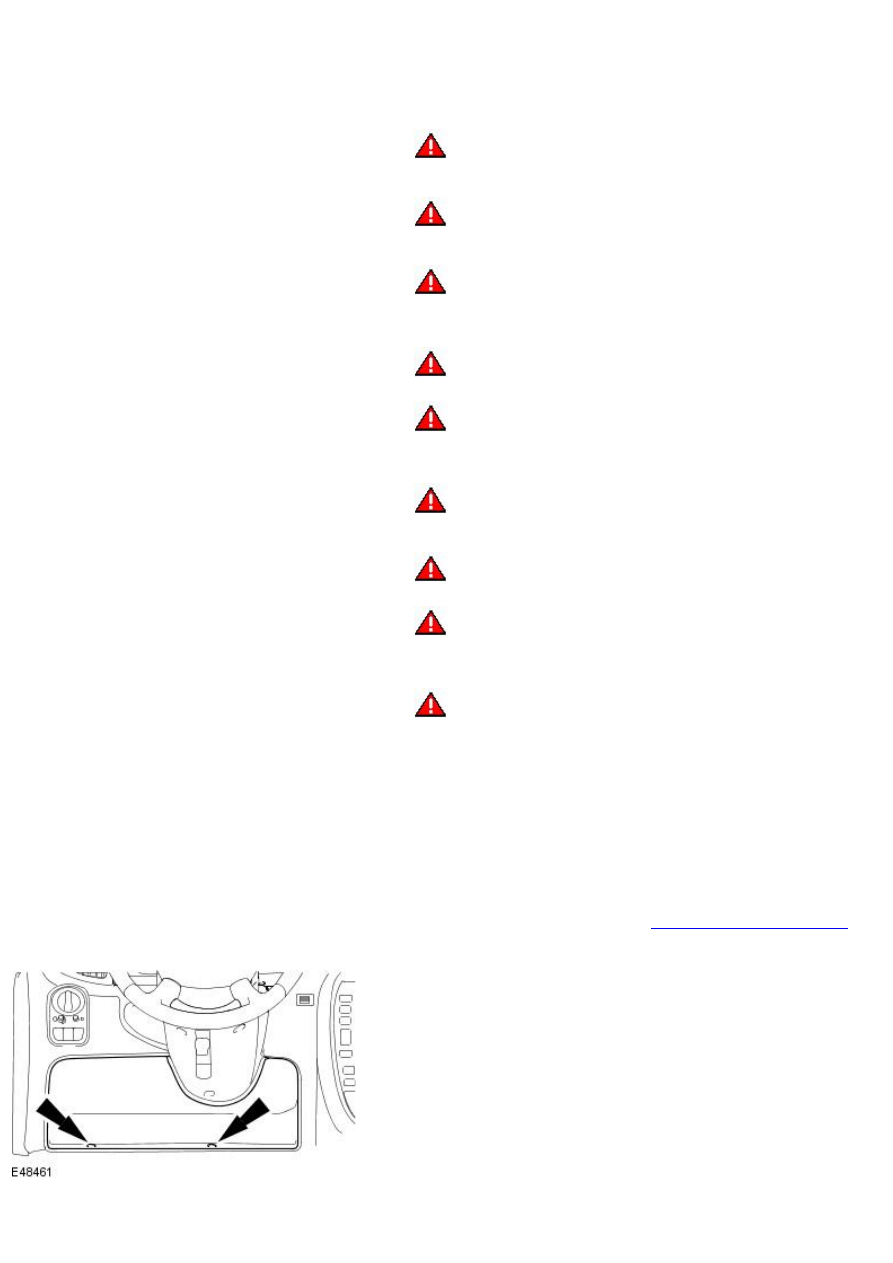

1. WARNINGS:

 A restraints control (RCM) module only requires replacement if the

system has incurred five separate deployments. At no time change an RCM
for less than five separate deployments.

 Always wear safety glasses when repairing an air bag supplemental

restraints system (SRS) and when handling an air bag module. Failure to
follow this instruction may result in personal injury.

 Carry a live air bag module with the air bag and trim cover pointed

away from your body. This will reduce the risk of injury in the event of an
accidental deployment. Failure to follow this instruction may result in
personal injury.

 Do not set a live air bag module down with the trim cover face

down. Failure to follow this instruction may result in personal injury.

 After deployment, the air bag surface can contain deposits of

sodium hydroxide, a product of the gas generant combustion that is
irritating to the skin. Wash your hands with soap and water afterwards.
Failure to follow this instruction may result in personal injury.

 Never probe the connectors on the air bag module. Doing so may

result in air bag deployment. Failure to follow this instruction may result in
personal injury.

 Air bag modules with discolored or damaged trim covers must be

replaced.

 Vehicle sensor orientation is critical for correct system operation. If

a vehicle equipped with an air bag SRS is involved in a collision, inspect
the sensor mounting bracket and wiring pigtail for deformation. If
damaged, install a new sensor whether or not the air bag is deployed.

 To avoid accidental deployment and possible personal injury, the

backup power supply must be depleted before repairing or replacing any air
bag SRS components. To deplete the backup power supply energy,
disconnect the battery ground cable and wait one minute. Failure to follow
this instruction may result in personal injury.

• NOTE: Repair is made by replacement only. If a part is replaced and the
new part does not correct the condition, install the original part and carry
out the diagnostic procedure again.

• NOTE: When installing a new air bag module, a prepaid return postcard
is provided with the replacement air bag module. The serial number for the
new part and the vehicle identification number (VIN) must be recorded and
sent to Jaguar Cars Ltd.

Disconnect the battery ground cable.
For additional information, refer to:

Battery Disconnect and Connect

(414-01 Battery, Mounting and Cables, General Procedures).

2. Remove the driver lower air bag module retaining screws.

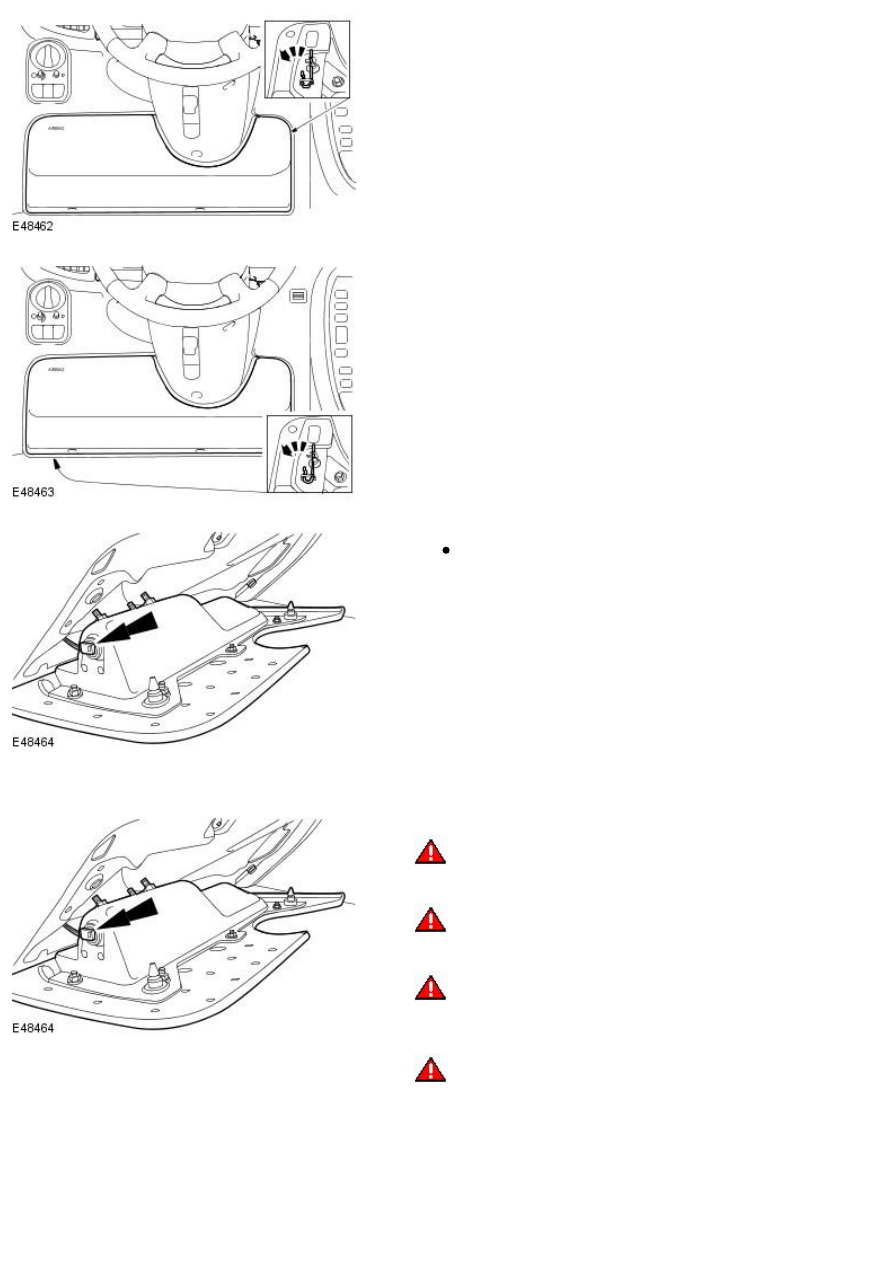

3. Detach the right-hand driver lower air bag module retaining clip.

4. Detach the left-hand driver lower air bag module retaining clip.

5. Remove the driver lower air bag module.

Disconnect the driver lower air bag module electrical connector.

Installation

1. WARNINGS:

 An RCM module only requires replacement if the system has incurred

five separate deployments. At no time change an RCM for less than five
separate deployments.

 Always wear safety glasses when repairing an SRS vehicle and when

handling an air bag module. Failure to follow this instruction may result in
personal injury.

 Carry a live air bag module with the air bag and trim cover pointed

away from your body. This will reduce the risk of injury in the event of an
accidental deployment. Failure to follow this instruction may result in
personal injury.

 Never probe the connectors on the air bag module. Doing so may

result in air bag deployment. Failure to follow this instruction may result in
personal injury.

• NOTE: Repair is made by replacement only. If a part is replaced and the
new part does not correct the condition , install the original part and carry
out the diagnostic procedure again.

• NOTE: When installing a new air bag module, a prepaid return postcard
is provided with the replacement air bag module. The serial number for the
new part and the vehicle identification number (VIN) must be recorded and
sent to Jaguar Cars Ltd.

Connect the driver lower air bag module electrical connector.

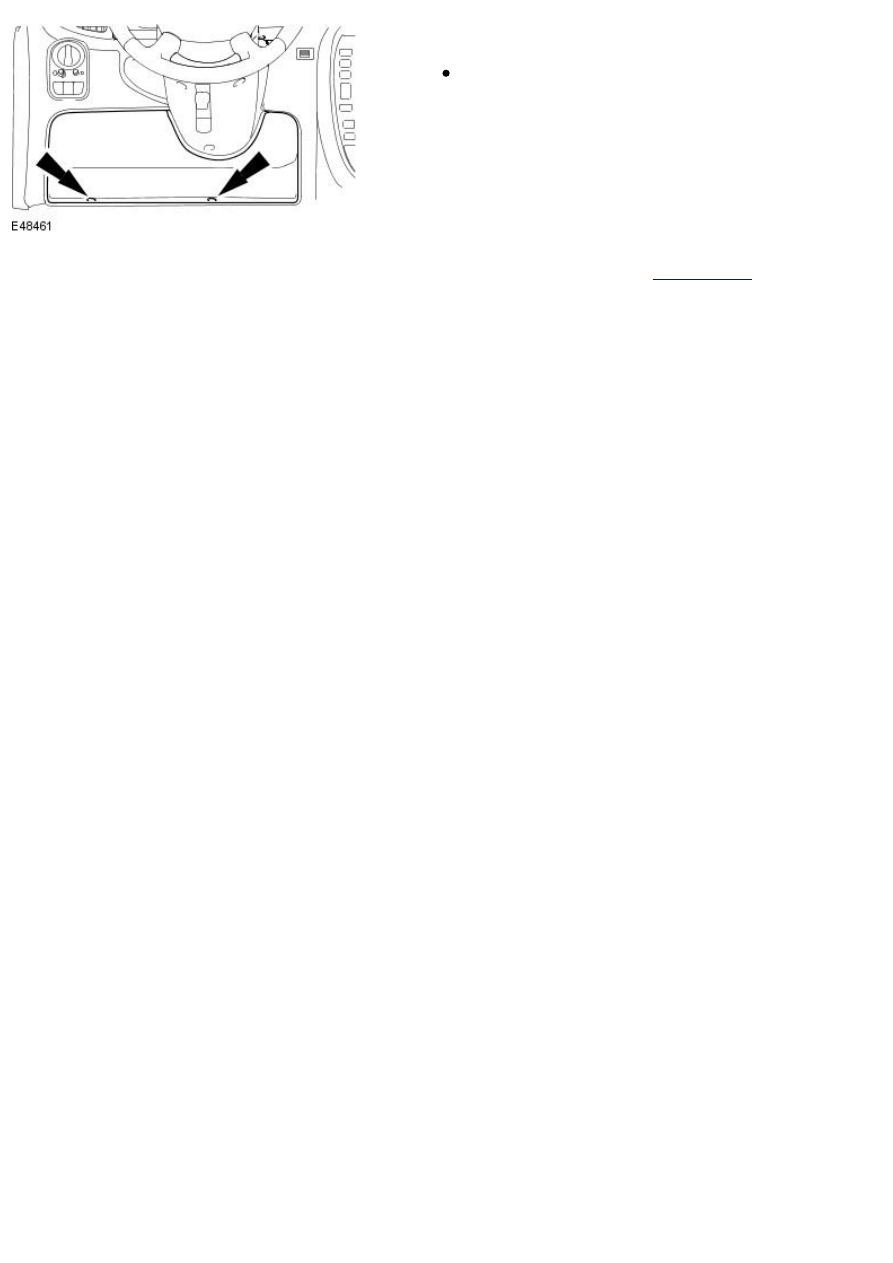

2. NOTE: Make sure the driver lower air bag module retaining clips are fully
seated.

Install the driver lower air bag module.

Tighten to 11 Nm.

3. Connect the battery ground cable.

For additional information, refer to:

Battery Connect

 (414-01 Battery,

Mounting and Cables, General Procedures).

Published: 11-May-2011

Supplemental Restraint System - Occupant Classification Sensor

Removal and Installation

Removal

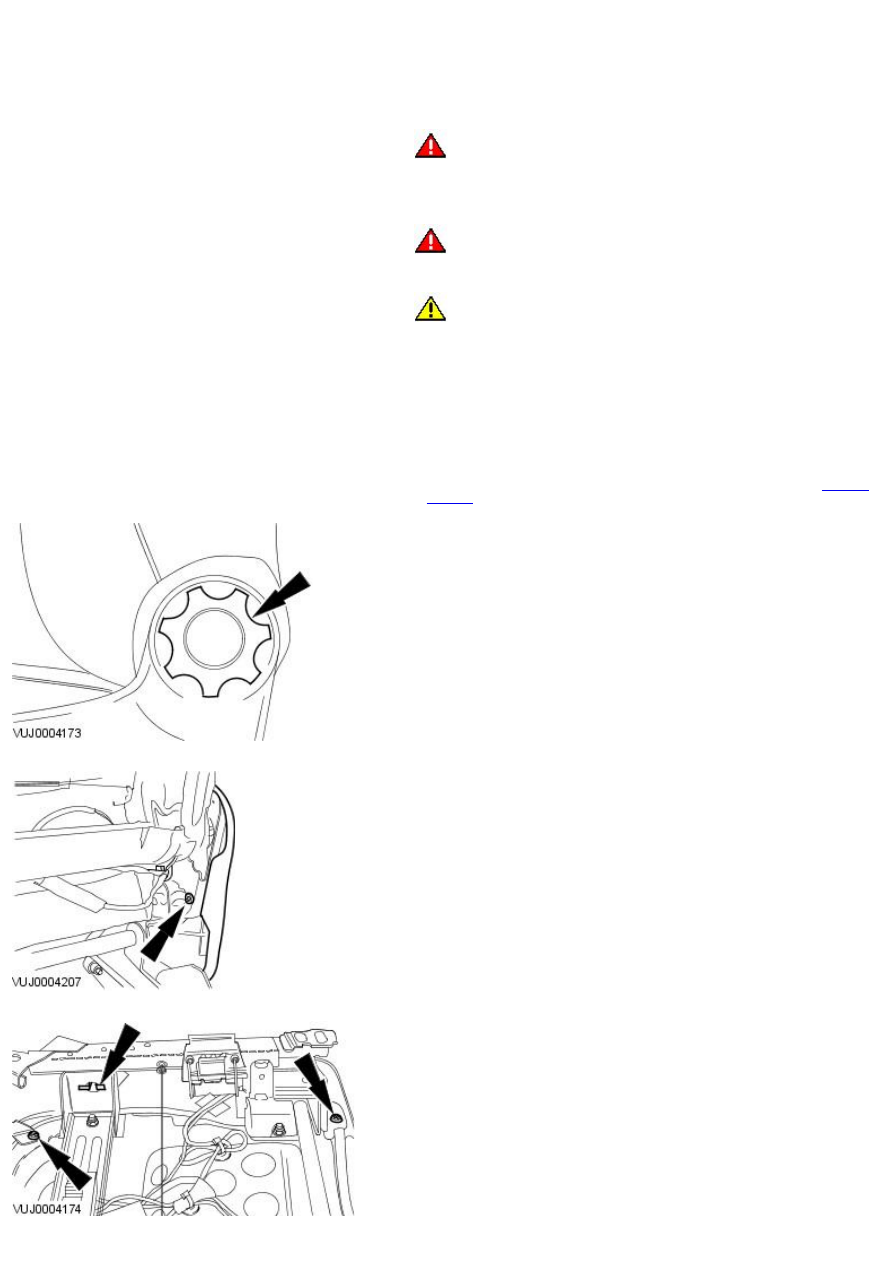

1. WARNINGS:

 To avoid accidental deployment and possible personal injury, the

backup power supply must be depleted before repairing or replacing any air
bag supplemental restraint system (SRS) components. To deplete the
backup power supply energy, disconnect the battery ground cable and wait
one minute. Failure to follow this instruction may result in personal injury.

 Never probe the electrical connectors of air bag modules or any

other SRS component. Failure to follow this instruction may result in
personal injury.

CAUTION: Electronic components in seats are sensitive to impact.

Handle seat with care or damage may result.

• NOTE: Repair is made by replacement only. If a part is replaced and the
new part does not correct the condition, install the original part and carry
out the diagnostic procedure again.

• NOTE: Sensor is available only as a service kit. No attempt should be
made to replace individual components.

Power seat base to lowest position. Recline seat back to 25 degrees
from vertical.

Remove the passenger seat. For additional information, Section

 501-10

Seating

.

2. Remove the backrest recliner handwheel (if equipped).

3. Remove the inner side trim panel.

4. Remove the outer side trim panel.
