Index Jaguar Jaguar X-Type Sedan and Estate (Wagon) (2.0 L, 2.5 L and 3.0 L Gasoline; 2.0 L and 2.2 L, Diesel) - manual 2001-2009 year
|
|

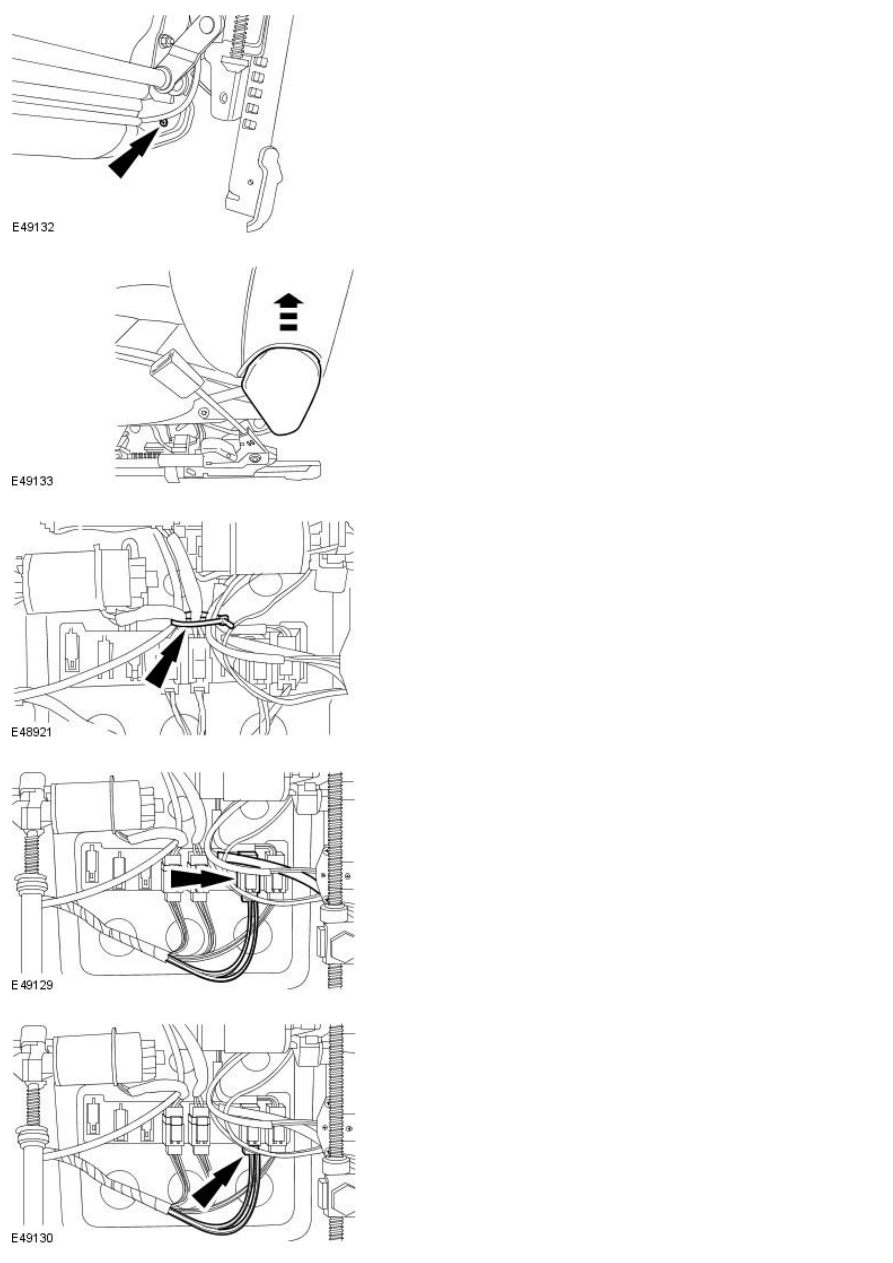

5. Detach the safety belt lower anchor from the underside of the seat. 6. Remove the seat rear retaining bolt covers. 7. Remove the seat. Remove the retaining bolts. 8. Disconnect the battery ground cable. For additional information, refer to For additional information, refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). 9. Disconnect the electrical connector. Installation |
