Jaguar X-Type Sedan and Estate (Wagon). Manual - part 497





Overheat Protection

Overheat protection is controlled by a temperature resistor located in the heat exchanger. This protects against excessive operating
temperatures. Overheat protection responds at a coolant temperature in excess of 125 °C and switches the fuel fired booster heater from
stand-by’ to ‘OFF’.

Fuel Pump

The fuel fired booster heater electronic control module outputs a PWM voltage signal to activate the pump. W hen the pump is de-energized
it provides a positive shut-off of the fuel supply.

Fuel Fired Heater Operation

The powertrain control module (PCM) determines the ignition of the heater by a solid-state relay, which switches battery voltage to the
heater control module as appropriate.

An electronic control module incorporated into the fuel fired booster heater controls the operation of the fuel fired booster heater system.
The module monitors the ambient air temperature sensor and cylinder head temperature sensor. Two further sensors located in the heat
exchanger provide the module with an input of the heat exchanger’s casing temperature and coolant temperature.

Ambient air temperature sensor

The values from the sensors are used for fuel fired booster heater system adaptation between full-load, part-load and stand-by.

To minimize drain on the battery, the fuel fired booster heater switches from full-load to part-load, on the coolant reaching 87 °C. The fuel
fired booster heater will not operate if the battery voltage is below 10.2 volts.

Part-load operation offers the following benefits:

Low noise output
Low power operation
Low fuel consumption

Switch On / Starting

During engine startup the fuel fired booster heater goes into stand-by. If the coolant circuit temperature is below 87 °C and the ambient
temperature is below 5 °C the fuel fired booster heater starting sequence commences.

The glow plug is activated and after a delay the fuel pump commences operation and the fuel is ignited.

The combustion air fan operation is then initiated. The combustion air fan speed is increased in two ramps to nearly full-load operation.
After a stabilization phase the combustion air fan speed is again increased to full-load and the glow plug is deactivated.

After these events have been completed the fuel fired booster heater enters Automatic Heating Operation.

Automatic Heating Operation

During automatic heating operation the glow plug functions as the flame sensor to monitor the flame condition. In the event of a no flame
condition, a restart is automatically initiated.

If the no flame condition persists, fuel delivery is stopped and the fuel fired booster heater enters an error lockout with a timed shutdown
of the combustion air fan to cool the fuel fired booster heater unit.

Published: 11-May-2011

Auxiliary Heating - Auxiliary Heater

Diagnosis and Testing

Principle of operation

There are two types of auxiliary heater, the electric booster heater, which is fitted as standard, and the fuel fired booster heater, which
is an option. For additional information on the fuel fired booster heater.
REFER to:

Fuel Fired Booster Heater

 (412-02B Auxiliary Heating, Diagnosis and Testing).

The electric booster heater functions in the following way:

Automatic activation occurs if:

The ambient temperature is below five degrees C (41 degrees F)
The cylinder head temperature is below 71 degrees C (160 degrees F)
The engine is running
The generator is charging

The coolant is heated by three glowplugs mounted in their own housing through which the coolant passes as it circulates.

Depending on the conditions detected, the control module will activate the appropriate number of glowplugs to achieve the desired level of
heating.

The system will deactivate once the cylinder head temperature reaches 85 degrees C (185 degrees F), but will automatically reactivate if
the temperature drops below 71 degrees C (160 degrees F) for whatever reason.

Inspection and Verification

1. Verify the customer concern.

1.

2. Visually inspect for obvious signs of mechanical or electrical damage.

2.

Visual inspection chart

Mechanical

Electrical

Coolant level
Heater unit and connections

Fuses
Relays
Harnesses
Connectors
ECM
Cylinder head temperature (CHT) sensor
Charging system

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step

3.

4. If the cause is not visually evident, verify the symptom and refer to the diagnostic trouble code (DTC) index.

4.

Diagnostic Trouble Code (DTC) index

DTC

Description

Possible causes

Action

P0380 Auxiliary heater

circuit(s)

Auxiliary heater relay circuit
Auxiliary heater control circuit

For auxiliary heater circuit tests. GO to Pinpoint Test

A.

P1543 Auxiliary heater 1

circuit

Auxiliary heater 1 relay circuit
Auxiliary heater 1 control circuit

For auxiliary heater 1 circuit tests. GO to Pinpoint Test

B.

P1544 Auxiliary heater 2

circuit

Auxiliary heater 2 relay circuit
Auxiliary heater 2 control circuit

For auxiliary heater 2 circuit tests. GO to Pinpoint Test

C.

B2449 Auxiliary heater short

circuit

Auxiliary heater circuit: short
circuit to ground

For auxiliary heater circuit tests. GO to Pinpoint Test

A.

GO to

Pinpoint Test

B.

GO to Pinpoint Test

C.

B2450 Auxiliary heater

interrupted

Auxiliary heater circuit: open
circuit

For auxiliary heater circuit tests. GO to Pinpoint Test

A.

GO to

Pinpoint Test

B.

GO to Pinpoint Test

C.

Pinpoint Tests

CAUTION: W hen probing connectors to take measurements in the course of the pinpoint tests, use the adaptor kit, part number

3548-1358-00. Failure to follow this instruction may result in damage to the vehicle.

• NOTE: This section contains references to Parameter Identifiers (PIDs). Where the Jaguar approved diagnostic system is not available, a
scantool may be used to access these PIDs, all of which give information, and some of which can be used to both read information and to
activate components. The format of the information may vary, depending on the tool used.

• NOTE: When performing voltage or resistance tests, always use a digital multimeter (DMM) accurate to 3 decimal places, and with an
up-to-date calibration certificate. W hen testing resistance, always take the resistance of the DMM leads into account.

• NOTE: Check and rectify basic faults before beginning diagnostic routines involving pinpoint tests.

• NOTE: If a DTC is detected, all DTCs must be cleared after the concern is repaired. Failure to clear all DTCs may cause driveability
concerns.

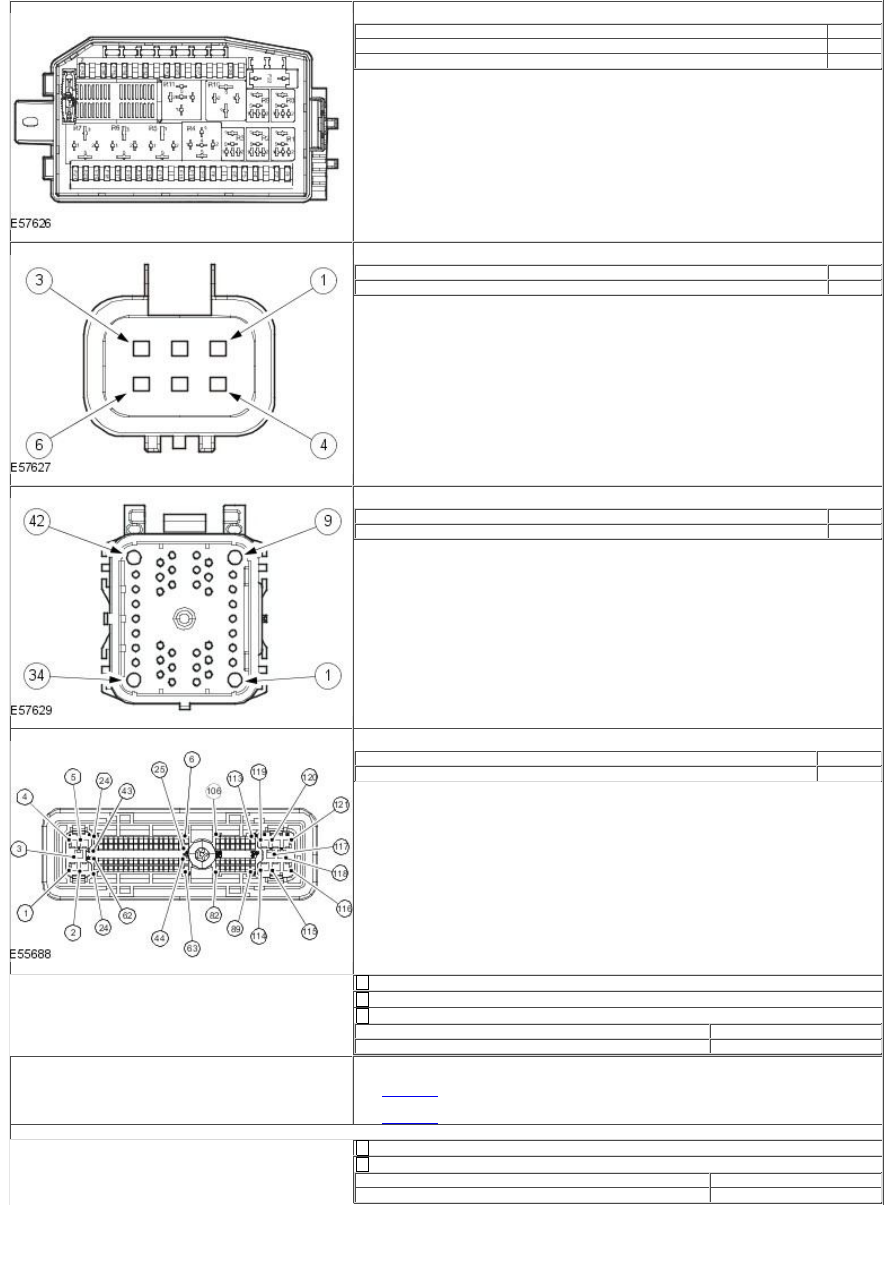

PINPOINT TEST A : AUXILIARY HEATER RELAY 1

TEST CONDITIONS

DETAILS/RESULTS/ACTIONS

A1: CHECK THE AUXILIARY HEATER RELAY CIRCUIT FOR SHORT CIRCUIT TO POWER

1
2
3

1
2

Auxiliary heater 1 fuse connector

Circuit

Pin

Auxiliary heater relay 1 output

01

Auxiliary heater 1 control

02

Auxiliary heater 1 connector

Circuit

Pin

Auxiliary heater relay 1 control

01

Junction box connector

Circuit

Pin

Auxiliary heater relay 1 control

38

Engine control module connector

Circuit

Pin

Auxiliary heater 1 control

61

Key off.
Auxiliary heater fuse removed.
Measure the resistance between:

Auxiliary heater fuse connector

Vehicle battery

Auxiliary heater 1 control, pin 02

Positive post

Is the resistance greater than 10 ohms?
Yes

GO to A3

.

No

GO to A2

.

A2: CHECK WHETHER THE SHORT CIRCUIT TO POWER IS IN THE HARNESS OR THE AUXILIARY HEATER UNIT

Auxiliary heater 1 connector disconnected.
Measure the resistance between:

Auxiliary heater fuse connector

Vehicle battery

Auxiliary heater 1 control, pin 02

Positive post

1
2

1
2
3
4

1

1
2
3
4

1

1
2
3
4
5
6
7

1

Is the resistance greater than 10 ohms?
Yes

SUSPECT:- Auxiliary heater 1 assembly

No

REPAIR the short circuit. For additional information, refer to the wiring
diagrams.

A3: CHECK THE AUXILIARY HEATER 1 CIRCUIT CONTINUITY

Auxiliary heater 1 connector disconnected.
Measure the resistance between:

Auxiliary heater fuse connector

Vehicle battery

Auxiliary heater 1 control, pin 02

Negative post

Is the resistance between 0.5 ohms and 10 ohms?
Yes

GO to A6

.

No

GO to A4

.

A4: CHECK THE AUXILIARY HEATER CONTROL CIRCUIT FOR SHORT CIRCUIT TO GROUND

Key off.
Auxiliary heater connector disconnected.
Key on, engine off.
Measure the resistance between:

Auxiliary heater 1 fuse connector

Vehicle battery

Auxiliary heater 1 control, pin 02

Negative post

Is the resistance greater than 10 ohms?
Yes

GO to A5

.

No

REPAIR the short circuit. For additional information, refer to the wiring
diagrams.

A5: CHECK THE AUXILIARY HEATER 1 CIRCUIT(S) FOR OPEN CIRCUIT IN THE HARNESS

Measure the resistance between:

Auxiliary heater 1 fuse

connector

Auxiliary heater 1 assembly connector, harness

side

Auxiliary heater 1 control, pin 02 Auxiliary heater 1 control, pin 01

Is the resistance less than 10 ohms?
Yes

SUSPECT:- Auxiliary heater 1 assembly- Auxiliary heater 1 ground

No

REPAIR the open circuit. For additional information, refer to the wiring
diagrams.

A6: CHECK THE AUXILIARY HEATER 1 CONTROL LINE 'ON' STATE

Scan tool connected.
Access the ECM and control the auxiliary heater 1 relay PID.
Activate the auxiliary heater 1.
Measure the voltage between:

Auxiliary heater 1 fuse connector

Vehicle battery

Auxiliary heater relay 1 output, pin 01

Negative post

Is the voltage between 9 volts and 15 volts?
Yes

GO to A10

.

No

GO to A7

.

A7: CHECK THE AUXILIARY HEATER 1 CONTROL LINE FOR SHORT TO GROUND

Measure the resistance between:

Auxiliary heater 1 fuse connector

Vehicle battery

Auxiliary heater relay 1 output, pin 01

Negative post

Is the resistance greater than 10 ohms?
Yes

GO to A8

.

No

REPAIR the short circuit. For additional information, refer to the wiring
diagrams.

A8: CHECK THE ECM CONTROL LINE 'ON' STATE

Key off.
Junction box connector disconnected.
Key on, engine off.
Scan tool connected.
Access the ECM and control the auxiliary heater 1 relay PID.
Activate the auxiliary heater 1.
Measure the resistance between:

Junction box harness connector, component side

Vehicle battery

Auxiliary heater relay 1 control, Pin 38

Negative post

Is the resistance less than 10 ohms?
Yes

SUSPECT:- Short circuit to power in the harness between the junction box
harness and the fuse box connectors- Open circuit in the harness between the
junction box harness and the fuse box connectors- Fusebox assembly

No

GO to A9

.

A9: CHECK THE ECM CONTROL LINE FOR SHORT CIRCUIT TO POWER

Measure the resistance between:

Junction box harness connector, component side

Vehicle battery

Auxiliary heater relay 1 control, Pin 38

Positive post
