CAUTION: Make sure the torque wrench setting procedure is

followed correctly. Failure to follow this instruction may result in damage
to the vehicle.

Install the catalytic converter temperature sensor.

Tighten to 35 Nm.

3. Connect the catalytic converter temperature sensor electrical connector.

4. Install the turbocharger heatshield.

Tighten to 9 Nm.

5. NOTE: Remove the oil filler cap and oil level indicator.

Install the engine cover.

6. Install the oil filler cap.

7. Install the oil level indicator.

Published: 11-May-2011

Electronic Engine Controls - 2.0L Duratorq-TDCi/2.2L Duratorq-TDCi (110kW/150PS) -
Puma - Crankshaft Position (CKP) Sensor

Removal and Installation

Removal

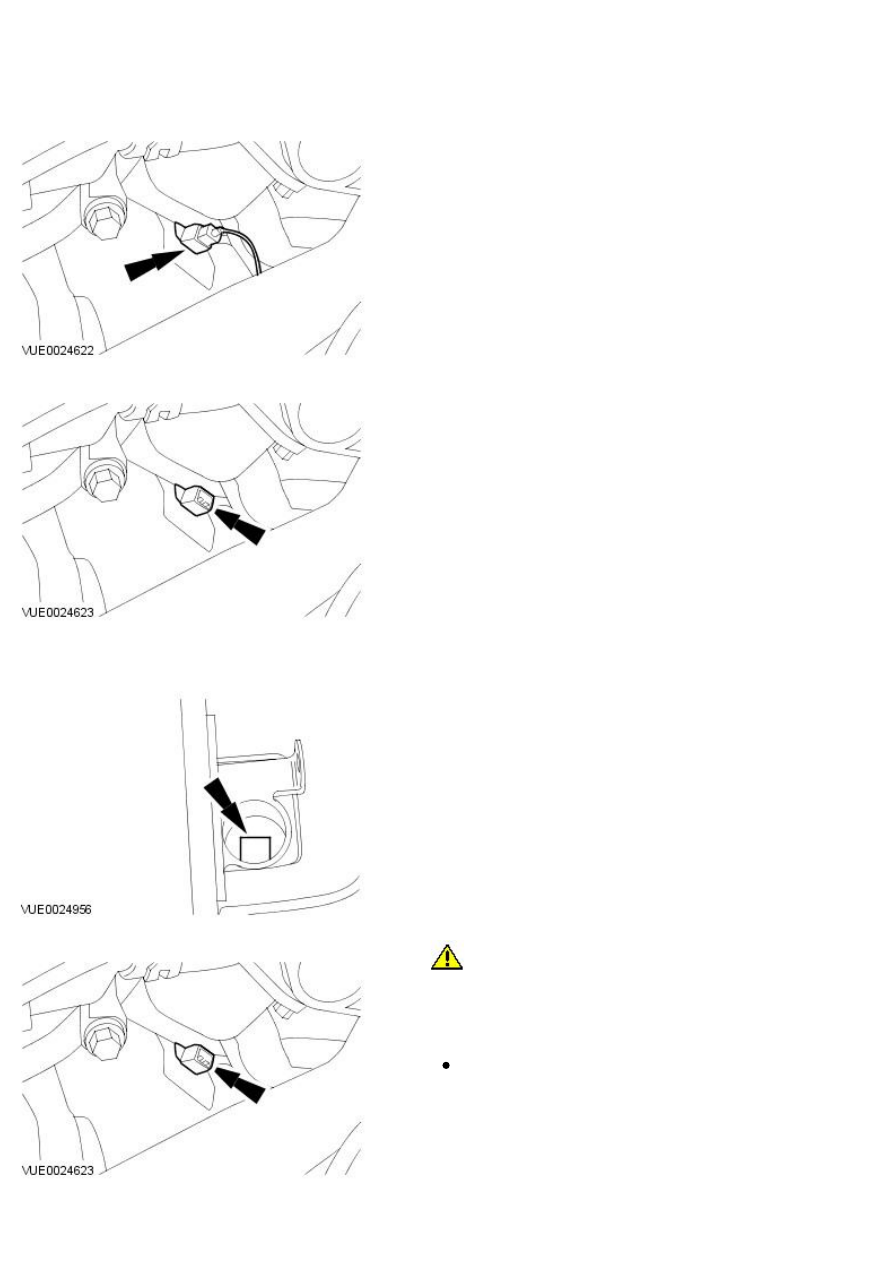

1. Disconnect the electrical connector.

2. Remove and discard the crankshaft position (CKP) sensor.

Installation

1. NOTE: Only turn the engine in the normal direction of rotation

Turn the engine until a flywheel trigger tooth is visible through the CKP
sensor housing.

CAUTION: The CKP sensor tip must rest on a flywheel trigger

tooth. Incorrect installation may result in the CKP sensor being damaged.

• NOTE: Make sure that the CKP sensor housing is clean and free from
foreign material.

Install the CKP sensor.

Tighten to 7 Nm.

3. Connect the CKP sensor electrical connector.
