DTC

Condition

Possible source

Action

the DTCs, test for normal operation.

P2337 Cylinder 2 above knock

threshold - knock sensor trim
for cylinder 2 (injector 4)
invalid

Natural wear of the
injector
Fuel contaminated
Blocked or dirty fuel
injector(s)
Injector circuit fault
Injector fault

P2338 Cylinder 3 above knock

threshold - knock sensor trim
for cylinder 3 (injector 2)
invalid

Natural wear of the
injector
Fuel contaminated
Blocked or dirty fuel
injector(s)
Injector circuit fault
Injector fault

P2339 Cylinder 4 above knock

threshold - knock sensor trim
for cylinder 4 (injector 3)
invalid

Natural wear of the
injector
Fuel contaminated
Blocked or dirty fuel
injector(s)
Injector circuit fault
Injector fault

P242F Diesel particulate filter (DPF)

restriction - ash accumulation

DPF blocked

Install a new DPF as necessary.
REFER to:

Diesel Particulate Filter (DPF)

 (309-00 Exhaust System,

Removal and Installation).
Clear the DTCs, test for normal operation.

P244A Diesel particulate filter (DPF)

differential pressure too low

DPF leaking

Install a new DPF as necessary.
REFER to:

Diesel Particulate Filter (DPF)

 (309-00 Exhaust System,

Removal and Installation).
Clear the DTCs, test for normal operation.

P244B Diesel particulate filter (DPF)

differential pressure too high

DPF overloaded

Carry out the regeneration procedure. Clear the DTCs, test for
normal operation.

P244C Exhaust temperature too low

for particulate filter
regeneration

Insufficient
mileage/speed for
regeneration

Carry out the regeneration procedure. Clear the DTCs, test for
normal operation.

P2452 Diesel particulate filter (DPF)

pressure sensor A circuit

DPF pressure sensor
(delta pressure sensor)
circuit fault
DPF pressure sensor
(delta pressure
sensor)fault

Check the DPF pressure sensor (delta pressure sensor)and circuits.
Refer to the electrical guides. Rectify as necessary.

P2453 Diesel particulate filter (DPF)

pressure sensor A circuit
range/performance

DPF pressure sensor
(delta pressure sensor)
hose fault
DPF pressure sensor
(delta pressure
sensor)fault

Refer to the approved diagnostic system for a guided diagnostic
routine. Check the condition and fitment of the DPF pressure sensor
(delta pressure sensor) and hoses. Rectify as necessary.

P2623 Injector control pressure

regulator open

Inlet metering valve fault
Inlet metering valve
circuit fault

Check the inlet metering valve and circuits. Refer to the electrical
guides. Rectify as necessary. Clear the DTCs, test for normal
operation.

Published: 11-May-2011

Electronic Engine Controls - 2.0L Duratorq-TDCi/2.2L Duratorq-TDCi (110kW/150PS) -
Puma - Camshaft Position (CMP) Sensor

Removal and Installation

Removal

1. Remove the air cleaner.

For additional information, refer to:

Air Cleaner

 (303-12B Intake Air

Distribution and Filtering - 2.0L Duratorq-TDCi/2.2L Duratorq-TDCi
(110kW/150PS) - Puma, Removal and Installation).

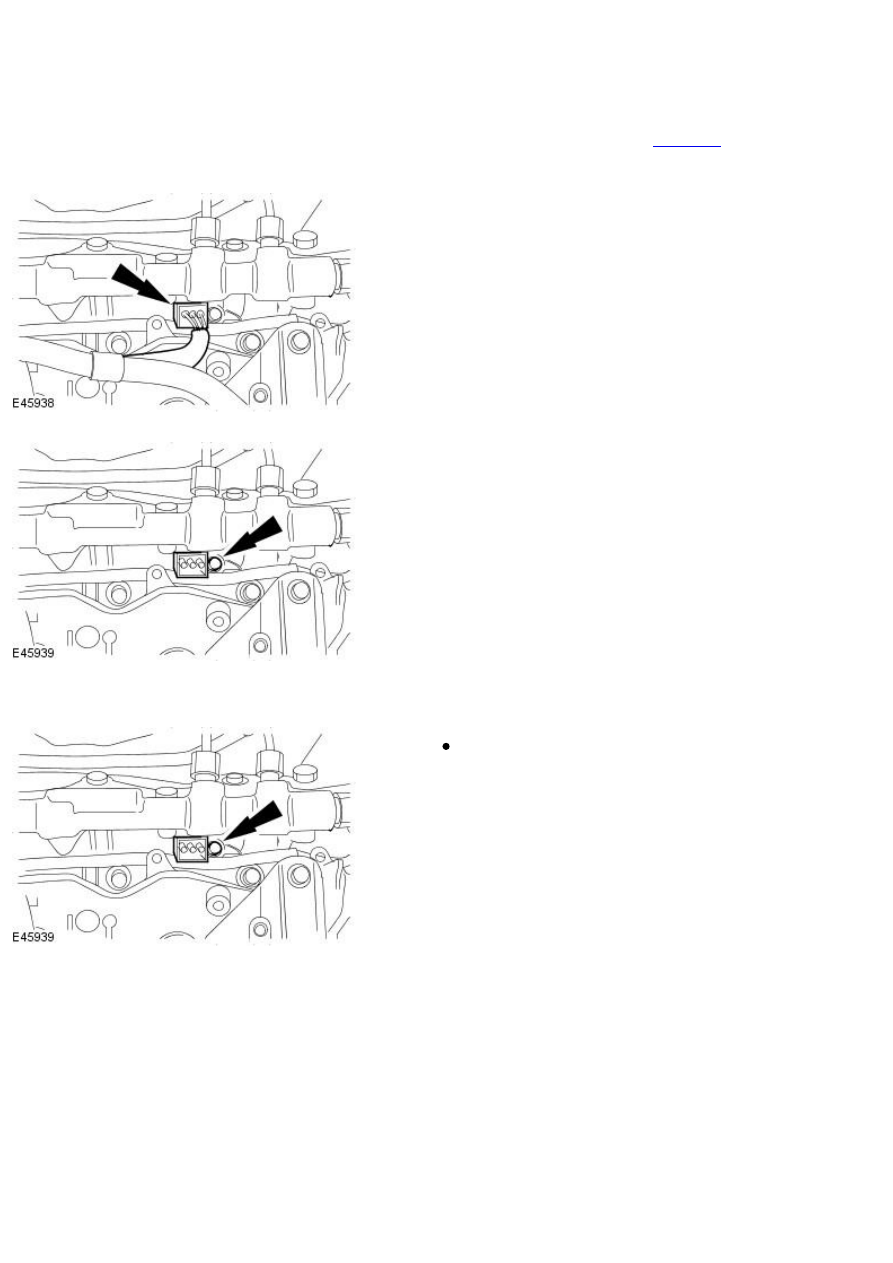

2. Disconnect the electrical connector.

3. Remove the camshaft position (CMP) sensor.

Installation

1. To install, reverse the removal procedure.

Tighten to 9 Nm.

Published: 11-May-2011

Electronic Engine Controls - 2.0L Duratorq-TDCi/2.2L Duratorq-TDCi (110kW/150PS) -
Puma - Catalytic Converter Temperature Sensor

Removal and Installation

Special Tool(s)

Exhaust gas temperature sensor wrench

303-1184

Removal

1. Remove the oil level indicator.

2. Remove the oil filler cap.

3. NOTE: Install the oil filler cap and oil level indicator to prevent foreign
material entering the valve cover.

Remove the engine cover.

4. Remove the turbocharger heatshield.

5. Disconnect the catalytic converter temperature sensor electrical

connector.

6. Remove the catalytic converter temperature sensor.

Installation

1.

CAUTION: Make sure the torque wrench setting procedure is

followed correctly. Failure to follow this instruction may result in damage
to the vehicle.

Calculate the setting for the torque wrench.

Stage 1: Multiply the required torque by the effective length of the
torque wrench (1).

Stage 2: Add the effective length of the special tool (2) to the
effective length of the torque wrench.

Stage 3: Divide the total of stage 1 by the total of stage 2.

Stage 4: Set the torque wrench to the figure arrived at in stage 3.
