Jaguar X-Type Sedan and Estate (Wagon). Manual - part 207





39.

CAUTION: If fluid is spilt on the paintwork, the affected area

must be immediately washed down with cold water. Failure to follow this
instruction may result in damage to the vehicle.

• NOTE: Drain the fluid into a suitable container.

• NOTE: Cap the exposed ports.

• NOTE: Secure the clutch slave cylinder pipe using tie strap.

Disconnect the clutch slave cylinder pipe and secure to one side.

1. Detach the clutch slave cylinder pipe from the slave cylinder.

2. Disconnect the clutch slave cylinder pipe and secure to one

side.

40. Disconnect the radiator upper coolant hose.

41. Disconnect the charge air cooler hose.

42. Remove the exhaust manifold to E.G.R valve tube.

For additional information, refer to:

Exhaust Gas Recirculation (EGR)

Cooler to EGR Valve Tube

 (303-08 Engine Emission Control - 2.0L

Duratorq-TDCi/2.2L Duratorq-TDCi (110kW/150PS) - Puma, Removal and
Installation).

43. NOTE: Place suitable absorbent material below the fluid reservoir to
absorb fluid spillage.

• NOTE: Cap the exposed ports.

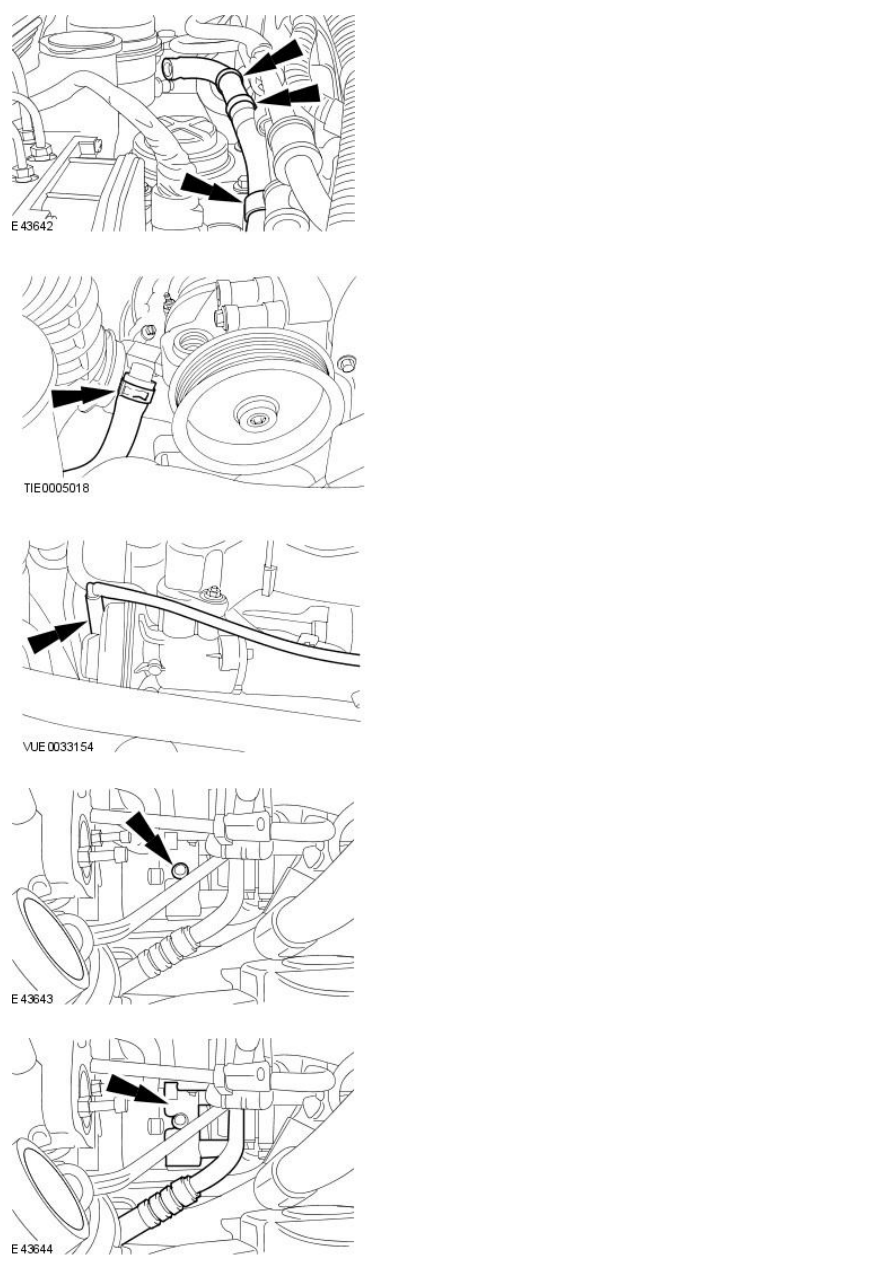

Disconnect the power assisted steering hose.

44. Detach the power assisted steering hose.

45. NOTE: Cap the exposed ports.

Disconnect the power assisted steering hose.

46. NOTE: Cap the exposed ports.

Disconnect the E.G.R valve vacuum pipe.

47. Loosen the air conditioning compressor line retaining bolt.

48. NOTE: Remove and discard the O-ring seals.

• NOTE: Cap the exposed ports.

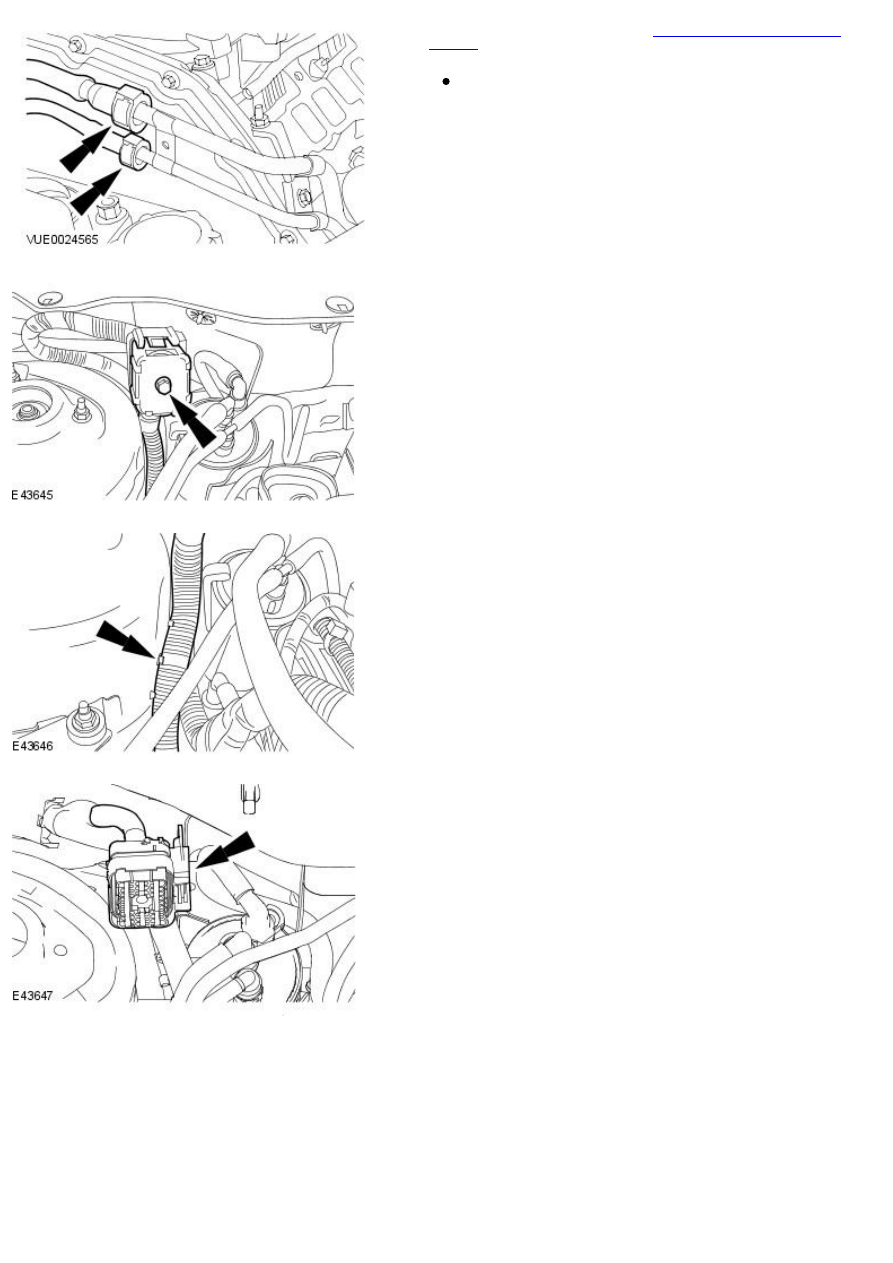

Disconnect the air conditioning compressor lines.

49. Disconnect the fuel lines.

For additional information, refer to:

Quick Release Coupling - Push

Connect

 (310-00 Fuel System - General Information, General

Procedures).

Install blanking plugs to the fuel pump fuel supply and fuel return
line male and female connectors.

50. Disconnect the engine wiring harness electrical connector.

51. Detach the engine wiring harness retaining clip.

52. Detach the engine wiring harness electrical connector.

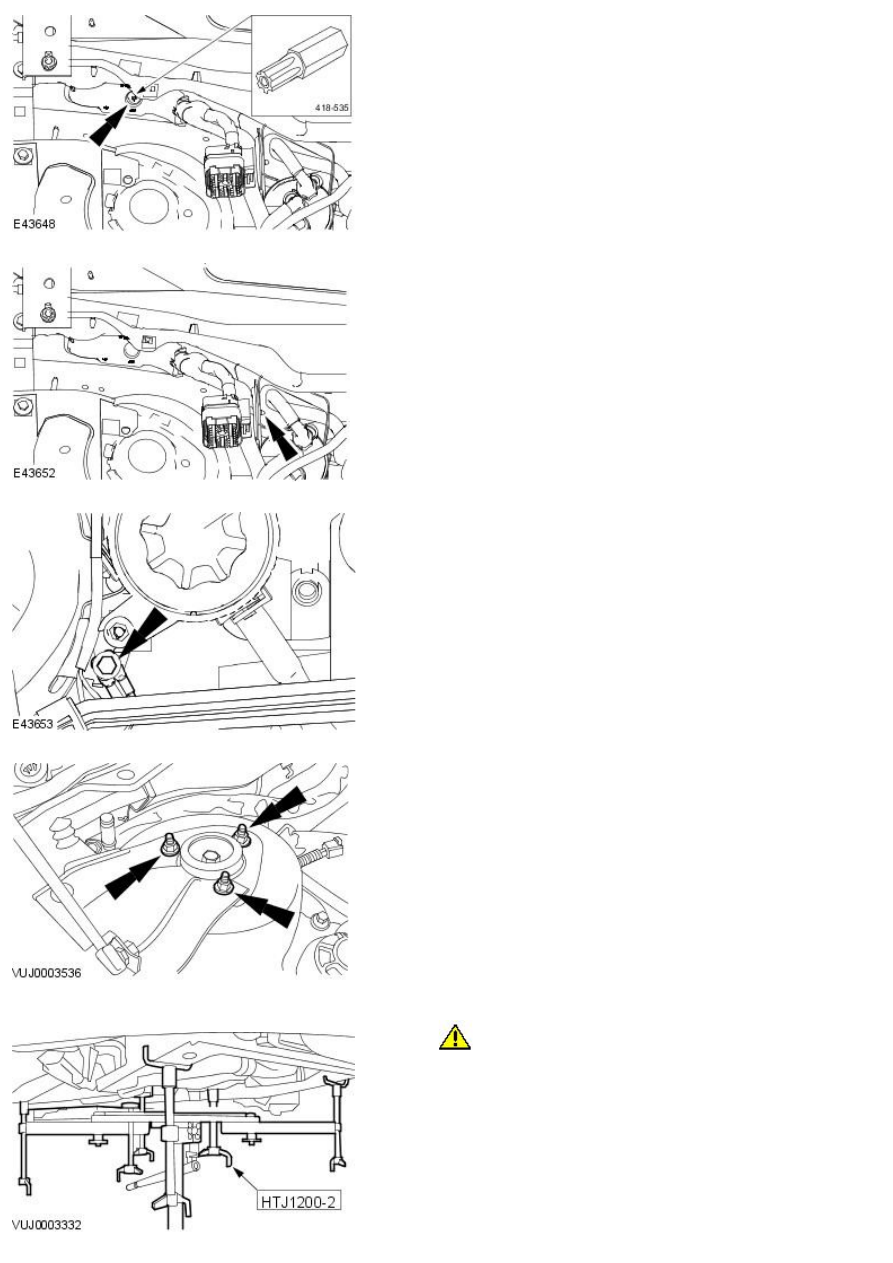

53. NOTE: Bolt remains captive in the engine control module (ECM)
electrical connector.

Using the special tool, disconnect the ECM harness electrical connector.

54. Detach the engine wiring harness retaining clip.

55. Detach the engine wiring harness earth lead.

56. NOTE: Right-hand shown, left-hand similar.

Detach the strut and spring assembly.

57. Raise the vehicle.

58.

CAUTION: Do not support the engine and transaxle assembly

directly on the oil pan.

Install the special tool.
