14. Detach the wiring harness from the retaining bracket.

15. Remove the evaporative emission canister purge valve retaining

bracket.

Vehicles with 2.0L engine

16. Remove the intake manifold.

For additional information, refer to:

Intake Manifold

 (303-01A Engine -

2.0L NA V6 - AJV6/2.5L NA V6 - AJV6/3.0L NA V6 - AJ27, In-vehicle
Repair).

All vehicles

17. Remove the A/C refrigerant line retaining clip.

18. NOTE: Install blanking plugs to the exposed ports.

Using the special tool, disconnect the A/C refrigerant line.

Remove and discard the O-ring seals.

19. Remove the A/C refrigerant line retaining clip.

20. NOTE: Install blanking plugs to the exposed ports.

Using the special tool, disconnect the A/C refrigerant line.

Remove and discard the O-ring seals.

All except vehicles with diesel engine

21. NOTE: The bolt remains captive in the engine control module (ECM)
electrical connector.

Using special tool 418-535, disconnect the ECM electrical connector.

Vehicles with diesel engine

22. NOTE: Install blanking plugs to the fuel pump fuel supply and return
line male and female connectors.

Disconnect the fuel pump fuel supply and return lines.
For additional information, refer to:

Quick Release Coupling - Push

Connect

 (310-00 Fuel System - General Information, General

Procedures).

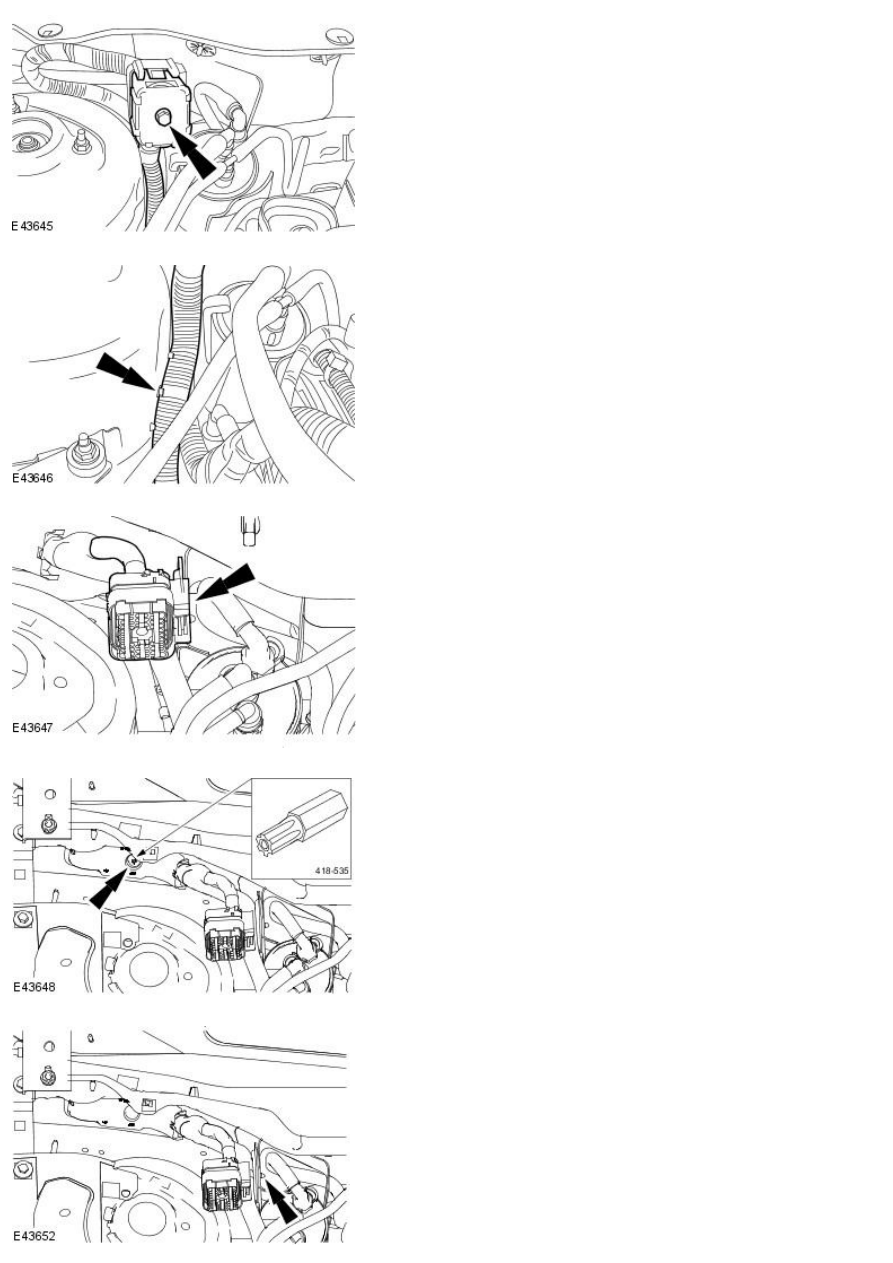

23. Disconnect the engine wiring harness electrical connector.

24. Detach the engine wiring harness retaining clip.

25. Detach the engine wiring harness electrical connector.

26. NOTE: The bolt remains captive in the ECM electrical connector.

Disconnect the ECM harness electrical connector.

27. Detach the engine wiring harness retaining clip.

All vehicles

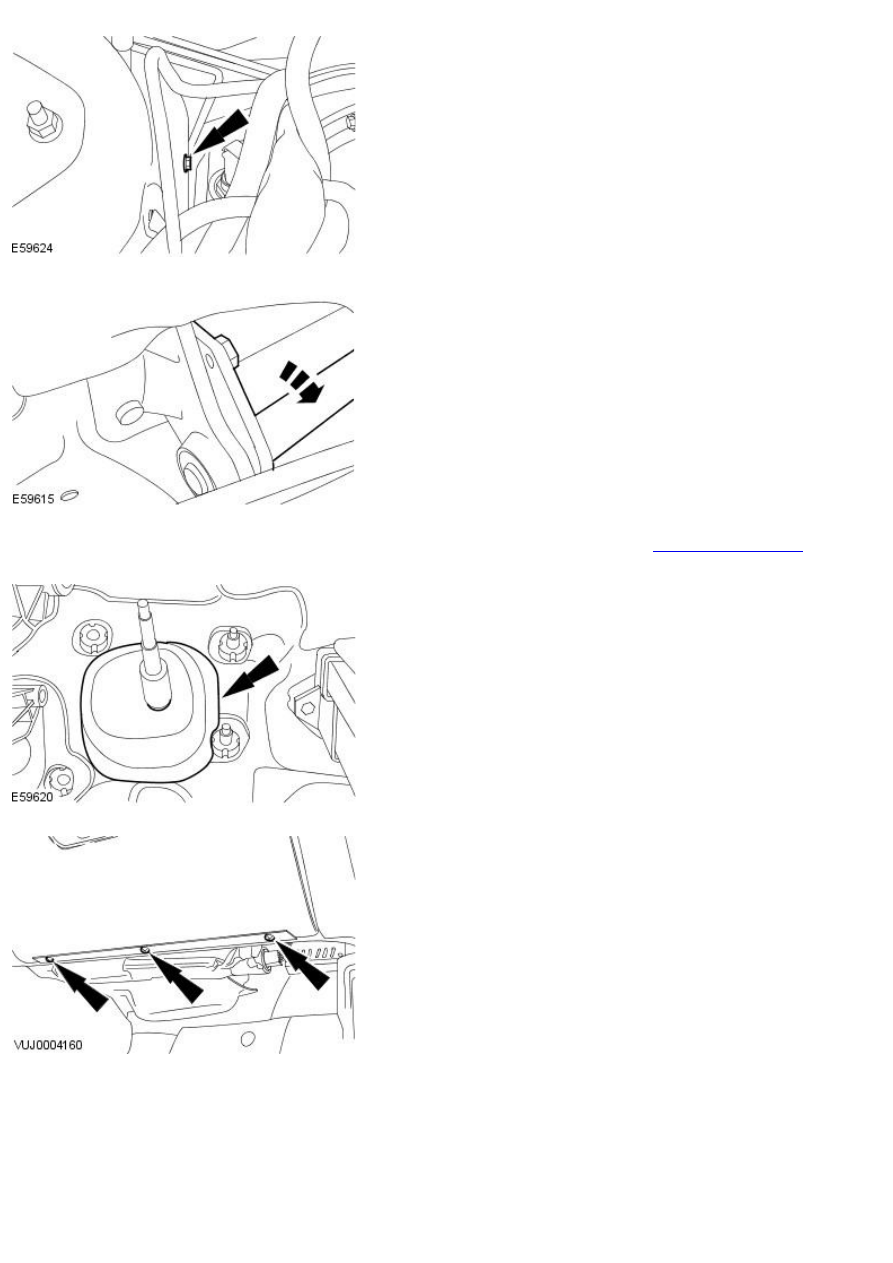

28. Remove the brake pedal cross-shaft support bracket retaining bolt.

29. Rotate the brake pedal cross-shaft clockwise.

30. Remove the brake pedal and bracket.

For additional information, refer to:

Brake Pedal and Bracket

 (206-06

Hydraulic Brake Actuation, Removal and Installation).

31. Remove the sound insulation.

32. Remove the glove compartment hinge retaining screws.
