Jaguar X-Type Sedan and Estate (Wagon). Manual - part 54

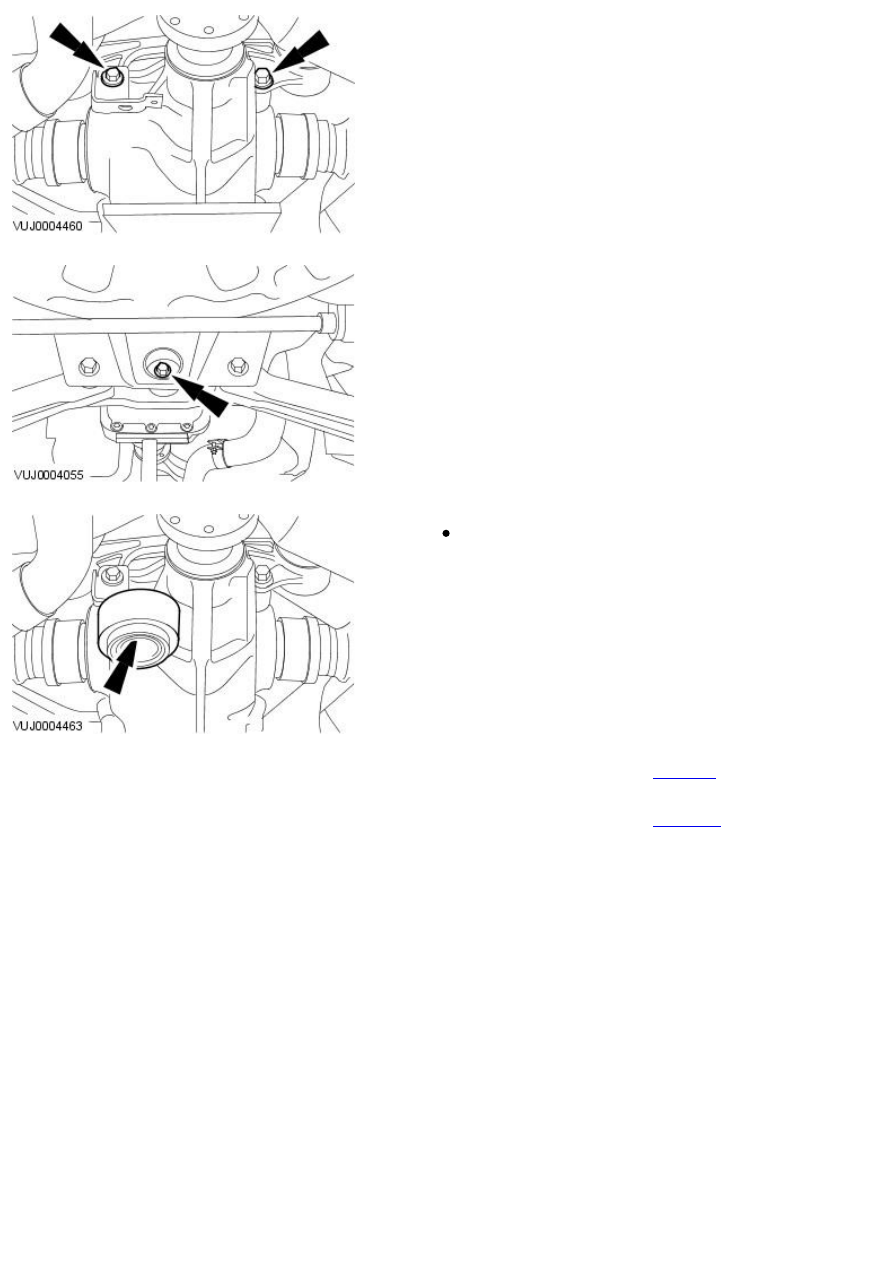

9. Tighten the axle assembly front retaining bolts to 90 Nm.

10. Tighten the axle assembly rear retaining bolt to 110 Nm and then

slowly tighten to 135 Nm.

11. Install the vibration damper.

Tighten to 48 Nm.

12. Install the driveshaft.

For additional information, refer to:

Driveshaft

 (205-01 Driveshaft,

Removal and Installation).

13. Install the rear brake pads.

For additional information, refer to:

Brake Pads

 (206-04 Rear Disc Brake,

Removal and Installation).

Published: 11-May-2011

Rear Drive Axle/Differential - Drive Pinion Seal

In-vehicle Repair

Special Tool(s)

Torque To Turn Rotary Tool

205-518

Wrench, Flange

205-053

Remover, Flange Plate

204-295

Remover, Flange Boss

204-266

Remover, Flange Shaft

204-268A

Installer, Oil Seal

204-264

Removal

1.

CAUTION: The following step must be carried out to make sure the

correct drive pinion flange retaining nut torque is achieved.

Remove the rear brake pads.
For additional information, refer to:

Brake Pads

 (206-04 Rear Disc Brake,

Removal and Installation).

2. Remove the driveshaft.

For additional information, refer to: Driveshaft (205-01, Removal and
Installation).

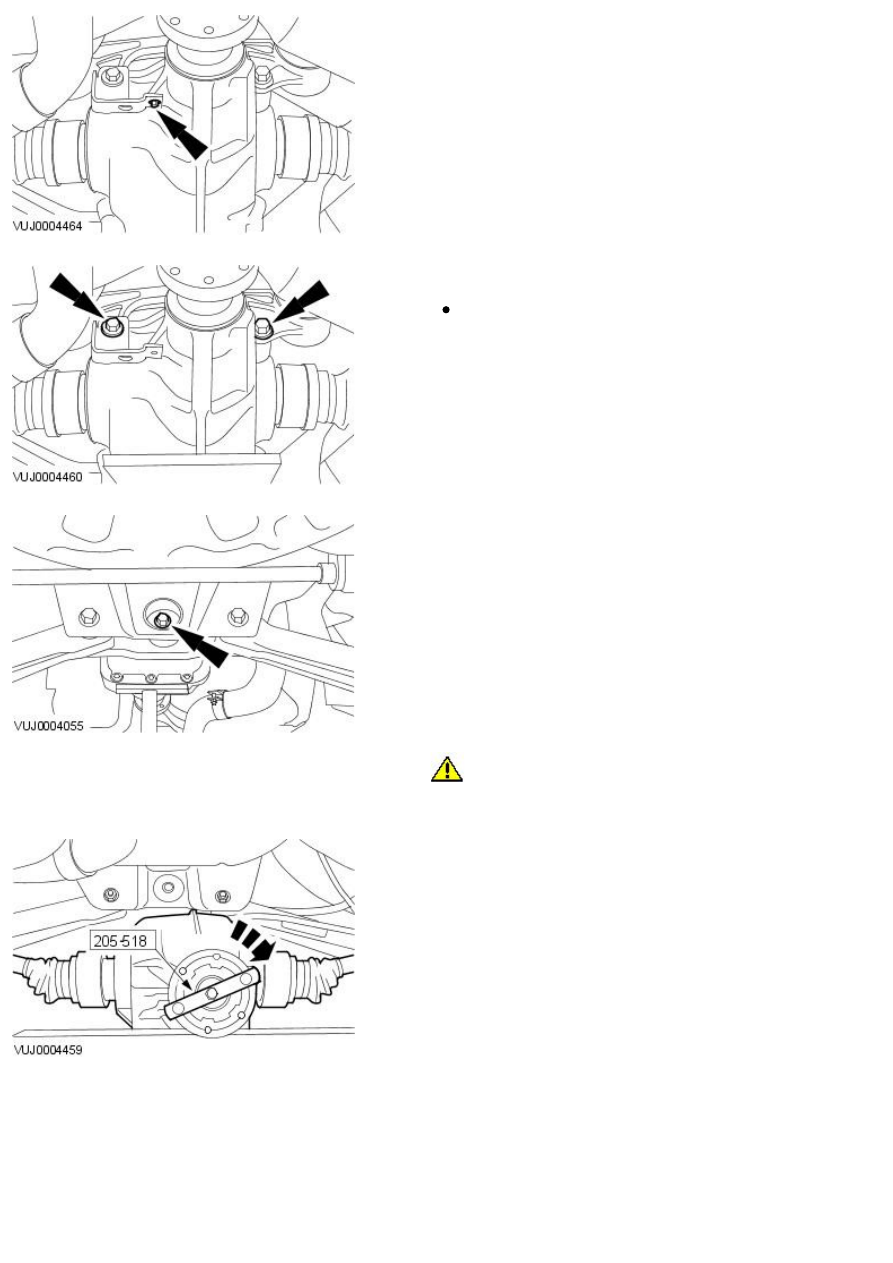

3. Remove the vibration damper.

4. Remove the vibration damper retaining bolt.

5. NOTE: Support the axle assembly.

Remove the axle front retaining bolts.

Remove the vibration damper bracket.

6. Remove the axle assembly rear retaining bolt.

7.

CAUTION: Make sure CV joints do not exceed 18 degrees from the

center line.

Lower the differential.

8. Install the special tool to the drive pinion flange.

9. Install a Nm (pound/inch) torque wrench on the special tool and record

the torque necessary to maintain rotation of the drive pinion gear
through several revolutions.

10. Using the special tool, install a breaker bar and remove and discard

the drive pinion flange retaining nut.

11. NOTE: Mark the pinion flange in relation to the drive pinion stem to
ensure correct alignment during installation.

Using the special tools, remove the drive pinion flange.

12. Using a suitable tool, remove and discard the drive pinion seal.

Installation

1. CAUTIONS:

 Installation without the correct tool can result in early seal failure.

 If the drive pinion seal becomes misaligned during installation ,

remove it and install a new one.

• NOTE: Lubricate the lips of the new drive pinion oil seal. Use a long life
grease or equivalent.

Using the special tool, install the drive pinion seal.

2.

CAUTION: Inspect the pinion flange seal journal for rust or

nicks/scratches prior to installing the pinion flange. Polish the seal journal
with a fine crocus cloth, if required.

Install the drive pinion flange.
