Water Pump - 4.2L, Vehicles With: Removal
1 .
Remove fuse 14 from the engine compartment fuse box prior to performing any under hood service in the area of the cooling fan.
2 . Drain the cooling system. For additional information, refer to
3 . Lower the vehicle.
4 . Remove the air cleaner outlet tube. <<303-12B>>
5 . Detach the supercharger belt.
Use a 1/2 inch square drive bar to rotate the supercharger belt tensioner.
Detach the supercharger belt.

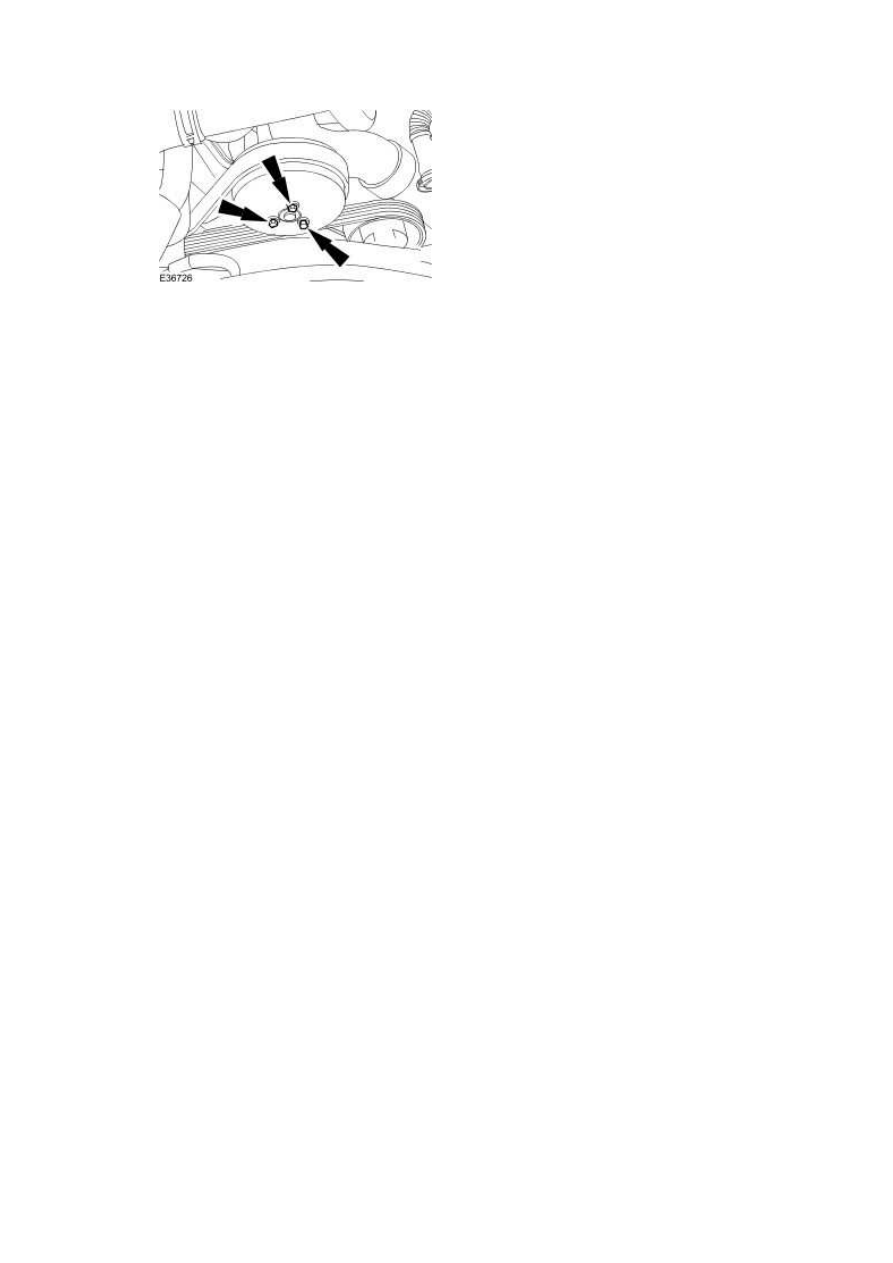

6 . Loosen the water pump pulley bolts. |
