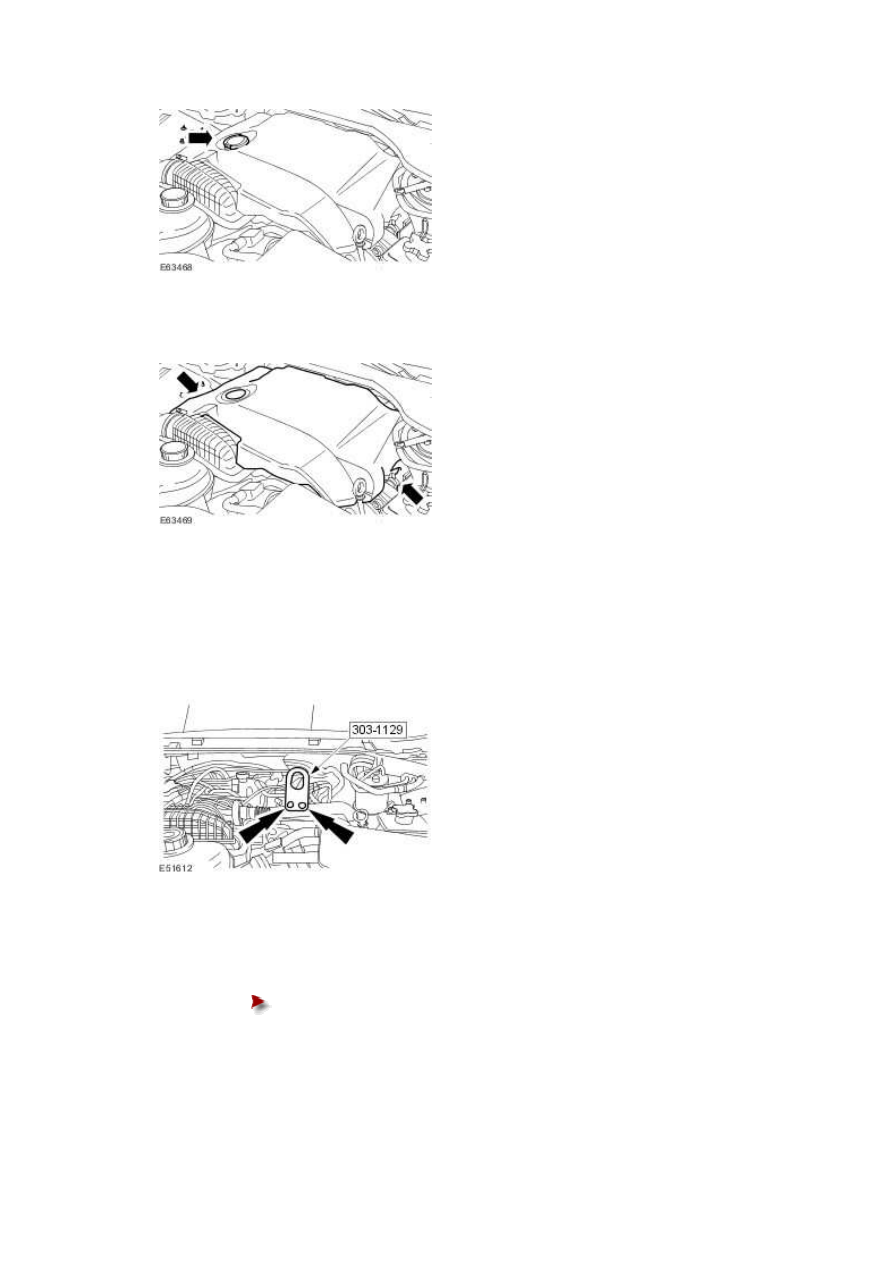

4 . Remove the engine cover.

5 . Install the engine oil filler cap to prevent foreign material entering the valve cover.

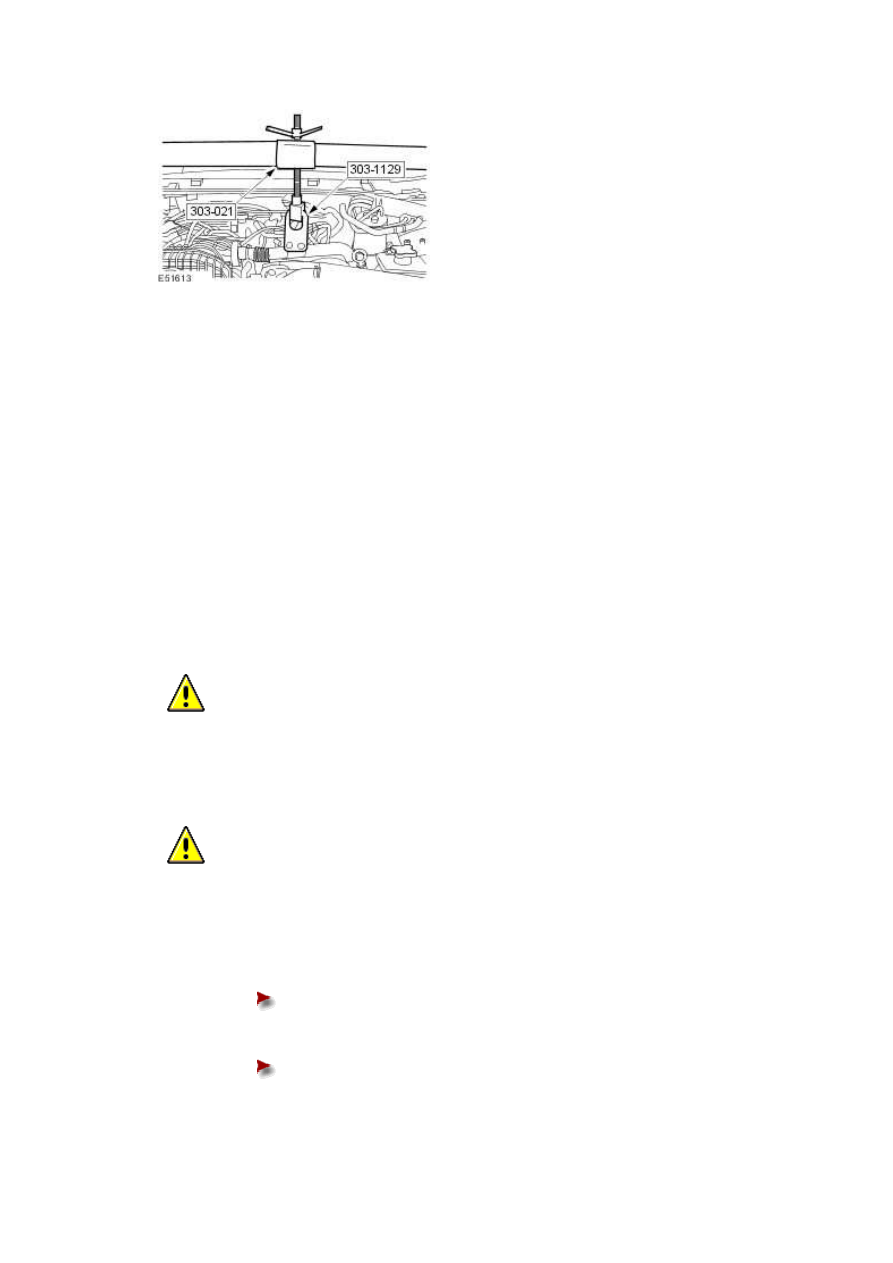

6 . Install the special tool.

Install the special tool.

Rotate the special tool adjustment bolt a suitable amount of turns to

support the engine.

8 . Remove the air deflector.

For additional information, refer to Air Deflector (76.11.41)

9 . Remove the diesel particulate filter.

For additional information, refer to Diesel Particulate Filter (DPF)

10 . Remove both catalytic converters.

For additional information, refer to Catalytic Converter - 2.7L V6 - TdV6 (17.50.05)

CAUTION: Under no circumstances must the flexible coupling (or its fixings) be

loosened or removed from the driveshaft. Failure to follow this instruction may result in

damage to the vehicle.

CAUTION: Make sure the front of the driveshaft does not put an excessive load on

the center bearing. Failure to follow this instruction may result in damage to the vehicle.

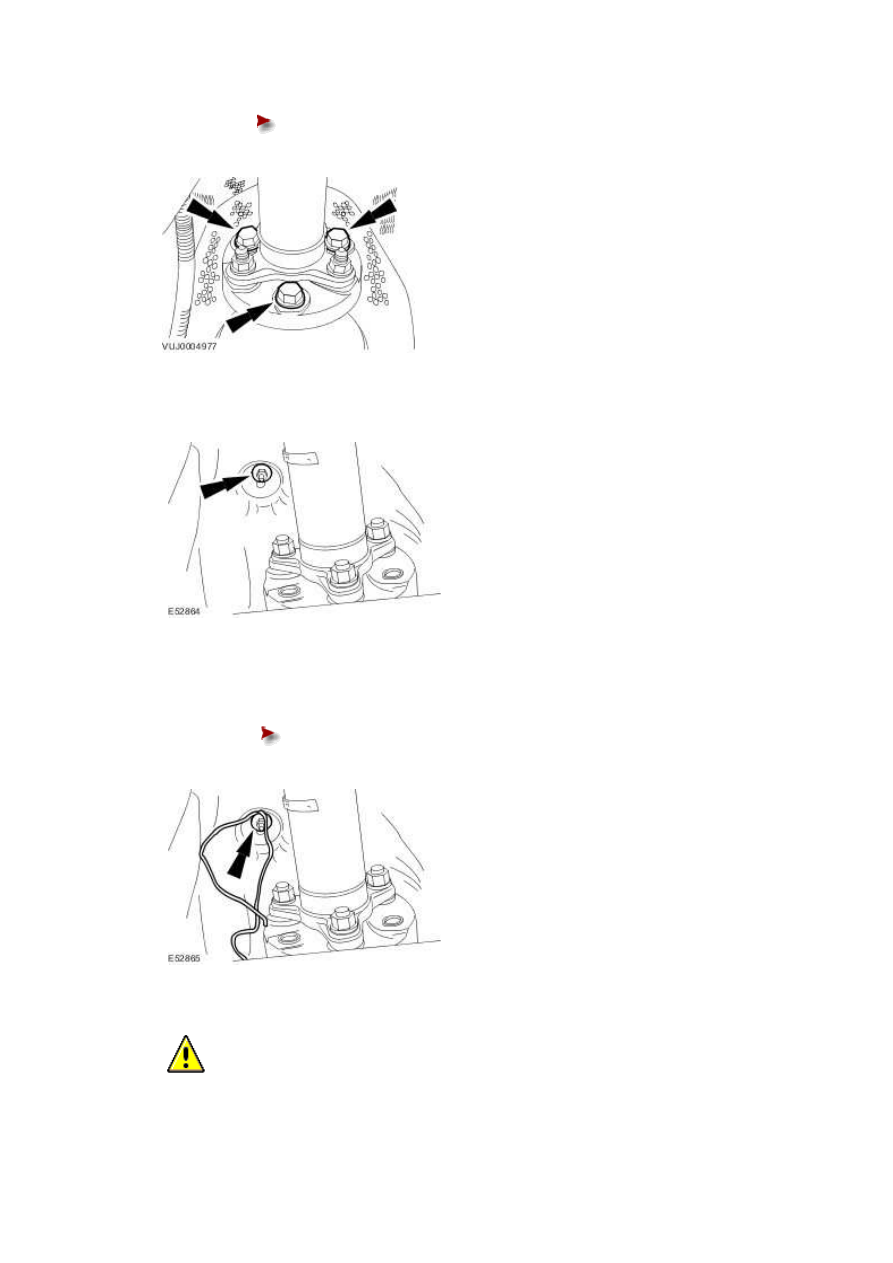

Detach the driveshaft from the automatic transmission flange.

Mark the position of the driveshaft in relation to the automatic

transmission flange.

Mark the position of each nut and bolt in relation to the automatic

transmission flexible joint.

www.

Detach the driveshaft from the automatic transmission flange.

12 . Loosen the retaining nut.

13 . Install suitable cord to the heat shield retaining nut stud.

Tighten the retaining nut.

CAUTION: Make sure the front of the driveshaft does not put an excessive load on

the center bearing. Failure to follow this instruction may result in damage to the vehicle.

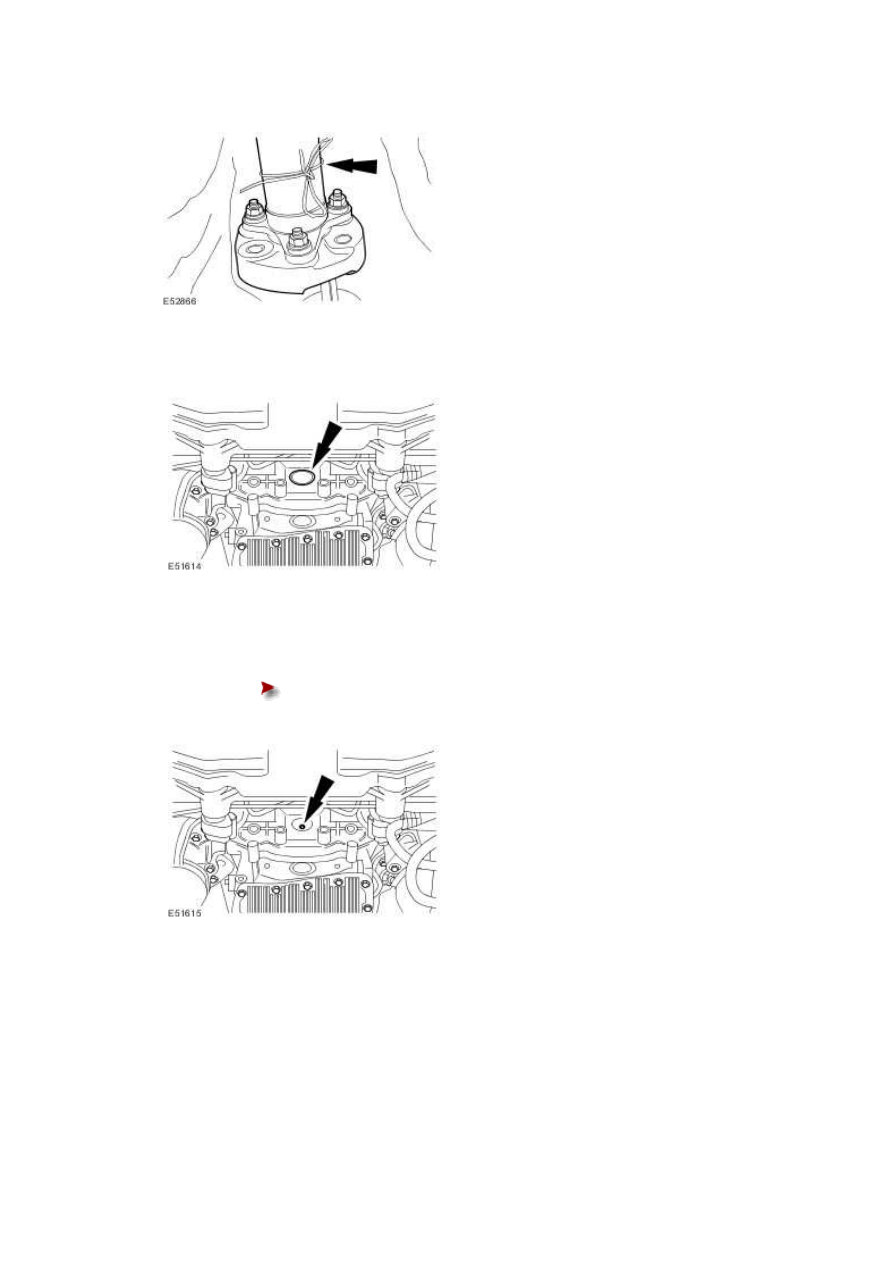

Reposition and support the driveshaft.

15 . Remove the rubber access cover.

16 . Remove the retaining bolts.

Rotate the torque converter to gain access to the remaining bolts.

17 . Release the automatic transmission fluid cooler tube retaining bracket.
