JAC S2 (Chassis). Service Manual

Overview

Overview

and / or other component damage, what’s more, the fastener cannot get the correct clamping force when
tightening, which will lead to improper seal and cause leakage. The firmware cannot properly tighten; it
will cause parts loosing or separating, and damage the engine severely.

Important note about steering wheel turning to the extreme position
△ Important Note: The duration of the steering wheel turning to the extreme position should not exceed 5s;
otherwise it may damage the steering motor.

II. Vehicle inspection

(I) Vehicle check items during operation

Tire, vehicle and position operation

Be alert when steering wheel or seat vibration occurs at normal highway speeds, which could

indicate a need to balance the wheels, in addition, if running deviation on the flat road may indicate the
need to adjust the tire pressure or wheel alignment.

Steering operation

Be alert when change steering operation, when the steering wheel turning is difficult or its free travel

is too large and abnormal sound during turning or parking, it need to be checked.

(II) Items to be checked at least once a month

Tires, wheels and pneumatic inspection

Check the tires for abnormal wear or damage and whether the wheel is damaged, check the tire

pressure before running, spare tire included, to maintain the recommended tire pressure label.

Oil leak check

If the vehicle parked a certain time, regularly check to see whether there is water r, engine oil, fuel or

other liquids on the ground under the vehicle. Dripping from air conditioning system after use is normal,
if fuel leak or smoke, find the cause and fault diagnosis should be carried out right away.

(III) Items to be checked at least twice a year

Brake master cylinder reservoir level

Check the fluid and keep a proper level, low level may indicate a brake pad or worn of brake lining,

in which case repair is needed, check the tank vent cover to ensure airway patency and with no dirt.

Clutch pedal free travel

Check the clutch pedal free travel and adjust if necessary. Refer to clutch pedal free travel adjustment.

Doors and windows sealant lubrication

Seal coated with silicon grease film with clean rags.

III Vehicle lifting

(I) Vehicle lifting

Refers to "Warnings and Important Notes" in the "warning about vehicle lifting." To avoid personal injury,

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Overview

Overview

when use jack to support the vehicle or any work under the vehicle, be sure to use the jack stand.
Vehicle lifting point
△ Note Rear lifting machine block can't meet the threshold plate to the side frame rails or floor.
Put rear lifting machine block in the following locations: under the connection between the rear frame
rails and side frame rails.
△ Note Front lifting machine block can't meet the threshold plate to the side frame rails or floor. Put
front lifting machine block in the following locations: under the connection between the front frame rails
and side frame rails.

IV Maintenance

(I) Standard

Main liquid parameters

Name

Brand

Capacity

unleaded gasoline

unleaded gasoline at least 93
#

42L

1.3L engine coolant

50% ethylene glycol

5.5L

1.5L engine coolant

50% ethylene glycol

Transmission lubricating oil

SAE.75W-90

2.0L

Engine Oil

SAE10W-30 SJ or above

Air conditioning refrigerant

PAG56

0.12L

Brake fluid

DOT4

650ml±50ml

Air condition coolant

R134a

520g±20g

Washing liquid

NC310-c

Power indicators

Project

Unit

1.5 5MT

1.5 CVT

Continuous shift start acceleration time (0-100km / h) S

≤ 15

≤ 14

Direct gear acceleration (80-120Km / h)

≤ 26

≤ 11

Maximum speed

Km/h

≥ 180

≥ 170

Maximum grade ability

≥ 30

Fuel economy indicators

Item

1.5 5MT

1.5 CVT

Integrated/km）

≤ 6.1

≤ 6.8

90km/h constant speed （L/km）

≤ 4.9

≤ 5.5

Transmission gear ratio

Operational method

Remote operation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Overview

Overview

Rated input torque

200 N·

Model

MF70B22

Ratio

Gear 1

3.769

Gear 2

2.053

Gear 3

1.393

Gear 4

1.031

Gear 5

0.778

Reverse gear

3.25

Final ratio

4.056

Front and rear wheel maintenance parameters and location parameters

Item

Parameters

Tire pressure (cold)

220±10KPa

Tire size (1.5 5MT models)

205/55 R16 94V

Tire size (1.5 5CVT models)

205/55 R16 94V

Wheel run out

Radial

steel wheels

轮

1.0mm

aluminum wheels

轮

0.3mm

Axial

steel wheels

轮

1.0mm

aluminum wheels

轮

0.3mm

Item

Parameters

location parameters

Front tire

front wheel toe Angle

3.75′±6.75′

front-wheel camber

24′±30′

kingpin inclination angle

10.5°±1°

kingpin caster angle

3.65°±0.75°'

Rear tire

The rear toe Angle

24′±24′

The rear wheel unilateral toe
Angle

12′±12′

The rear wheel camber
Angle

-56′±30 ＇

(II) Regular maintenance instructions

Vehicle normal maintenance schedule
Maintenance item is given for the vehicle assumed for the following purposes:
To transport restrictions passengers and cargo indicated by the tire label located in the edge of the driver's
door. Travel within the statutory limit and on the appropriate operating road.

Planned maintenance item instructions
Detailed maintenance items listed in the maintenance schedule as below:  in the implementation of the
following maintenance item, be sure to replace all the parts and complete all necessary repairs before
driving, and be sure to use the proper fluid and lubricants.
Tire and wheel inspection and transposition
Check the tires for abnormal wear or damage, if to make the tire wear evenly and extend tire life, the tire
transposition is needed. If abnormal or premature wear, check the wheel alignment situation, and then

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Overview

Overview

V. Maintenance Information System

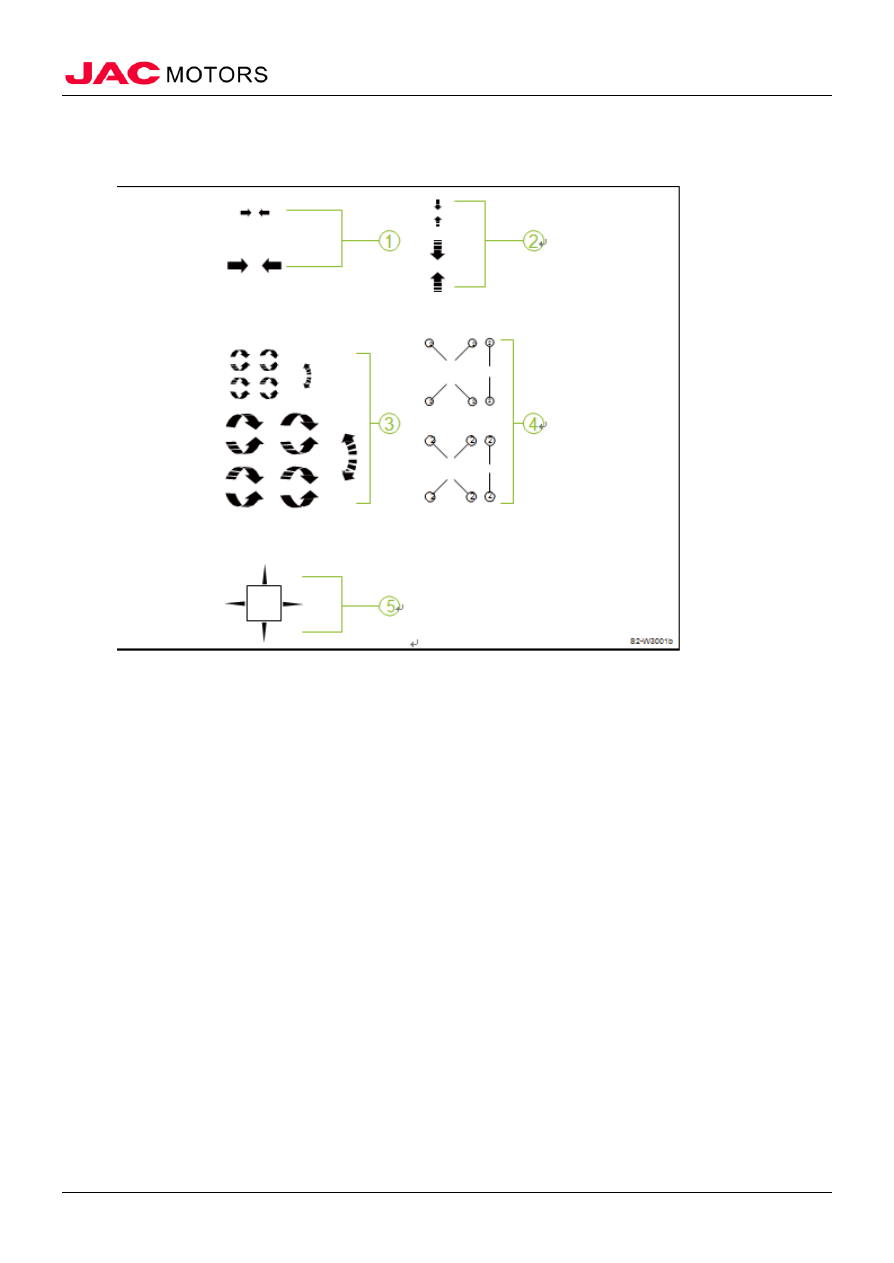

(I) Description of arrow and symbol used in the manual

1. Indicator arrow
2. Move direction of the arrow
3. Turn direction of the arrow
4. Part number label
5. Part enlarged

VI Health and safety

(I) Description

Vehicle maintenance, repair and many related operations will affect personal safety or health problems,
this section some of the risks associated with material and equipment operation listed, and also safety
guidelines to avoid such hazards.
This section does not include all matters related to health and safety, so all operations and procedures to
deal with the material should be implemented in the precondition of safety and health. Before using any
product, product manual provided by the manufacturer or supplier shall be consulted.

(II) Acid and base

Such as corrosive sodium carbonate and sulfuric acid.
Use of batteries and other cleaning materials are irritating or aggressive to eyes, skin, nose and
throat, which will also cause burns to human body and damage to ordinary protective clothing.
Avoid splashing in the eyes, skin and clothing as well as wear suitable protective clothing, gloves
and goggles to avoid inhalation spray. Be sure to prepare nearby wash devices such as: eye wash
bottle, lotus and soap for convenience and timely help when splash events occur. Eye danger signs

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Overview

Overview

should be marked prominently.

(III) Brake fluid

There will be a slight irritation if splashed on the skin and eyes, try to avoid direct contact with the skin
and eyes, because of its very low pressure, inhalation of brake fluid vapor at room temperature is not high
risk.

(IV) Chemical materials

The using, storing and handling of chemical materials such as solvents, sealants, adhesives, coatings, resin
foam, battery acid, engine coolant, brake fluid, fuel, lubricating oil and grease should be noted. They may
be toxic, harmful, corrosive, irritant or highly flammable, and there odors and dust is a high risk.
The impact of long-term excessive exposure to chemical environment could be immediate or chronic,
transitory or eternal, cumulative, surface, life-threatening, or may affect life expectancy.

Chemical materials - operation should be performed
• Carefully read and follow the warnings and cautions on raw container, and any accompanying leaflets,
posters or other instructions for use, health and safety information table of the raw material, all of which
can obtain from the manufacturer.
• If stained with chemicals, should be removed from the skin and clothing immediately, if immersed
serious, clothing should be replaced immediately and thorough cleaned.
• Strictly compliance with work step instructions, and wear protective clothing to avoid direct contact with
skin and eyes.
• When in the course of processing chemicals, wash first before break, eating, smoking, or using toilet
facilities.
• Keep the work area clean, tidy and with non-chemical material spill.
Chemical materials - actions should be avoided
• Do not freely mix chemicals unless with the manufacturer's instructions; some chemicals can form other
toxic or harmful ones, when mixing, it can release other toxic and harmful gases and may lead to other
explosions and other accidents.
• Do not spray chemicals in a closed environment.
•Do not heat chemicals unless with the manufacturer's instructions; because some chemicals are highly
flammable, and some may emit poisonous gases.
• Do not let chemicals container remain open, its emitted gases may accumulate to toxic, harmful or
explosion degree. Some gas is heavier than air and may accumulate in a confined space.
• Do not put chemical materials into an unmarked container.
• Do not use chemical materials for hands and clothing cleaning. Chemicals, solvents and fuels in
particular, will make the skin becomes dry, and may cause allergies leads to skin inflammation or through
the skin directly absorbing toxic and hazardous substances to affect health.
• Do not store other chemical materials freely with an empty container unless the container has been
cleaned with supervision
• Do not arbitrarily olfactory or smell chemicals. Exposed to high concentrations of gas shortly may still
poison or get injured.

(V) Dust

Powder, dust and dirt may be irritating, noxious or poisonous, inhaling powdered chemical

materials as well as due to dry friction operation raised dust should be avoided, if ventilation is poor,
a respiratory mask protective gear should be wearied to prevent inhalation of dust.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Overview

Overview

Dust combustible material may cause a risk of explosion, explosion item and fire should be
avoided.

(VI) Shock

Use of electrical equipment incompliance to description, or misuse of equipment in good condition,

may cause electric shock. Be sure to regular maintenance and test the electrical equipment within the
specified time. Faulty equipment shall be marked, it is best to move outside of the work area. Worn,
kinks, cut, cracked or otherwise damages to wires, cables, plugs and sockets are prohibited and do not
allow electrical equipment and wiring in contact with water. Ensure to protect electrical equipment with
proper protection fuse. Do not misuse electrical equipment or use any equipment with hidden faults, if so
its result may affect personal safety. Be sure moveable electrical equipment cables will not be nipped and
damaged.

Implement basic first aid training must be carried on a dedicated appliance operator.

In the event of a shock:

• Before contact with the victim, first turn off the power
• If cannot turn off the power, then use a dry insulator material to remove the power off the victim.
• If received specialized first aid training, preform first aid immediately.
• Request medical assistance.
(VII) Exhaust

Exhaust gas contains toxic and hazardous chemicals, such as carbon oxides, nitrogen oxides,
acetaldehyde, lead and aromatic hydrocarbon substances. Only in the case of appropriate exhaust
ventilation equipment or common ventilation equipment with open space, engine can operate.
(VIII) Fibrous isolation

Fibers are used to isolate noise and sound. Its surface nature with sharp edges can cause skin irritation.
During operation, the procedures should comply with instructions and wear gloves to avoid skin contact
with excessive fiber.
(IX) Fire

Many materials related to vehicle maintenance are extremely flammable. After burning, some

materials will produce toxic and harmful gases. In the storage and handling of flammable materials or
solvents, do follow fire safety, especially near electrical equipment or ongoing welding operation areas.
Before using electrical and welding equipment, first make sure there is no fire hazard. When using
welding or heating equipment, prepare a proper fire extinguisher around the work area.
(X) Emergency

Not only to comply with the law, in the workplace it is best to have personnel who has received

professional training in first aid. If spill to the eyes, rinse with water at least 10min. If the skin is
contaminated, use soap and water to clean the contaminated area. If it is cold injury, it should be
immersed in ice water or cold water.

Personnel who inhale toxic gases should be immediately transferred to fresh air if adverse

phenomenon persists, should seek medical attention immediately or taken to hospital. If accidentally
swallowed the liquid should inform physicians label information marked on the container. Unless there is
instruction on the label, otherwise do not blindly lead to vomit.
(XI) Foam – Polyurethane

Foam is used for curing the seat cushion and decoration. Comply with manufacturer's instructions.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Overview

Overview

Component does not produce chemical yet may have irritant effects and may be harmful to the skin and
eyes, when operate, wear gloves and goggles. Personnel, who has chronic respiratory diseases, asthma,
bronchial problems, or suffering from a topic, should not handle or near the uncured materials, its spare
parts, vapor or spray may cause direct irritation and allergic reactions and may be toxic and harmful. Do
not breathe vapor or spray, these materials must be used in a well-ventilated, and respiratory protection
situation. The mask cannot be removed immediately after spraying, wait until the vapor and spray
dissipated completely.

Burn uncured foam components with the aged ones will produce toxic and harmful gases. During

the foam operation, prohibit smoking, use of fire and electrical equipment unless vapor, spray has been
completely cleared. All foam or special foam thermal cutting, should be operated in a well-ventilated
environment.

(XII) Fuel

Minimize direct skin contact with fuel, if exposed, wash the exposed skin immediately with soap and

clean water.

Gasoline Easily combustible material - comply with the smoking ban. If swallowed can cause

mouth and throat irritation, stomach absorption can lead to general weakness and confusion, a small
amount of gasoline will affect the lives of children, therefore, the effect to lungs is a very dangerous thing.

Gasoline can cause dry skin; prolonged or frequent exposure will cause skin allergies inflammation,

if entering eyes will cause pain. Motor gasoline may contain large amounts of benzene, can cause
poisoning after inhaling, so the concentration of gasoline vapors must be kept low. High concentrations of
gasoline vapor may cause physical discomfort to eye, nose and throat irritation, nausea, headache,
depression and drunken, and lead to rapid loss of consciousness.

When gasoline is processed, maintain good ventilation, when operating in confined spaces spy

especial attention to avoid the risk of inhalation of gasoline vapors due to spills.

When clean and maintain store gasoline equipment, pay special attention. Gasoline cannot be used as a
cleaning agent, do not use mouth to suck it.
(XIII) Gas cylinders

Gases like oxygen, acetylene, argon and propane, usually stores in the 13.8Mp (2001psi) pressure

gas cylinder, be particularly careful in the process of dealing with these cylinders, avoid mechanical
property damage to cylinder or valve. Gas filled in the cylinders should be given a clear and appropriate
label.

Cylinders should be stored in a well-ventilated place, and avoid exposure to ice or sunlight

environment. Fuel gases, such as acetylene and propane should not be stored together with the oxygen
cylinders.

Pay special attention to prevent gas cylinders and pipeline leaks, and avoid sources of ignition.

Only trained personnel can be conducted with a gas cylinder-related work.
(XIV) Common workshop tools and equipment

It is very important to always keep all of the tools and equipment in good working order and proper

operation. Remember not to leave any tools or equipment used contrary to the purpose as its design
features. Do not make equipment like cranes, jacks, axles and chassis brace or sling load in excess of its
maximum load limit. Damage caused by overload may not necessarily immediately apparent, but may
cause severe accident when use the next time. Do not use damaged or poor working conditions tools or
equipment, especially some high-speed devices such as: wheel. Damaged wheel will be broken and crack
without warning and cause serious injury.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Overview

Overview

When using the wheel, chisel or blasting equipment, wear appropriate eye protection equipment. When
using the sandblasting equipment to handle asbestos-containing materials or using a spray device to do
business, wear appropriate breathing mask. Ventilation equipment to control the dust, spray and dust
content in the environment is needed.
(XV) Lubricant and Grease

Avoid prolonged repeated contact with mineral oil, all lubricants and grease, all of which are irritated

to the eyes and skin.

Health Protection Security Code

• Avoid long and repeated contact with engine oil, in particular with the used ones.

• Wear protective clothing, including impervious gloves.

• Do not put engine oil stained cloth into pocket.

• Avoid engine oil to contaminate clothing, especially underwear.

• Do not dress in clothing and shoes contaminated by engine oil. Overalls must be cleaned regularly and
kept clean.

• Open wounds should be able to receive timely emergency treatment.

• At work, apply cream to the skin to avoid direct skin contact with engine oil.

• Use soap and water to clean, remove all of the engine oil. Apply protective agent containing lanolin
will help replace the natural oils removed on the skin.

• If the skin lesions occur, seek medical attention and medical treatment immediately.

Remove the residual grease before working on the assembly if possible.

• If there may be direct contact with eyes, wear goggles, like chemical goggles or face shield; what’s
more, eye wash equipment should be equipped.

Environmental precautions

Used waste engine oil and oil filter should be recycled through an authorized or licensed waste

disposal business, or waste engine oil recyclers. If in doubt, contact the local authorities of workplace-
related departments to deal.

Discard the used engine oil directly into the ground, sewer or drainage, or pour into water pipe is

illegal.

(XVI) Noise

During certain operations, high-decibel noise will be produced which may cause hearing damage. In

this case, wear proper hearing protection devices.

VII Fastener specifications

(I) Fastener specifications

JAC engineering standards have been adopted part of ISO defined standard metric fasteners size,

which aimed at reducing the number of fastener size, while maintaining optimal quality of each screw
thread size.

(II) Main fastener tightening torque table

No Item

Torque（N·m）

Remark

1 clutch pedal fixing bolt

20~28

2 clutch pedal fixing nut

20~28

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Overview

Overview

3 pipe mounting bracket

20~28

4 exhaust bolts

8~12

5 shaft self-locking nuts

240~260

6 lower arm ball joint connection nut and knuckle

100~120

7 damper assembly connected to knuckle nut

100~120

8 speed sensors

10~15

9 front horizon bar mounting bracket and the sub-frame

mounting bolts

60~72

10 front shock absorber and body mounting nuts

60~72

11 front shock absorber self-locking nut

50~70

12 bolt connected with front shock absorber and knuckle

100~120

13 lower arm ball pin and knuckle connecting bolt

60~72

14 lower arm pin and lower arm connecting nut

60~70

15 lower arm front liner and sub frame connecting bolts

130~150

16 lower arm rear liner and sub frame connecting bolts

130~150

17 engine rear suspension and front sub frame connecting bolts 130~150

18 front sub frame front fixing nut

110~130

19 front sub frame rear fixing nut

60~72

20 drive shaft

and front hub assembly self-locking nut

240~260

21 rear shock absorber and body mounting bolts

30~45

22 Rear shock absorber and rear torsion beam connecting bolts 60~72

23 Bolt connect to torsion beam and rear hub

60~72

24 rear twist beam and body mounting bolts

130~150

25 wheel nut

90~110

26 steering tie rod nut

45~55

27 spare tire fixing stud

25~35

28 front brake caliper and knuckle connecting bolt

75~85

29 brake and rear hub connecting bolt

65~75

30 rear twist beam rear brake caliper bolts

65~85

31 brake caliper positioning pins

35~45

32 brake disc and hub fixing screw

10~15

33 front and rear brake caliper bleed screw

7~13

34 brake pedal bracket bolt

20~25

35 brake pedal fixing nut

20~25

36 brake hose and brake caliper bolts

25~30

37 brake hardware fittings

16~18

38 parking brake control lever fixing bolt

20~25

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Overview

Overview

39 fixing screw 39 parking brake switch

6~8

40 parking brake drawing mounting bracket nuts and bolts

7~11

41 speed sensor fixing bolt

8~10

42 brake hardware fittings nut

16~18

43 ABS controller and body assembly bolts

20~25

44 steering wheel retaining nut

42~52

45 steering column mounting nuts

20~25

46 steering column mounting bolts

20~30

47 controller mounting bracket bolts

8~10

48 steering column assembly and steering shaft assembly connecting

bolts

30~35

49 Steering shaft assembly and mechanical steering bolts

30~35

50 mechanical main steering gear mounting bolts

95~105

51 mechanical auxiliary steering gear mounting bolts

95~105

52 front tie rod bundle adjustment nut

45~55

53 Steering outer ball head slotted nut

40~50

VIII Noise, vibration and abnormal sound

(I) Diagnostic information and procedures

Wind noise / air sound
△ WARNING Refers to "Warnings and Precautions" in the "warning about the assistant driver."
△ Note when the technician is repairing the fault location, the vehicle should drive by assistant,
otherwise, may cause injury.

In order to accurately confirm the location of wind noise, test drive should be in the car. In general,

the presence of wind noise has major leaks and minor leaks, if not repair all leaks in the repair process, it
can only reduce wind noise but not completely eliminate wind noise. Test drive service personnel should
take the following tools to help diagnose the specific location of wind noise:
• Stethoscope
• Masking tape
• Caulking article
• Marker
• Screwdriver road test in accordance with the following procedures:
• Select a line, which has straight direction of east, south, west, north four different streets.
• Select fewer or smaller traffic noise streets to avoid affection.
• In the speed that the customer thinks is most obvious noise or emit noise to test, exceeding legal limits
of speed is strictly prohibited.
The following wind noise is the external wind noise:
• After lowering the window glass of the vehicle while driving, wind noise can be heard immediately.
• When post tape on various decorative seal and gap, wind noise immediately disappear.

The internal wind noise is caused by air escape from the car, repairing should take the following

methods:
• When determining the leak position, put tape on the door pillar relief valve to form the pressure and

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Overview

Overview

enhance wind noise.
• Use a stethoscope to confirm leak location.
• Use masking tape to temporary repair leak site.
• Continue road test to confirm whether totally eliminated wind noise or there is other leak site.
• Make sure that all the leak test found by road test, return to the repair shop, repair permanently with a
professional sound positioning methods and sealing materials.

Vibration

Most high-speed vibrations are caused by the dynamic balance of the wheel lost, if there are vibrations

after the dynamic equilibrium, refers to the following reasons:
• tire round failure
• rim round loss
• Tire has hardness deviation

Measure free run out of tire and wheel, if cannot detect all causes of vibration, the above-mentioned

three reasons called load run out, replace the original tire and wheel assembly with known good tire and
wheel assembly to repair the fault vehicle.

Vibration occurs in speed lower than 64km / h usually caused by beating. Vibration occurs in speed

higher than 64km / h usually caused by beating and imbalance.

Correct uneven tire

There are two ways to correct tires balanced but still have vibration. One method is to use automatic

machine, mount the tire to the machine and rub a small amount of rubber from the tire tread around the
high point on both sides. This method to correct the tire is usually permanent. If comply with
specifications when operate, will not have a significant impact on the appearance and tread life of the tire.
Use with edge-type tire repair tools for correction is not recommended, since this would shorten the life of
the tire, and cannot solve the problem fundamentally.

Another method is to disassemble the tire, turn the rim upside down by 180 ° which only used when

vibration of the tire and wheel assembly is confirmation of the diagnosis because this method may cause a
good wheel assembly has vibration intact.

Abnormal sound

If at high engine speeds the car creaks, check whether the underbody heats shield.

• Lift the vehicle and perform a visual inspection
• Bent the insulation panels slightly to make a gap with the bottom of the body.
Vehicle front end squeak when the weather is cold
Check front balancing pole isolation pouches
- Road test the vehicle when it’s cold and passing from the road potholes to reach the maximum stroke of
the front suspension.
- Removing the tape from the isolated pouches on the front balancing pole, and reinstall the isolation
pouches on tape.

Vehicle issued abnormal sound when bumping
Check the baggage compartment if the spare tire is properly fixed
- Open the luggage compartment; check the spare tire and vehicle tools.
- Reseat spare tire and vehicle tools.
- Road test the vehicle to inspect wither abnormal noise is eliminated.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Overview

Overview

Rear part of the vehicle issued glass percussion sound when bumping.
Check whether the rear door latch improperly adjusted
- Road test vehicle to check the situation.
- Loosen the lock nut and adjust the latch.
Door creak

Check whether the door interior panel harness connector creak.

- Tap the interior panels and carefully observe whether heard creaking
- Remove the door interior panels and wrap wiring harness connector with foam pad according
to actual situation of the vehicle

Door squeak when using

Check whether the door hinge lack of lubrication.

- Operating the door back and forth and listen carefully to see whether the door squeaks.
- Use loose rust door hinge and apply grease lubrication.

Squeak when shifting manual gearbox (cold and appear at the cold state)

Check the manual shift manual gearbox assembly under the dashboard fender starter jacket

- Switch gear shift lever in the room and see if there is squeak.
- Remove the floor console and replace the jacket under the shift lever or coat it with talcum.

(II) Maintenance guide

Wind noise / air sound external

Wind noise Wind noise leak repair methods are very close to water leakage. The actual repair
procedure depends on the type of repair seal.

Vibration

Wheels and tires under balancing

Use an electric balancing machine to dynamically balance car wheel. Balancing machines are

easy to use both for static equilibrium and dynamic equilibrium. Different from the car balancing
machines the under car balancing machine cannot correct the imbalance of the brake disc.
However, the accuracy of the under balancing overcome this drawback, fix the wheel to the
balancing machine, make a cone through the center hole of the back, without passing through the
wheel nut holes.

Wheels and tires car balancing

Car balancing can correct the brake disc vibration caused by imbalance.

△ Warning Control the lower supporting arm in the normal horizontal position to avoid drive axle
damage. When the wheels sink reaches full stroke, do not operate the vehicle in gear.
• During the car balancing operation, removing the balancing pad installed during the dynamic balancing
is prohibited.
• If doing balancing there is the need to increase the weights over 25g, divide the balancing pad into two
blocks, and mount to the inner and outer rim.
• Using the engine to turn the driven wheel and wheel assembly.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Overview

Overview

Wheel and tire position fitting

Wheels and tires are fitted at the factory, and match thicker parts of the tire radial direction (also

referred to as the high point) to the minimum radius of the wheel (also called low point). When the tire
just finished, tire initial high point marked with a red paint mark or outer wall is attached to label.
Wheel low position is the valve core. Before removing the tire from the wheel, mark first in the tire
valve core, to ensure that it can be installed into its original position.

Abnormal sound
Abnormal sound maintenance

Abnormal noise mainly comes from the vehicle relative motion which should not exist between the

parts. Repair abnormal sound in three ways:
• Secure fastening parts, to make sure there is no relative movement of the vehicle in the process of
moving.
• Separate components, so that they are not in contact at work.
• Isolate parts, so that there is no abnormal noise components generated when moving. Uniform low
friction surface can be used to eliminate viscosity between the sliding parts

IX. Vehicle identification

(I) Vehicle identification number

1. Vehicle identification number

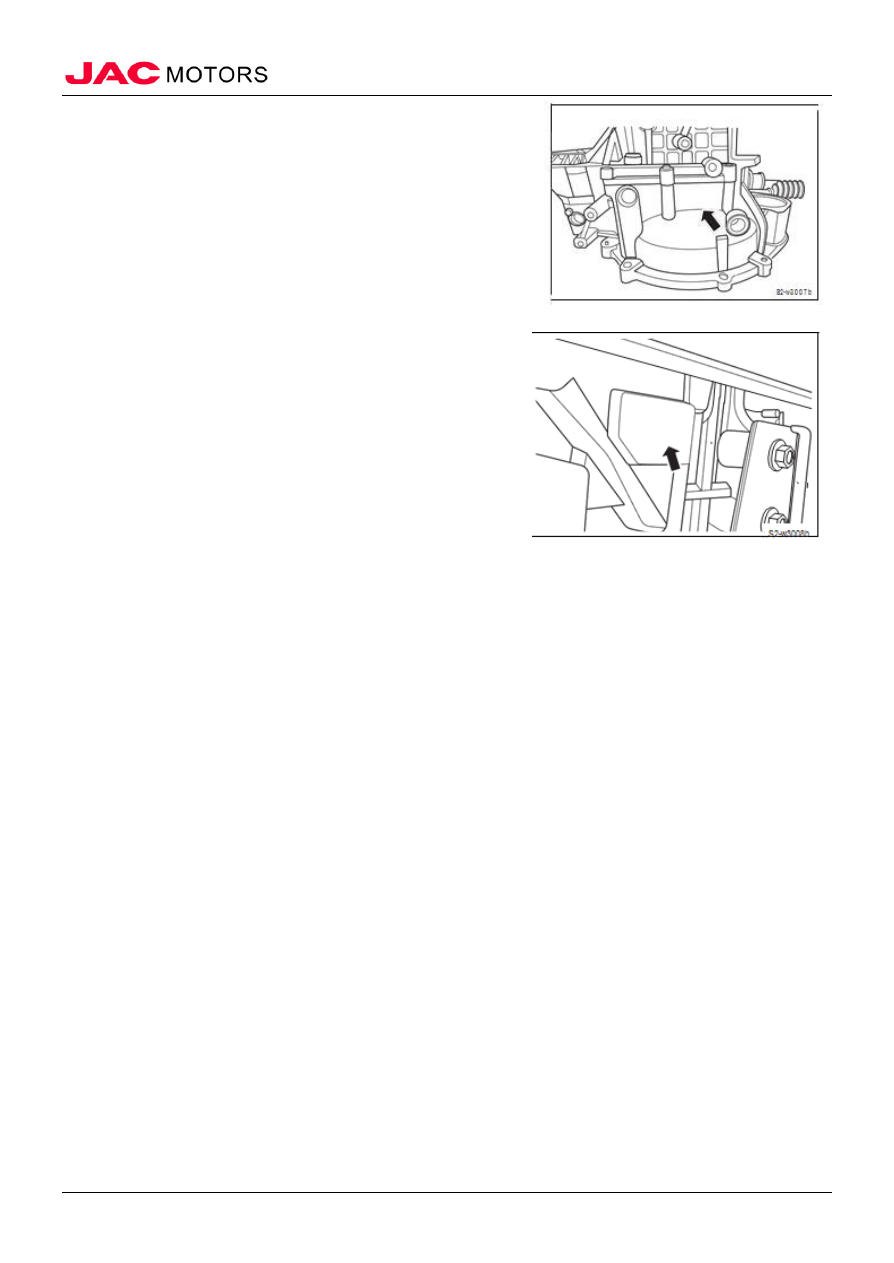

1) The vehicle identification number (VIN) plate is a
statutory marker.

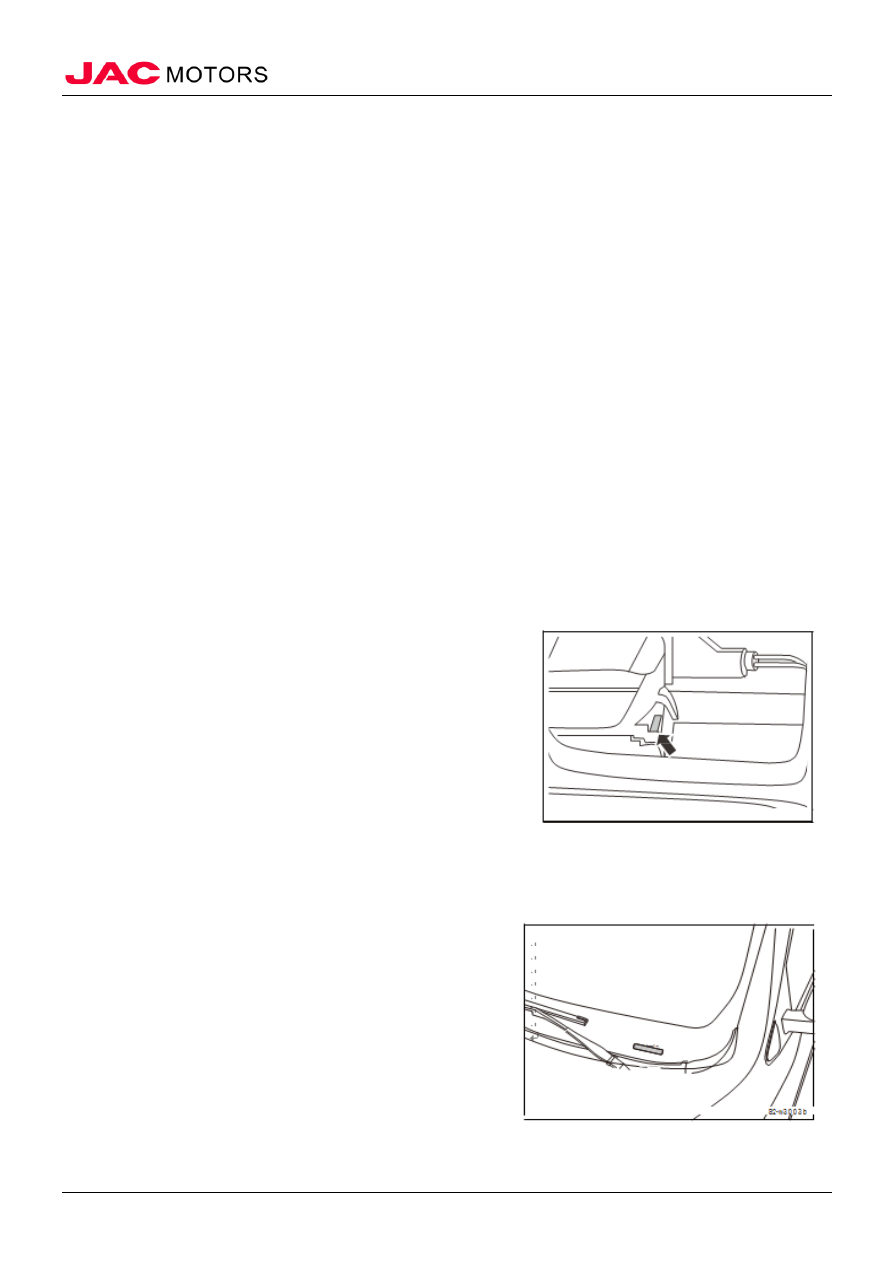

2. Vehicle identification number (VIN) print position

Vehicle identification number (VIN) plate has two

printing positions

1). One position of the vehicle identification number (VIN)
is engraved on the front seat and right side of front
crossbar. Adjust the passenger seat to the back end; open
the carpet under the seat cover to see printed VIN code

2). The other location is in upper left corner of the
instrument panel which can be seen through the front
window outside the vehicle

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Overview

Overview

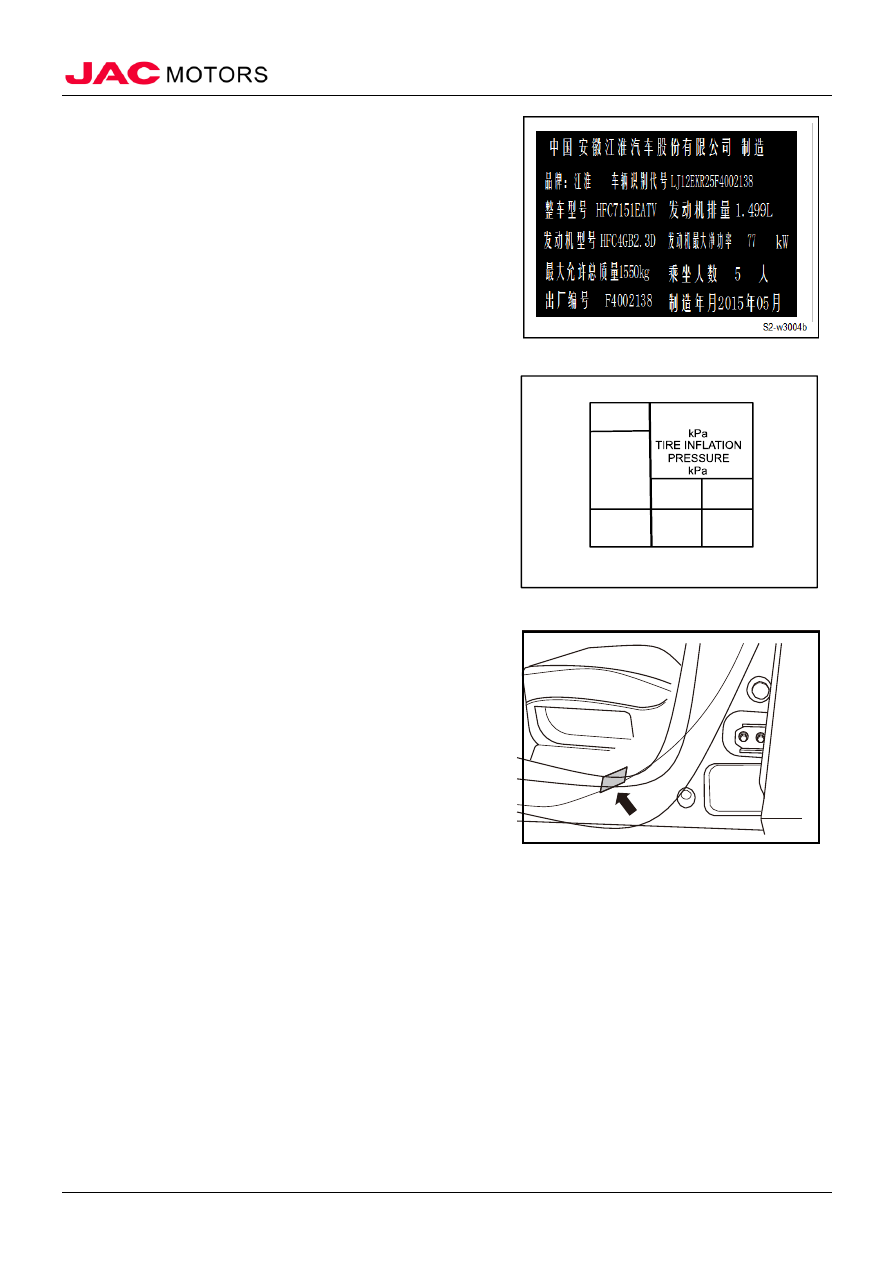

(II) Signs

1. Plate.

1). Plate is located in the front passenger side of the
lower portion of the outer B-pillar.

2) Plate - vehicle compliance certification.

2. Tire information plate

1) There is some basic information about the tire on the
tire information signs.

3. Tire pressure label

1). Tire pressure label affixed to the driver's door side of
the vehicle, the label display the cold tire inflation
pressure and specifications. The recommended cold tire
inflation pressure on the label indicated is the minimum
pressure required to support maximum vehicle load.

轮胎气压标签

轮胎充气压力

轮胎规格

前

轮

FRONT

220

205/55R16 94W

REAR

后

轮

TIRE SIZE

S2-w3005b

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JAC S2 (Chassis). Service Manual - part 2
