Engine JAC HFC4DA1-2C. Manual - part 145





ABS

ABS

ABS

ABS Anti-lock

Anti-lock

Anti-lock

Anti-lock Brake

Brake

Brake

Brake System

System

System

System

101

Removal/Installation

Removal/Installation

Removal/Installation

Removal/Installation

ABS

ABS

ABS

ABS system

system

system

system

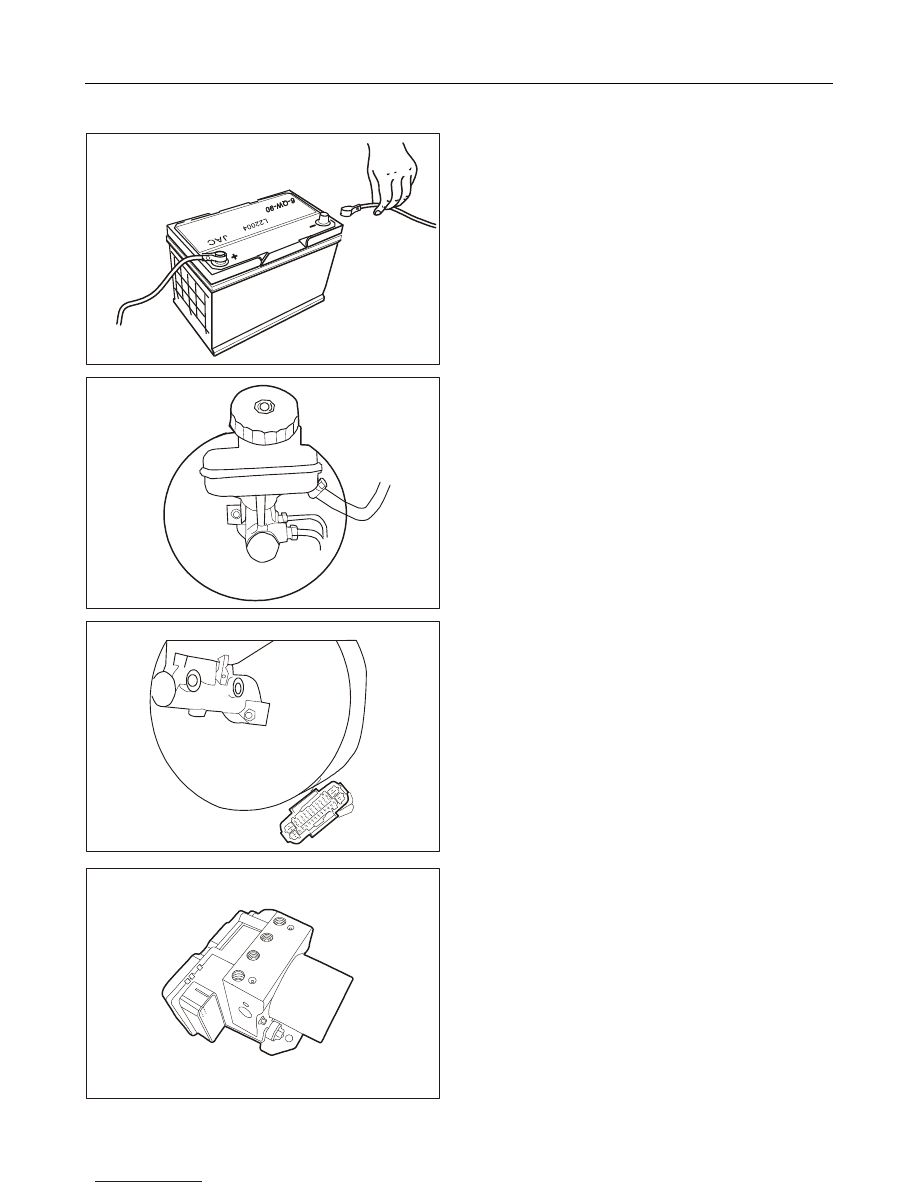

1.

Remove the negative cable of battery.

2.

Drain the brake fluid in the hydraulic brake system
completely.

3.

Loosen the oil pipe of brake master cylinder.

4.

Remove the ABS connector.

5.

Remove the brake fluid pipe from ABS hydraulic
assembly. Wrap the pipe with plastic bag to avoid
dirt. Use clean water to wash the surface that
having brake fluid on it.

6.

Remove the mounting bolts from ABS hydraulic
assembly and then remove the assembly.

ABS

ABS

ABS

ABS Anti-lock

Anti-lock

Anti-lock

Anti-lock Brake

Brake

Brake

Brake System

System

System

System

102

Removal/Installation

Removal/Installation

Removal/Installation

Removal/Installation (Continued)

(Continued)

(Continued)

(Continued)

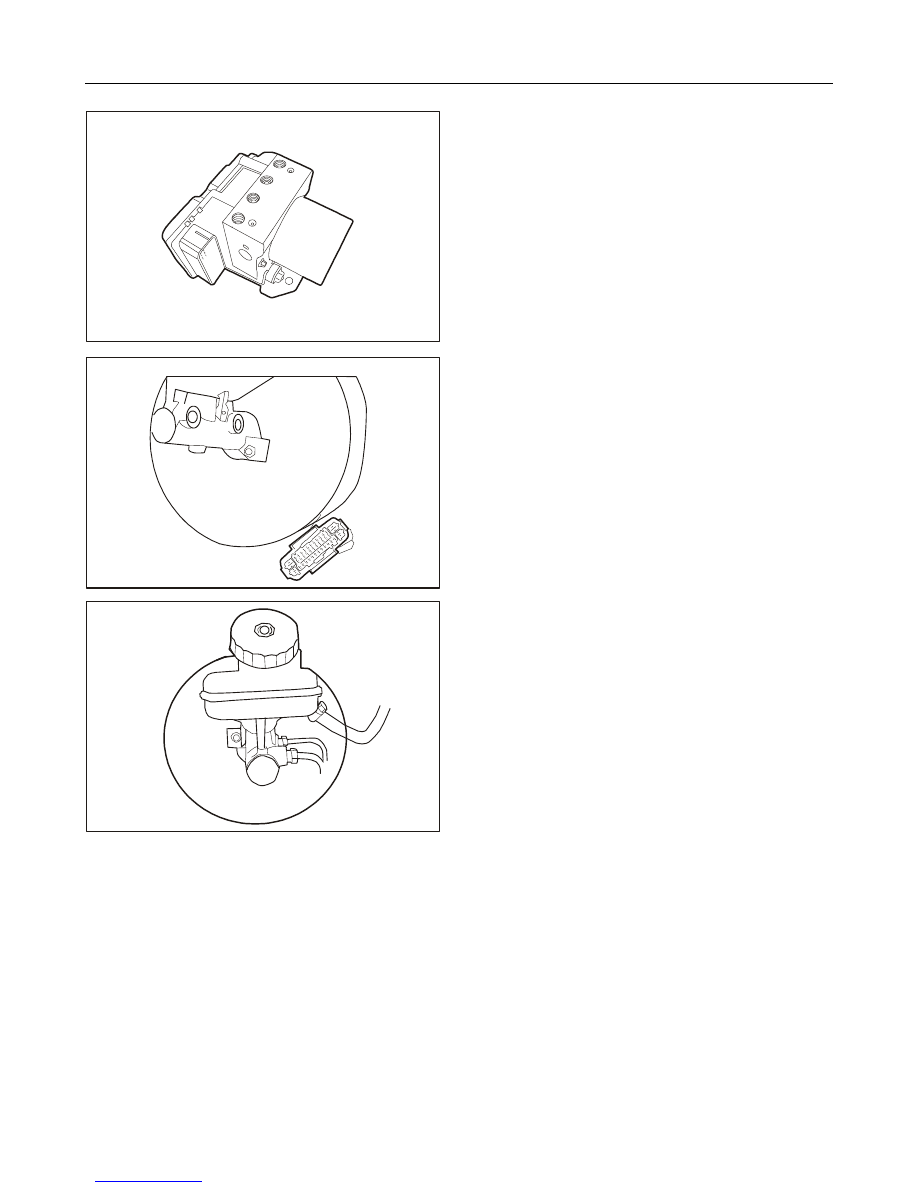

Installation
1.

Clean the surface of ABS hydraulic assembly and
fix the assembly onto bracket with bolts.

2.

Install the brake pipe onto the ABS hydraulic
assembly.

Attention:

Attention:

Attention:

Attention:

As for the installation of aluminum alloy parts, the
brake pipe should be fit in place smoothly by
correct alignment; otherwise, the original part
bodies may be damaged easily.

3.

Insert the ABS plug into relevant socket.

Attention:

Attention:

Attention:

Attention:

The ABS plug should be installed in carefully and

smoothly instead of violently.

4.

Install and fasten the oil pipe of brake master
cylinder.

5.

Fill the reservoir of master cylinder with brake
fluid.

6.

Two persons shall work together to bleed the air in
brake line until pure brake fluid is drained out. Air
bleeding order: left rear, right front, right rear and
left front wheels.

7.

Connect the negative cable of battery.

ABS

ABS

ABS

ABS Anti-lock

Anti-lock

Anti-lock

Anti-lock Brake

Brake

Brake

Brake System

System

System

System

103

Removal/Installation

Removal/Installation

Removal/Installation

Removal/Installation (Continued)

(Continued)

(Continued)

(Continued)

Wheel

Wheel

Wheel

Wheel speed

speed

speed

speed sensor

sensor

sensor

sensor

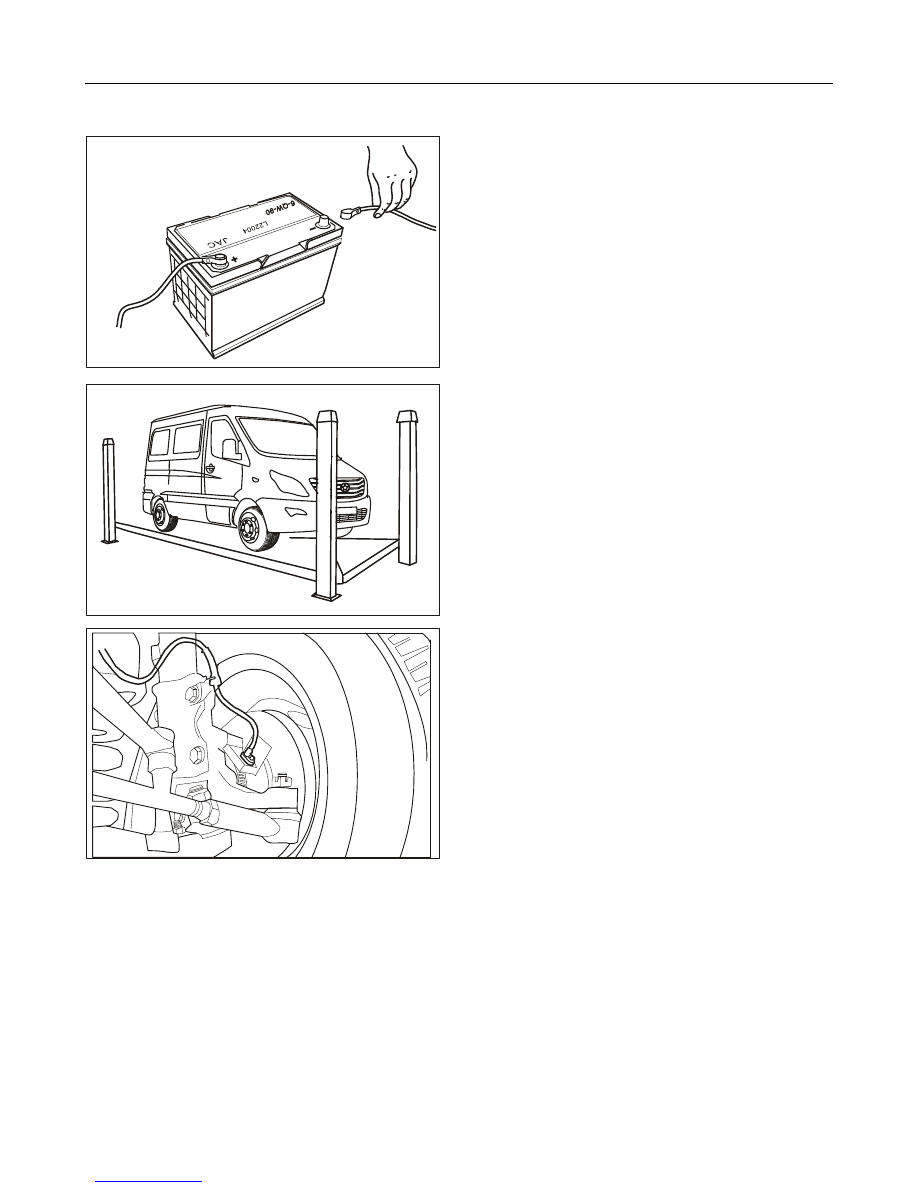

1.

Disconnect the negative cable of battery.

2.

Lift the vehicle.

3.

Disconnect the plug of wheel speed sensor and
remove the harness fixture of sensor.

4.

Remove the mounting bolts from wheel speed
sensor and then remove the sensor.

Installation

1.

Insert the sensor into relevant hole and fix it with
bolt.

2.

Fix the sensor harness and install the harness onto
the plug.

3.

Lower the vehicle.

4.

Connect the negative cable of battery.

TR

TR

TR

TR Transmission

Transmission

Transmission

Transmission Shaft

Shaft

Shaft

Shaft

- 105 -

Transmission

Transmission

Transmission

Transmission Shaft

Shaft

Shaft

Shaft

Applied models: SUNRAY products manufactured by JAC

Subject

Page

Instruction

Instruction

Instruction

Instruction and

and

and

and Operation

Operation

Operation

Operation

Transmission Shaft...................................................................................................................................................... 106

Explosive View of Transmission Shaft.................................................................................................................. 106
Introduction of Transmission Shaft........................................................................................................................ 106

Diagnosis

Diagnosis

Diagnosis

Diagnosis and

and

and

and Testing

Testing

Testing

Testing

Transmission Shaft...................................................................................................................................................... 107

Inspection and Confirmation..................................................................................................................................107
Fault Symptom Table............................................................................................................................................. 108

Removal/Installation

Removal/Installation

Removal/Installation

Removal/Installation

Removal

of Transmission shaft................................................................................................................................. 109

Installation of Transmission shaft................................................................................................................................ 110
