Removal

Removal

Removal

Removal and

and

and

and Installation

Installation

Installation

Installation

Removal

Removal

Removal

Removal of

of

of

of Battery

Battery

Battery

Battery

Warning:

Warning:

Warning:

Warning: In general, explosive gas may be

generated by the battery. In the case of
misconduct of it, it may lead to personal injury.
Therefore, keep the battery out of flames, sparks
or burning objects. In the case of battery
charging or working close to the battery, it is
necessary to protect your face and eyes and
maintain good ventilation. Please follow relevant
instructions or it may lead to personal injury.

Warning:

Warning:

Warning:

Warning: Since there is sulfuric acid in the

battery, the contact of the sulfuric acid with the
skin, eyes or clothes should be avoided. In the
case of working close to the battery, it is
necessary to protect your eyes from being hurt by
the spilled out acid solution. Once the acid
solution comes into contact with skin or eyes, it
is necessary to wash with clean water for 15
minutes at least and go to a doctor immediately.
In the case of mistakenly swallow, it is necessary
to go to a doctor immediately or it may lead to
personal injury.

The

sequence

of

battery

disconnection:

disconnect the negative connecting wire of the
battery and then the positive one.

Warning:

Warning:

Warning:

Warning: In the maintenance of auxiliary

restraint system or fuel system, do not apply the
audio hosting or the storage device of key
password. For the applications of these devices at
this moment, there is still a low current in vehicle
electric

system.

Please

follow

relevant

instructions or it may lead to personal injury.

Notice

Notice

Notice

Notice:::: Prior to battery ground wire removal, it is

necessary to confirm that the engine is stopped in
order to avoid vehicle electric system damage.

Notice:

Notice:

Notice:

Notice: In the case of battery removal mentioned

in

maintenance

manual,

please

follow

the

procedure for the removal.

SC

SC

SC

SC Battery

Battery

Battery

Battery and

and

and

and Charging

Charging

Charging

Charging System

System

System

System

- 15 -

Removal

Removal

Removal

Removal and

and

and

and Installation

Installation

Installation

Installation

Removal

Removal

Removal

Removal of

of

of

of Battery

Battery

Battery

Battery

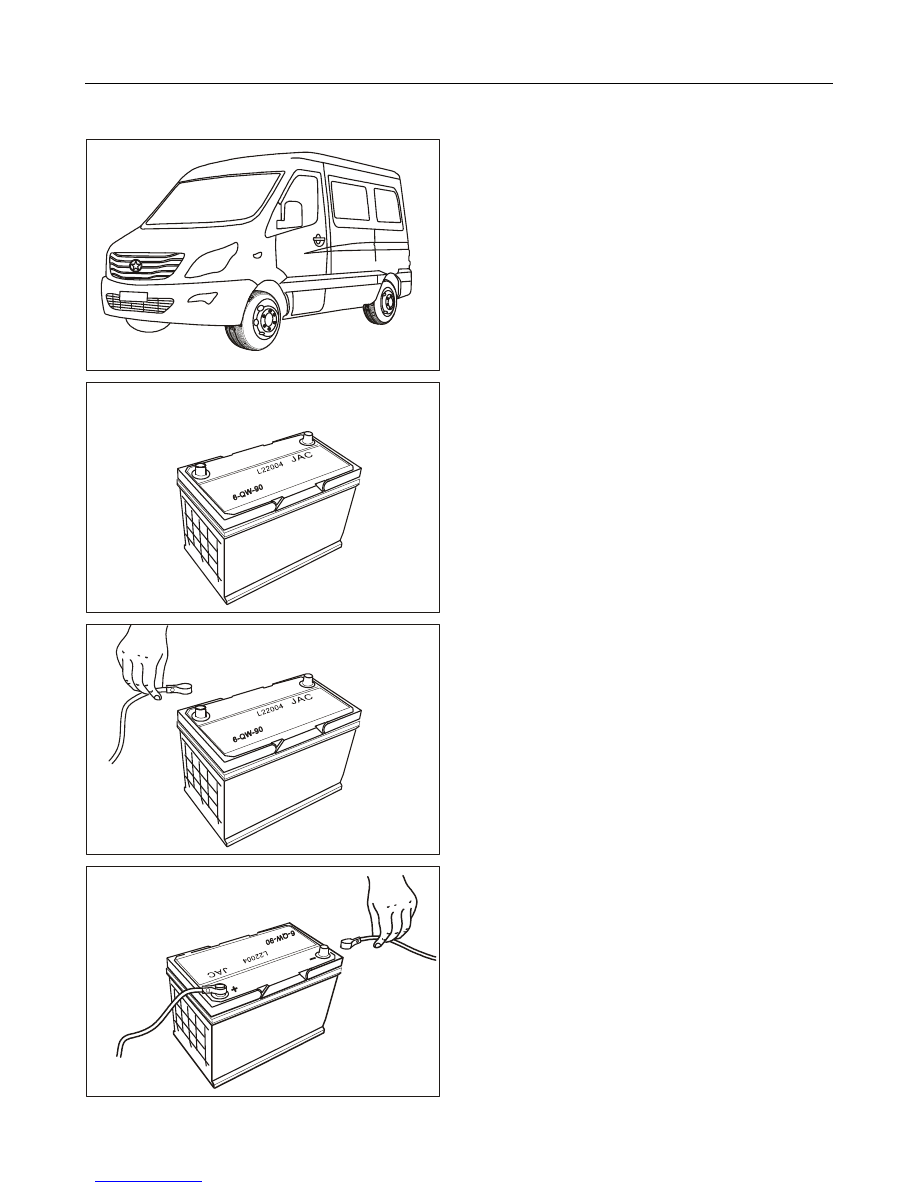

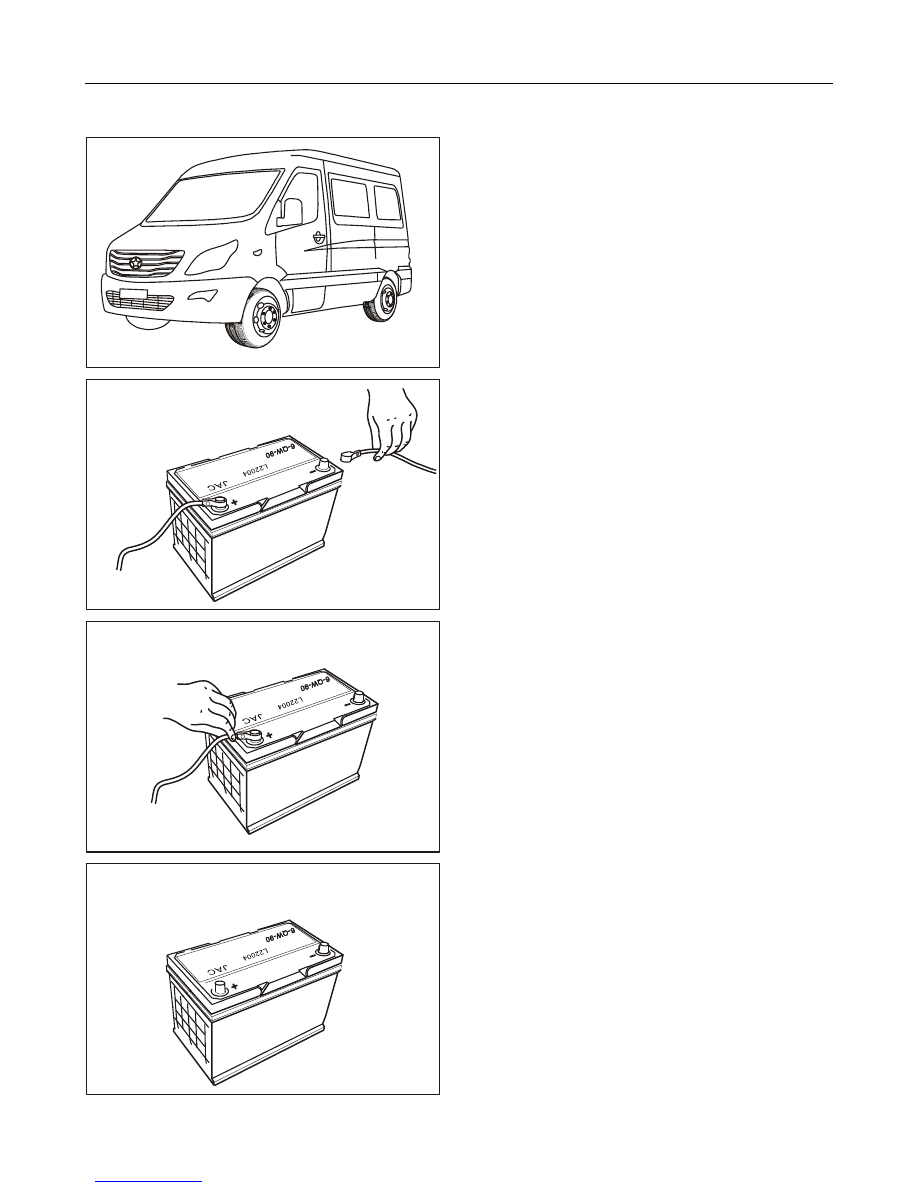

1.

Open the engine hood.

2.

Unscrew mounting bolts of battery negative pole.

Remove the negative connecting wire of

battery.

3.

Unscrew mounting bolts of battery positive pole.

Remove the positive connecting wire of

battery.

4.

Take down the battery from vehicle.

SC

SC

SC

SC Battery

Battery

Battery

Battery and

and

and

and Charging

Charging

Charging

Charging System

System

System

System

- 16 -

Removal

Removal

Removal

Removal and

and

and

and Installation

Installation

Installation

Installation

Installation

Installation

Installation

Installation of

of

of

of Battery

Battery

Battery

Battery

Warning:

Warning:

Warning:

Warning: In general, explosive gas may be

generated by the battery. In the case of
misconduct of it, it may lead to personal injury.
Therefore, keep the battery out of flames, sparks
or burning objects. In the case of battery
charging or working close to the battery, it is
necessary to protect your face and eyes and
maintain good ventilation. Please follow relevant
instructions or it may lead to personal injury.

Caution: Prior to connection of battery ground

wire, it is necessary to confirm that all electric
systems are turned off in order to avoid vehicle
electric system damage.

Do not tilt the battery with an angle over 40°

It is not allowed to place the battery up side down

or place it laterally.

It is not allowed to install the battery with

electric leakage onto the vehicle.

Inspect the transportation tray for battery for the

existence of screws and nuts and remove them in
order to avoid secondary damage of the battery.

The sequence of battery connection: connect the

positive connecting wire of the battery and then
the negative one.

Warning:

Warning:

Warning:

Warning: Since there is sulfuric acid in the

battery, the contact of the sulfuric acid with the
skin, eyes or clothes should be avoided. In the
case of working close to the battery, it is
necessary to protect your eyes from being hurt by
the spilled out acid solution. Once the acid
solution comes into contact with skin or eyes, it
is necessary to wash with clean water for 15
minutes at least and go to a doctor immediately.
In the case of mistakenly swallow, it is necessary
to go to a doctor immediately or it may lead to
personal injury.

Notice: In the case of battery removal mentioned

in

maintenance

manual,

please

follow

the

procedure for the removal.

Prior to battery installation, it is necessary to

confirm that the electric eye is green.

It is not allowed to install the battery with a black

electric eye onto the vehicle.

It is not allowed to knock or twist terminal posts

in battery installation.

In battery installation, make sure that all electric

appliances are “OFF”.

SC

SC

SC

SC Battery

Battery

Battery

Battery and

and

and

and Charging

Charging

Charging

Charging System

System

System

System

- 17 -

Removal

Removal

Removal

Removal and

and

and

and Installation

Installation

Installation

Installation

Installation

Installation

Installation

Installation of

of

of

of Battery

Battery

Battery

Battery

1.

Open the engine hood.

2.

Place the battery on its support plate steady.

3.

Install the positive connecting wire of battery.

Tighten mounting bolts of battery positive

pole.

4.

Install the negative connecting wire of battery.

Tighten

mounting

bolts

of

battery

negative pole.
