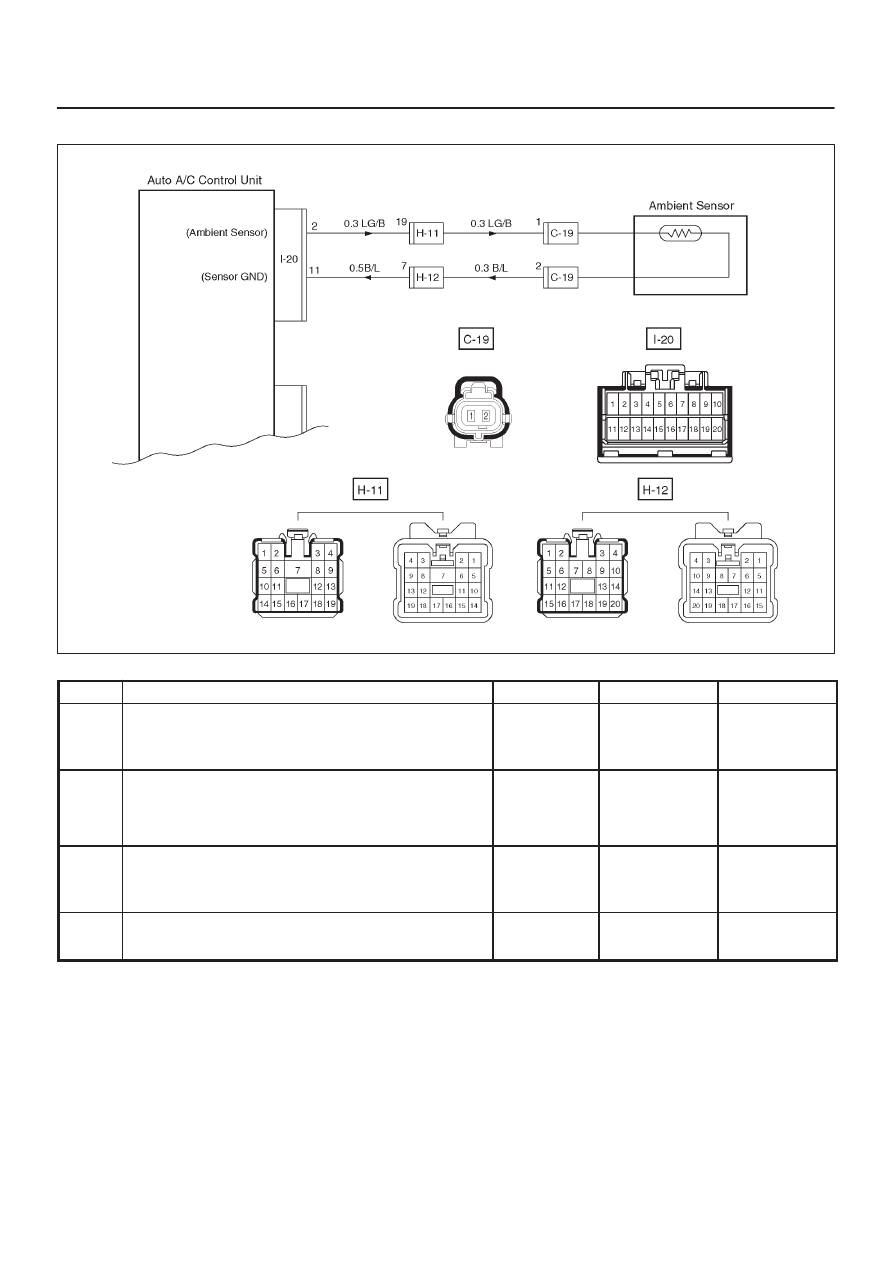

Chart 2: Ambient Sensor

D08R200030

Step

Action

Value(s)

Yes

No

1

Disconnect ambient sensor connector. (No.C–19)

Is performance of the ambient sensor normal? (Refer
to the

later section on “Individual inspection”)

—

Go to

Step 2

Replace the

ambient

sensor

2

Connect the ambient sensor connector.

Is resistance between the harness side connector
No.I20–2 and No.I20–11 normal?

Refer to the

later section

on “Individual

inspection”

Go to

Step 4

Go to

Step 3

3

Repair an open circuit between terminal No.I20–2 and
No.C19–1 or No.I20–11 and No.C19–2.

Is the action complete?

—

Verify repair

—

4

Replace the auto air conditioner control unit.

Is the action complete?

—

Verify repair

—

1A–100 HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

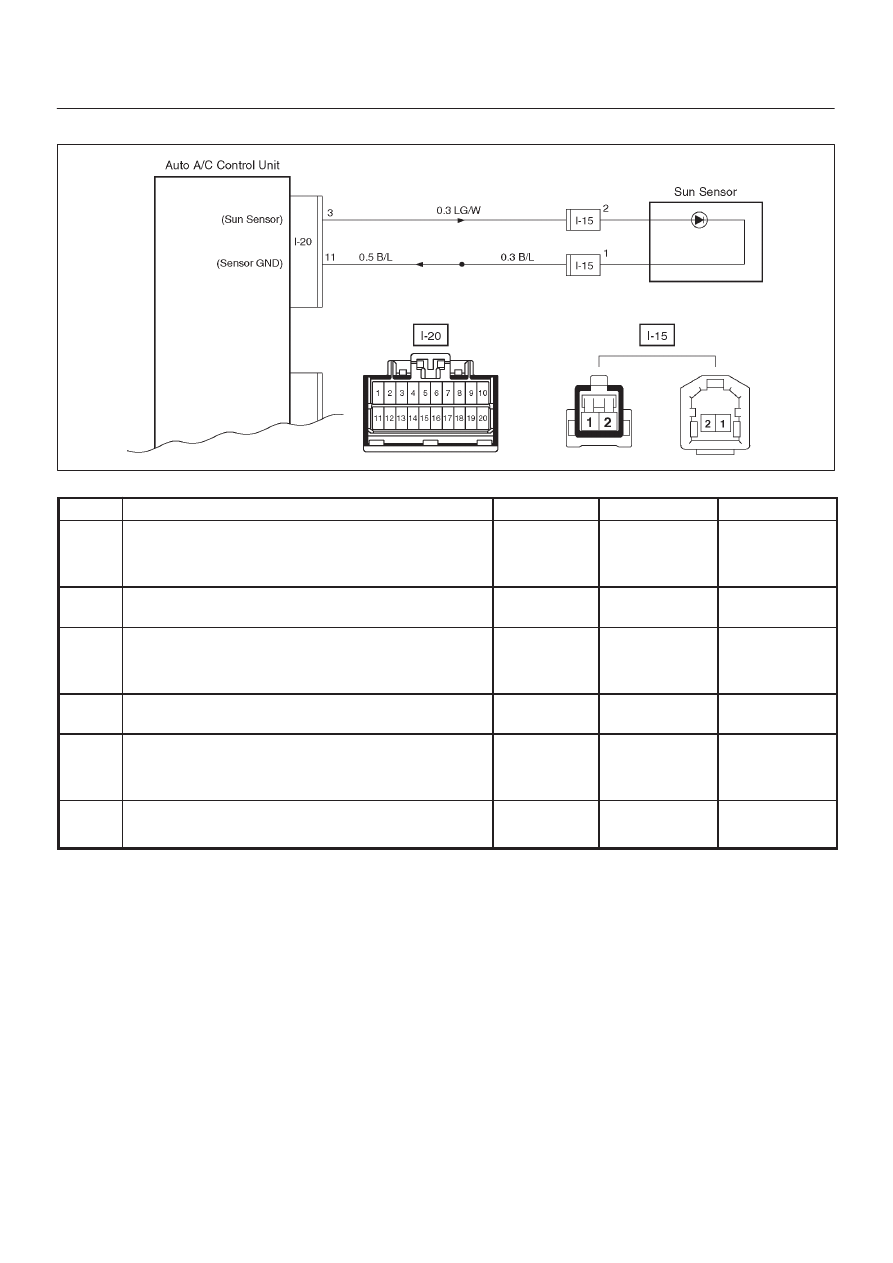

Chart 3: Sun Sensor

D08R200059

Step

Action

Value(s)

Yes

No

1

Disconnect the sun sensor connector. (No.I–15)

Is performance of the sun sensor normal? (Refer to the
later section on individual inspection)

—

Go to

Step 2

Replace the

sun sensor.

2

Is there continuity between the harness side connector
terminal No.I20–3 and No.I15–2?

—

Go to

Step 4

Go to

Step 4

3

Repair an open circuit between terminal No.I20–3 and
No.I15–2.

Is the action complete?

—

Go to

Step 2

—

4

Is there continuity between the harness side connector
terminal No.I20–11 and No.I15–1?

—

Go to

Step 6

Go to

Step 5

5

Repair an open circuit between terminal No.I20–11 and
I15–1.

Is the action complete?

—

Go to

Step 4

—

6

Replace the auto air conditioner control unit.

Is the action complete?

—

Verify repair

—

HEATING, VENTILATION AND AIR CONDITIONING (HVAC) 1A–101

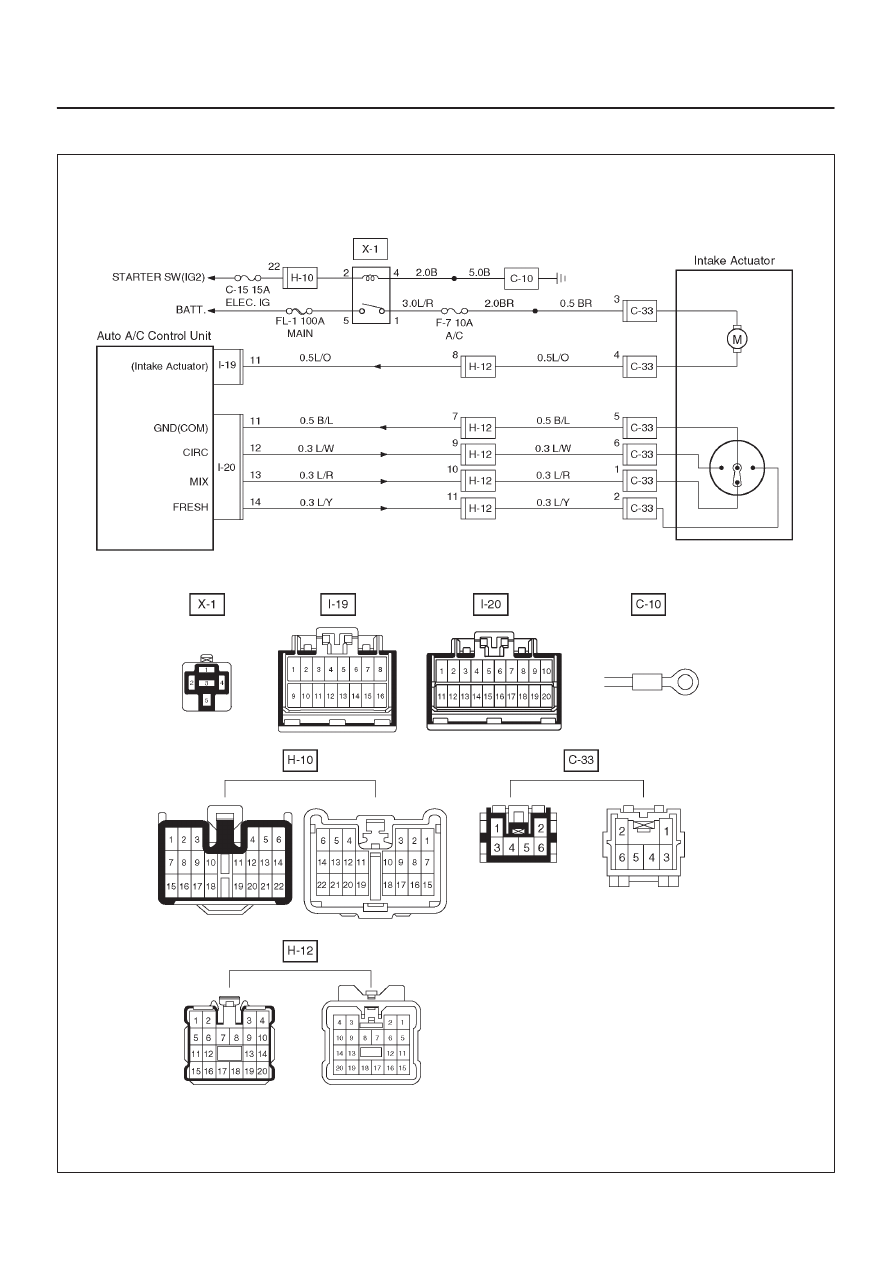

Inspection of the Intake Actuator System

D08R200060

1A–102 HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

Condition

Possible cause

Correction

Does not work at all

—

Refer to

Chart A

Control failure

—

Refer to

Chart B

Chart A: Does Not Work At All

Step

Action

Value(s)

Yes

No

1

Is the fuse FL–1 normal?

—

Go to

Step 2

Replace the

fuse

2

Is the fuse F–7 normal?

—

Go to

Step 3

Replace the

fuse

3

Is the relay X–1 normal?

—

Go to

Step 4

Replace the

relay

4

Turn on the ignition switch. (the engine is run.)

Is the battery voltage applied between the harness side
connector terminal No.C33–3 and ground?

Approx 12V

Go to

Step 6

Go to

Step 5

5

Repair an open circuit between terminal No.C33–3 and
No.X1–1.

Is the action complete?

—

Go to

Step 4

—

6

Is the battery voltage applied between the harness side
connector terminal No.C33–4 and ground?

Approx 12V

Go to

Step 8

Go to

Step 7

7

Replace the intake actuator motor.

Is the action complete?

—

Go to

Step 6

—

8

Is there continuity between the harness side connector
terminal No.I19–11 and No.C33–4?

—

Go to

Step 10

Go to

Step 9

9

Repair an open circuit between No.I19–11 and C33–4.

Is the action complete?

—

Verify repair

—

10

Replace the auto air conditioner control unit.

Is the action complete?

—

Verify repair

—
