8D–46
WIRING SYSTEM

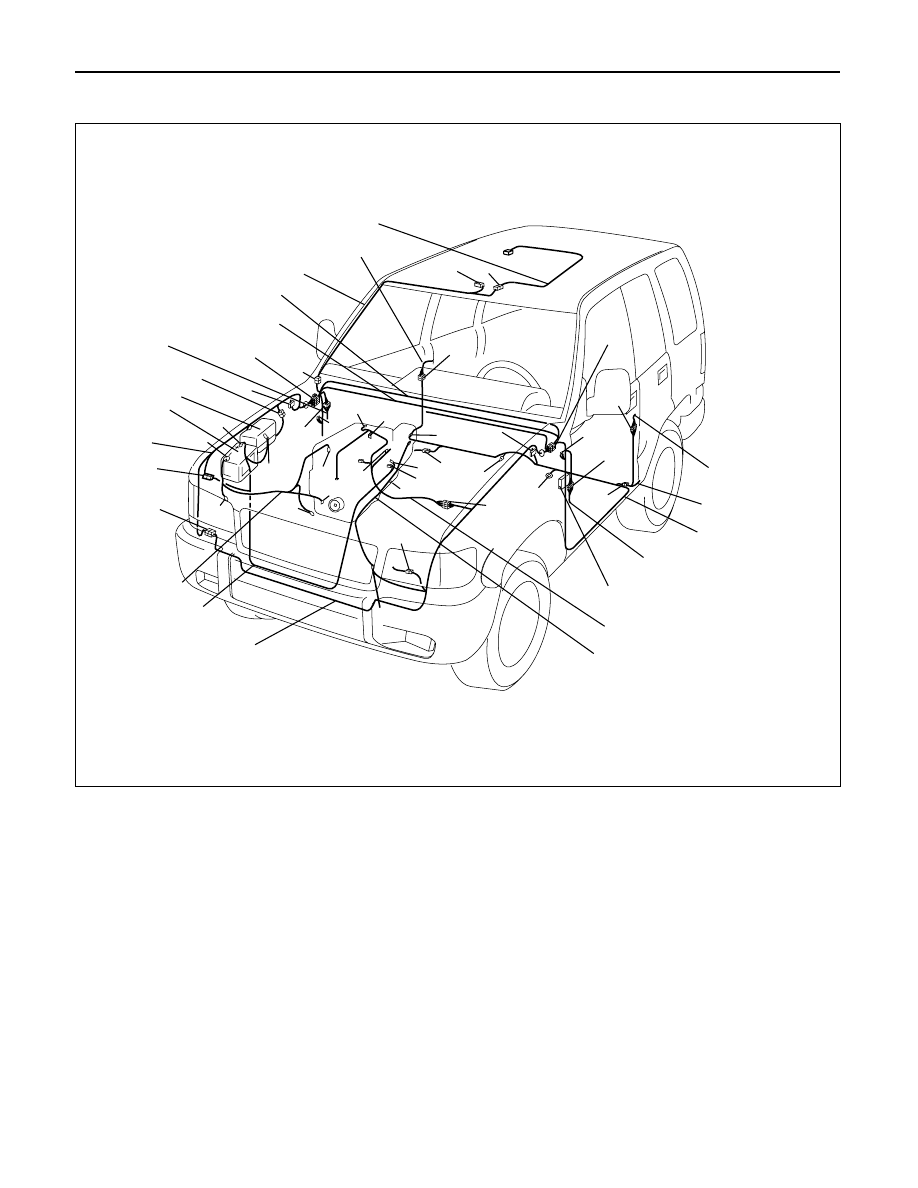

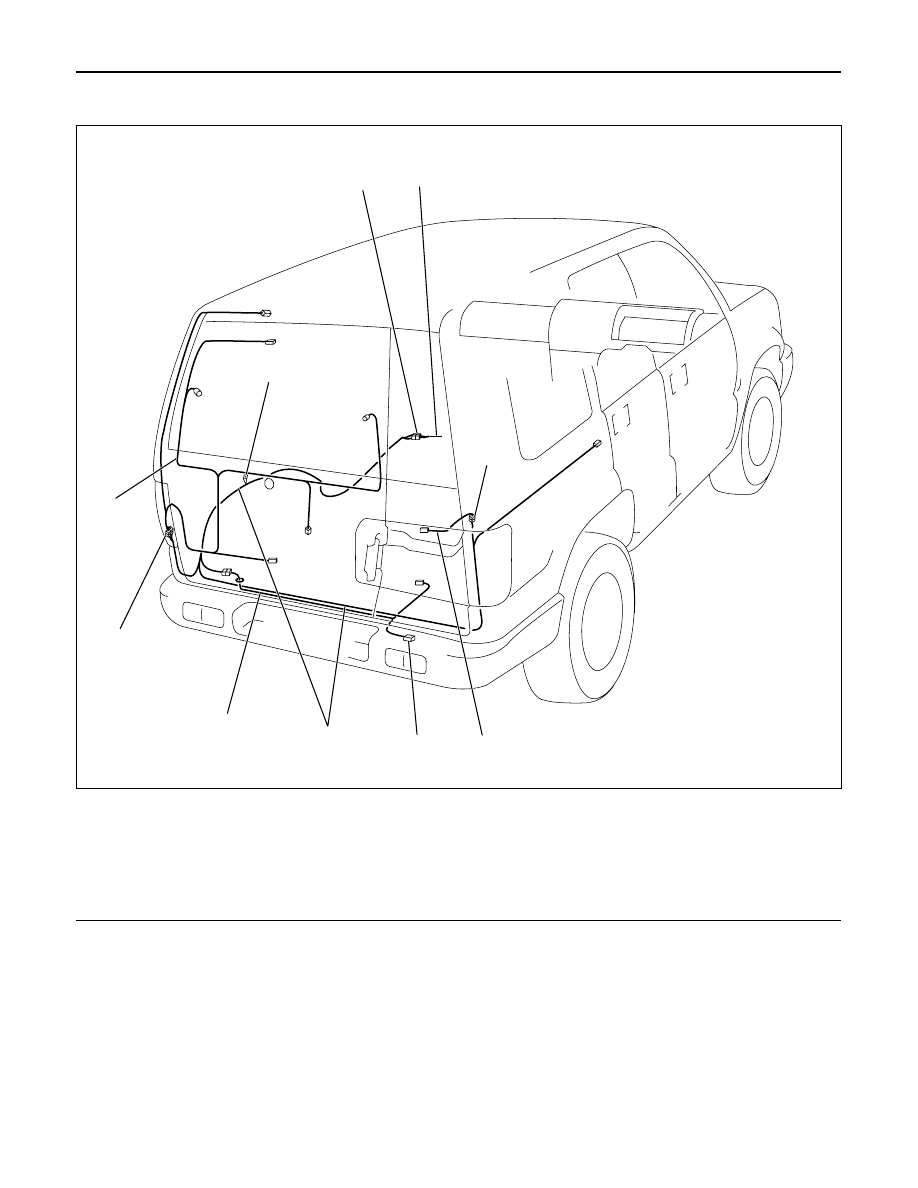

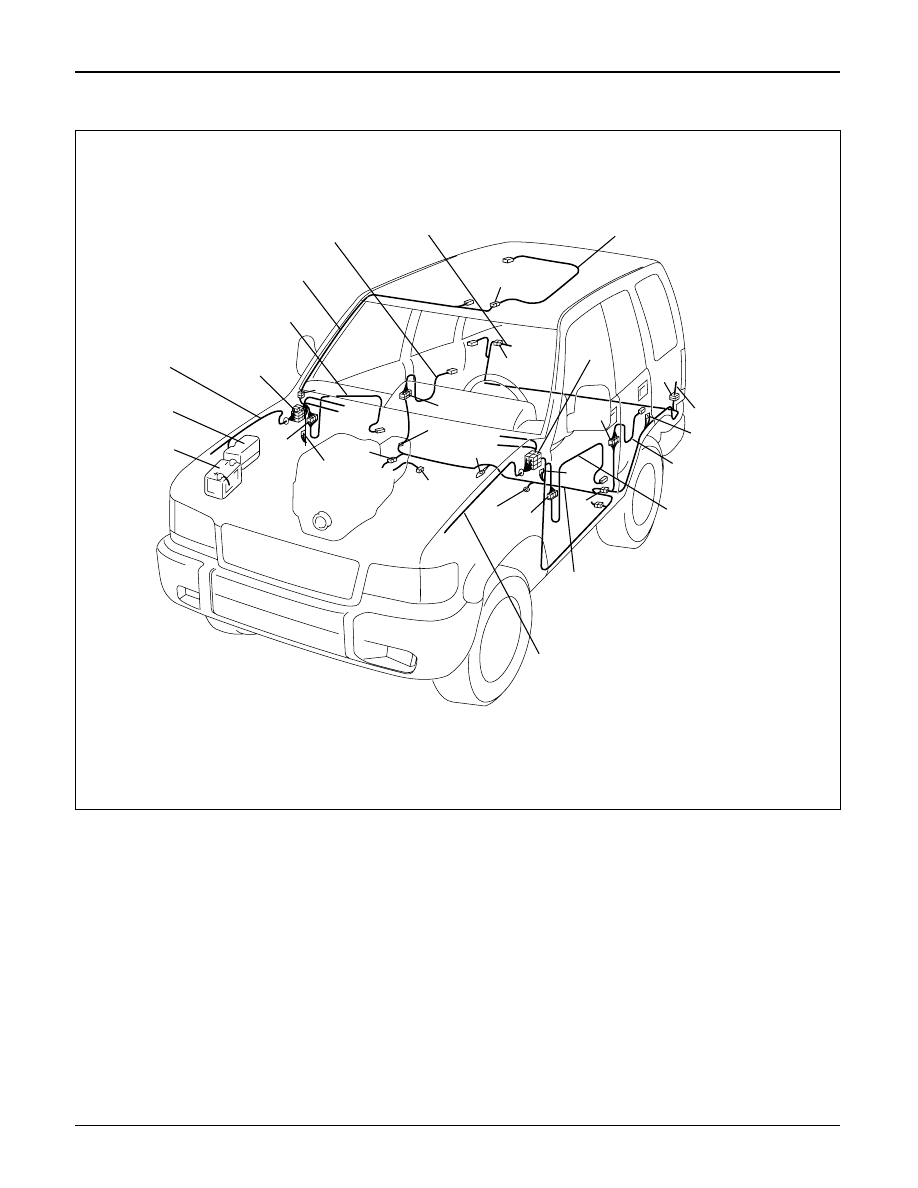

Cable Harness Routing (RHD) – 3
2
1
10
3
4
5
7
8
9
6
D08RWA33
Legend
(1) H-31, H-32, H-46(2) Body Harness(3) H-39(4) Tail Gate Harness (RH)(5) H-44
(6) RR Body Harness(7) Chassis Harness(8) H-37, H-38(9) Tail Gate Harness (LH)
(10) R-3, R-4
