8D–38
WIRING SYSTEM

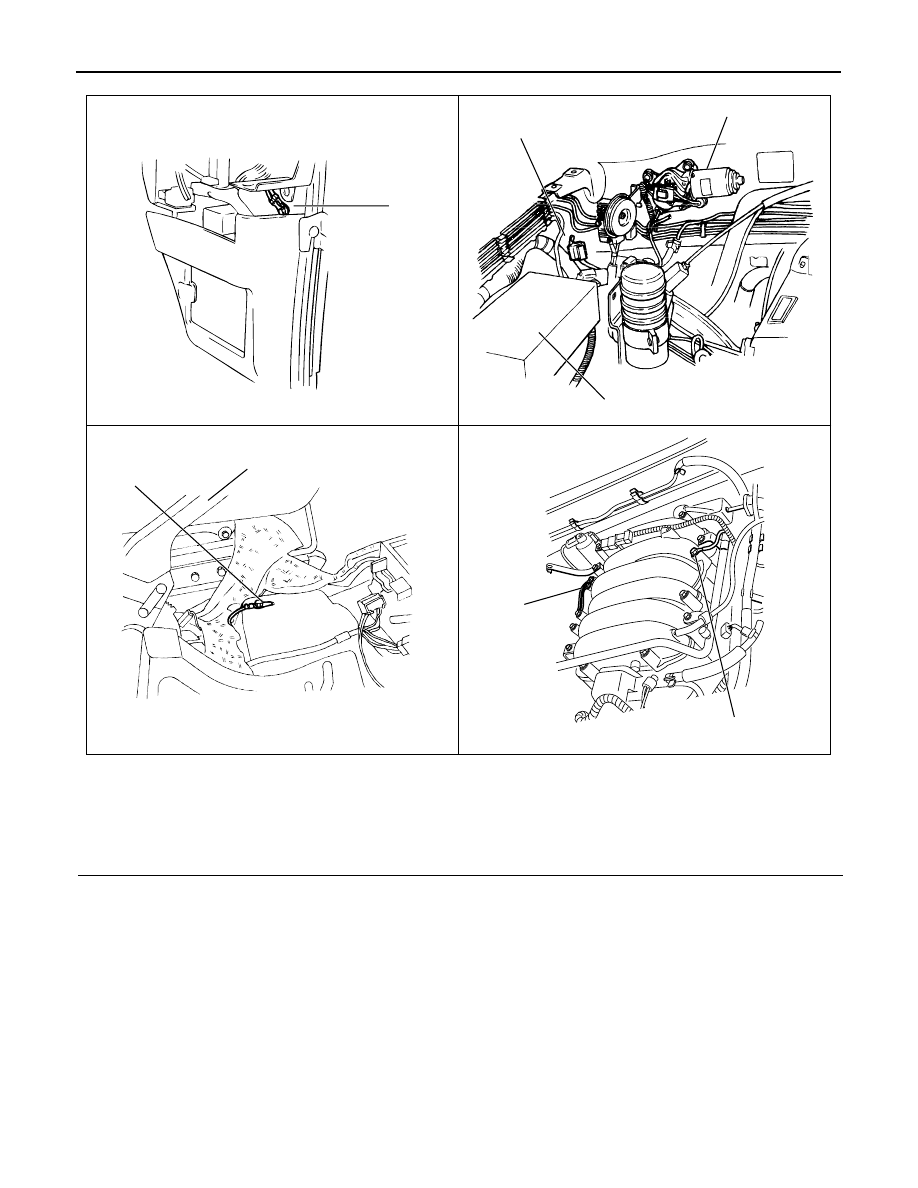

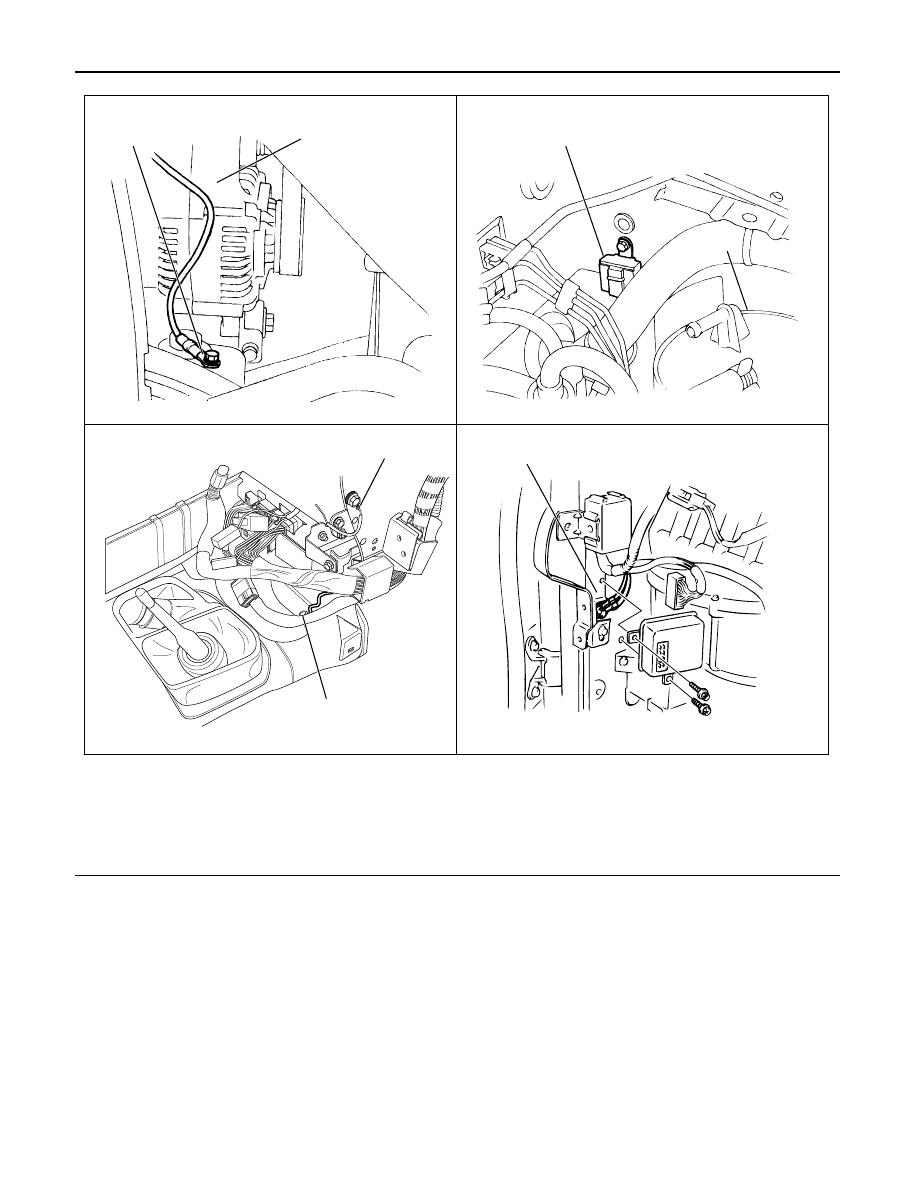

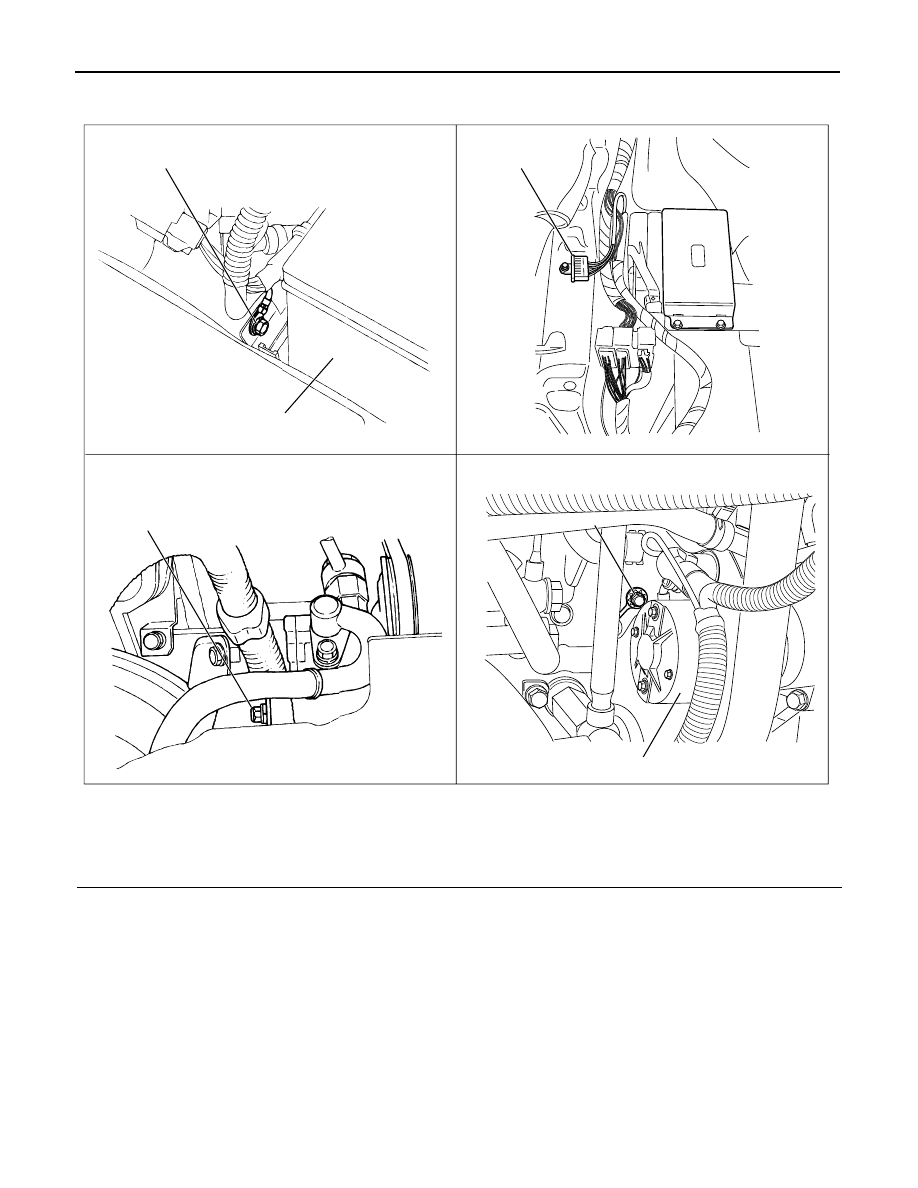

Connector No.
Cable harness
Location
Parts (Load)
C-39
Windshield washer motor, Headlight-LH,
Side turn signal light (RH)
1
C-39
Windshield wiper motor
2
C-39
FRT fog light relay, Charge relay,
Headlight-LH
4
C-39
Meter, Vehicle speed sensor (Meter),
Fuel tank unit
6
Engine room
harness
Fender-RH
R-3
RR washer motor, Rear wiper motor, Luggage
room light, RR defogger, Tailgate key SW,
Tailgate lock actuator-LH, RR door lock
actuator-LH, RR power window SW-LH, High
mount stoplight
R-4
Taillight, Stoplight, RR turn signal light,
License plate light, Backup light
Rear body
harness
Body-RR
C-39
Condenser fan (Saudi Arabia)
5
C-39
Windshield intermittent relay
3
C-39
Headlight-RH, Tacho sensor
7
C-39
Headlight wiper timer, High-beam indicator
light, Vehicle speed sensor
8
I-39
Audio
Instrument
harness
Body-FRT
C-85
EBCM
Body-FRT
