Isuzu Trooper (1998-2002 year). Manual - part 796

TRANSMISSION CONTROL SYSTEM (4L30–E)

7A1–93

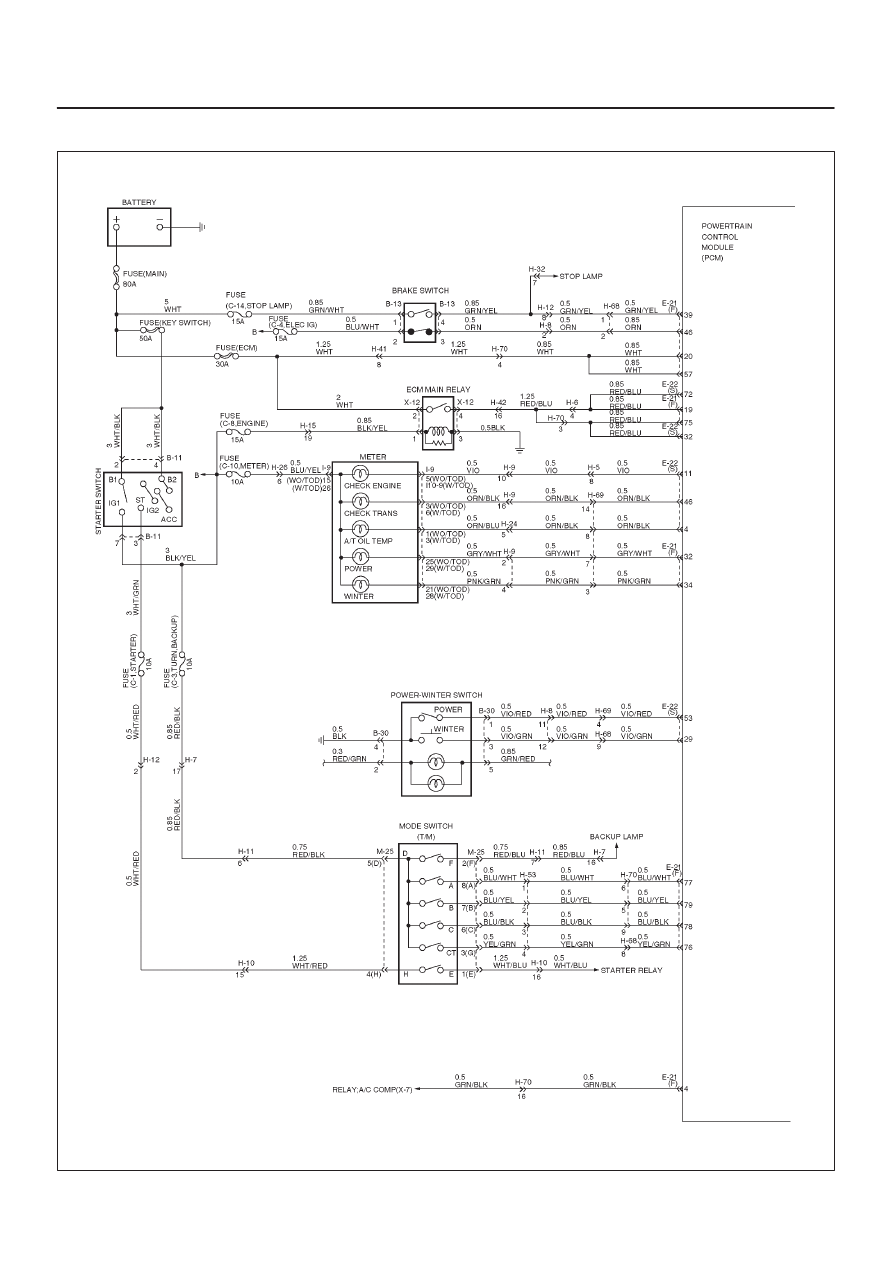

Circuit Diagram (RHD)

D07R200039

7A1–94 TRANSMISSION CONTROL SYSTEM (4L30–E)

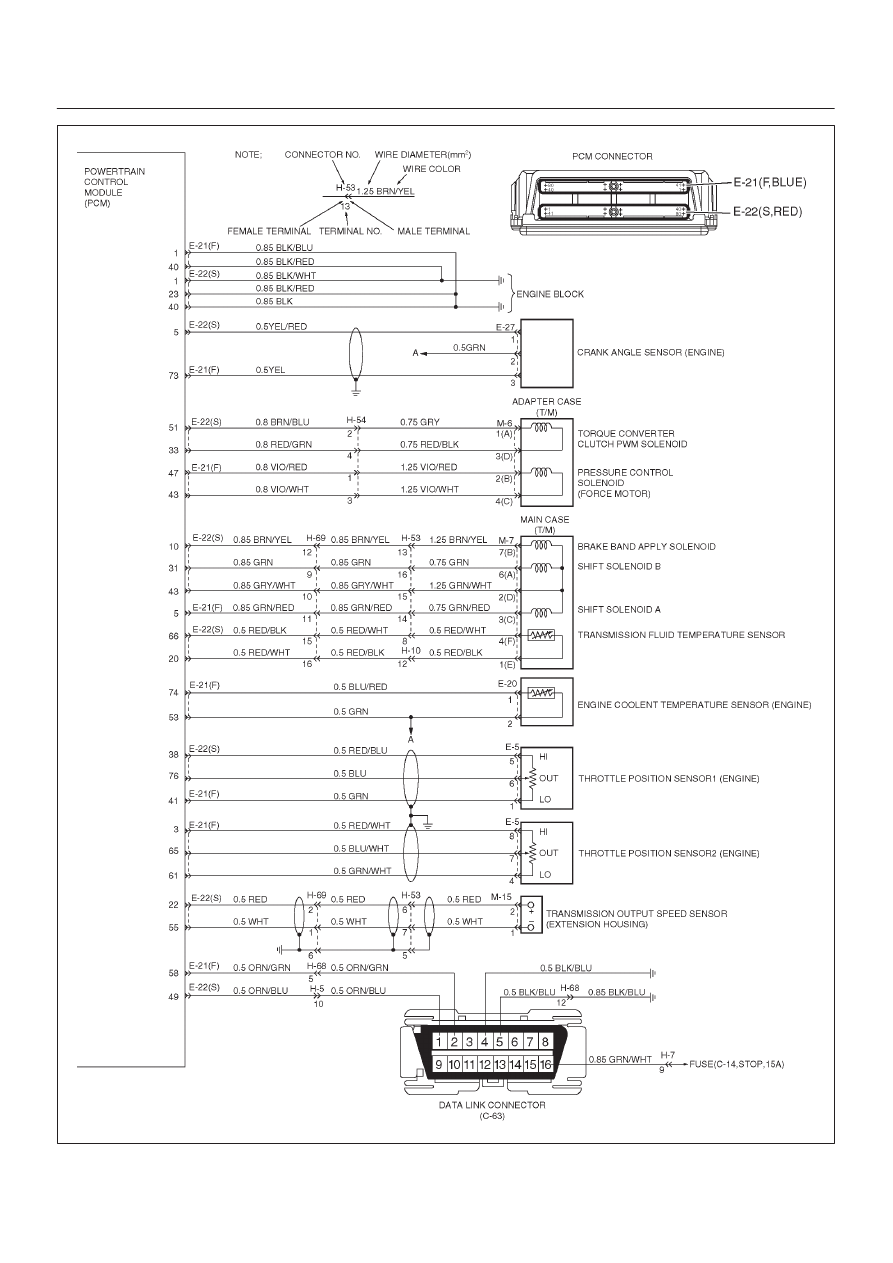

D07R200040

TRANSMISSION CONTROL SYSTEM (4L30–E)

7A1–95

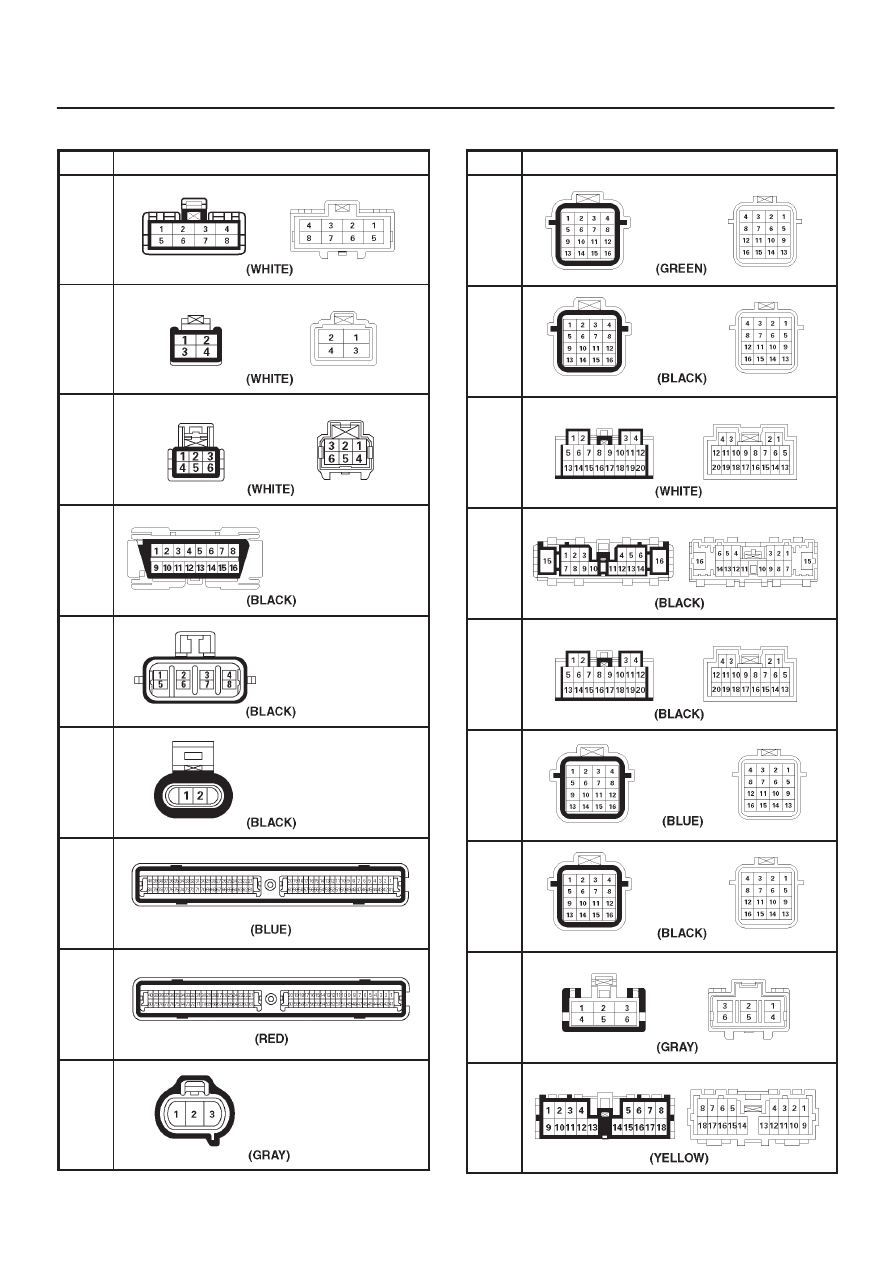

Harness Connector Faces (LHD)

No.

Connector face

B-11

B-13

B-30

C-63

E-5

E-20

E-21

(F)

E-22

(S)

E-27

No.

Connector face

H-5

H-6

H-7

H-8

H-9

H-10

H-11

H-13

H-24

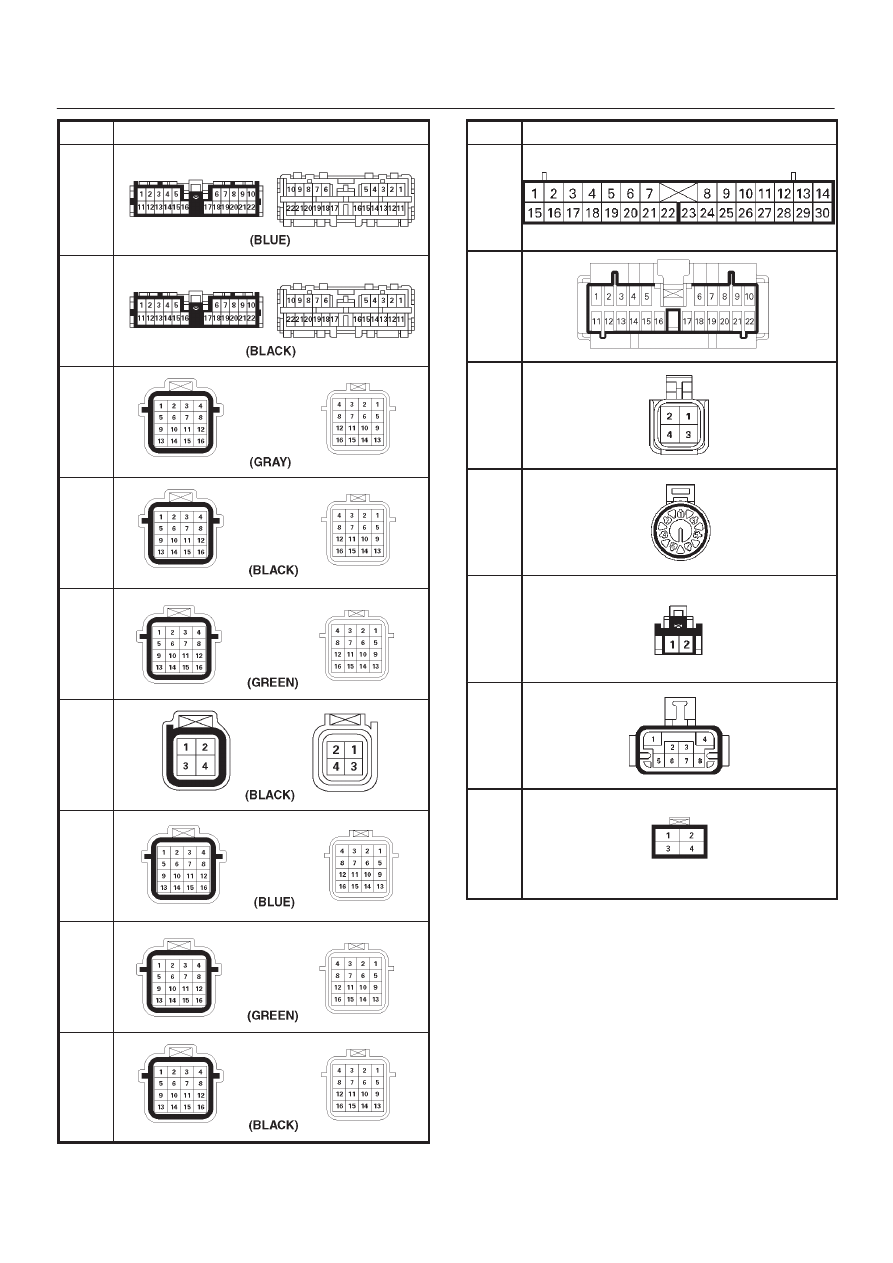

7A1–96 TRANSMISSION CONTROL SYSTEM (4L30–E)

No.

Connector face

H-25

H-32

H-41

H-42

H-53

H-54

H-68

H-69

H-70

No.

Connector face

I-9

I-10

M-6

M-7

M-15

M-25

X-12
