6F – 6 ENGINE EXHAUST

EXHAUST SILENCER

REMOVAL

1. Battery negative cable.
2. Raise the vehicle and support with suitable safety

stands.

3. Remove mounting rubber from silencer.
4. Remove silencer mounting bracket.
5. Remove fixing nuts between center exhaust pipe

and silencer.

6. Remove fixing nuts from tail pipe flange.
7. Remove silencer assembly.

INSTALLATION

1. Place silencer assembly in the original installation

position, tighten both side (front and rear) nuts
temporarily.

2. Tighten silencer mounting bracket to the specified

torque.

Torque : 16 N·m (1.6 kg·m/12 lb ft)

3. Tighten center exhaust pipe side nuts to the

specified torque.

Torque : 43 N·m (4.4 kg·m/32 lb ft)

4. Tighten tail pipe side nuts to the specified torque.

Torque : 43 N·m (4.4 kg·m/32 lb ft)

5. Install silencer mounting rubber.

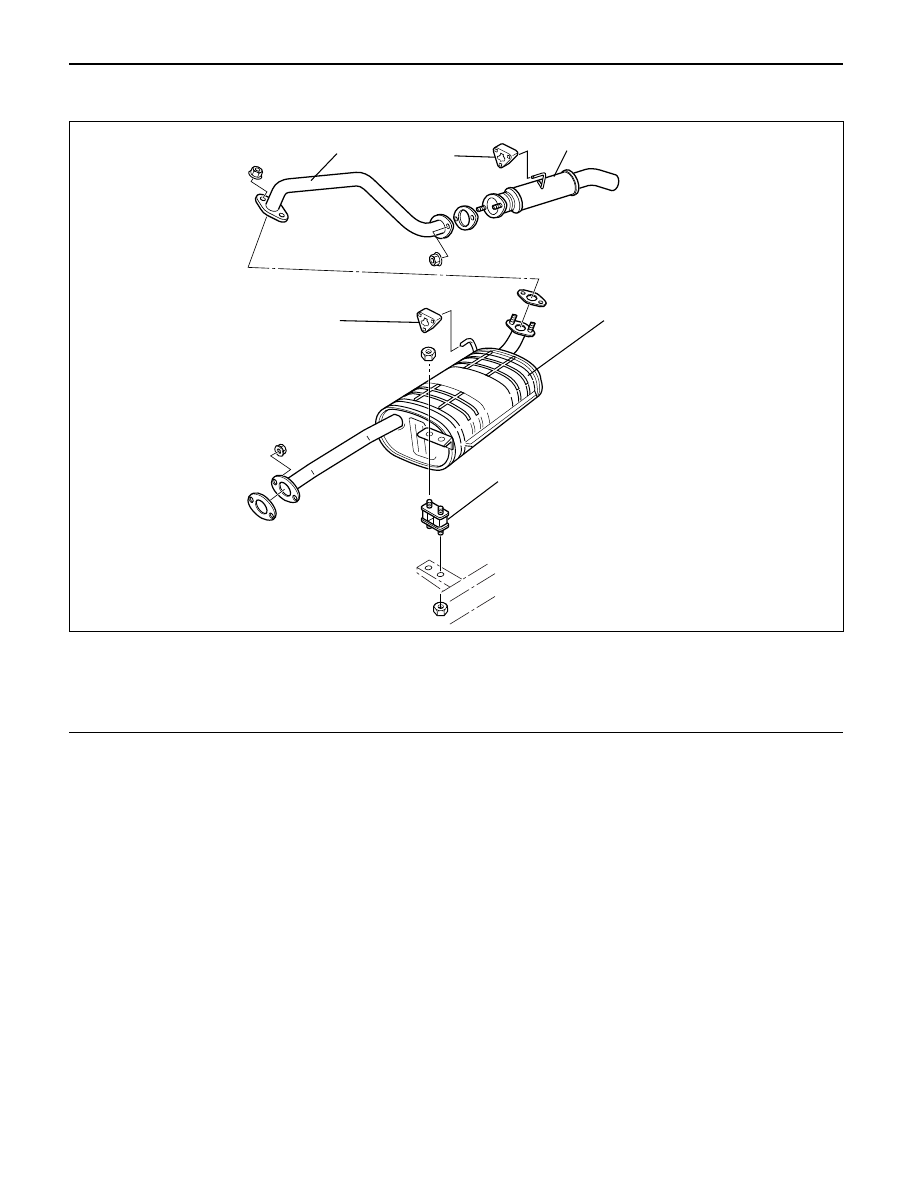

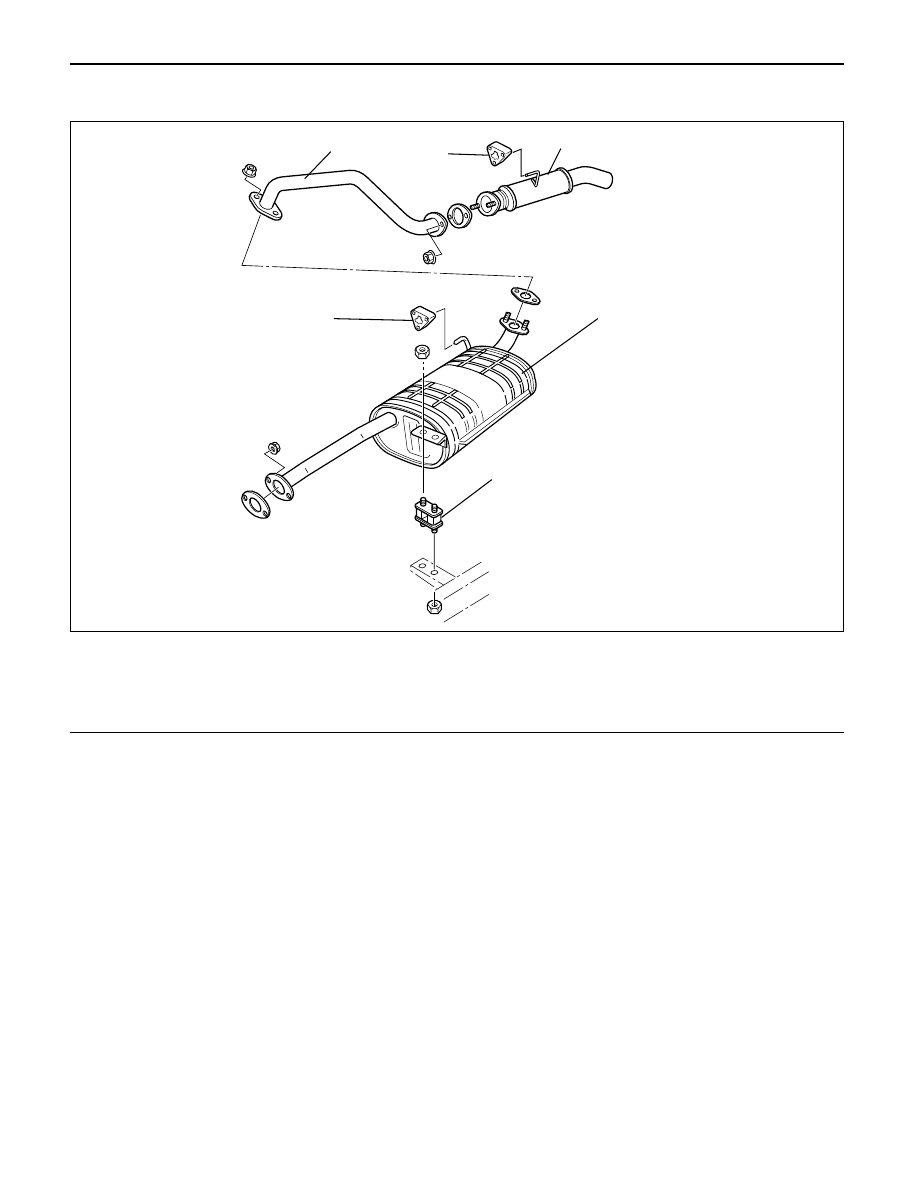

6

3

4

2

1

5

Legend

(1)

Mounting Rubber

(2)

Post Silencer

(3)

Silencer

(4)

Mounting Bracket

(5)

Mounting Rubber

(6)

Tail Pipe

150RW072

ENGINE EXHAUST  6F – 7

REAR EXHAUST PIPE

REMOVAL

1. Battery negative cable.
2. Raise the vehicle and support with suitable safety

stands.

3. Remove mounting rubber from post silencer.
4. Remove fixing nuts at silencer side.
5. Remove tail pipe together with post silencer.
6. Remove fixing nuts between tail pipe and post

silencer which separates them.

INSTALLATION

1. Install tail pipe and post silencer and tighten them to

the specified torque.

Torque : 43 N·m (4.4 kg·m/32 lb ft)

2. Place tail pipe together with post silencer to original

position and tighten fixing nuts at silencer side.

Torque : 43 N·m (4.4 kg·m/32 lb ft)

3. Install mounting rubber for post silencer.
4. Lower the vehicle.
5. Reconnect battery negative cable.

6

3

4

2

1

5

Legend

(1)

Mounting Rubber

(2)

Post Silencer

(3)

Silencer

(4)

Mounting Bracket

(5)

Mounting Rubber

(6)

Tail Pipe

150RW072

MEMO

ENGINE LUBRICATION  6G – 1

ENGINE LUBRICATION

CONTENTS

General Description . . . . . . . . . . . . . . . . . .

6G–2

Lubrication Chart . . . . . . . . . . . . . . . . . .

6G–2

Oil Flow . . . . . . . . . . . . . . . . . . . . . . . . .

6G–3

Oil Pump Specification . . . . . . . . . . . . . .

6G–3

Oil Filter Specification . . . . . . . . . . . . . . .

6G–3

Sub Oil Filter Specification . . . . . . . . . . .

6G–4

Oil Pump  . . . . . . . . . . . . . . . . . . . . . . . . . .

6G–5

Oil Cooler Assembly . . . . . . . . . . . . . . . . . .

6G–6

Oil Cooler Specification . . . . . . . . . . . . . .

6G–6

Oil Filter . . . . . . . . . . . . . . . . . . . . . . . . . . .

6G–6

Sub Oil Filter  . . . . . . . . . . . . . . . . . . . . .

6G–6
